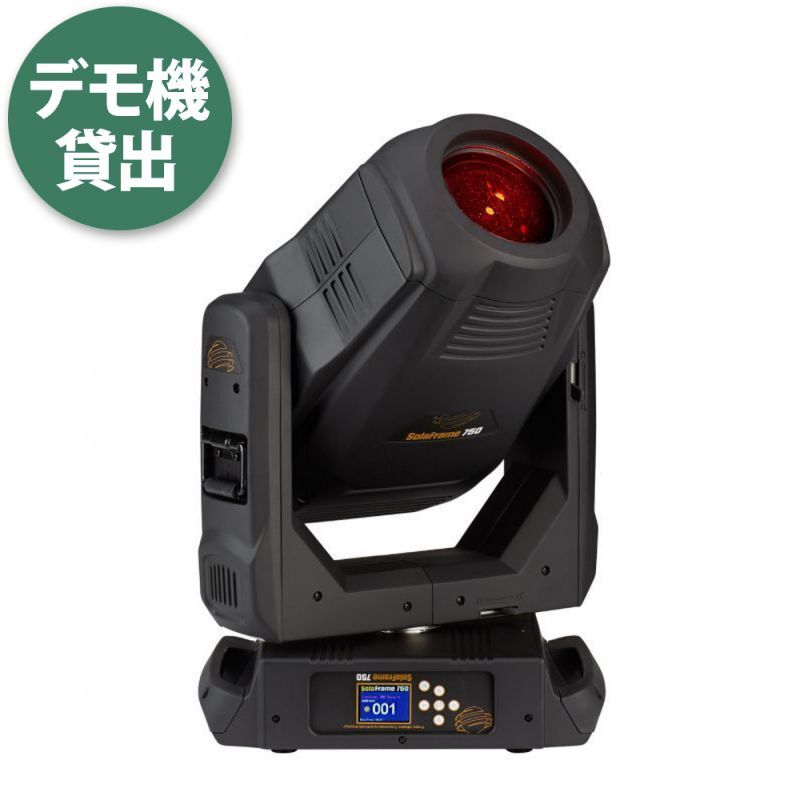

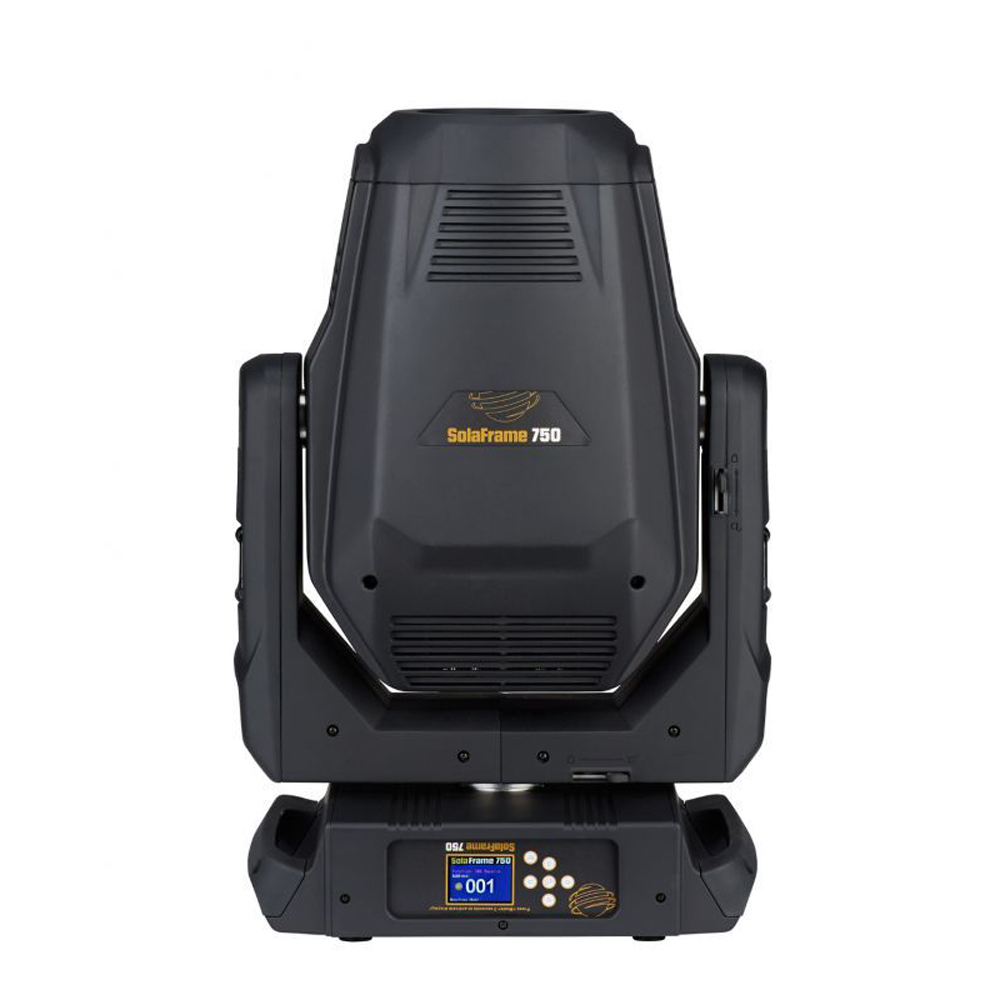

High End Systems SolaFrame750 UB（ソラフレーム 750） [2560A1200-B]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

Featuring a small footprint but a huge feature set, SolaFrame 750 is a perfect fit for small to medium-sized venues, and its
11,300 lumens can easily cut through the competition. The most compact framing fixture in the Sola Series family of automated tools, SolaFrame 750 is available in Ultra-Bright and High CRI versions and offers the widest array of effects currently available
in a fixture of its size.

特徴

・Small footprint, powerful output
・Four full-curtain framing shutters
・6°–50° zoom
・Rotating gobo wheel with Interchangeable Gobos
・Fully continuous animation wheel
・CMY/CTO-Linear color mixing
・Replaceable color wheel
・Iris
・Three-facet prism
・Frost
・Three active cooling modes
・Patented lens defogger
・ArtNet, DMX, and sACN control with patented internal data conversion

■Source
・Engine Options Ultra-bright white engine
・LED Wattage 270 W
・Max Lumens 11,300 lumens
・LPW 42 lumens per watt
・LED Life 50,000 hours
・Native CCT 7000 K
・Transferable Light Engine Yes

■Color
・Color Mixing Cyan, Magenta, Yellow, CTO- Linear
・Color Temperature Vairable down to 2800 K
・Color Wheel Seven (7) interchangeable dichroic chips plus open
・Notes See page 4 for color rendering Information

■Optical
・Zoom Range 6°–50°
・Gate Size 22 mm
・Pattern Projection Rotating and indexable wheel with seven (7) patterns plus open
・Prism Three-facet rotating prism
・Frost Light frost
・Additional accessories available
・Flicker Control/Hz Range 2.4 kHz or 16 kHz
・Animation Rotating animation wheel
・Iris 16 Blade Iris
・Framing Four-plane, full-curtain framing system with 90° module rotation
・Flicker Control/Hz Range 2.4 kHz or 16 kHz

■Control
・Input Method DMX (5-pin), or Ethernet
・Protocols DMX via RS-485
・Art-Net or sACN via Ethernet
・Ethernet Pass-Thru Passive Ethernet in and thru with and without power
・Data Conversion Patented data conversion system for:
・DMX to Ethernet
・Ethernet to DMX
・Modes (Footprint) One (47)
・RDM Functions Yes
・UI Type Full color graphical UI with 6 button navigational control.
・Local Control Yes
・Dimming Performance 16-bit, DMX controlled

■Electrical
・Voltage Range 100–240VAC 50-60 Hz
・Input Method powerCON TRUE1
・Wattage (Standard/+Defogger) 515 W / 562 W
・Current (Max/Standard) 5.62 A @ 100 V / 2.26 A @ 240 V
・Inrush (first half-cycle) 120 V: 22.8 A 208 V: 38.8 A
・Notes See page 5 for power factor information

■Thermal
・Ambient Operating Temperature 0°–45°C
・Fan Three modes: Standard, Continuous, Studio
・Stationary dBA 33 dBA at 40°C ambient
・Lens Defogging Patented Lens Defogger included

■Physical
・Pan and Tilt Range 540° pan, 265° tilt
・Max Pan/Tilt Speed 360° in 2.27s / 180° in 1.28s
・Materials Steel and aluminum frame with molded plastic covers
・Color Options Black, white by request
・Mounting Options Any orientation
・IP Rating IP20

■付属品
・Included Accessories powerCON TRUE1 to bare end fixture tail
・Two (2) clamp brackets
・Safety cable
