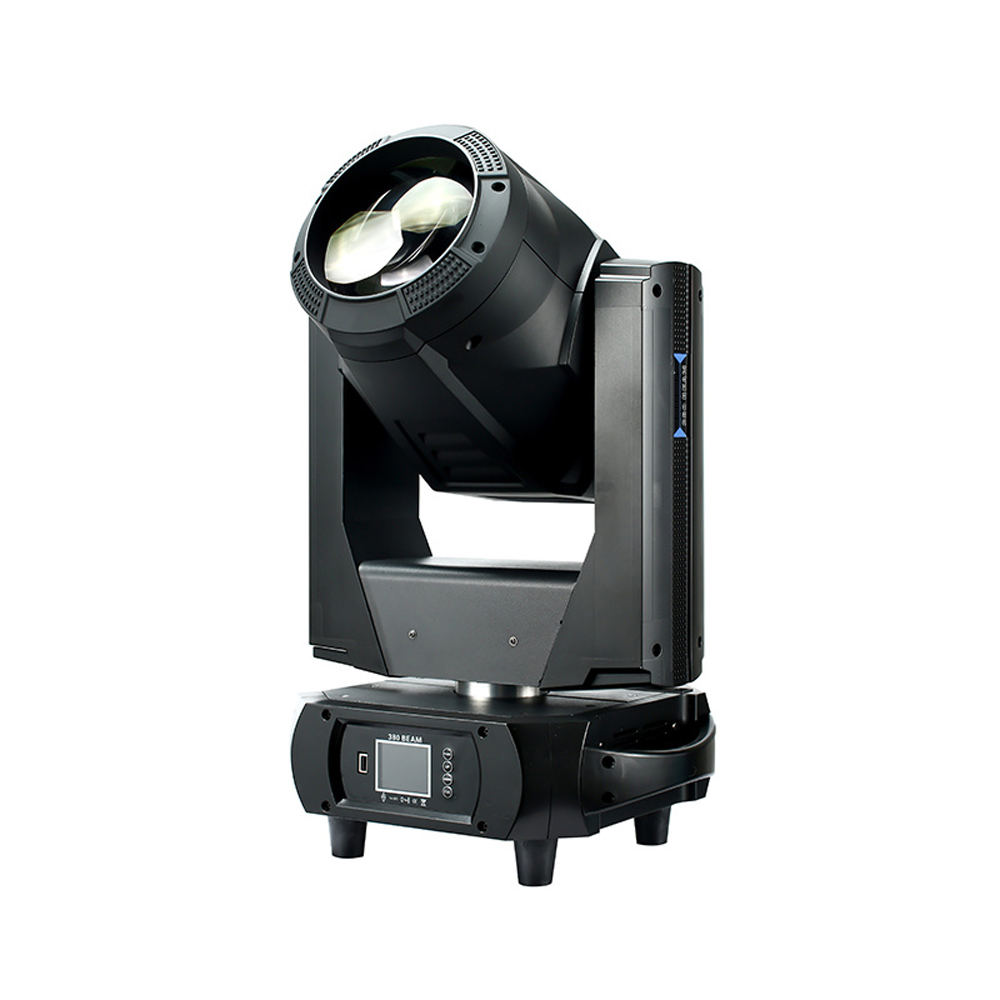

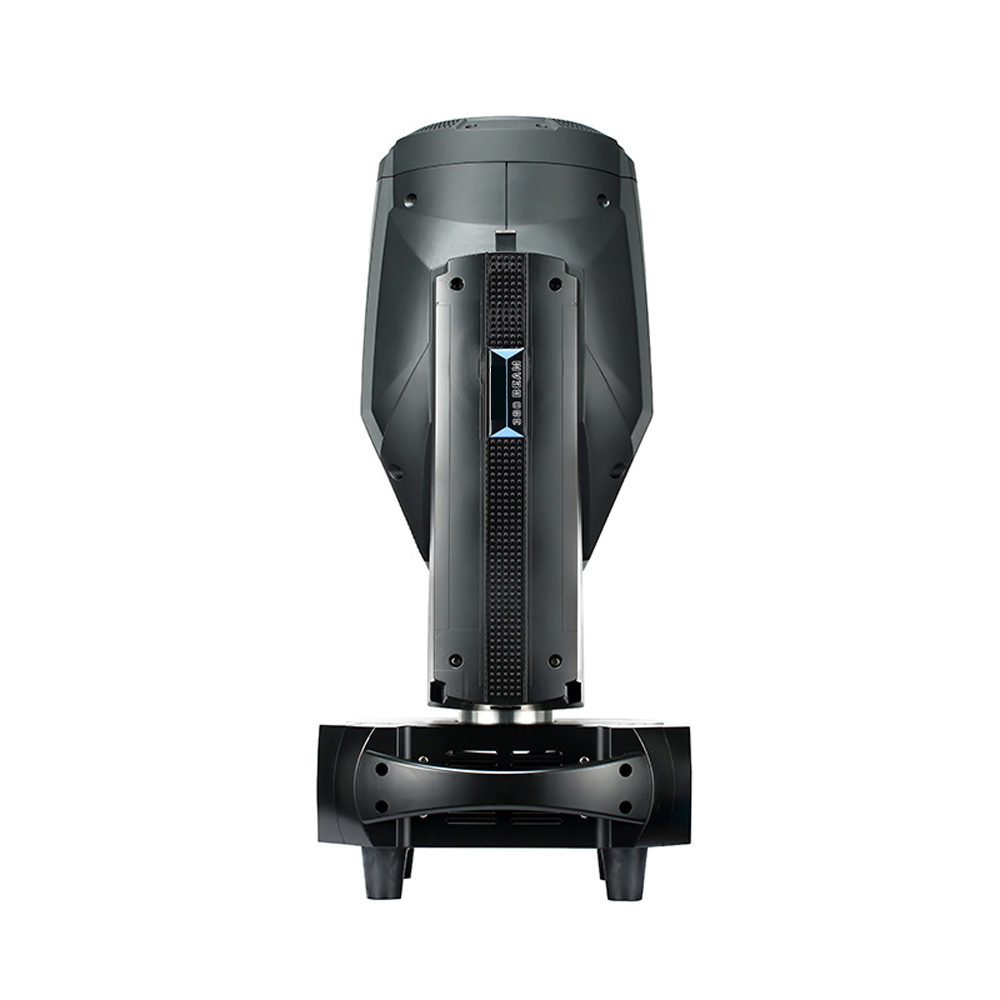

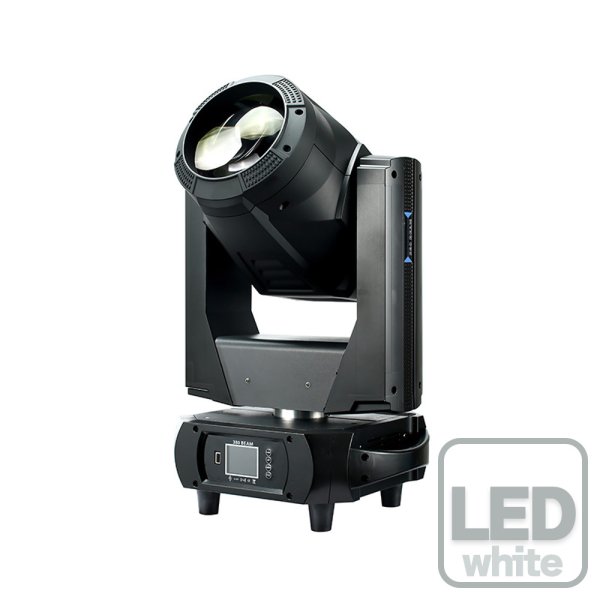

Hi-LTTE 300W LED BEAM（300W LED ビーム） [HL-300B]

仕様

Light Source

Module:300W led module

Lumen:6,300lm

LED Lifespan:20,000hours

Color Temperature: 10,000K



Optical System

Optical Lens:High precision glued optical lens

Beam Angle:2.8°



Electrical and Interface

Input voltage range:100V-240V 50Hz/60Hz

Rated Power:360W

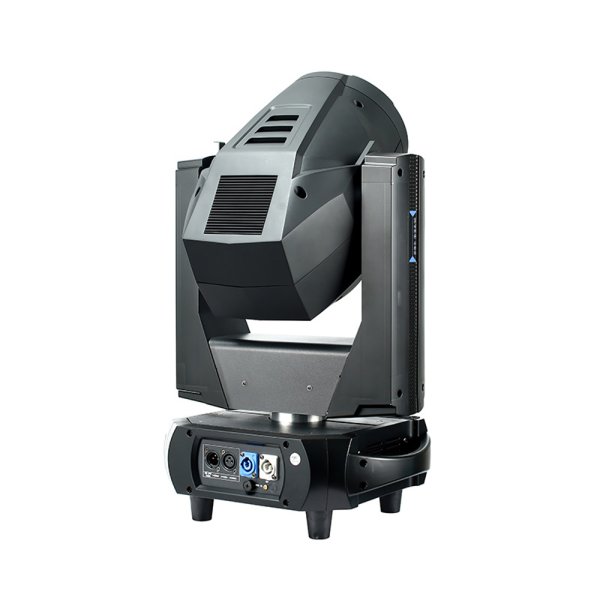

Power:Power In/Out

Signal:3 Pin Signal In/Out



Housing

Housing: High temperature resistant alloy plastic +plastic handle Control And Program

4pcs Press Button

Control Panel:LED LCD screen

Control Mode:DMX512

DMX Channel:1 kind

Channel:16 Channels



Color Wheel

14 color+open, semi color effect



Gobo Wheel

11 static gobo+3 open (3 glass gobo)



Prism

8+16 facet prism and a honeycomb prism, rotatable, prisms can be superimposed to create multi-layer beam effects



Movement

Super Silence, Ultra fast 3-phase step motors

Pan Movement Degree:540°

Tilt Movement Degree:270°

Pan&tilt position automatic correction



Focus

Linear focus, 0-100% linear adjustment



Shutter

Electronic strobe, 0-20 time/s, adjustable speed



Working Temperature

Max ambient temperature:45°C

Minimum operating temperature:0°C

Max surface temperature:60°C



Size&Weight:

Light Size: 374×290×583mm

Net weight:16kg

| Effects

keywords:

HI-LTTE Lighting

Exterior Lighting

Indoor Lighting

LED Profile

Previous

380 BEAM MOVING HEAD LIGHT

MINI 230W LED BEAM

Next

■メーカーサイト
https://www.hi-ltte.com/product/174.html

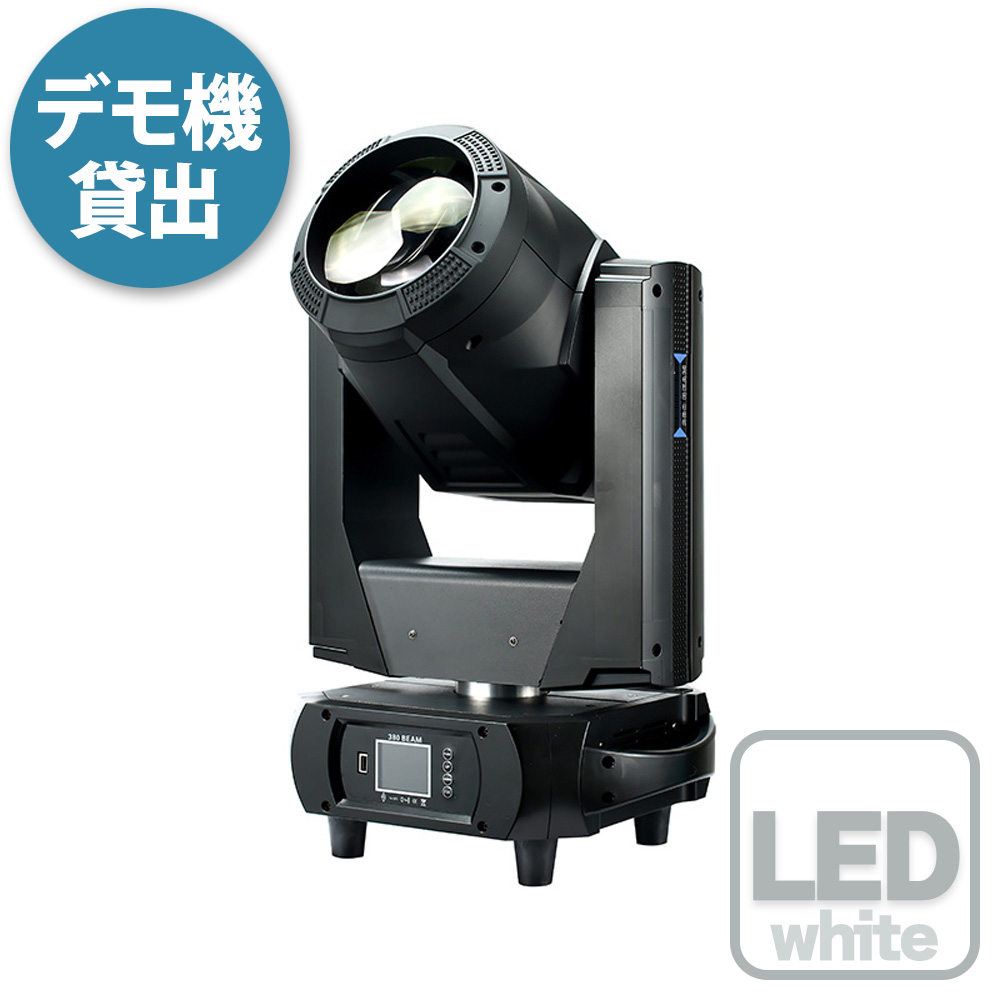

デモ機ご依頼
