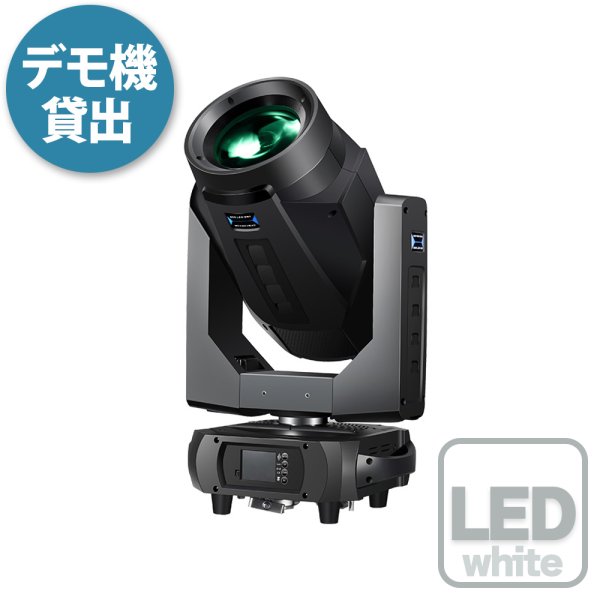

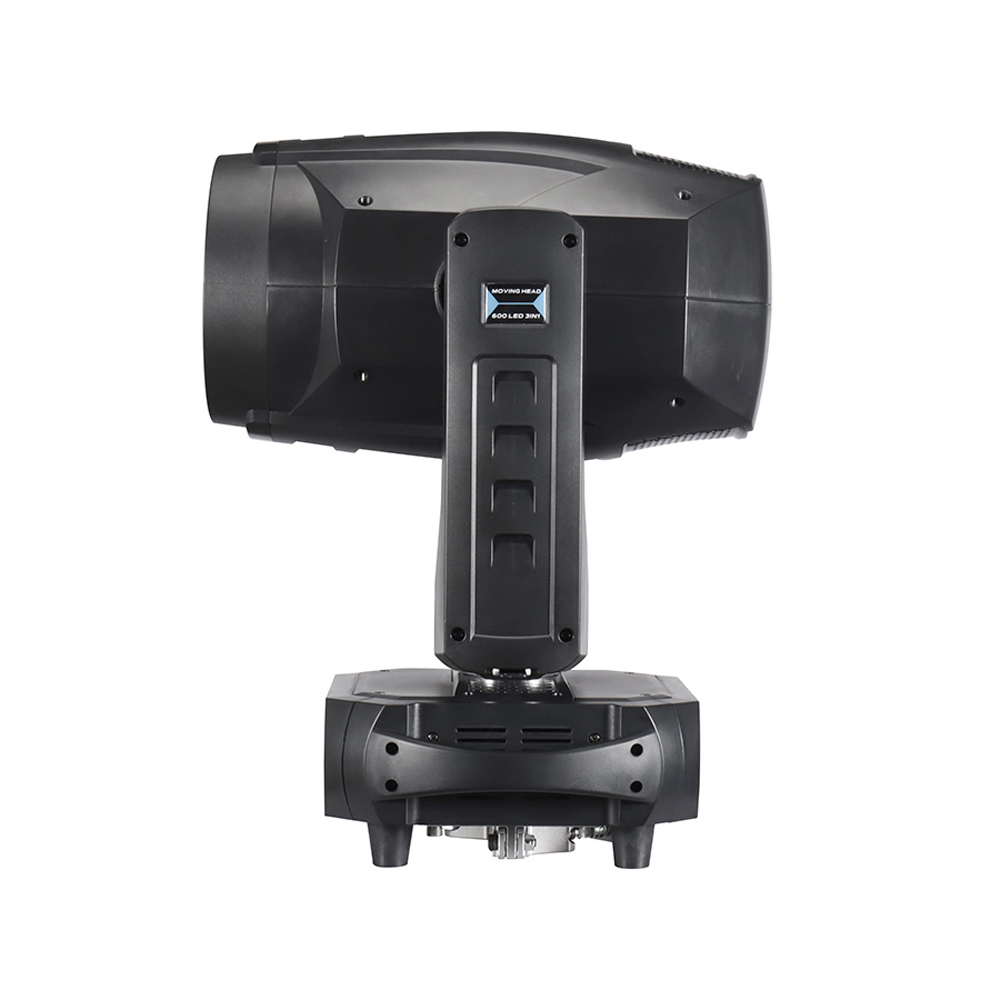

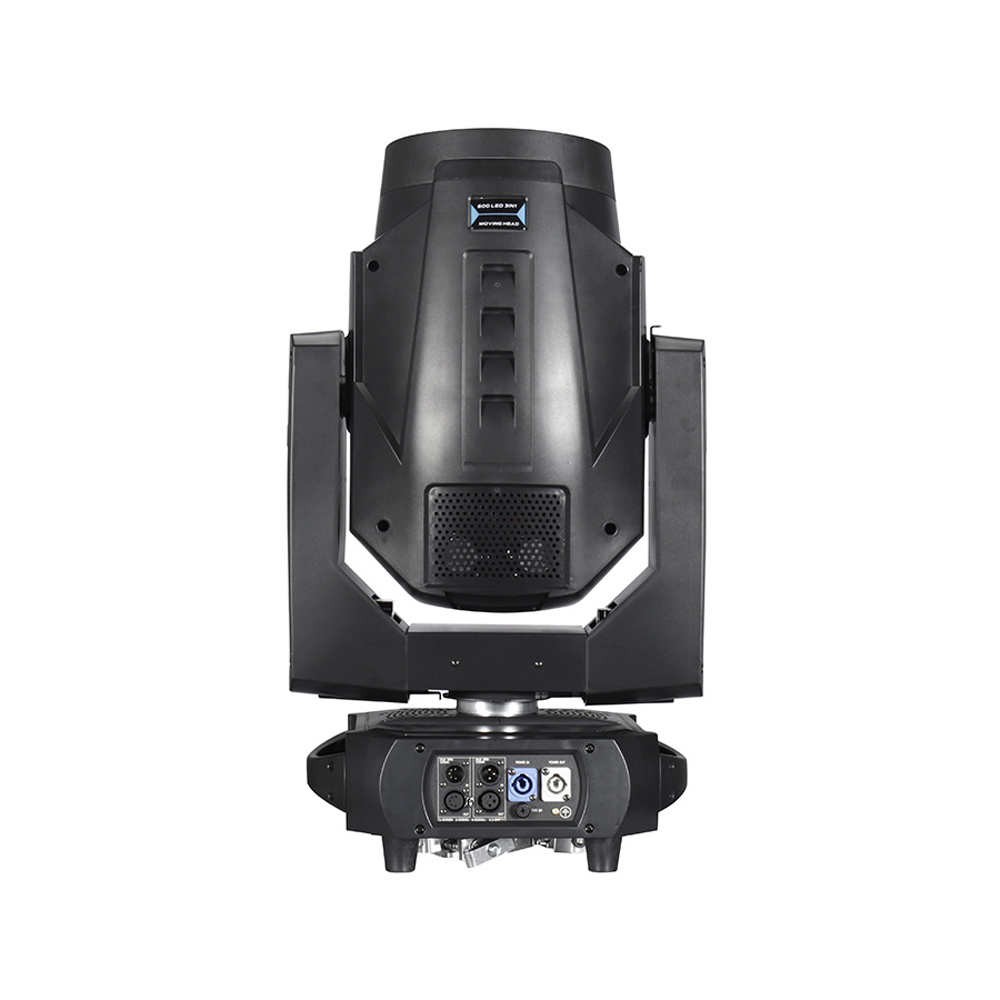

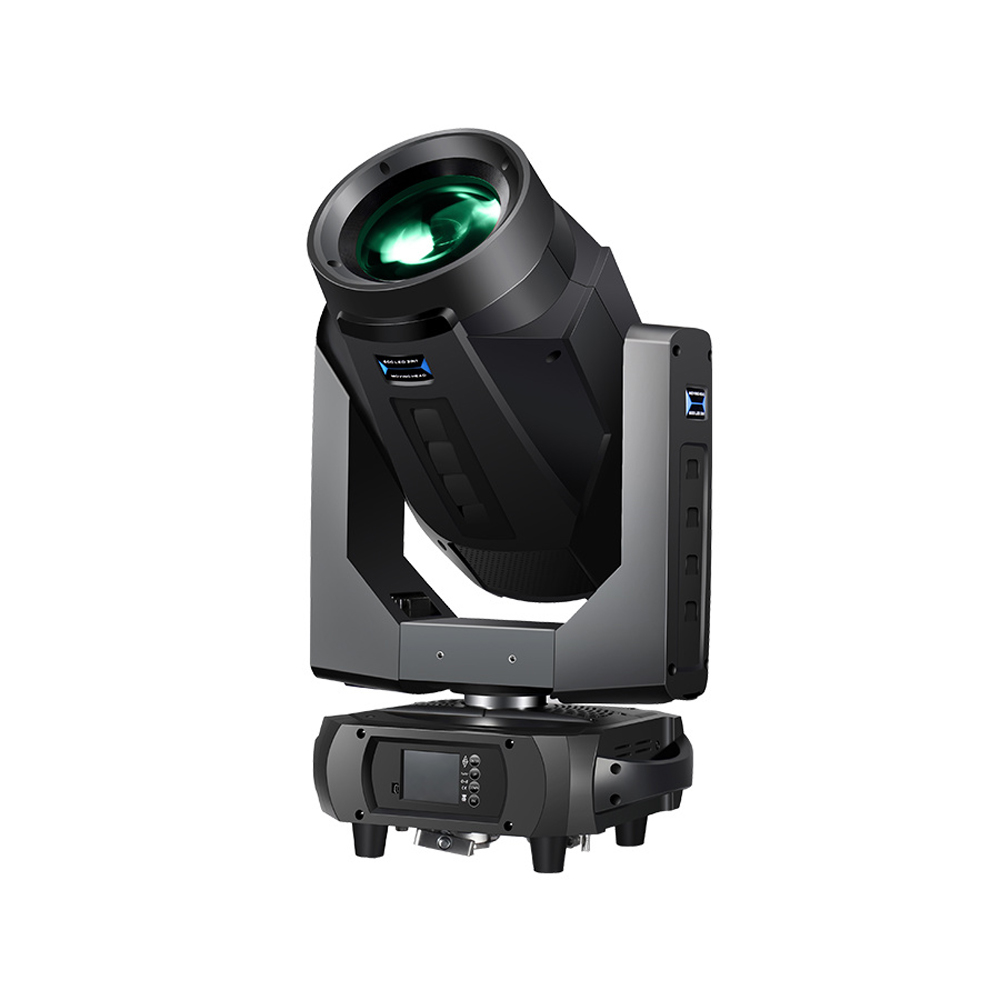

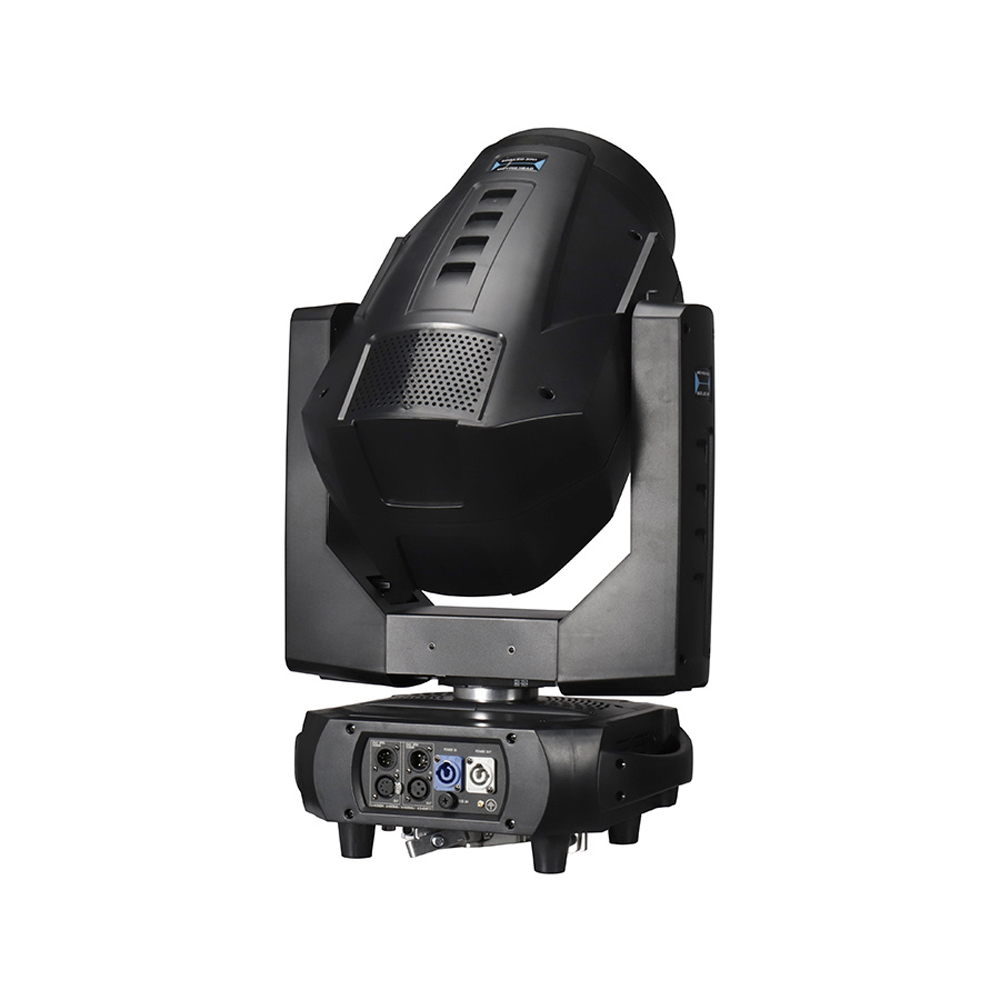

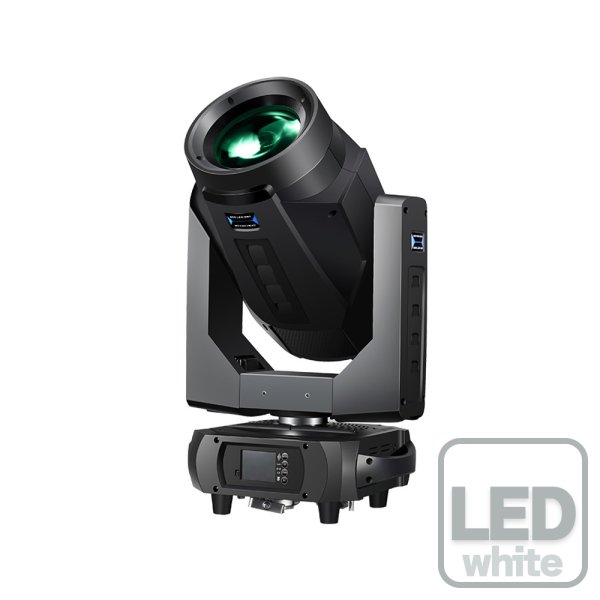

Hi-LTTE 600W LED BSW [HL-600BSW]

仕様

Model
HL-600BSW

Light source
Light Sources: Powerful 461W LED engine
LED life expectancy: 20,000 hours


Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 103 mm
Beam Angle: 4°-50°


Control and Program
o 4-buttons touch panel
o Display: LCD display
o Protocols: DMX512
o DMX Channel: 20/25CHS
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction


Rotating Gobos
o 7 Interchangeable high-precision glass gobos, plus open
o Adjustable-speed rotating gobo in both directions
o Image diameter:24mm
o Outside diameter:28mm
o Thickness: 1.1
o Max. thickness: 1.2
o "SLOT & LOCK" system for easy gobo replacement

Static Gobos
o 5 high-precision gobos, plus 3 open


Color Wheel
o Color Wheel 1: 7 colors plus open, semi color effect
CMY Linear 100%


Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-240V~ 50/60Hz
o Power consumption: 600 W
o Power In/Out：Power Connector in/out
o Data In/Out: 3pin XLR

Fixture Specification
o Fixture dimensions:
 Height: 647.7 mm (25.5")
 Width: 290 mm (11.4")
 Depth: 401 mm (15.8")
 Weight: 20.7 kg (45.6lbs)
o Flight Case Dimensions:
 Height: 920 mm (36.2")
 Width: 560 mm (22")
 Depth: 670 mm (26.4")
 Weight: 80kg (176.4lbs) (2IN1 Loader Case)

Work environment
o Maximum ambient temperature: 40°C
o Maximum surface temperature: 65°C
o Minimum operating temperature: 0°C
o Protection Rating: IP20


Factory configuration
o Digital User Manual
o Power Cable
o 2x Fast-lock clamps for 50mm truss
