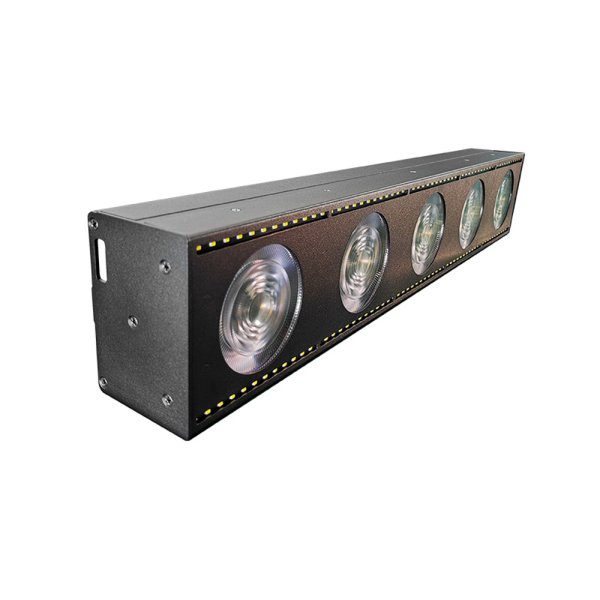

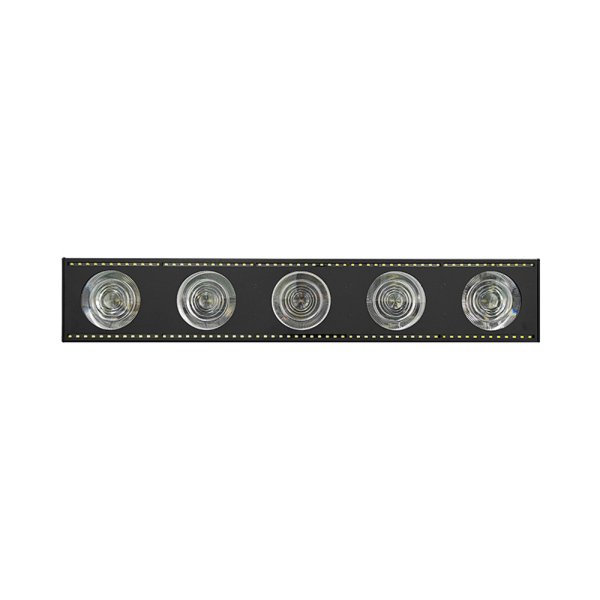

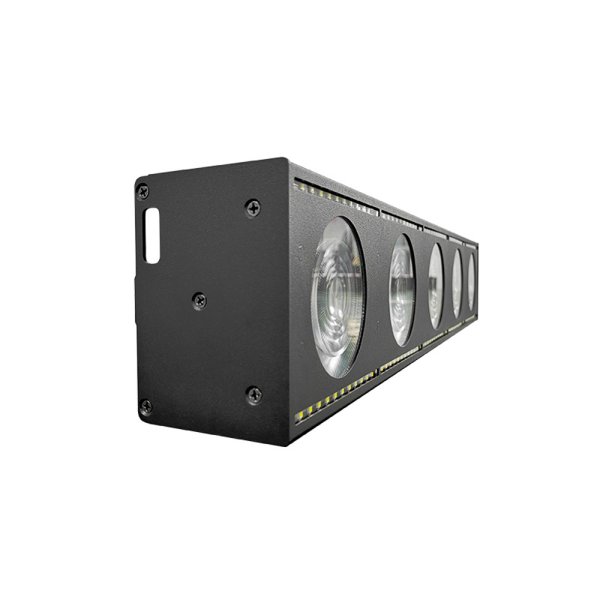

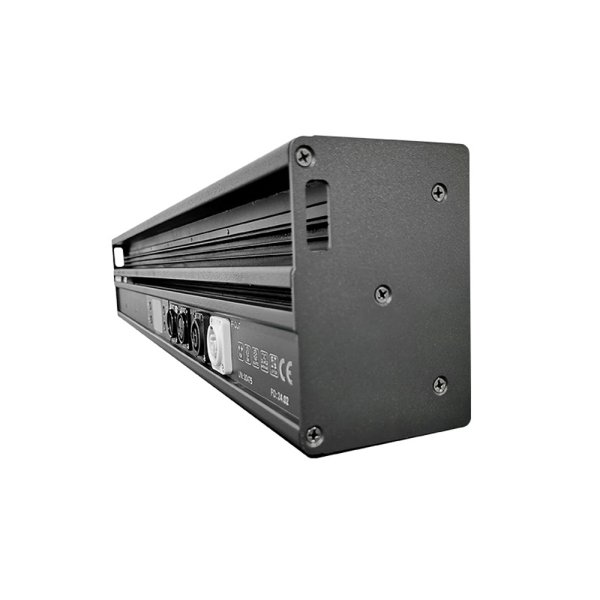

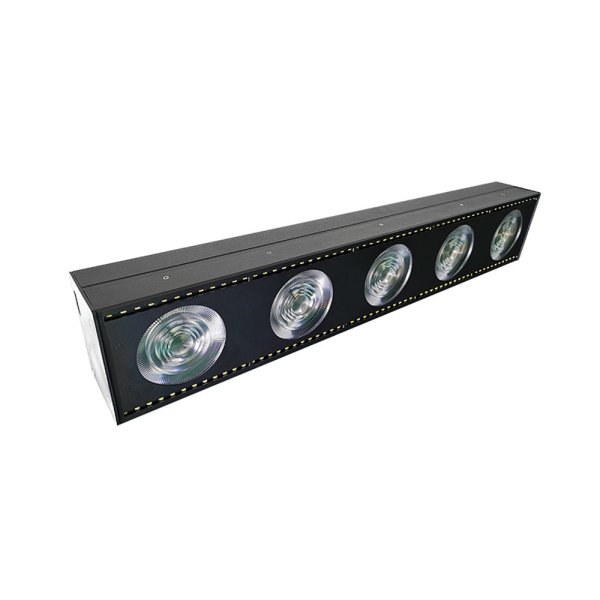

Hi-LTTE Matrix Dot 5（マトリックスドット 5）

仕様

Light Source

Light Source: 5x40W RGBW(L), 120x0.5W WW(CW)

Luminous flux: >9000lm



Optical System

Lens optional: 15°, 25°, 38°



Control and Program

4 Press Button

Display: LED display

Protocols: DMX, Auto, Master-slave

DMX Protocol Modes: 4

Control Channels: 16/30/43/48

Dimmer mode: 8 & 16 Bit

Dimmer curve: Linear, curve





Electrical and Connectors

Input Voltage Range: 100-240V - 50/60Hz

Power Consumption: 200W

Power In/Out: Powercon 3 x 1.0 in & out

Data In/Out: 3 or 5-pin DMX in and out



Fixture Dimensions

Length: 680 mm (26.77")

Width: 120 mm (4.72")

Height: 77 mm (3.03")



Fixture Weight

Fixture Net Weight:5kg(11.02lbs)



2in1 Carton Dimensions:



Length: 1000 mm (39.37")

Width: 255 mm (10.04")

Height: 185 mm (7.28")

Weight: 11 kg (24.25lbs)



8in1 flightcase Dimensions:

Length: 780 mm (30.71")

Width: 640 mm (25.20")

Height: 480 mm (18.90")

Weight: 65 kg (143.30 lbs)



Work environment

Minimum Operating Temperature: -30°C

Maximum Surface Temperature: 70°C

Protection Rating: IP40



Included Items

Quick lock omega brackets

Safety cable

Floor stand

Power & DMX cables



Optional Accessories

Stand plate + Stand & Hang Components

Clamp
