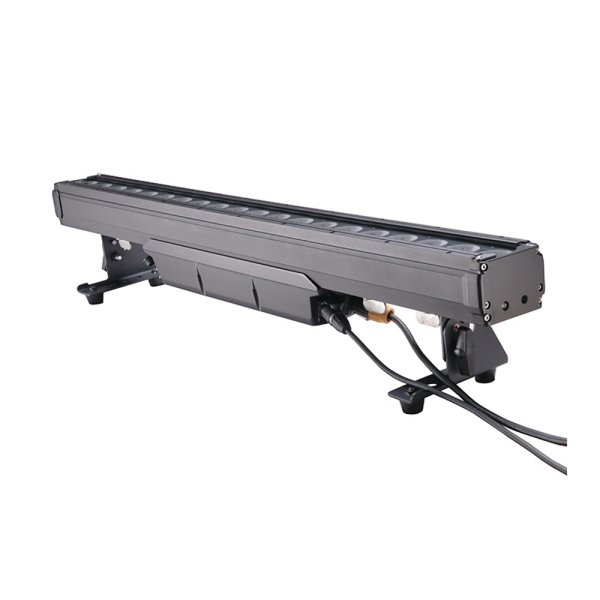

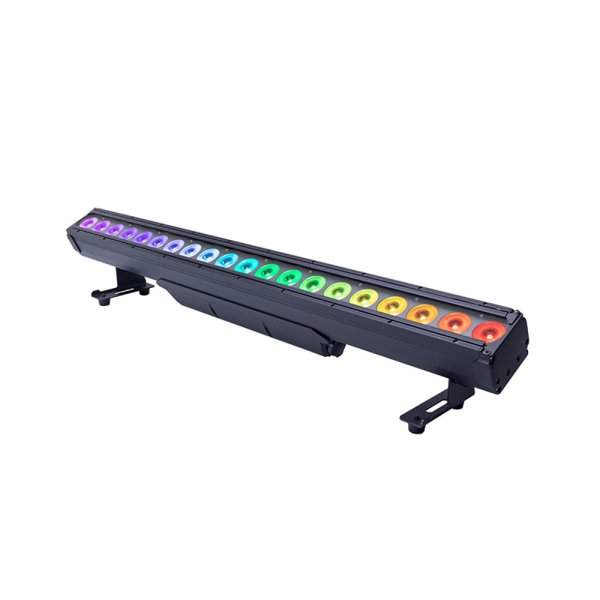

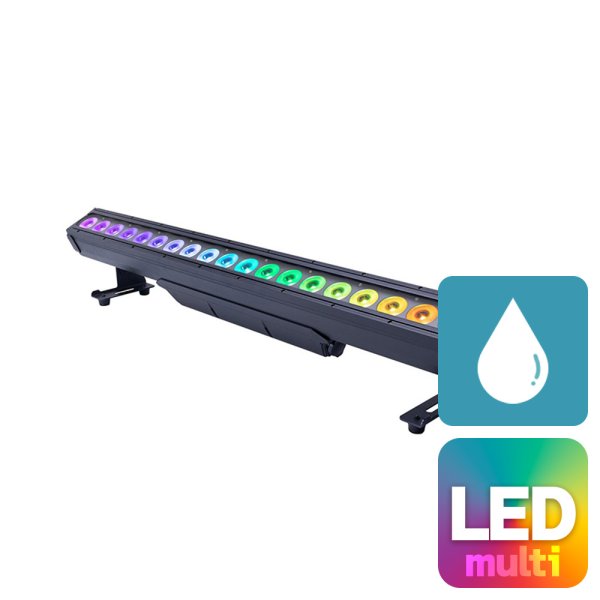

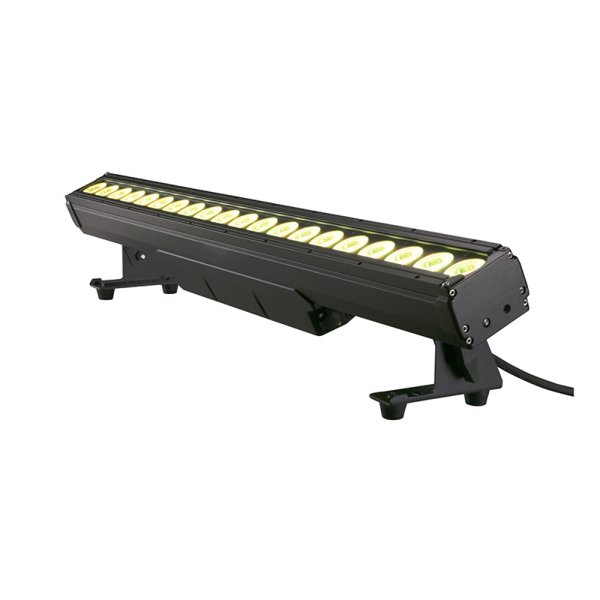

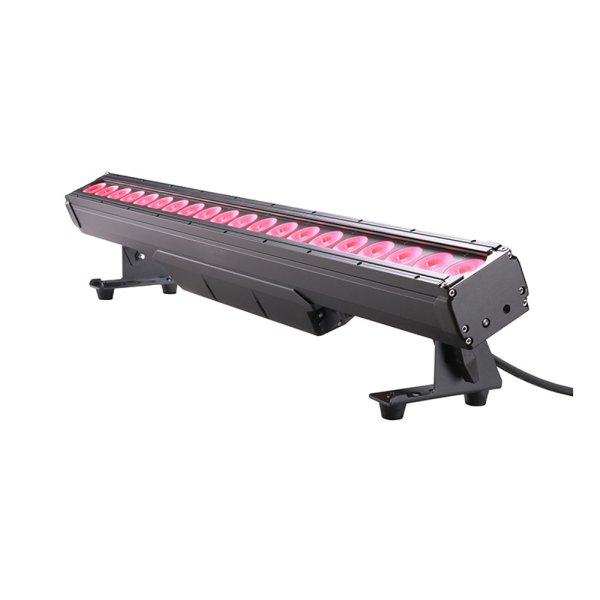

Hi-LTTE Diamond Line 20 IP（ダイヤモンドライン 20 IP）

仕様

Model

Diamond Line20 IP



Light Source

Light Source: 20 x 15W RGBW LEDs

Life Expectancy: 50,000 hours



Optical System

Beam Angles: 6°,15°,20°,25°,45°at option



Control and Program

4 Press Button

Display: LED display

Protocols: DMX512, RDM

DMX Protocol Modes: 4

Control Channels: 11/27/80/91

Electrical and Connectors

Input Voltage Range: AC90-240V, 50/60HZ

Power Consumption: 400W

Power In/Out: IP65 PowerCON True1 in and out，IP65 DMX in and out

Data In/Out: 3 or 5-pin IP65 DMX in and out



Fixture Dimensions:

Length: 1004 mm (39.53")

Width: 96 mm (3.78")

Height: 130 mm (5.12")

Base Height: 178mm ( 7.01")



Fixture Weight

Fixture Net Weight:9.5kg(20.94lbs)



2in1 Carton Dimensions:

Length: 1270 mm (50.00")

Width: 320 mm (12.60")

Height: 220 mm (8.66")

Weight: 22.5 kg (49.60 lbs)



4in1 flightcase Dimensions:

Length: 1180 mm (46.46")

Width: 580 mm (22.83")

Height: 400 mm (15.75")

Weight: 71 kg (156.53 lbs)



8in1 flightcase Dimensions:

Length: 1180 mm (46.46")

Width: 600 mm (23.62")

Height: 550 mm (21.62")

Weight: 115 kg (253.53 lbs)



Work environment

Minimum Operating Temperature: -30°C

Maximum Surface Temperature: 70°C

Protection Rating: IP65



Factory configuration

Quick lock omega brackets

Safety cable

Floor stand

Power & DMX cables



Optional Accessories

PMMA froster

PMMA cover

Barndoor

Stand plate + Stand & Hang Components

Infinite rotation engine

Clamp

Flight case
