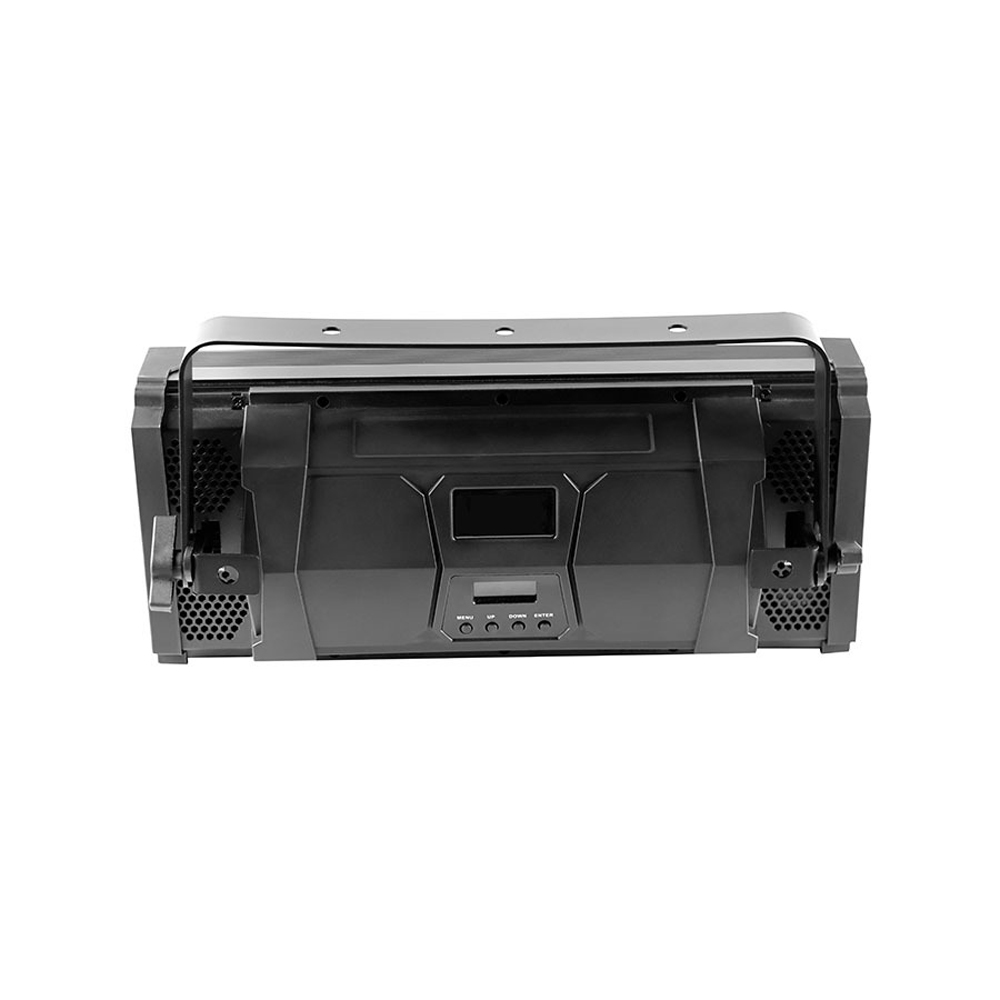

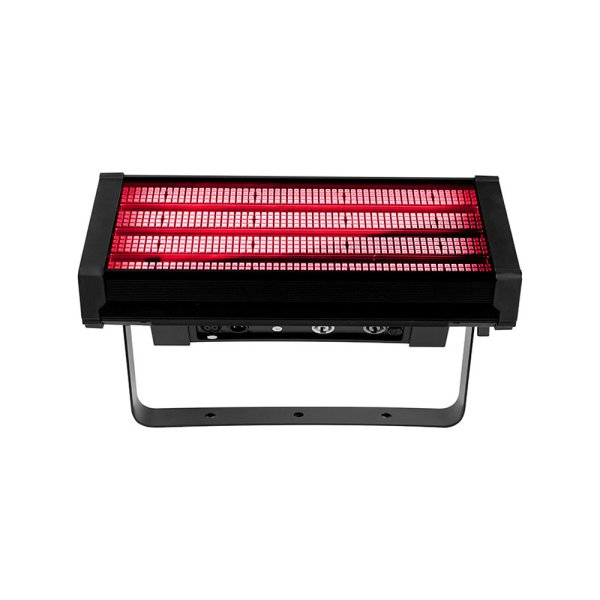

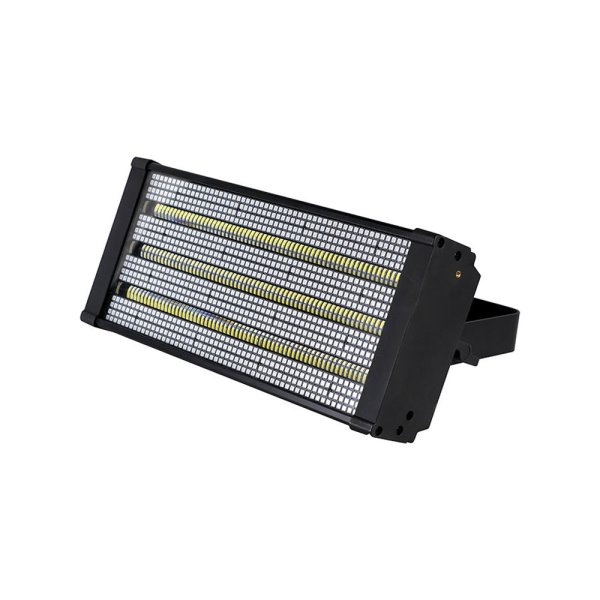

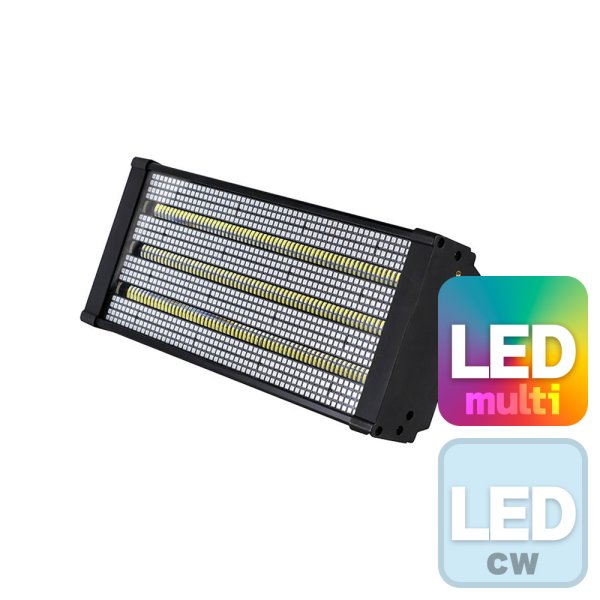

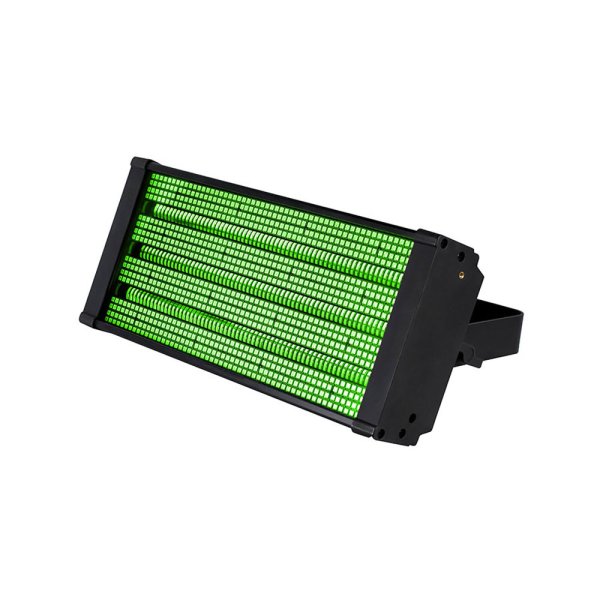

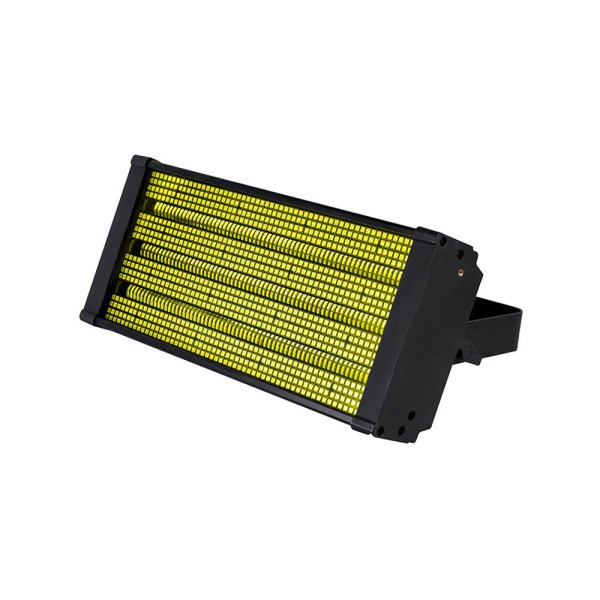

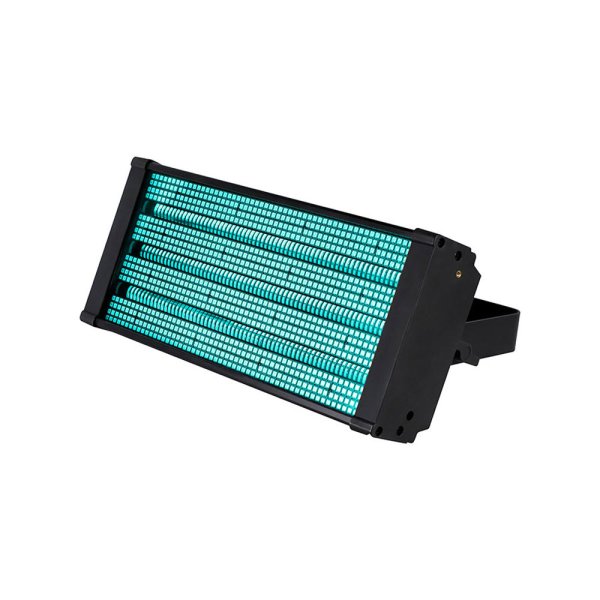

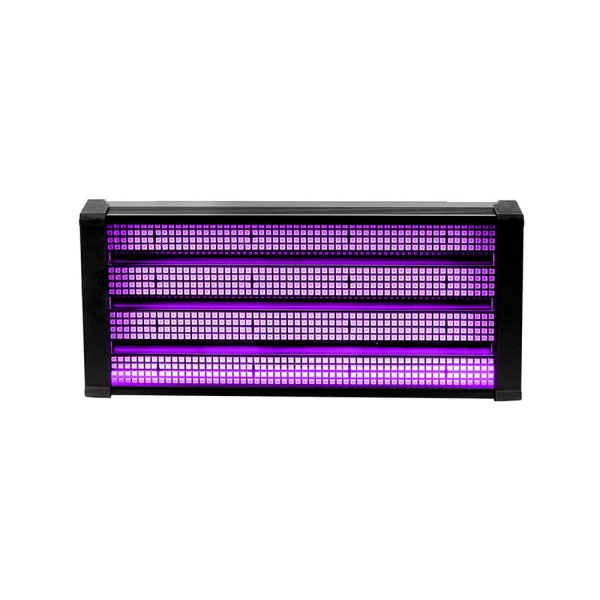

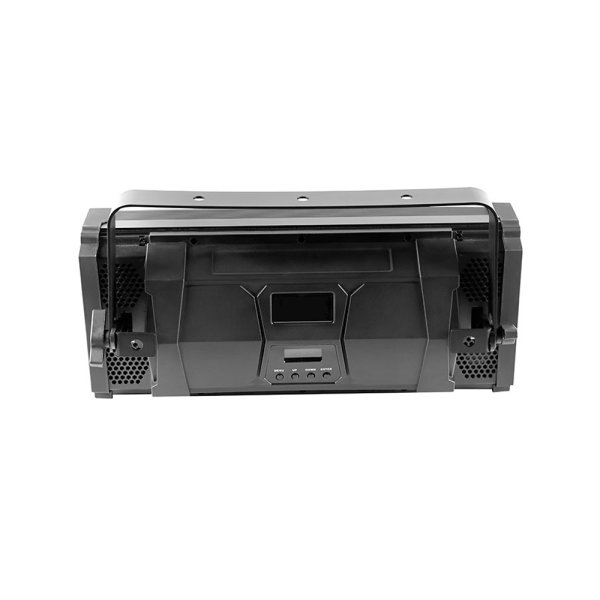

Hi-LTTE LY-Super Pulse Wave（LY-スーパーパルスウェーブ）

仕様

Model

LY-Super Pulse Wave


Light source

LED Type: 384 x 2W Cool white leds, 896x0.4W RGB leds

Beam angle: 40 deg (CW), 120 deg (RGB)

Lifespan:50,000 hours



Control and Program

Display:OLED touch display

Protocol: DMX512, Master/slave, Manual

DMX Channel:6CH/14CH/16CH/22CH/З3CH/120CH/132CH

Firmware Upgrade:Firmware upgrade via DMX link


Effects

0-100% smooth dimming; high output strobe effect

32 x RGB / 24 x CW LED zones with individual control

Outstanding color mixing effect


Electrical and Connectors
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 800W


Fixture Specification
Fixture dimensions:
Height: 460mm (18.1")
Width:220 mm (8.7")
Depth: 130mm (5.12")
Net Weight: 7.2kg (15.87lbs)



Housing

Fire and explosion-proof Plastic


Work environment
Maximum ambient temperature:40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20



Factory configuration
Digital User Manual
Power Cable, Signal Line, Omega-Bracket, Safety Rope
