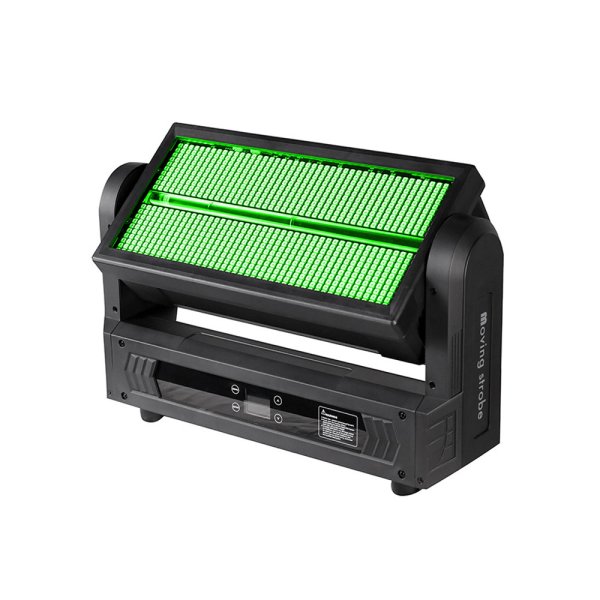

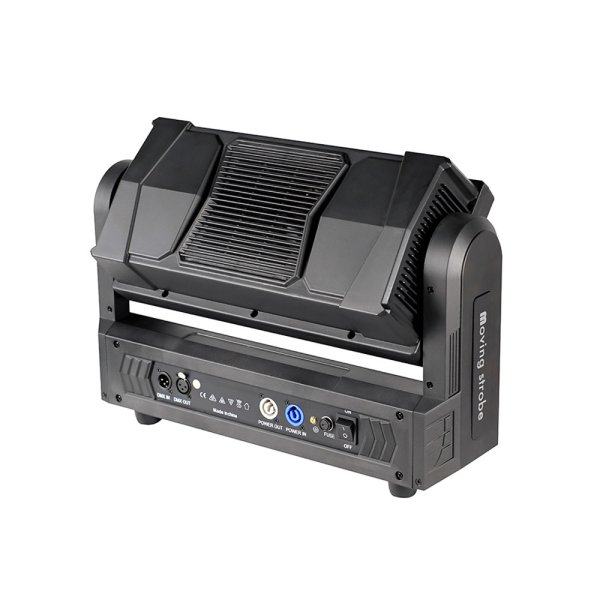

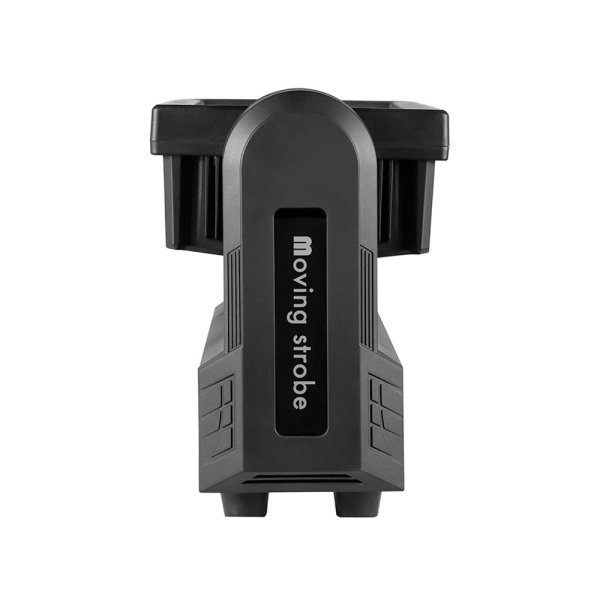

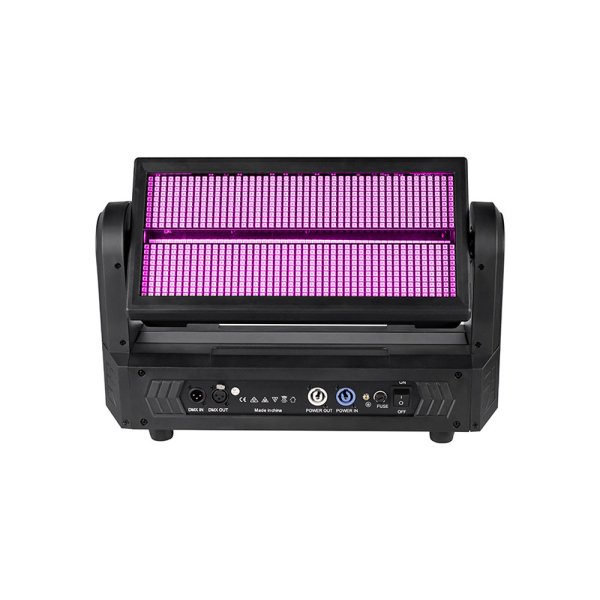

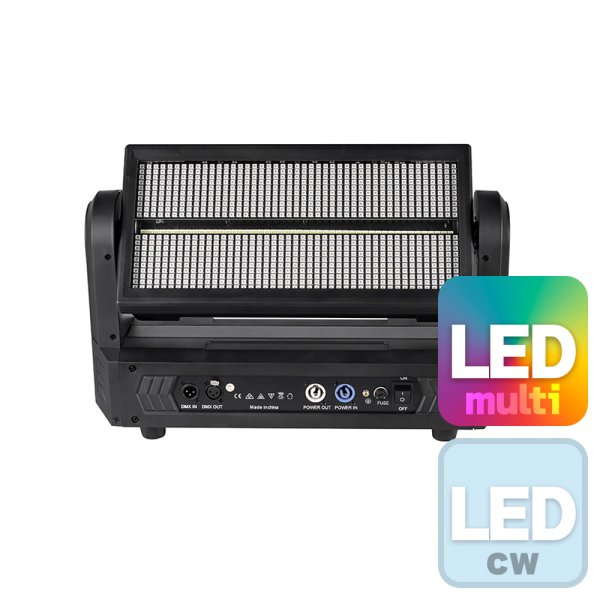

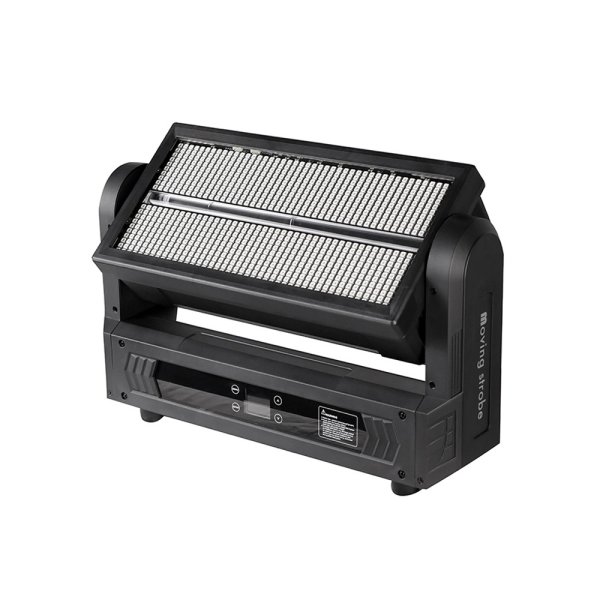

Hi-LTTE LY-Strobe 800（LY-ストロボ 800）

仕様

Model

LY -Strobe 800


Light source

48x20W Cool white led, 972x0.4W RGB led

Beam Angle:40 deg (CW),120 deg (RGB)

LED life expectancy: 50,000hrs



Movement

Resolution: 8-16 Bit

Tilt (Degrees): 200° Control



Control and Program

Display:OLED touch display

Protocol: DMX-512, RDM, Master/Slave, Manual

DMX Channel: 13CH / 17CH / 20CH / 27CH / 70CH/72CH/73CH

Firmware Upgrade:Firmware upgrade via DMX link



Cooling

Temperature controlled, overheating protection


Effects

24 x RGB / 8 x CW LED zones with individual control, outstanding color mixing effect

Dimmer: 0-100% electronic


Electrical and Connectors
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 800W
Data IN/Out:3-pin XLR or 5-pin XLR

Power In/Out:Indoor power con



Fixture Specification
Fixture dimensions:
Height: 500mm (19.7")
Width: 140mm (5..5")
Depth: 350mm (13.8")
Net Weight: 10.8kg (23.8lbs)

Gross Weight: 11.2kg (24.7lbs)


Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 60°C
Minimum operating temperature: 0°C
Protection Rating: IP20



Factory configuration
Digital User Manual
Power Cable, Signal Line, Omega-Bracket, Safety Rope

Effects
