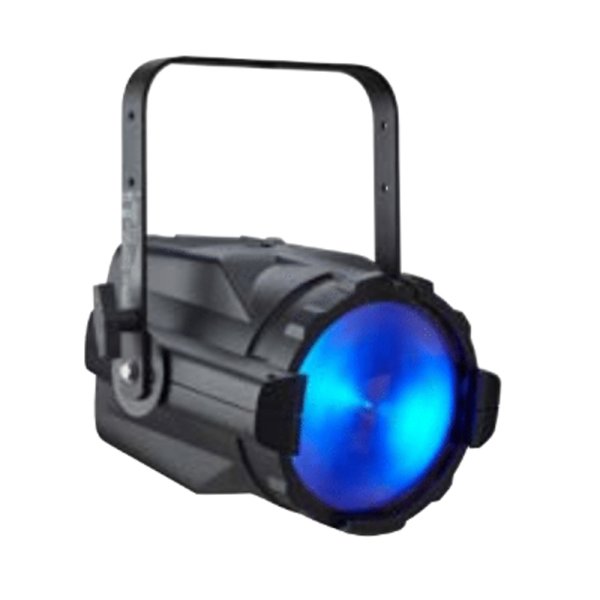

ETC ColorSource Fresnel V MAX(カラーソース フレネルV マックス)
商品詳細
特徴
Classic features.Modern technology.
Fresnels have been known for their smooth wash since the beginning of time. Their adjustable zoom, barndoor accessories, and overall brightness make them an instant favorite for stages of every size and shape.
ColorSource Fresnel V combines the best features of original incandescent Fresnels with modern technology at an affordable price.
Color integrity
ColorSource Fresnel V is factory-calibrated to ensure consistency between today’s fixtures and the ones you’ll use five years from now. The thermal management algorithms built into every ColorSource V fixture ensure that the colors you choose in rehearsal are the colors you get during the show.
13-44 degree zoom
Fresnel V has motorized zoom control, both via DMX or manually from the back of the fixture. With a 13-44° zoom range, you can seamlessly use Fresnel V as part of a wash in one scene and a beamy special in the next.
A Fresnel is only as good as its performance with barndoors, and Fresnel V delivers with smooth fall off and clean edges.
A more sustainable rig
Lower Watts
Lower watts for more output means lower power consumption and increased luminaires per circuit. But, perhaps just as importantly, it means lower heat, which leads to quieter fans and quieter fixtures overall. ETC obsesses over every detail, ensuring that the fixture you buy today will still be lighting incredible shows for years to come.
Long, light life
The entire ColorSource Fresnel V fixture has an L70 rating of 54,000 hours. To put that in perspective, with an average per-day usage of three hours, seven days a week, you are looking at a lifespan of 50 years from one single fixture.
You’ll feel confident in ColorSource V lighting your stage for a long time to come.
仕様
SourceLED details
60 Lumileds LUXEON
®
C ES LEDs
Max lumens
10,023
Lumens per watt
48
L70 rating (hours to 70%
output)*
54,000 hours
Color
Colors used
Red, Green, Blue, Indigo, Lime
Color temperature range Color mixing
Calibrated array
Yes
Red shift
No
Optical
Beam angle range
13°–44°
Gate size
N/A
Aperture size
190 mm (7.48 in)
Pattern projection No
Pattern size
N/A
Camera flicker
control/Hz range
5,000 Hz (default) and 25,000 Hz (via
RDM
Control
Input method
5-Pin XLR, Multiverse wireless, and NFC
Protocols
DMX-512, RDM, City Theatrical
Multiverse, NFC
Modes (footprint) 6 modes, see page 6
RDM configuration
Yes
UI type
Seven-segment display, three-button
interface, Focus encoder
Local control
Yes
Onboard presets Yes (12)
Onboard sequences Yes (5)
Onboard effects No
FixtureLink
Yes
Notes
15-bit virtual dimming engine
Wireless
Band
2.400–2.480 GHz
Range
100 m indoors, 500 m line of sight
(subject to conditions)
Max receivers
DMX: No limit
RDM: Varies by transmitter used
Multiverse SHoW Baby
®
: 585
Multiverse Transmitter: 5,000
Broadcast power
100 mW
Electrical
Voltage range
100–240 VAC 50/60 Hz
Input method
powerCON TRUE1 TOP power in
and thru
Inrush (first half-cycle)120 V: 36 A
240 V: 57 A
Fixtures per circuit on
standard R20 breaker
3
(link up to 4 via Power Thru
connector)*
Note: TRUE1 connector rated for
20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
Wattage (typical)
120 V: 208 W
230 V: 205 W
Current draw
120 V: 1.75 A
230 V: 0.95 A
*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.
Thermal
Ambient operating temp
0°C–40° C
Fan (controllable)
Yes (yes)
Droop compensation Yes
Average dB
TBD dBA
BTUs/hour (120 V) 709
Physical
Materials
Cast and extruded aluminum
Color options
Black, white, silver, or custom color
Mounting options Yoke
IP rating
IP20
Weight
6.24 kg
Included accessories
Yoke, power cable
Warranty
Fixture
5 years
LED array
10 years
Regulatory and Compliance
Approved regulatory
standards
cETLus Listed
Conforms to UL 1598 & 924
Complies to CSA C22.2 No. 250.0
and 141
CE & UKCA compliant
参照
■メーカーサイト
https://www.etcconnect.com/Products/Entertainment-Fixtures/ColorSource-Fresnel-V/Features.aspx
