Vari-Lite VL600 ACCLAIM FRESNEL（VL600 アッカリウム フレネル）／White

概要

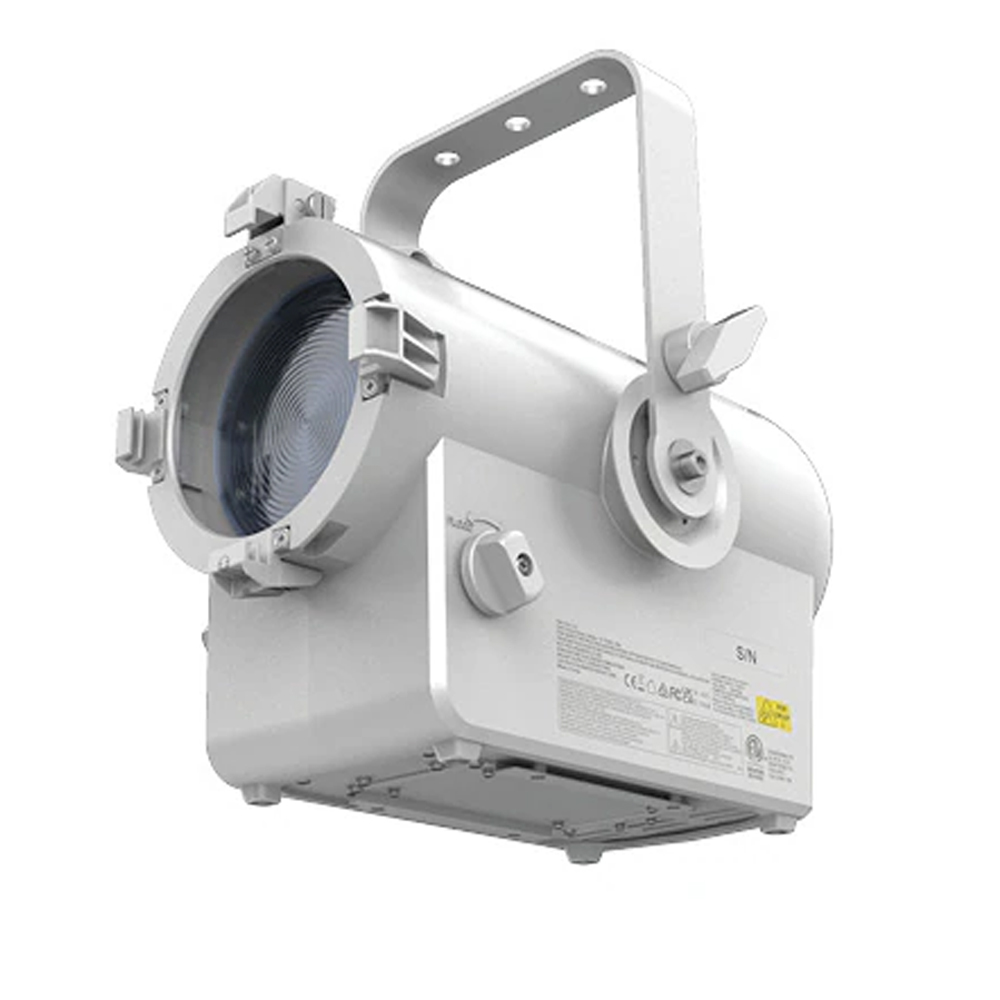

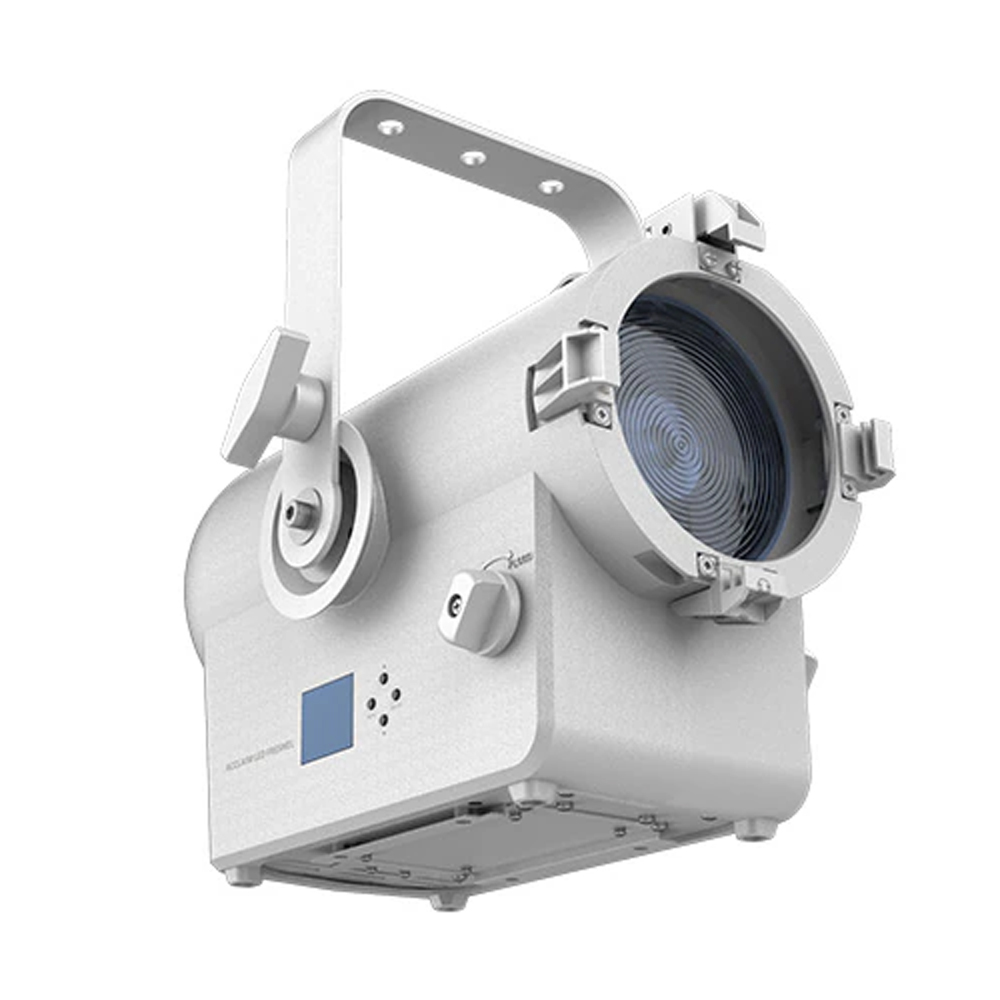

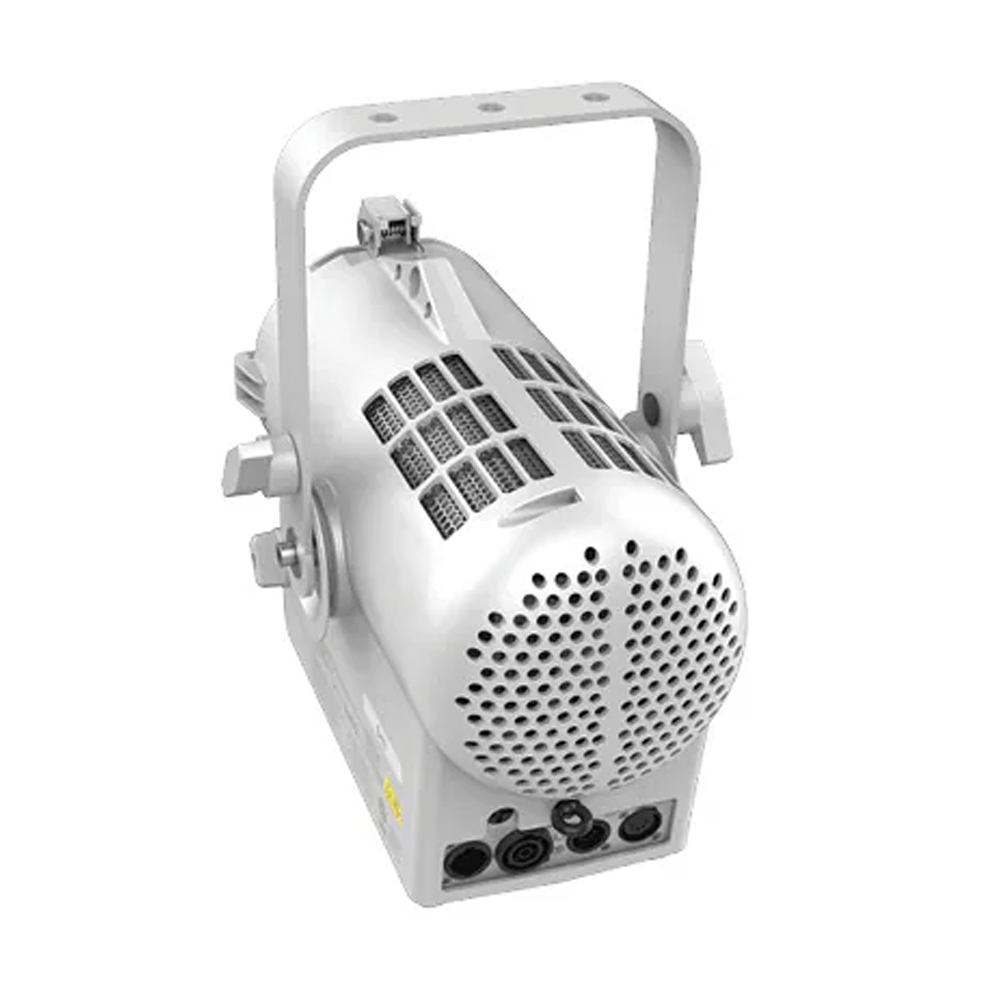

The VL600 Acclaim Fresnel is a full color theatrical Fresnel wash fixture designed specifically for small to medium spaces. The VL600 is a 500W/650W-equivalent fixture that offers saturated stage color washes and dramatic highlighting capabilities thanks to the high quality, industry standard 4.75” front lens coupled with the engineering excellence that sets us apart.

A true theatrical Fresnel, the VL600 Fresnel offers superior control and light quality to comparable PAR fixtures. The adjustable 10° to 50° zoom provides manual adjustment with minimal light scatter, and the even, soft-edged beam easily blends with adjacent fixtures without hard edges to soften with frost filters or hot spots to smooth out in the beam. To shape the beam, users can add an optional rotating four-leaf barndoor that mounts on the front of the fixture and rotates around the axis for the perfect angle. The VL600 Fresnel is available in black or white.

特徴

500W/650W-equivalent LED Fresnel – true Fresnel with superior control and light quality than comparable PAR fixtures
Integrated 10° to 50° manual zoom – precise beam sizing with minimal light scatter
Optional rotating 4-leaf barn doors – shape the beam to focus light where you need it

Custom LED light source and RGBL color mixing system –consistent output and color mixing with the entire VL600 Series
Available in black or white – the perfect body color for your application

仕様

Specifications
Due to continuous improvements and innovations, specifications may change without notice.
125 mm (5.0 in)
10 - 50°
Manual control
Beam - 4,500, Field - 8,500
Field - 8500
7100 K - 85
5600 K - 84
3200 K - 80
7100 K - Rf 81 / Rg 102
5600 K - Rf 81 / Rg 102
3200 K - Rf 78 / Rg 109
7100 K - 80
7100 K - 80
5600 K - 79
3200 K - 74
Source
LED
Multichromatic Light Engine - RGBL
Source Max Power Consumption
150 W
LED Refresh Rate
500 Hz to 4000 Hz
Dimming
Electronic 8-bit / 16-bit
Dimmer Curves
Square Law (Default), Linear, S -Curve
Strobe Speed
0 - 30Hz
Optical Performance
Lens Size
Zoom Range
Zoom Control
Output Lumens
CRI RA
Tm30
CQS
TLCI
Color System
Color Mixing
RGBL
Color Mixing Control
Open Source
Color Calibration
Selectable On/Off
DMX512-A (RDM)
11 Channels
8 Channels
5 - Pin XLR Input and Thru
Advanced Feature local control
42.6 dB
37 dB
33.2 dB
Continuous (On) / Auto Ramping
Standard, Studio, Whisper
Hybrid sealed liquid and forced air system
Electrical
Max output Power Consumption
170 W
Power Connection
TrueOne Compatible - In / Thru
Power cable not included - input connector only
Input Voltage
100–240 VAC, 50 / 60 Hz
Standby Power
8.8 W
Data
Supported Protocols
DMX Modes
16-Bit
8-Bit
Data Connections
Manual Preset Mode
Noise Level / Fan Control
Standard Mode
Studio Mode
Whisper Mode
Fan Mode
Fan Level Preset
Cooling System Type
Mounting
Yoke
Double clutch locking yoke >270° Swivel Yoke M12
(1/2") Centre hole
Fixture mounting/Hanging
orientation
Hanging - Floor - Side
Secondary Safety Wire Point 1 x Safety point located on rear of fixture housing
Safety Wire not included
Photometrics and IES Files
For IES files and photometric reports, please refer to the product page:
https://www.vari-lite.com/global/products/acclaim-led-fresnel
(Base Level 21 dB @ 1 m (3.3
ft))
