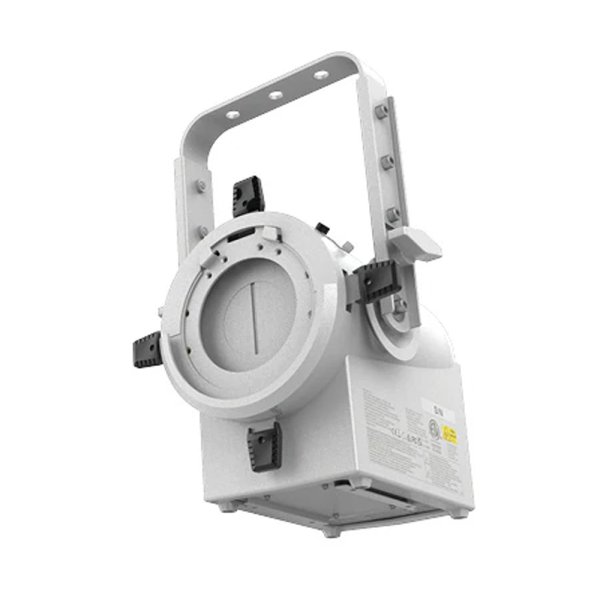

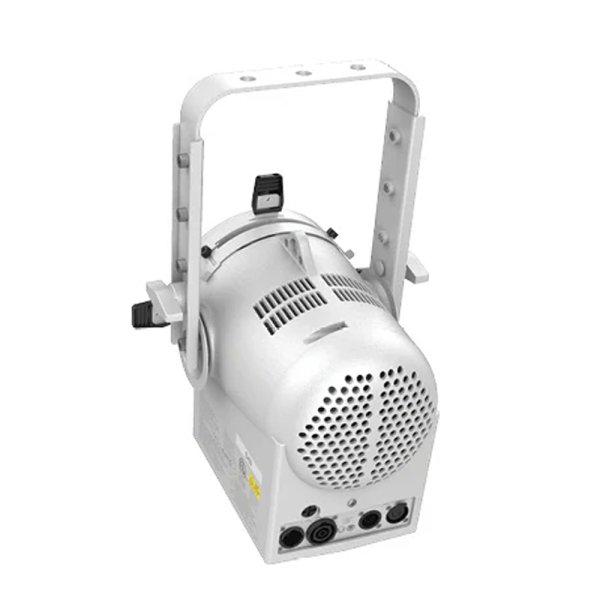

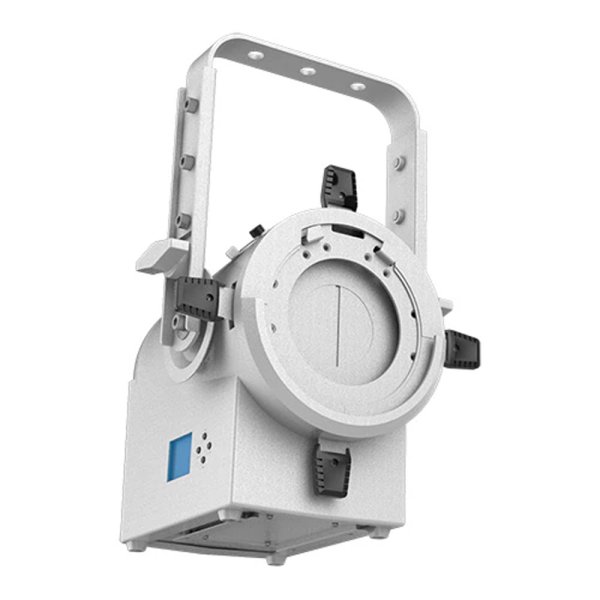

Vari-Lite VL600 ACCLAIM PLE WW（VL600 アッカリウム PLE WW）／White

概要

The VL600 Acclaim PLE WW is a 500W / 650W-equivalent fixed white 3200k profile light engine perfect for Front of House positions where color is not needed in small to medium theatres, houses of worship, and education environments. With exceptional output in a fixed warm white luminaire, it is designed for applications where a longer throw or wider spread is needed.

Because the VL600 PLE WW works with Vari-Lite’s wide range of fixed and zoom lens tubes, ensuring there is a lens for any application. With the onboard four-blade manual shutter system, the VL600 PLE WW offers superior control to shape the light how you want it. Thanks to the optional size B metal gobo holder, designers can project depth and texture on stage, using the angle adjustment and manual focus to get the look just right. For applications where a low trim height is a challenge, the adjustable yoke allows the fixture to be positioned closer to the suspension point to give more headroom.

The VL600 Acclaim PLE WW is available in black or white.

特徴

500W/650W-equivalent LED profile engine – cost-effective profile from the original name in theatrical lighting
Fixed 3200K white – high output warm white
Four-blade manual shutter system – superior control to position light exactly where you need it
Optional angle-adjusting size B metal gobo holder – add depth and texture using industry-standard gobos. Easily adjust gobo angle within holder to get the perfect look
Wide range of fixed and zoom lens tubes – beam angles for any application
Integrated manual focus – achieve a perfect, clear gobo or a nice soft edge
Adjustable yoke – mount fixture where you want it even when headroom is limited
Available in black or white – the perfect body color for your application

仕様

Specifications
Due to continuous improvements and innovations, specifications may change without notice.
Engine only - 8,500
3200 K
95
Rf 91 / Rg 96
93
95
4 blade manual framing shutters
Source
LED
Monochromatic Light Engine
Source Max Power Consumption
165 W
Source CCT
3200 K
LED Refresh Rate
500 Hz to 4000 Hz
Dimming
Electronic 8-bit / 16-bit, Local
Dimmer Curves
Square Law (Default), Linear, S -Curve
Strobe Speed
0 - 30Hz
Optical Performance
Output Lumens
Output CCT
CRI RA
TM30
CQS
TLCI
Imaging
Shutter
DMX512-A (RDM)
3 Channels
2 Channels
5 - Pin XLR Input and Thru
43.9 dB
35.9 dB
32.7 dB
Continuous (On) / Auto Ramping
Standard, Studio, Whisper
Forced Air Cooling
Electrical
Output Power Consumption
195 W
Power Connection
TrueOne Compatible - In / Thru
Power cable not included - input connector only
Input Voltage
100–240 VAC, 50 / 60 Hz
Standby Power
10 W
Data
Supported Protocols
DMX Modes
16-Bit
8-Bit
Data Connections
Noise Level / Fan Control
Standard Mode
Studio Mode
Whisper Mode
Fan Mode
Fan Level Preset
Cooling System Type
Mounting
Yoke
Double clutch locking yoke >270° Swivel Yoke M12
(1/2") Centre hole
Fixture mounting/Hanging
orientation
Hanging - Floor - Side
Secondary Safety Wire Point 1 x Safety point located on rear of fixture housing
Safety Wire not included
Photometrics and IES Files
For IES files and photometric reports, please refer to the product page:
https://www.vari-lite.com/global/products/acclaim-led-ple-ww
(Base Level 21 dB @ 1 m (3.3
ft))

参照

■メーカーサイト
https://www.vari-lite.com/global/products/acclaim-led-ple-ww
