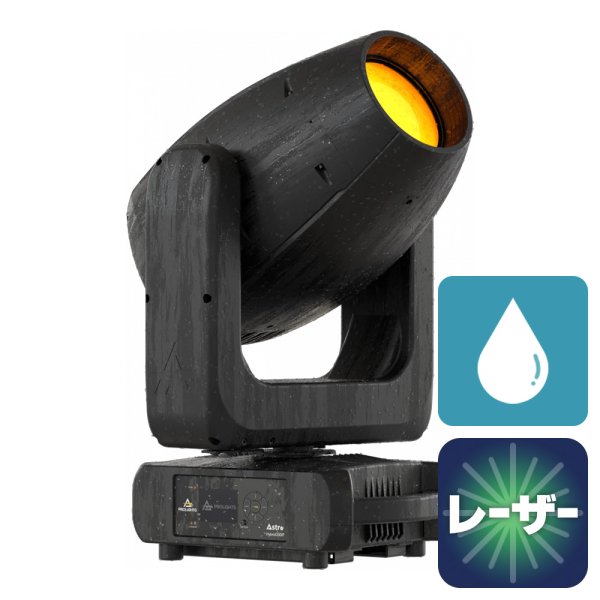

PROLIGHTS Astra Hybrid330IP(アストラ ハイブリッド330IP)

PROLIGHTS Astra Hybrid330IP(アストラ ハイブリッド330IP)

販売価格はお問い合わせください。

商品詳細



概要

330W Hybrid Moving head, IP65 with 3° - 50° zoom and CMY

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

特徴

IP65 hybrid moving light with 330W LED source
Linear zoom ranging from 3° to 50°
25 kg

仕様

LIGHT SOURCE
Source: 330W high-power white LED
CCT: 7.000
Luminous flux: (3°) 8'493 lm - (50°) 15'272
Lux: (3°) 114'701 lx - (50°) 1'882lx @5 m full
Source life expectancy: > 30.000 h
OPTICS
Zoom range: 3° - 50° motorised linear zoom
Lens diameter: 140mm / 5.51''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised
COLOUR SYSTEM
Colour mixing: CMY colour system on 3 gradually fading colour wheels
CCT: on wheel 2.400 K and 3.200 K
Colour wheel: 9 dichroic filters on 3 independent colour wheels
Colour wheel: High CRI colour filters
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
Fixed gobos: 11 fixed gobos + open
FX generator: 2 prisms overlap for spectacular aerial effects
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 270°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: RAL 9004
CONTROL
Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
DMX channels: 29channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
Other: Ethernet pass through in case of PSU or Master PCB failure
ELECTRONICS
Dimmer: linear 0 ~ 100% mechanical dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
Max power consumption: 517W
Standby power: 85W
Output (at 230V): 4 units on a single power line
Power factor: > 0,98
PHYSICAL
IP rating: 65 (*)
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: IP65 Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
(*)
NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
1 x ASTRAHYB330IP
2 x OSIPPLUS
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
User manual

サイズ

Dimensions (WxHxD): 393x684x266mm
Weight: 25kg

参照


■メーカーサイト
https://www.prolights.it/product/ASTRAHYB330IP
