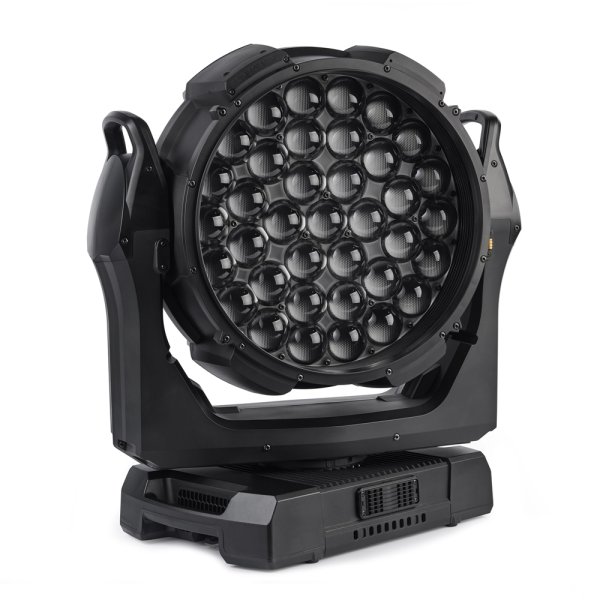

Martin MAC Aura Raven XIP(MAC オーラ レーヴェン XIP)

商品詳細



概要

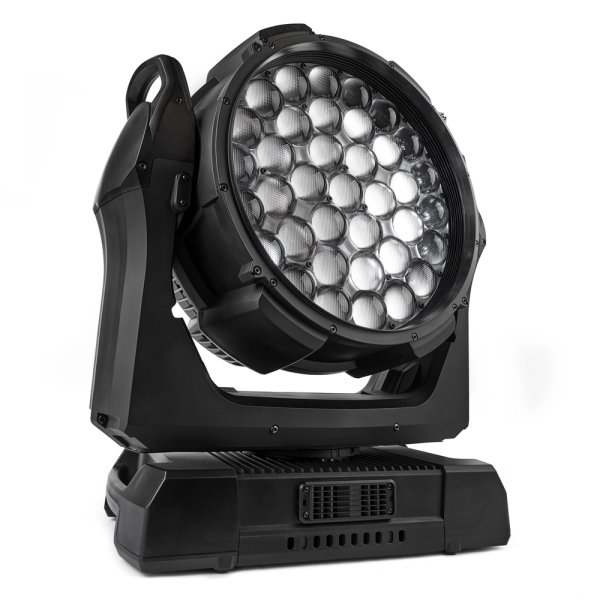

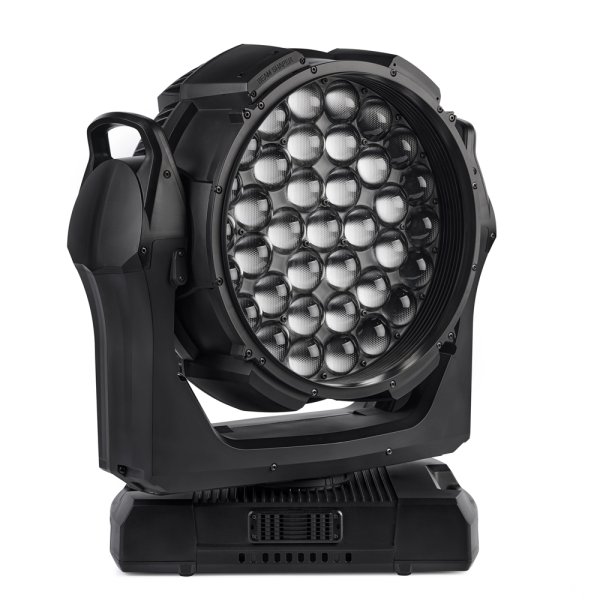

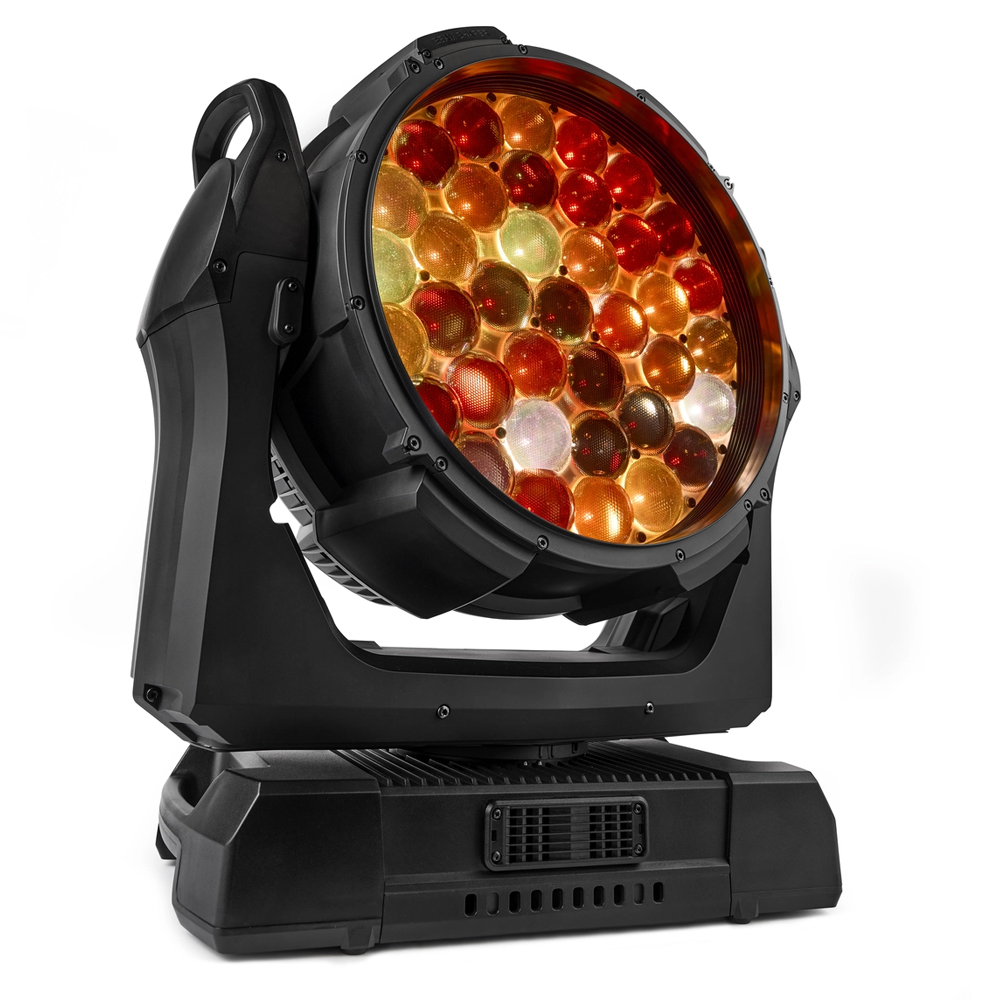

The Martin MAC Aura Raven XIP is a premium moving head fixture that combines wash, beam, eye-candy, and smart weatherproof functionality to lead as the biggest, brightest and boldest fixture of the MAC Aura family. Delivering class-leading lumen output and unparalleled performance indoors or outdoors, MAC Aura Raven XIP is perfect for lighting designers, rental companies, and installation customers needing a truly versatile workhorse for illuminating festival stages, theatrical performances, corporate events, and broadcast applications.

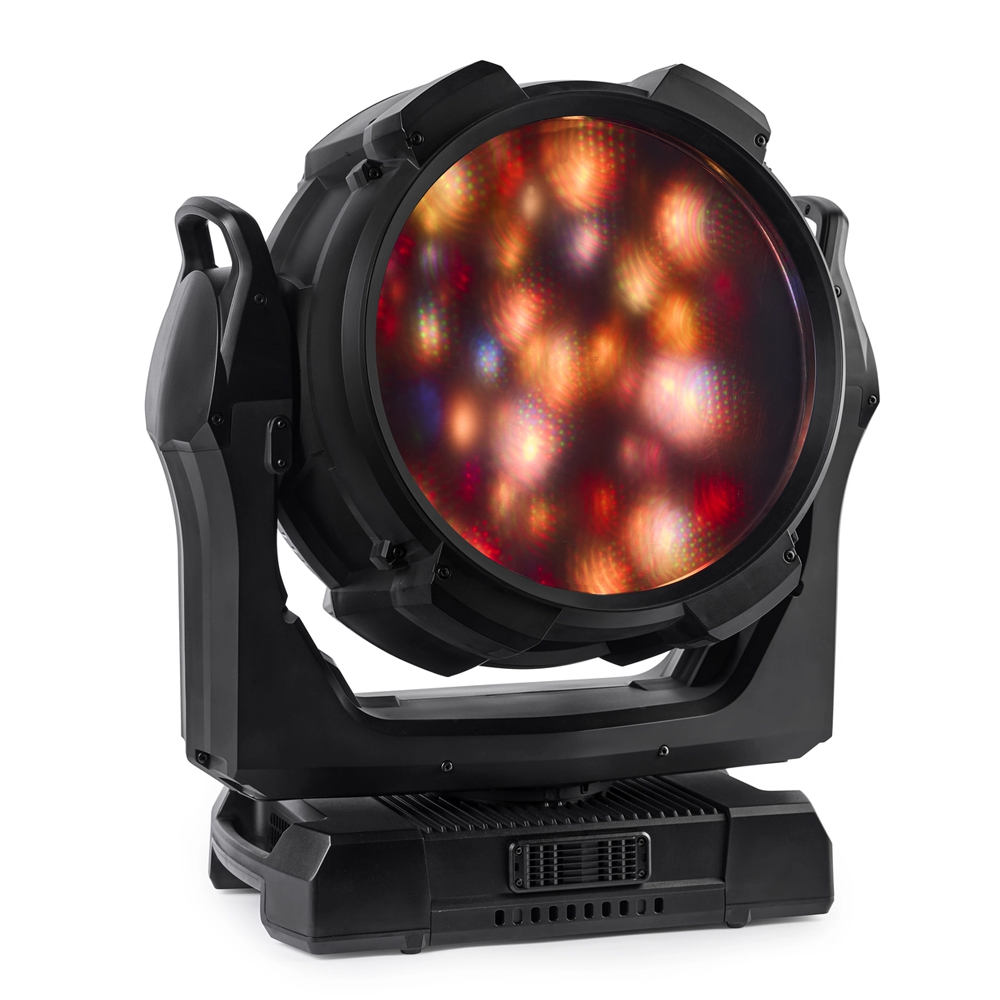

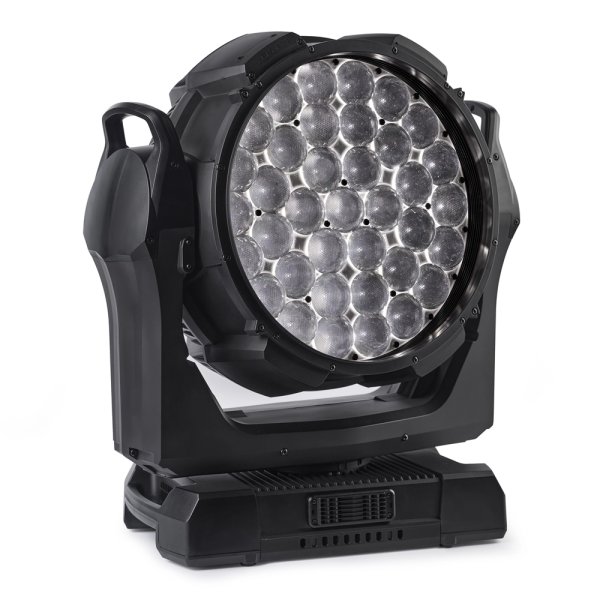

With the cleanest wash field in its class and exceptional optical performance, MAC Aura Raven XIP’s industry-leading light engine delivers 27,000 lumens of output and a high-intensity beam through its massive 343 mm (13.5 in) front lens. An array of 234 individual LEDs, positioned behind the front lens, creates an enhanced pixelated Aura backlight effect, adding an entirely new layer of visual effect possibilities.

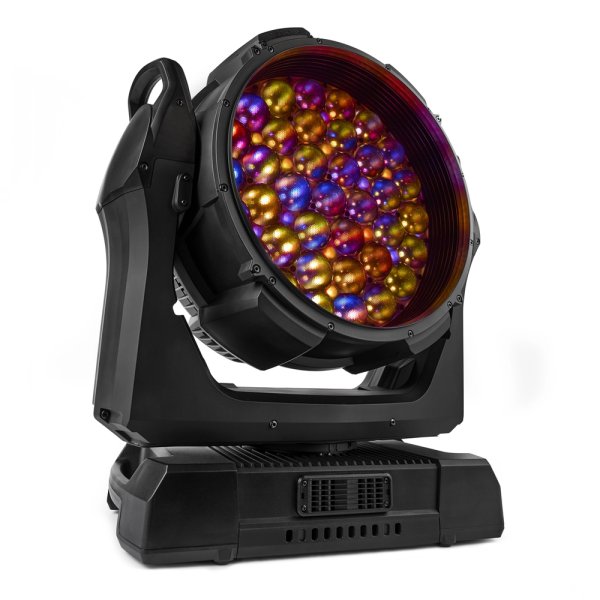

Setting new performance and feature benchmarks for wash, beam, and eye-candy fixtures, MAC Aura Raven XIP uses RGBL (Red, Green, Blue, Lime) light engine LEDs, significantly enhancing skin tones and overall quality of light. It also includes a dark lens, offering a very discreet look that seamlessly blends into more décors and applications.

A significantly enhanced belt-driven zoom system ensures extremely fast and near silent operation. Other firsts for the MAC Aura family include a Universal Connect Module slot; Companion Mobile app control; and yoke handles for easier transport and handling. Martin’s P3 control also simplifies setup, configuration, and the mapping and mixing of DMX with video.

MAC Aura Raven XIP is perfect for rental companies and installation customers needing a versatile workhorse that can deliver 50% more brightness than the legendary Martin MAC Quantum Wash. It was also designed to generate higher ROI through lower maintenance requirements as an alternative to IP20-rated fixtures. For lighting designers, we built the fixture to be extremely versatile by combining a powerful wash light with incredible eye-candy effects that can easily be specified for theater, television, or corporate events, while also being outdoor-rated for festivals, concerts, and other events.

Unleash the power of light with the MAC Aura Raven XIP. Experience unparalleled performance, superior light quality, and cutting-edge features – experience the flagship MAC Aura Raven XIP.

特徴

27,000 lumens of output
Silent and extremely fast zoom system with a range from 6 to 52 degrees

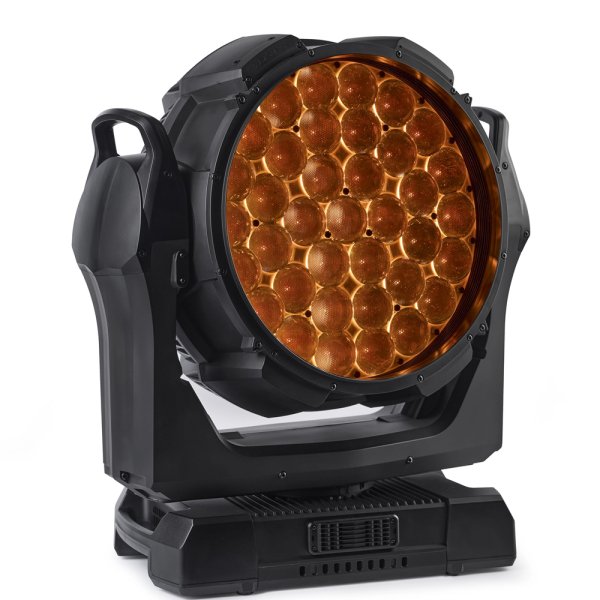

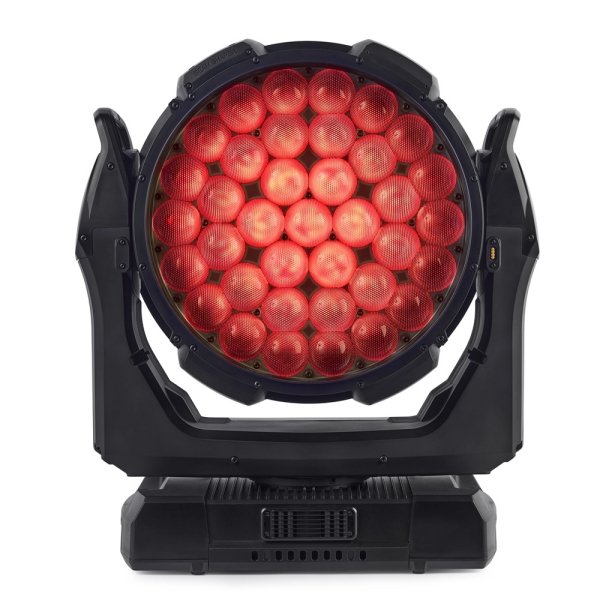

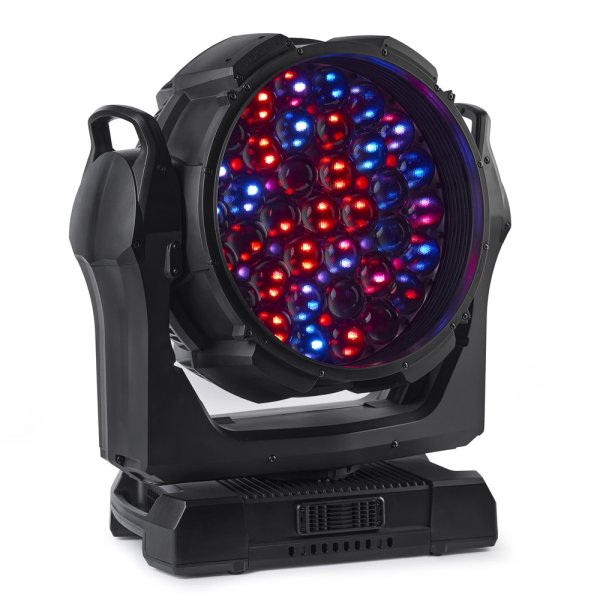

RGBL (Red/Green/Blue/Lime) LED engine, providing higher light quality (CRI / TM-30 / TLCI)

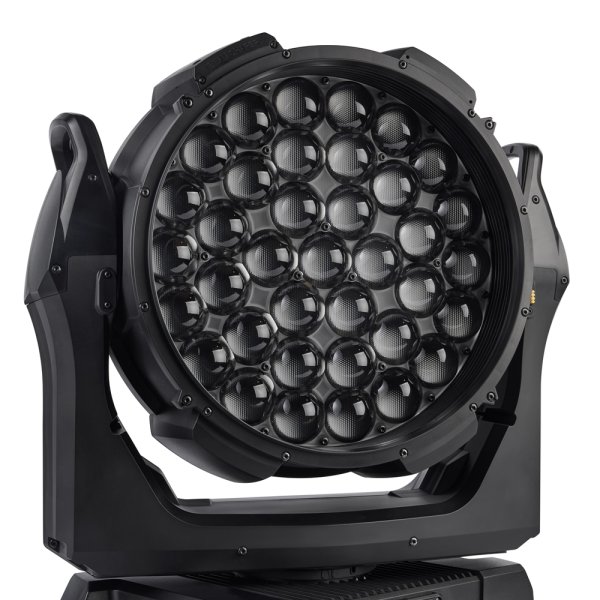

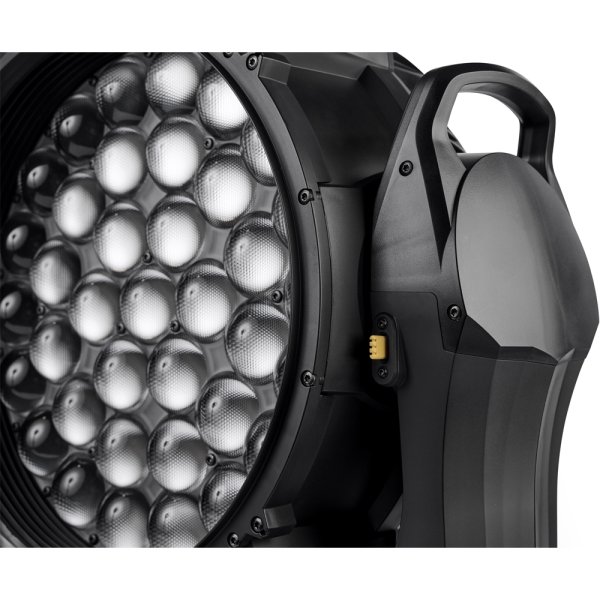

Large 343 mm (13.5 in) diameter front lens

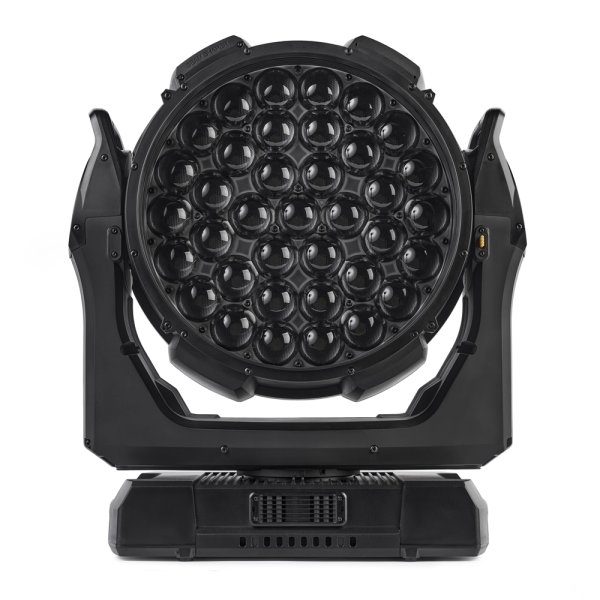

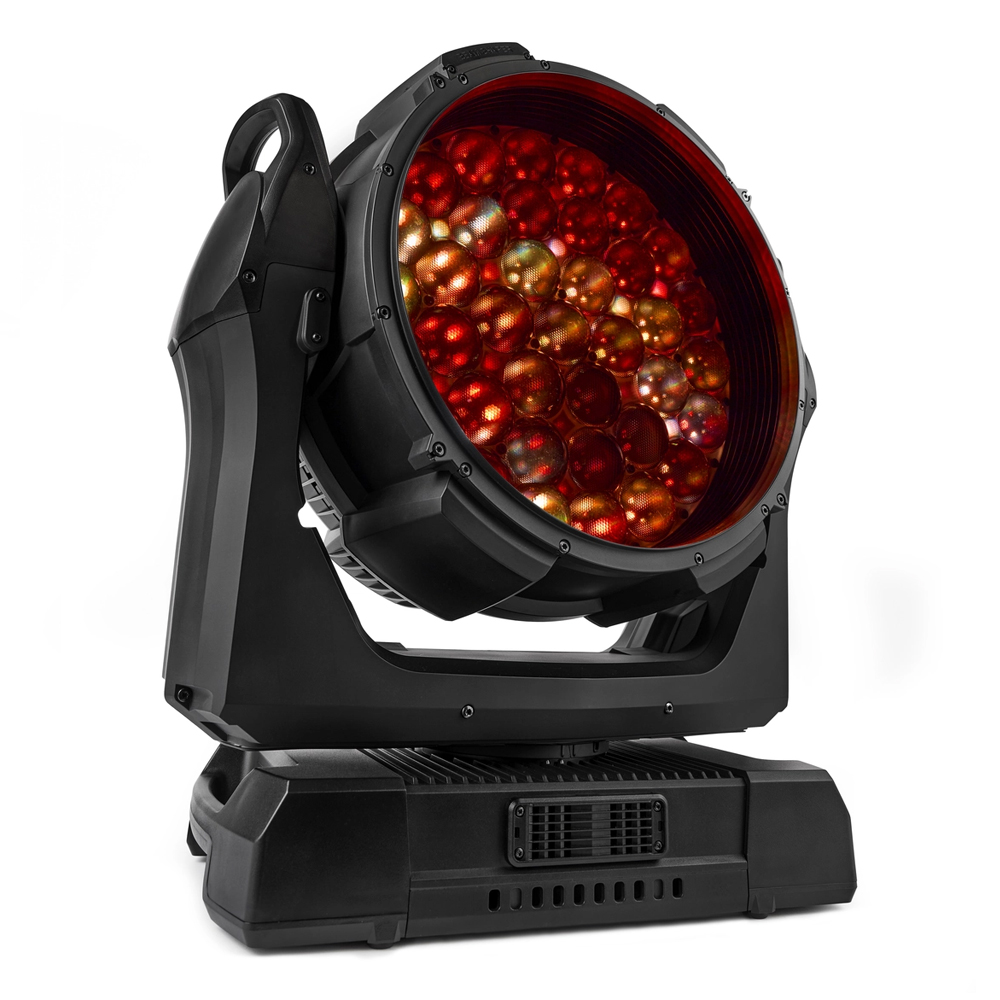

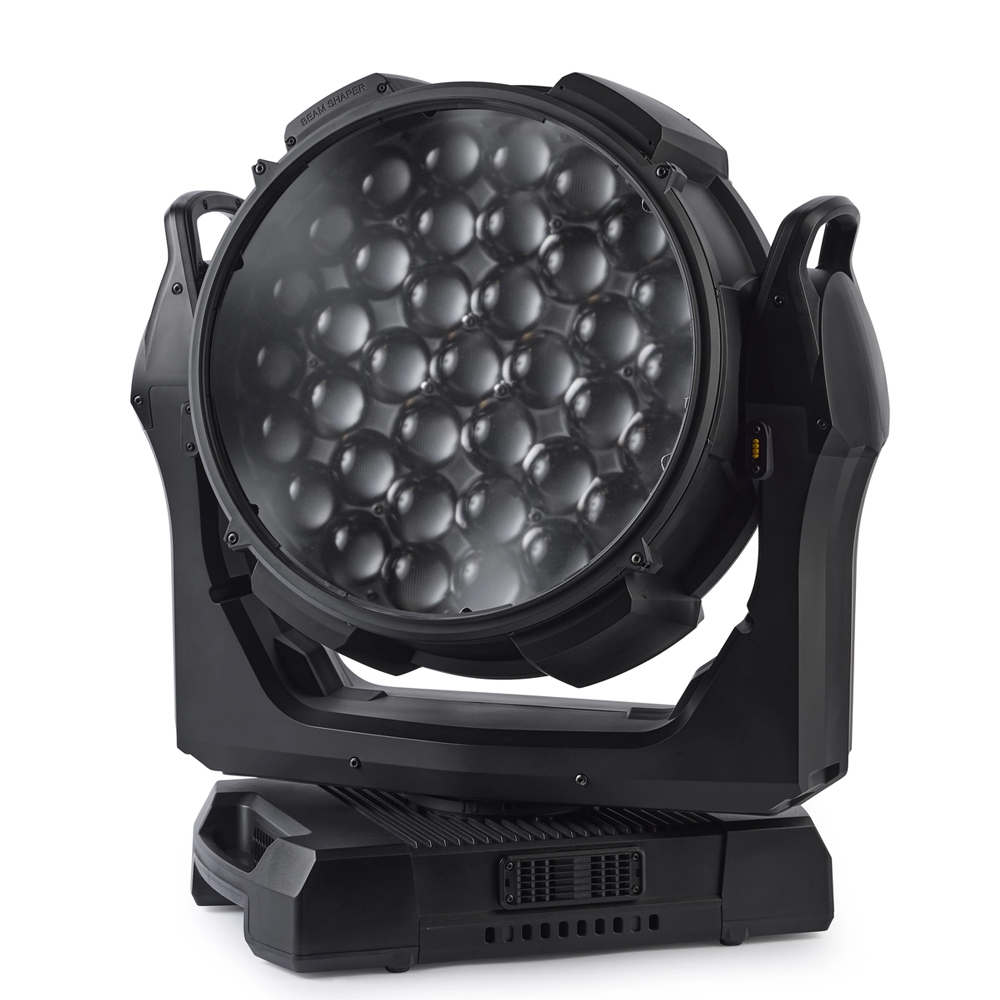

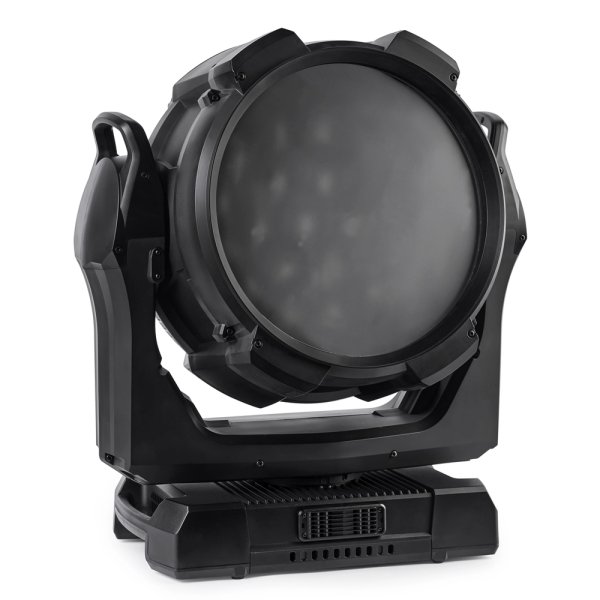

Dark lens, offering a much more discreet look and higher contrast for the pixelated Aura backlight effect

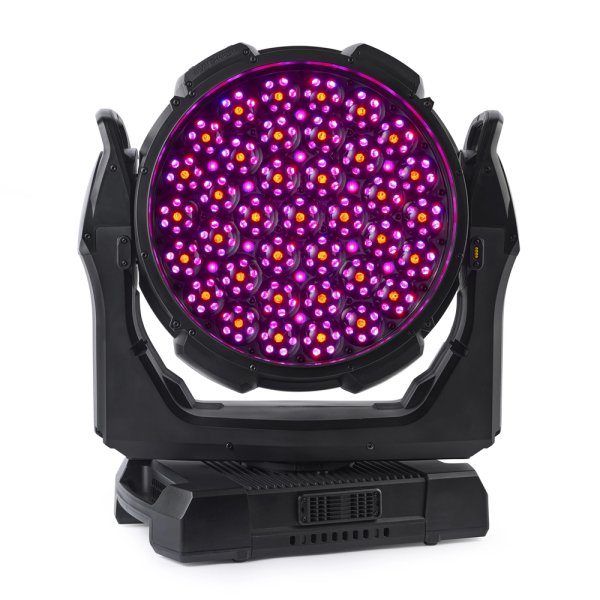

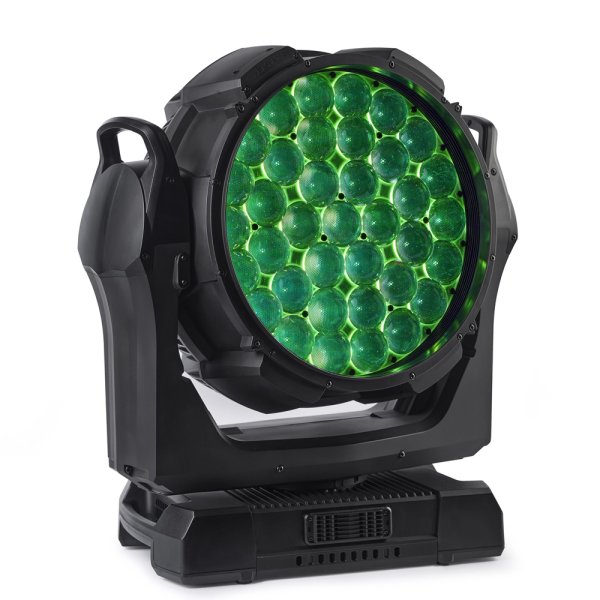

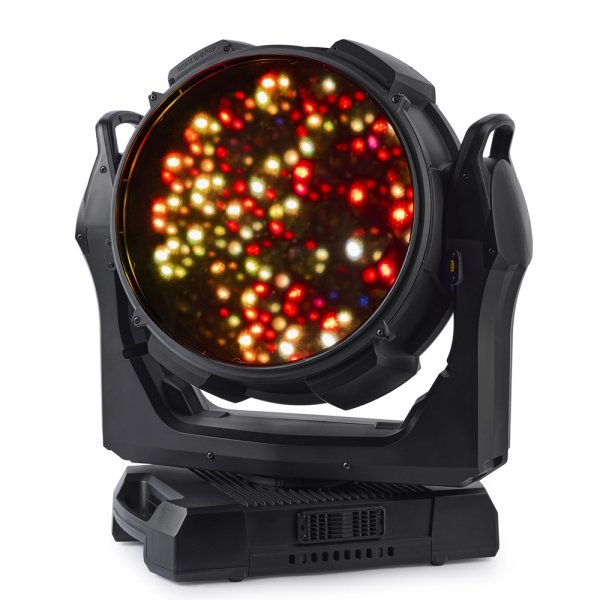

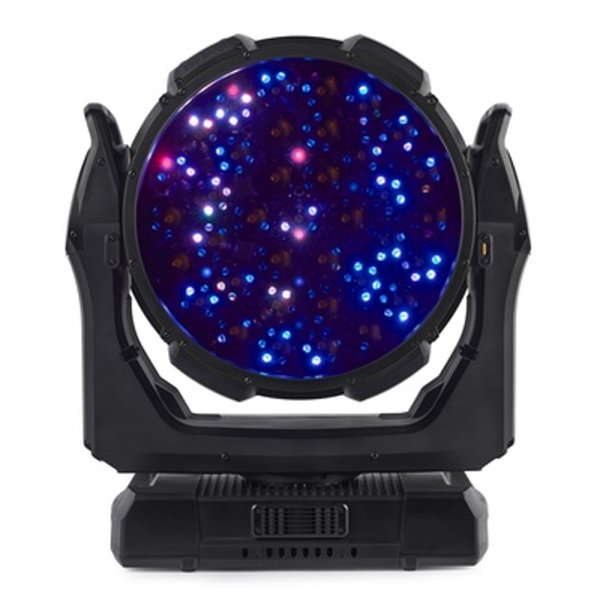

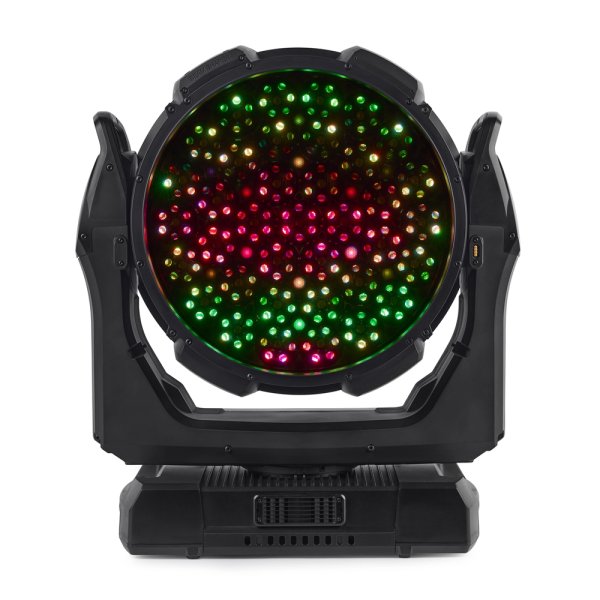

Pixelated Aura Backlight Effect with 234 RGB LEDs

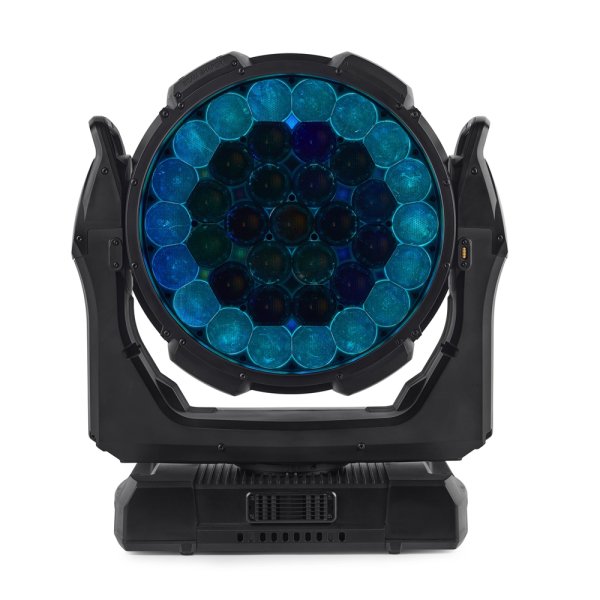

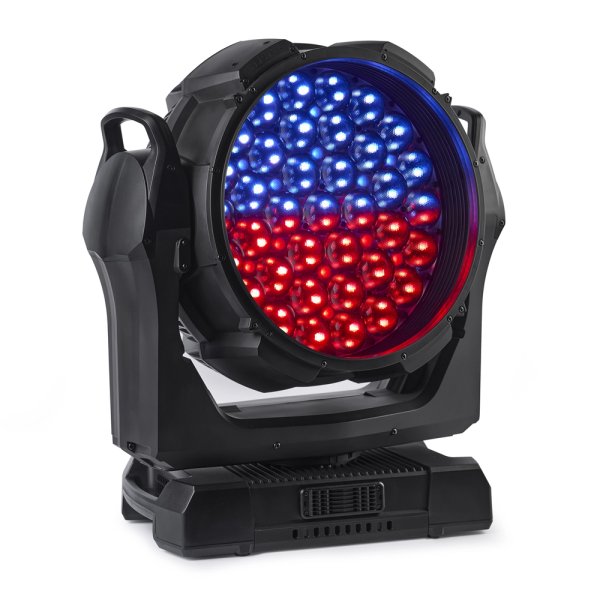

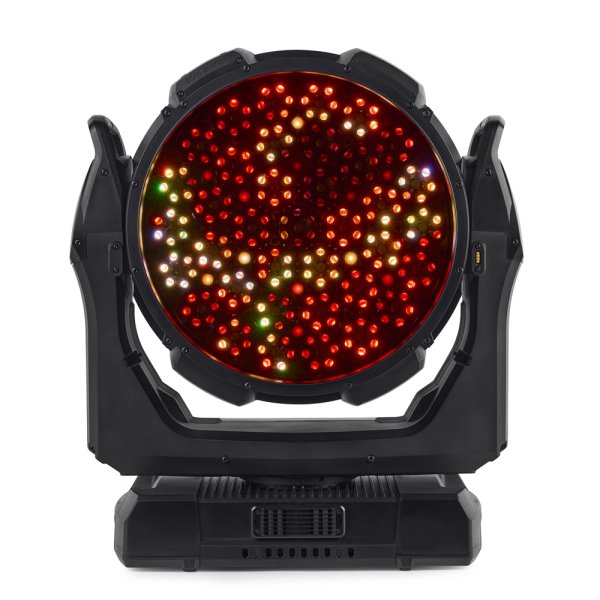

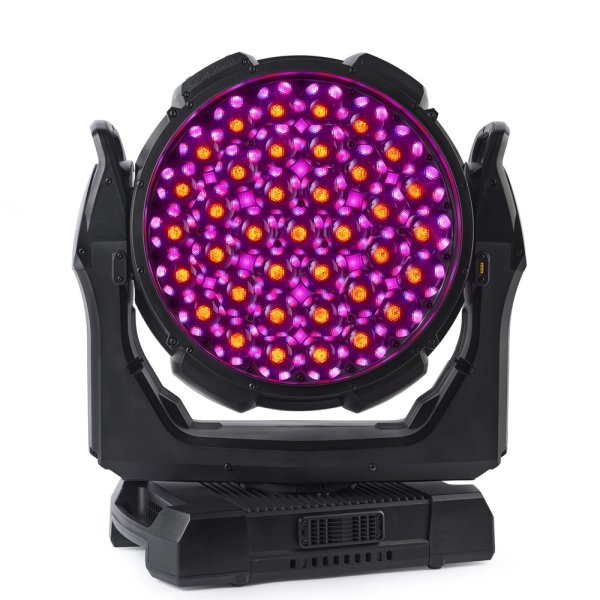

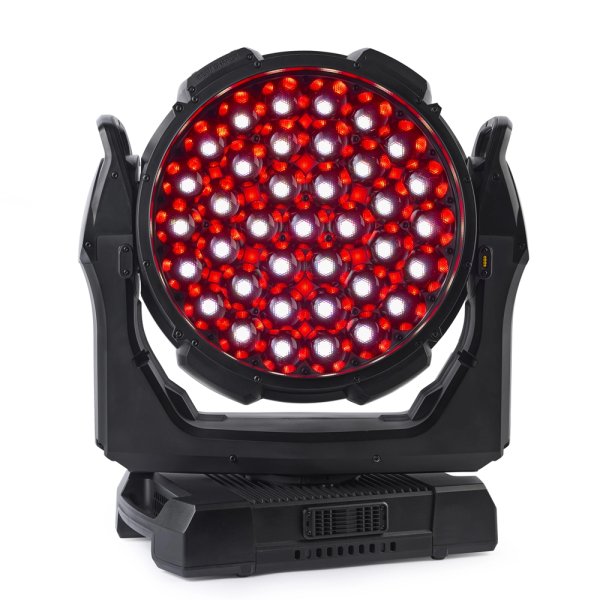

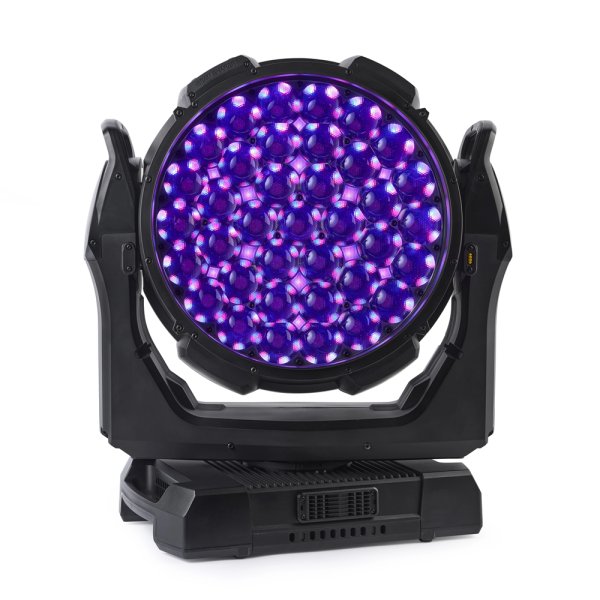

Full pixel-control over 37 main LEDs and 234 Aura backlight LEDs
DMX, Art-Net, sACN & Martin P3 control
XIP smart weatherproof technology for temporary outdoor use
Most compact and lightweight fixture in its class

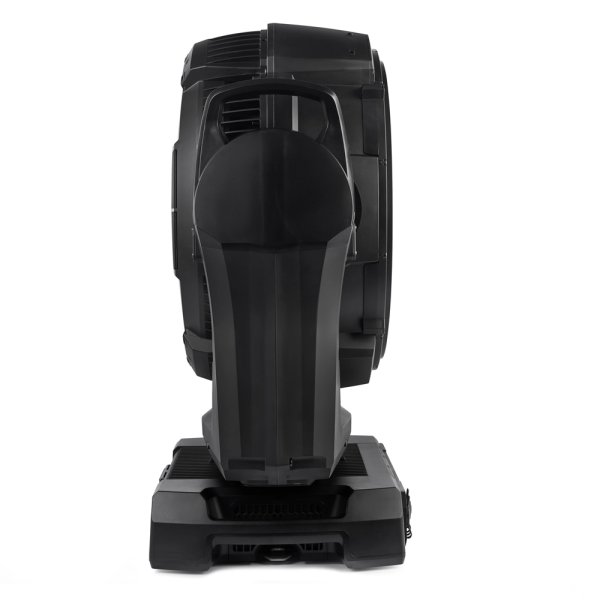

Yoke handles for easy handling of the fixture, and easy, upside-down flipping

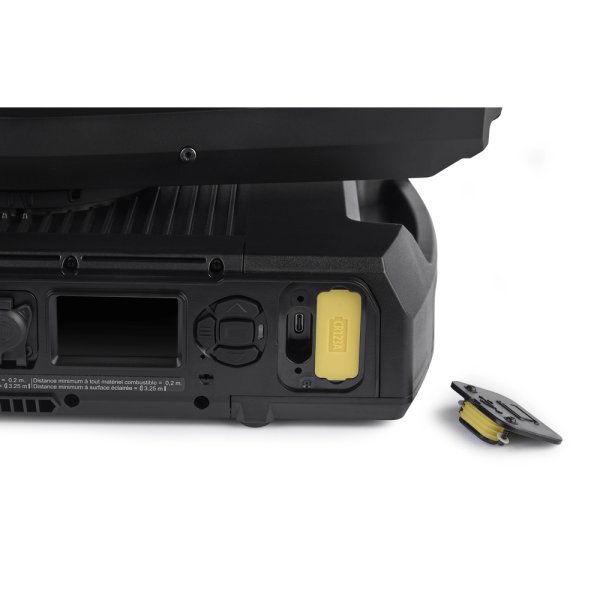

Battery-powered display for setup and configuration
NFC interface, supporting configuration and diagnostics via Companion Mobile App

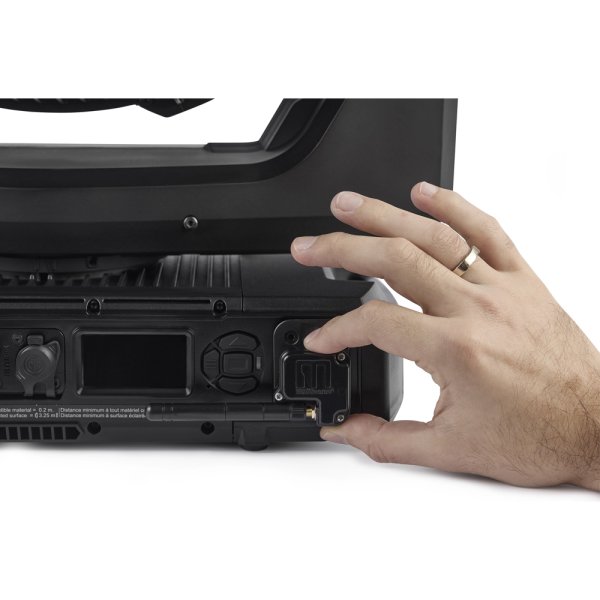

Universal Connect Module slot, supporting third-party wireless modules

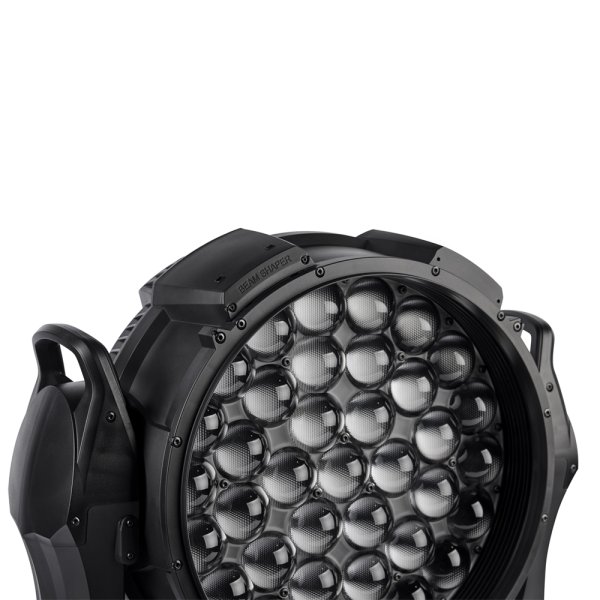

Optional BeamShaper module, that can be added and shapes the field of light being projected

仕様

Dynamic Effects
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves

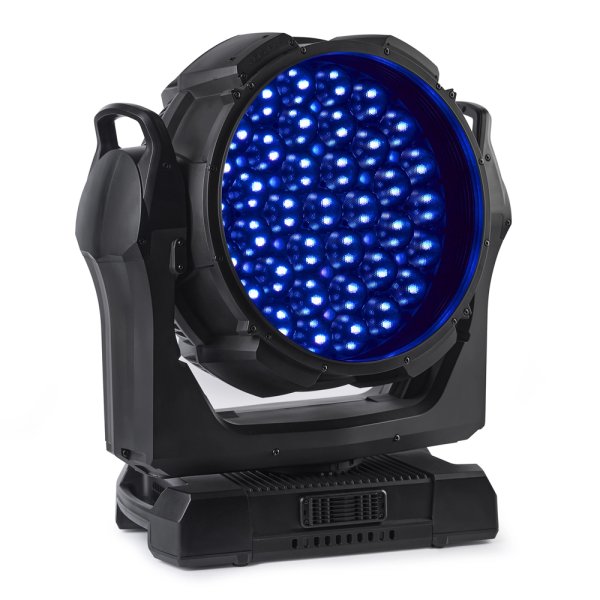

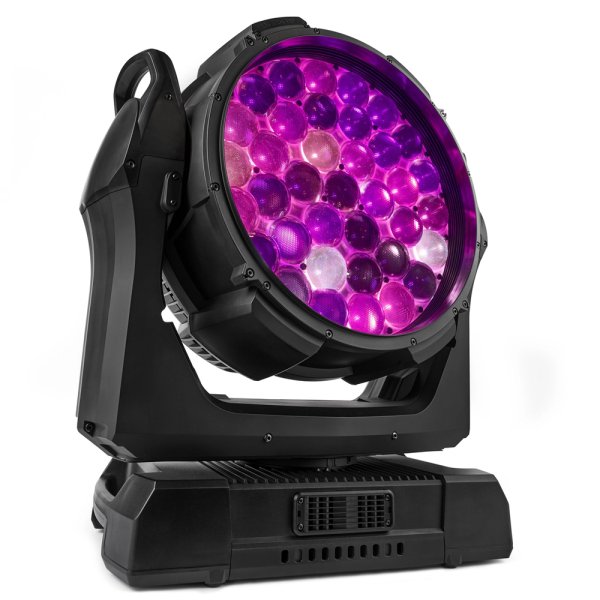

Beam Color Mixing: RGBL, independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05

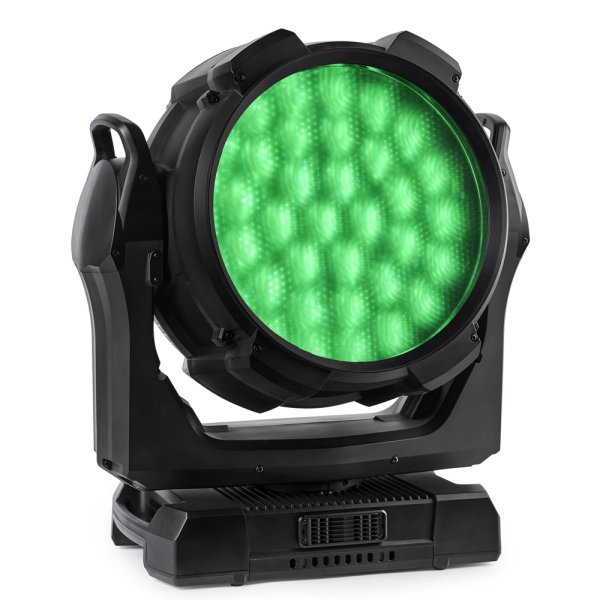

Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:5.3 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 250°

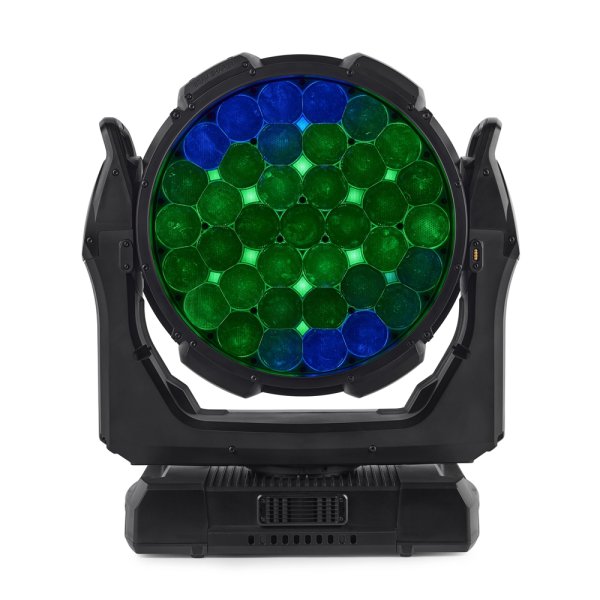

Beam PixelMapping: Individual RGB control of each of the 37 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 2,000 – 12,850 K
Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color

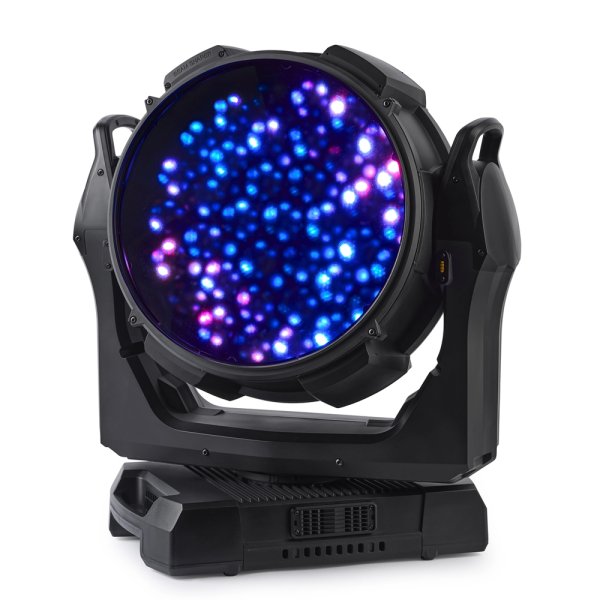

Aura PixelMapping: Individual RGB control of each of the 234 Aura pixels
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction control
LED Frequency control: Variable LED PWM control

Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended, Ludicrous, Plaid & Compact Direct
DMX Channels: 22, 38, 149, 266, 851 & 22
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, BeamShaper Indexing, Pan and Tilt
Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 6.2.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics
Front Lens Diameter: 343 mm (13.5 in.)
Zoom Range: 1:5.3
Full Zoom Range at Half Peak (Beam Angle): 6.6° - 35.5°
Full Zoom Range at Tenth Peak (Field Angle): 9.8° - 52.0°
Beam Light Source: 37 x 40 W RGBL LED
Aura Light Source: 234 x 0.25 W RGB LED
Max. Total Beam LED Engine Power: 830 W
Max. Total Aura LED Engine Power: 70 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data
Light Engine Luminous Output: 37,000 lumens
Fixture Luminous Output Wide: 27,000 lumens
Fixture Luminous Output Narrow: 19,000 lumens
Peak Luminous Intensity Narrow: 1,800,000 cd
CCT: Variable 2,000 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index) (default): ≥ 79
CRI (Color Rendering Index) (optimized): ≥ 86
CQS (Color Quality Scale) (default): ≥ 89
CQS (Color Quality Scale) (optimized): ≥ 89
TM-30 Rf (IES TM-30-15 Fidelity Index) (default): ≥ 81
TM-30 Rf (IES TM-30-15 Fidelity Index) (optimized): ≥ 84
TM-30 Rg (IES TM-30-15 Gamut Index) (default): ≥ 112
TM-30 Rg (IES TM-30-15 Gamut Index) (optimized): ≥ 105
TLCI (Television Lighting Consistency Index) (default): ≥ 75
TLCI (Television Lighting Consistency Index) (optimized): ≥ 87
Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX and 19,200 Hz mode
Aura LED Refresh Rate: 62,500 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white

Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP54
Installation
Mounting points: 4 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Indoor or Temporary Outdoor use
Orientation: Any, except with display facing upwards in outdoor application
Minimum distance to combustible materials: 0.2 m (7.9 in.)
Minimum distance to illuminated surfaces: 2.5 m (98.4 in.)

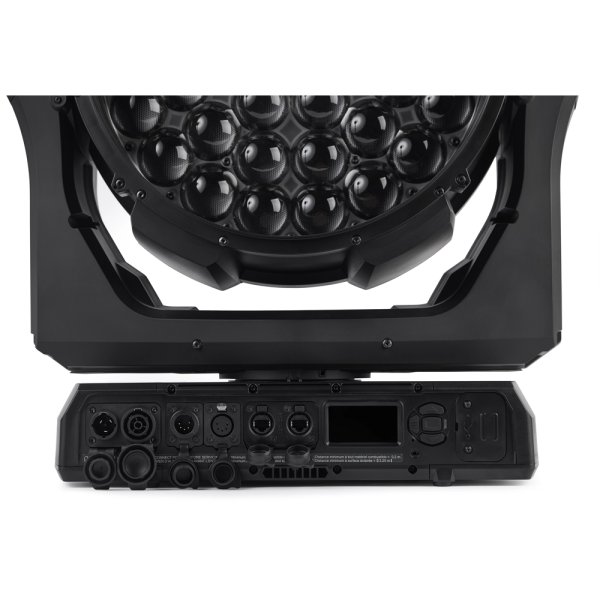

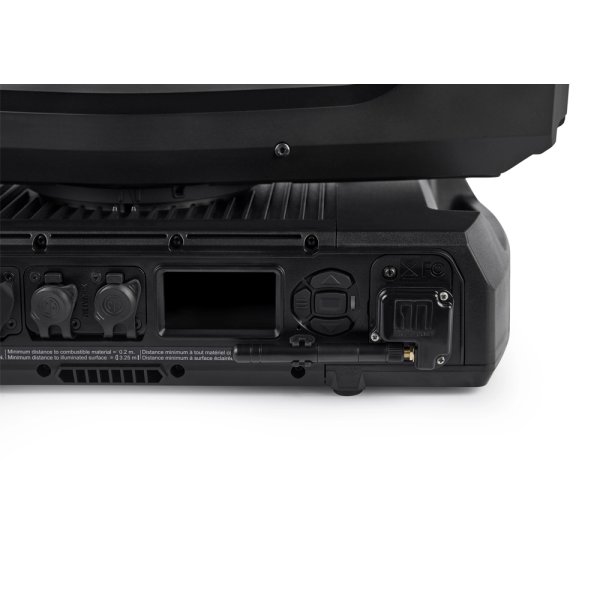

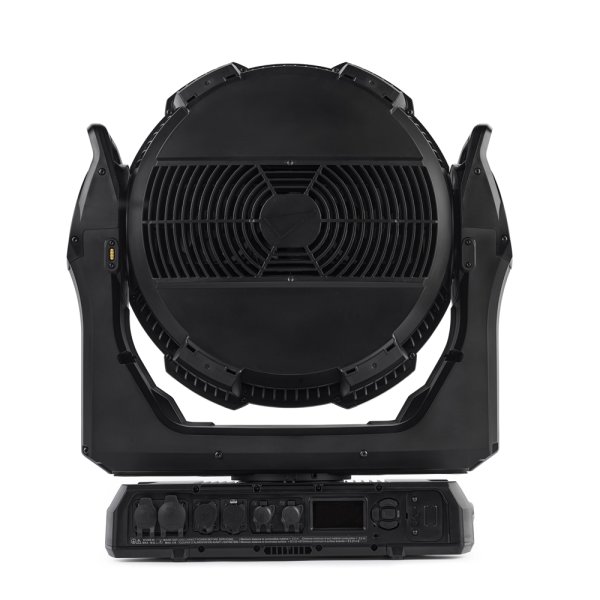

Connections
AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Firmware from flash memory: USB 2.0 type C port
Accessory Plug-In: Universal Connect Module Slot

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.3 A @ 100 V / 120 V , 5.6 A @ 208 V , 4.8 A @ 230 V / 240 V
Typical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V *
Power Consumption
Maximum: 1120 W
Typical: 1020 W *
Idle: 135 W *
Hibernation: 6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal
Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may apply
Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
Total heat dissipation (calculated, +/- 10%): 3478 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 36.4 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.6 dB(A)
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging
Efficacy (max output): 26.4 lm/W
LWR*: 937 lm/kg (425 lm/lbs.)
* LWR = Lumen-to-Weight Ratio

Approvals
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Thailand: TIS
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
SoftLens
Multi-Language Safety and Installation Manual

Related Items
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store

Accessories
Optical

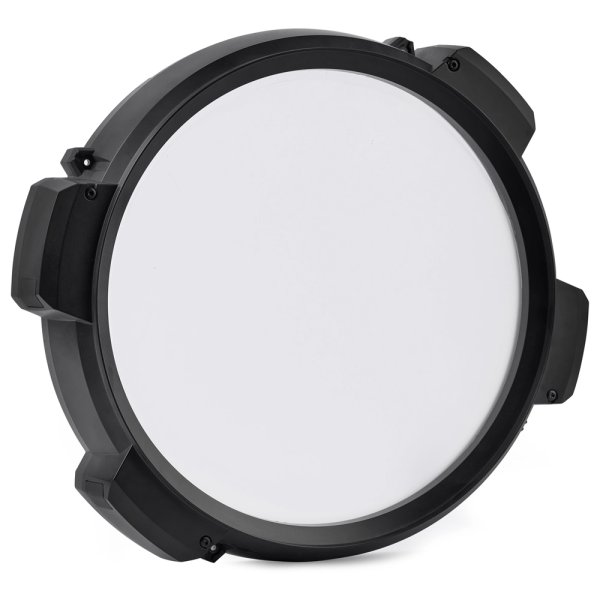

MAC Aura Raven XIP BeamShaper Module: P/N MAR-91614064HU

Transport and Storage

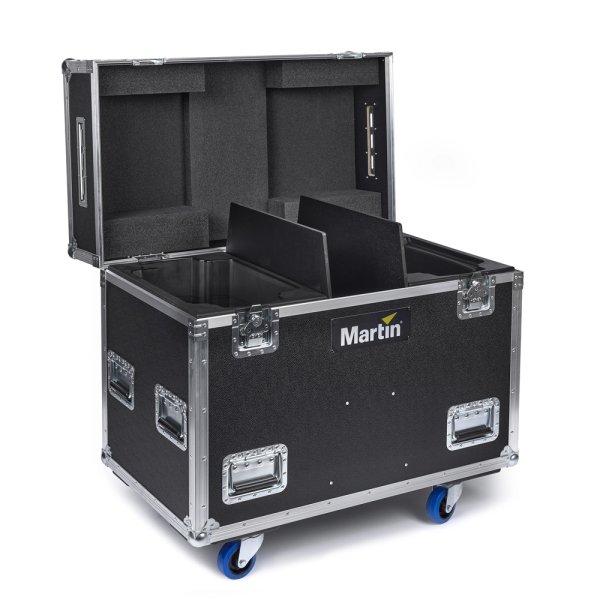

Flightcase for 2 x MAC Aura Raven XIP: P/N MAR-91515064
Additional SiP Foam Flightcase Insert for MAC Aura Raven XIP: P/N MAR-91611864HU

Consumables
CR123A 3-volt lithium battery: P/N 05801011

Spare Parts

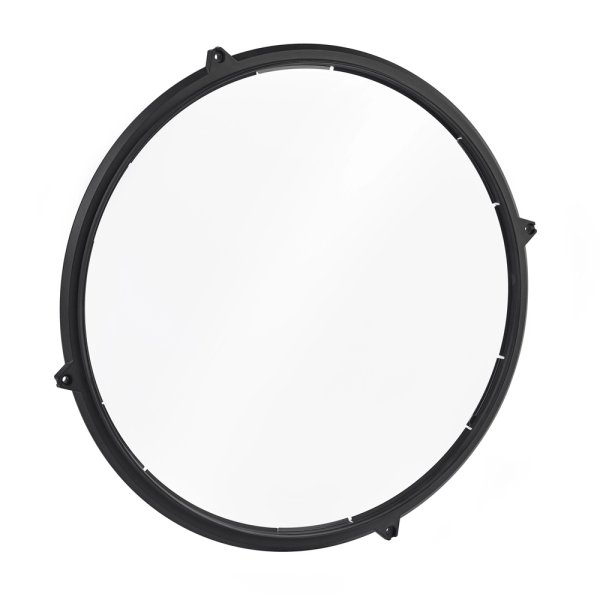

Additional MAC Aura Raven XIP SoftLens: P/N TBD

Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Daisy-Chain Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Verified Third-Party Accessories
Beam Control
MAC Aura Raven XIP Top Hat: P/N City Theatrical TBD
MAC Aura Raven XIP Hexcel Louver: P/N City Theatrical TBD
MAC Aura Raven XIP Concentric Ring: P/N City Theatrical TBD

Universal Connect Module
Multiverse Connect Module 2.4GHz: P/N City Theatrical 5914
Multiverse Connect Module 900MHz: P/N City Theatrical 5915

Ordering Information
MAC Aura Raven XIP in EPS (in cardboard box, polystyrene packaging): P/N MAR-90250400HU
MAC Aura Raven XIP in SiP (in cardboard box with SiP foam flight case insert): P/N MAR-90250405HU
MAC Aura Raven XIP white in EPS (in cardboard box, polystyrene packaging): P/N MAR-90250410HU

サイズ

Physical
Width (across yoke): 528 mm
Width (base): 429 mm
Height (head forward): 588 mm
Height (maximum): 603 mm
Depth (head): 241 mm
Depth (base): 285 mm
Minimum center-to-center distance in side-by-side installation: 540 mm
Weight: 28.8 kg
