Vari-Lite NEO X15（ネオ X15）

概要

The X15 is Vari-Lite’s flagship, high-performance lighting console designed for large facilities that host multiple types of events, such as houses of worship; studios; concert halls and multipurpose venues; stadiums and arenas; performing arts centers; and more. Leveraging over 150 years of combined experience in entertainment lighting control and running the mature Neo platform, the X15 console offers a feature-rich, customizable platform that is perfect for both theatrical and live event lighting.

Neo software helps designers find the perfect look in less time by including an advanced effects engine that supports pixel mapping, media playback, timelines, and more. When using the X15 along with audio and video systems, the onboard audio I/O connectivity along with SMTPE timecode and MIDI control make it easy to integrate your lighting cues with sound effects, videos, and more.

The powerful X15 lighting console is designed for flexibility, offering 15 multifunctional motorized playbacks and backlit encoders, and can output over 50,000 channels out of the box. The intuitive hardware layout includes two built-in monitors and a soft touch control screen. Both the X5 and X15 offer a sleek, streamlined experience, with a powerful processor and premium components, including backlit Cherry keys, Bourne faders, and Neutrik connectors. The all-in-one hardware is rugged and hardwearing, and can travel anywhere you need it, whether that’s around the theatre or around the world.

The X15 is backed by a robust training and support system, with onboard training videos, global tech support, online forums and groups, and an interactive manual.

Visit our Console Users Facebook Group for questions about using the NEO Series lighting consoles. Call 1.800.478.7263 or email entertainment.service@signify.com for advanced technical support.

特徴

Streamlined layout, and 15 multifunctional motorized playbacks with backlit encoders – adaptable interface that makes it easier to get things done quickly.
Runs Neo software – powerful, mature software platform designed for both theatrical and live event lighting
Advanced effects engine with chases, timeline and waveform effects, pixel mapping and more – get the perfect look in less time
Integrated touchscreen – all-in-one console that can go wherever you need
Soft touch control screen – 7” touch screen next to the keypad, for quick adjustment to features such as framing shutters, gobo selection, color control, pan/tilt, etc.
Rugged metal chassis with powerful processor, backlit Cherry keys, Bourne faders, and Neutrik connectors – premium hardware that’s built to last

Audio support with 2 XLR out, 1 XLR in, headphone jack, SMPTE, and MIDI control – sync your lighting with the audio in your space
100 DMX universes – create any size show without purchasing universe upgrades
Strong CITP visualizer protocol support – simplified integration with industry-leading Capture software and other visualization platforms using CITP.
Connect third-party UPS over USB and display info on screen – view UPS info in your console while reducing shipping costs. Works with most major UPS manufacturers.
Integrated book lighting plus backlit keys and optional gooseneck light – view notes easier in the dark.
Support for ZerOS Wing for additional faders – add more faders when live busking.

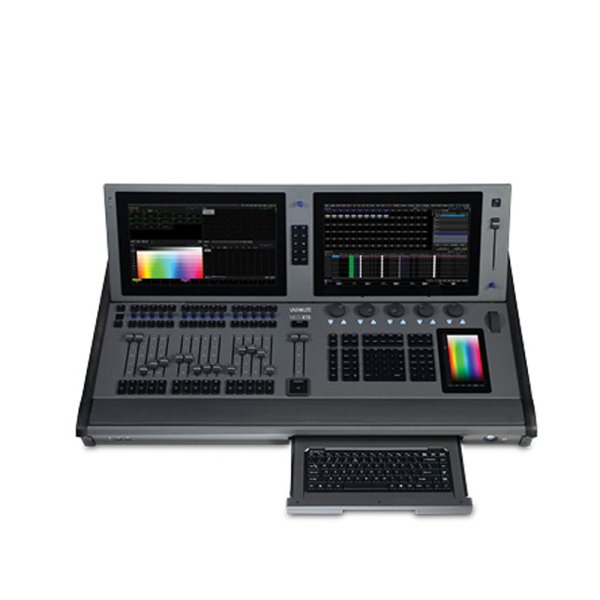

Keyboard drawer – add keyboard for faster setup and programming.

仕様

Included License
100x Universes (51,200 Channels)
DMX Out
4x Neutrik 5-pin XLR
DMX In
1x Neutrik 5-pin XLR
MIDI
In/Out/Thru
Display Outputs
2x DisplayPort (4K UHD)
Gigabit Ethernet
2x Neutrik etherCON
SMPTE
In/Out
Audio
3x Neutrik 3-pin XLR (Balanced L/R out, Mono In); 1x 3.5 mm (1/8") headphone/mic combo mini jack
Input Voltage
100–240 VAC, 50 / 60 Hz
Max Power
600 W
Approbations
UL, cUL, CE, RCM, UKCA
Conformity
UL 62368-1, IEC 62368-1, CSA C22.2 NO 62368-1, FCC 47CFR 15, ICES-003, EN 55032, CISPR 32

参照

■メーカーサイト
https://www.vari-lite.com/global/products/x15
