Martin P3-175 System Controller（ P3-175 システムコントローラー）

概要

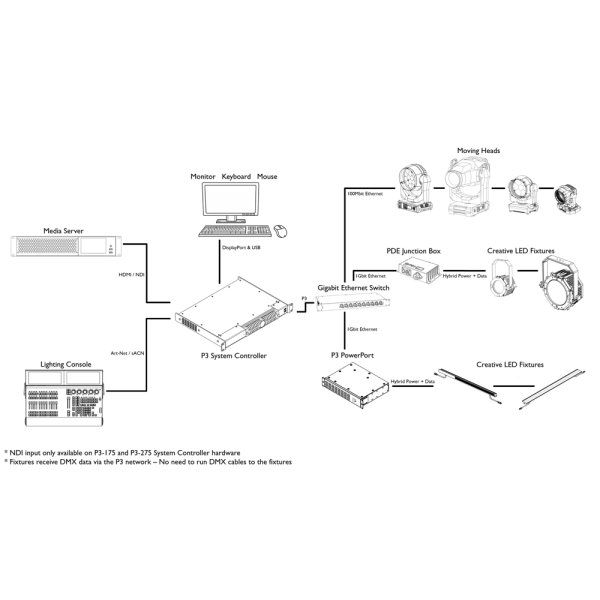

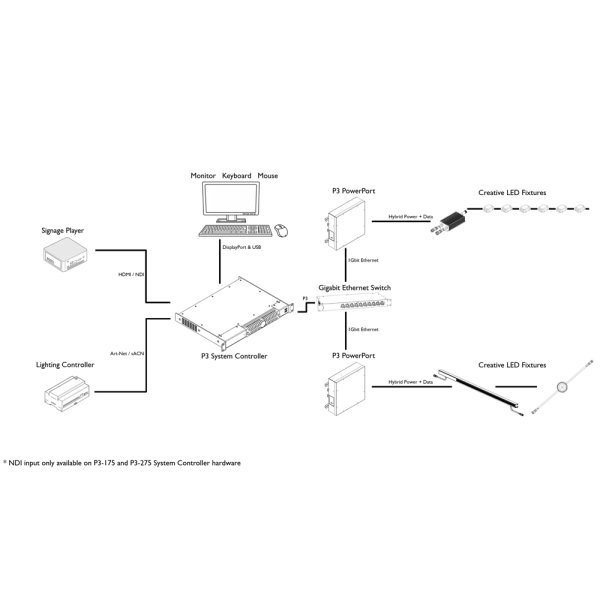

The Martin P3-175 System Controller supports video input up to Full HD (1920x1080) and allows fixtures to be mapped onto the visual canvas, patched, addressed, and configured without having to directly access the fixtures. Martin fixtures can be easily controlled from a lighting desk, video source or a mix of both. They integrate with third-party software by importing and exporting industry-standard MVR files, eliminating duplicate actions and enabling designs to be easily shared.

Uniquely creative looks can be created for each application, whether using video content, traditional DMX controls, Art-Net / sACN PixelMapping, or a mix of control methods.

The entire system is fully synchronized, ensuring all elements work cohesively without visible latency. They support Full HD video input over HDMI and NDI inputs, outputting up to 520,000 pixels to up to 2,000 fixtures. Real-time previews show you how DMX controls and video will be rendered on the fixtures.

特徴

Full HD video input compatible (HDMI & NDI)
HDMI input resolution up to 1920 x 1080
NDI input resolution up to 1920 x 1080
256 universes of Art-Net / sACN input
Outputs up to 520,000 pixels on 2,000 fixtures

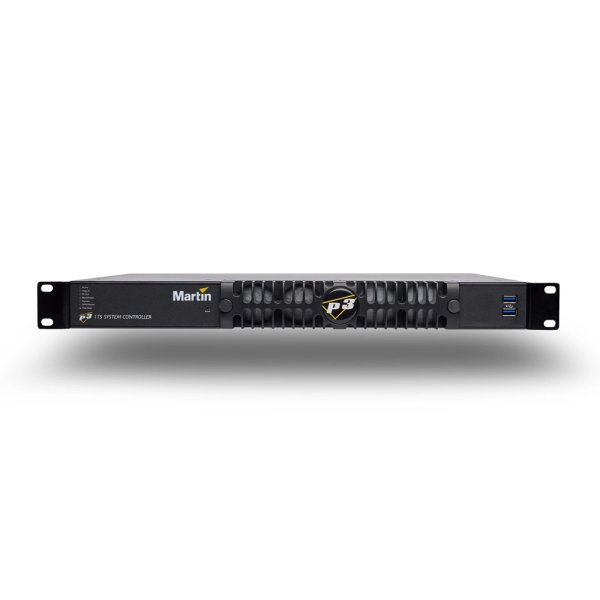

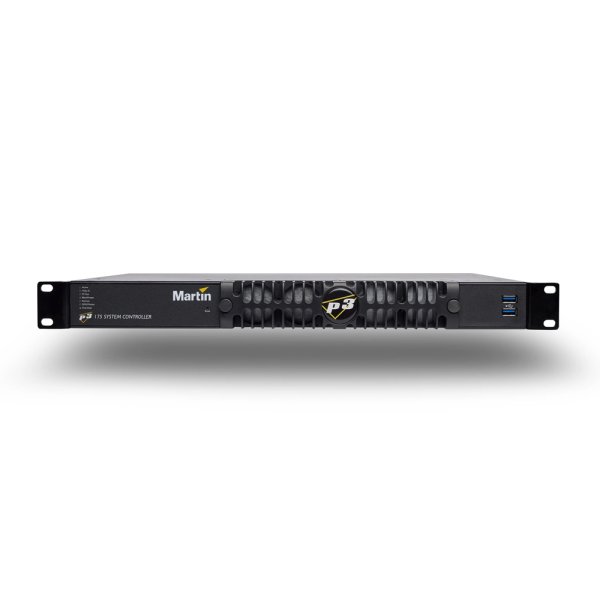

1U rackmount

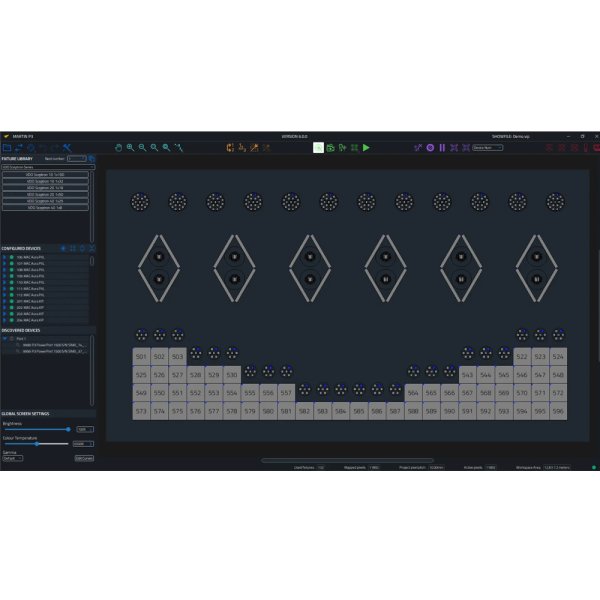

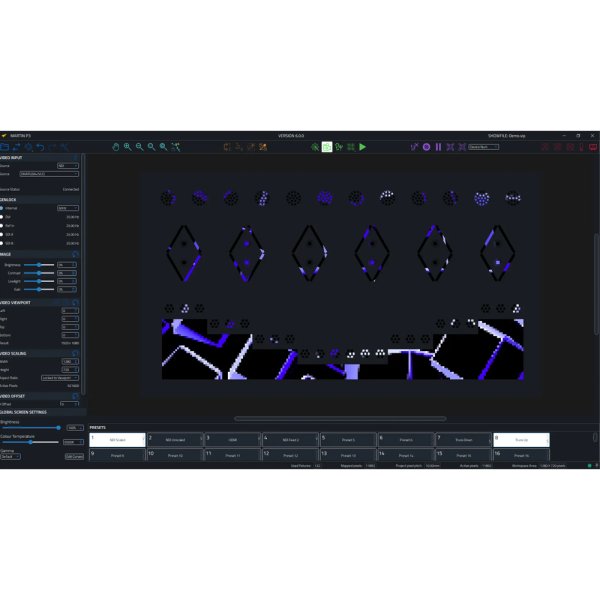

Map a mix of Martin fixtures onto one visual canvas
Patch, address, and configure Martin fixtures, without having to directly address and configure each fixture

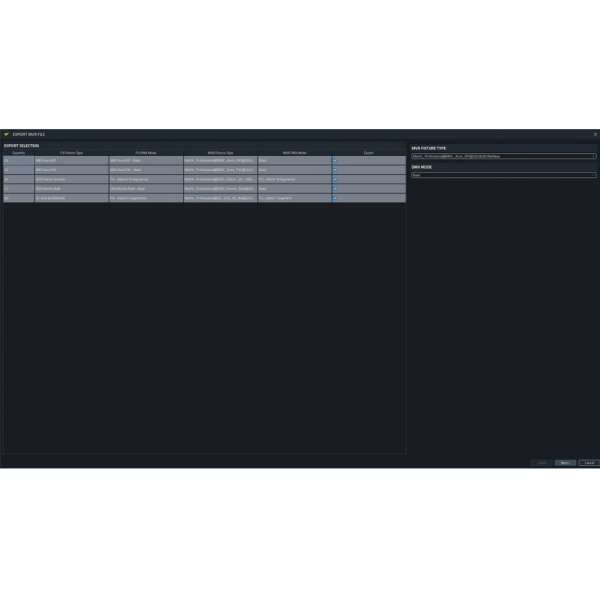

Export mapping and patch to third-party lighting controllers, CAD programs and visualizers via MVR

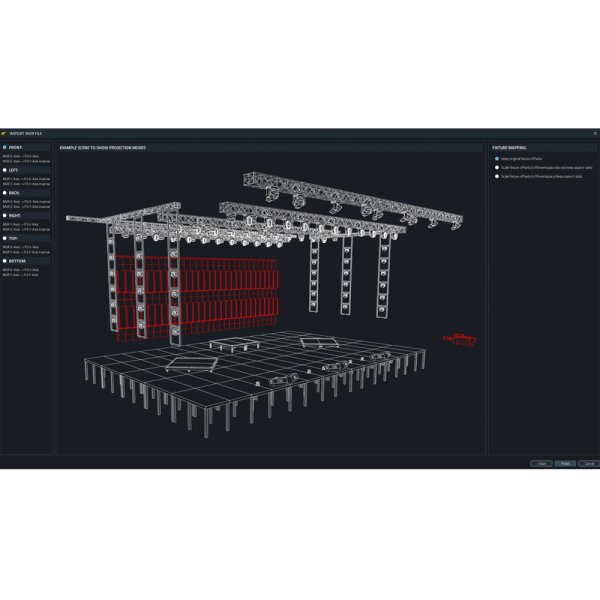

Import mapping and patch from third-party lighting controllers, CAD programs and visualizers via MVR

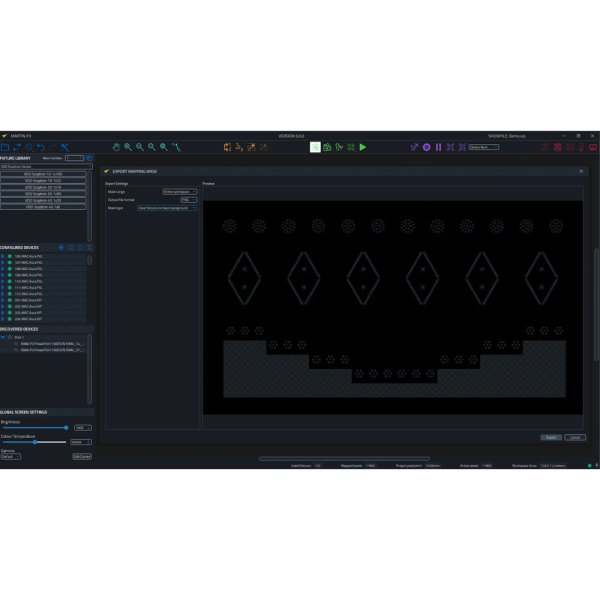

Export mapping mask to third-party media servers

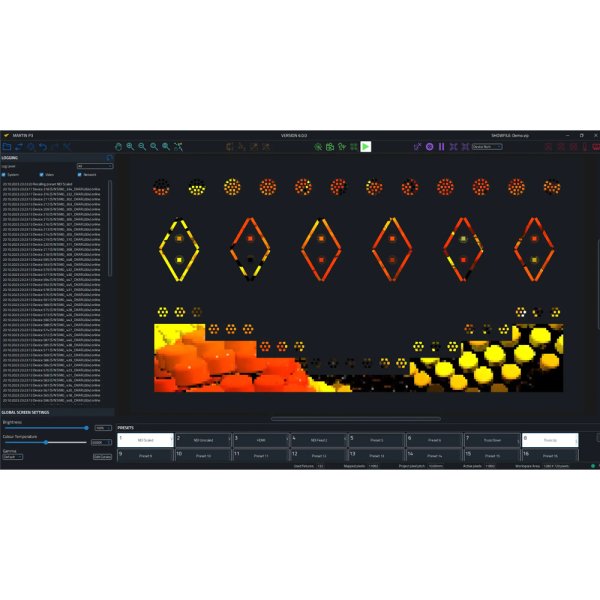

Provide real-time feedback and monitoring of Martin fixtures
Provide remote monitoring of the P3 System Controller and all connected fixtures without physically being onsite

仕様

Control/User Interface
User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
Device Status: Status indication LEDs

HDMI Video Input
Standard: HDMI 1.4a
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps
Scan: Progressive & Interlaced
EDID: Customizable via user interface
Colour Depth: 8/10/12-bit
Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020

NDI Video Input
Standard: NDI
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps

Video Processing
Controller pixel processing capacity: 520,000 pixels (expandable by adding P3-175s)*
Controller fixture capacity: 2,000 fixtures (expandable by adding P3-175s)*
Maximum workspace area: 8,847,360 pixels
Maximum active capture area: 2,073,600 pixels
System processing depth: 16 bits per color (48 bits per pixel)
System latency: 2 frames
Latency between first and last fixture: None
Scaling: Yes, global and mixed pixel pitch
Gamma Curve Control: Yes, adjustable
Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
Mapping: Real-time

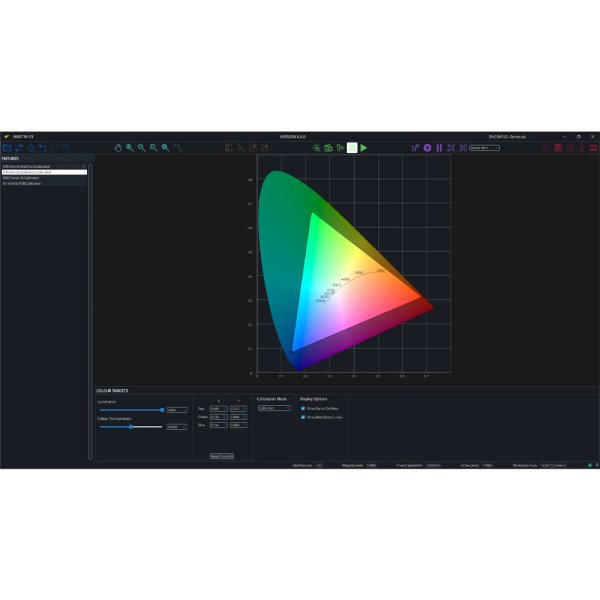

Colour Temperature Control: Real-time
Colour Space Control: Real-time
Preview: Real-time (incoming video & mapping onto fixtures)
*See also P3 System Controller Capacity Info Note on Downloads page

DMX Controls
Up to 256 universes of Art-Net or sACN input*
Control of intensity and colours
Control of colour temperature
Merge video input with DMX controls towards fixtures
Cross-fade or toggle between video and DMX controls
Freeze, blackout or activate testpatterns on video engine
Recall video presets (video settings, fixture positions and more)
*See also P3 System Controller Capacity Info Note on Downloads page

Motion Controls
One universe of Art-Net, sACN or Kinesys K2 input*
Compatible with Kinesys K2/Vector, Tait Navigator and others
Control fixture or group position on video canvas
Control fixture or group rotation on video canvas
*See also P3 System Controller Capacity Info Note on Downloads page

P3 Signal Protocol
Signal type: Gigabit Ethernet
Protocol : Proprietary Martin P3
Hot pluggable: Yes, electrically isolated at all connections
Cable type: Ethernet, shielded, Cat 5e or better
Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch

Construction
Housing: Steel and aluminium
Color: Matte black
Protection rating: IP20
Installation
Mounting: 19" rackmount (1U) or free-standing
Location: Indoor or outdoor protected from elements
Orientation: Horizontal only

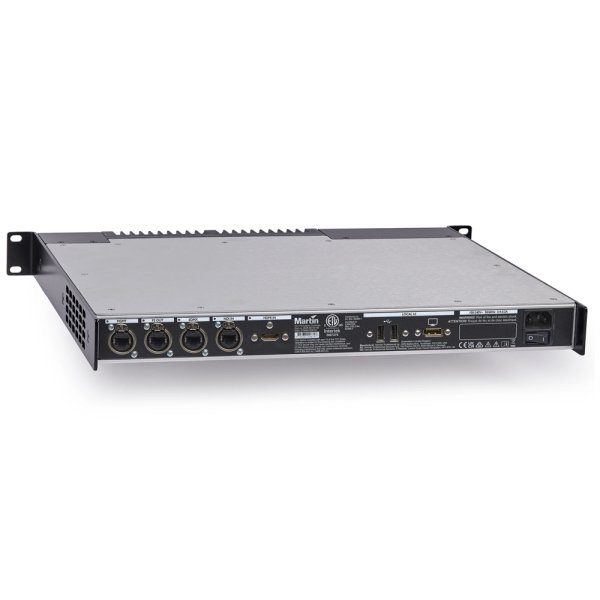

Connections
Power input: IEC socket with integrated power switch
P3 data in/out: 1x etherCON socket (100/1000Mbit)
EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
NDI Video In: 1x etherCON socket (100/1000Mbit)
HDMI Video In: HDMI 1.4a
Peripherals and USB memory devices: 2 x USB 2.0 ports and 2x USB 3.0 ports
User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 28 A
Typical earth-leakage current: 0.50 mA
Power Factor: 0.97 @ 100 V / 120 V , 0.91 @ 208 V / 230 V / 240 V
Max current draw: 0.65 A @ 100 V / 120 V , 0.35 A @ 208 V / 230 V / 240 V
Typical current draw: 0.28 A @ 100 V / 120 V , 0.15 A @ 208 V / 230 V / 240 V *
Power Consumption
Maximum: 65 W
Typical: 28 W *
Idle: 21 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: machine running at full P3, Art-Net/sACN and Video Input capacity.
Idle: no showfile loaded.

Thermal
Cooling: Filtered forced air (temperature-controlled fans)
Maximum ambient temperature (Ta max.): 50° C (122° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Typical heat dissipation (calculated, +/- 10%): 96 BTU/hr.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Approvals
EU safety: EN 62368-1
EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
US safety: UL 62368-1
Canadian safety: CSA C22.2 No. 62368-1
Australia/NZ: RCM
United Kingdom: UKCA
India: BIS (pending)
Included Items
Safety Guide
Quick Start Guide
EU-type power cable with Schuko connector
US-type power cable
UK-type power cable

Related Items
Martin P3-275 System Controller: P/N MAR-90721101
Martin P3-PC System Controller: Free download from www.martin.com

Ordering Information
Martin P3-175 System Controller: P/N MAR-90721100

サイズ

Physical
Width: 482.6 mm
Height: 44.45 mm (rackmount 1U)
Depth: 343.0 mm
Weight: 3.5 kg
