HIGHLITE Showtec Performer Profile 650 Q5(ショーテック パーフォマープロファイル 650 Q5) [33064]
商品詳細
概要

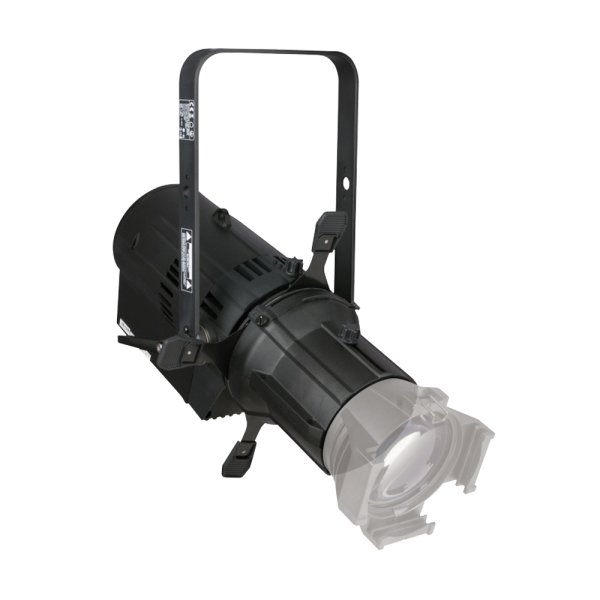

The Showtec Profile 650 Q5 is a 240 watt coloured LED Array ellipsoidal with high CRI and silent operations, suitable for theatrical and studio applications. The Profile 650 Q5 features a 5-colour LED engine (RGBAL) with 16 preset colours and a 0–100 % DMX controllable dimmer allowing a selection between 4 different curves. Optional industry standard fixed and zoom lenses allow proper projection of hard-edge, precisely focused light where needed.
特徴
240 W RGBAL LED Array ellipsoidal
Suitable for theatrical and studio applications
High CRI for accurate colour rendering
Colour engine with 16 preset colours
DMX dimmer function with 4 preset curves
仕様
Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
240 W
LED Colour Type
R, G, B, A, L
Light Source System
5in1
Refresh Rate (Max.)
25 kHz
Luminous Flux (Total)
6800 lm
Minimum CCT
2700 K
Maximum CCT
8000 K
Optical
Beam Angle Minimum (Circular)
5 °
Beam Angle Maximum (Circular)
50 °
Control and Programming
Control Mode
DMX
DMX Channels
6, 7, 8, 11, 17
Protocols
DMX
Display
LCD
Dimmer Resolution
16 bit
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
300 W
Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black
Product Properties
Cooling
Axial fan
Thermal Specifications
Maximum Ambient Temperature
80 °C
Maximum Surface Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
powerCON cable
サイズ
Mechanical Specifications
Length (mm)
540 mm
Width (mm)
301 mm
Height (mm)
520 mm
Weight
8.5 kg
