HIGHLITE Showtec Performer Profile 700 Q6(ショーテック パーフォマープロファイル 700 Q6) [33067]

HIGHLITE Showtec Performer Profile 700 Q6(ショーテック パーフォマープロファイル 700 Q6) [33067]

販売価格はお問い合わせください。

商品詳細

概要

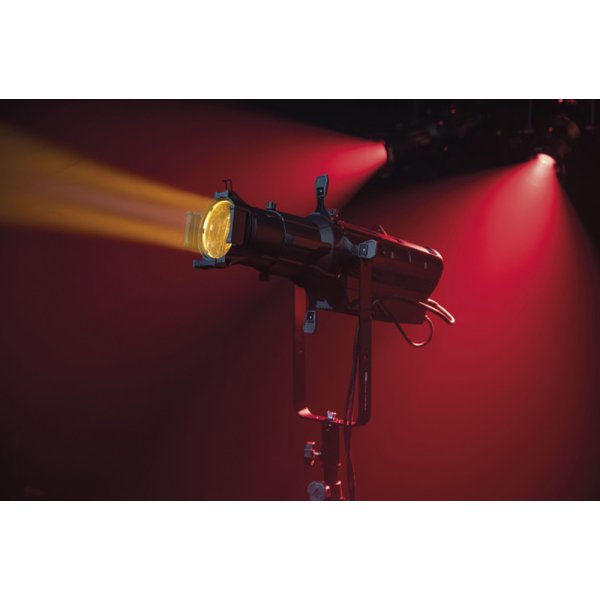

The Showtec Performer Profile 700 Q6 is a powerful 300 watt RGBALC LED array ellipsoidal with high CRI (>90) and whisper-quiet operation, suitable for theatrical and studio applications. The Profile 700 Q6 is the follow-up of the Profile 650 Q5 and features a 6-colour LED engine (RGBALC) with 16-bit 0 - 100 % dimming, using four selectable curves. Its internal engine guarantees precise colour temperatures from 1800 to 10,000 K with PWM frequencies of up to 25 kHz. DMX as well as RDM can be used to control the Performer Profile 700 Q6. Optional industry-standard fixed and zoom lenses allow proper projection of its light.

特徴

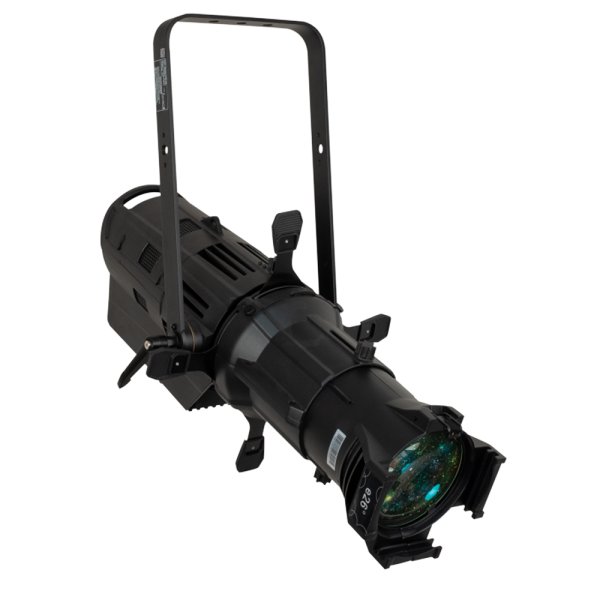

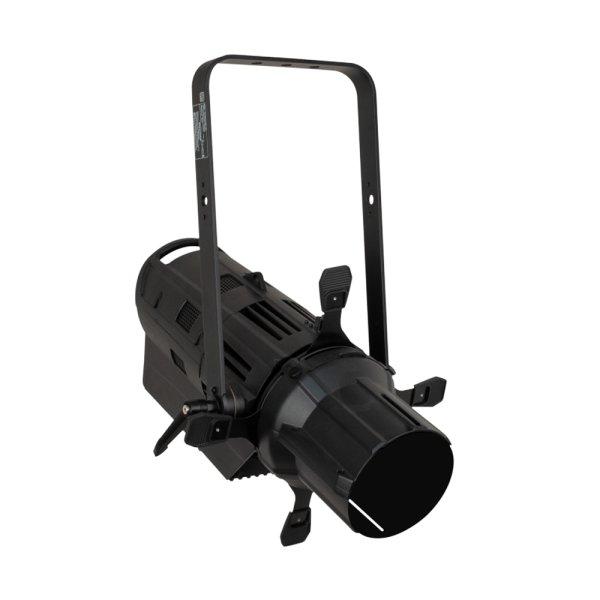

300 W RGBALC LED array ellipsoidal

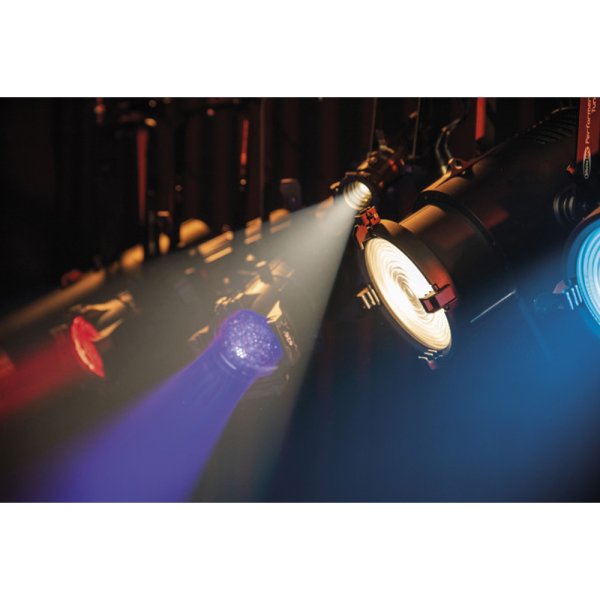

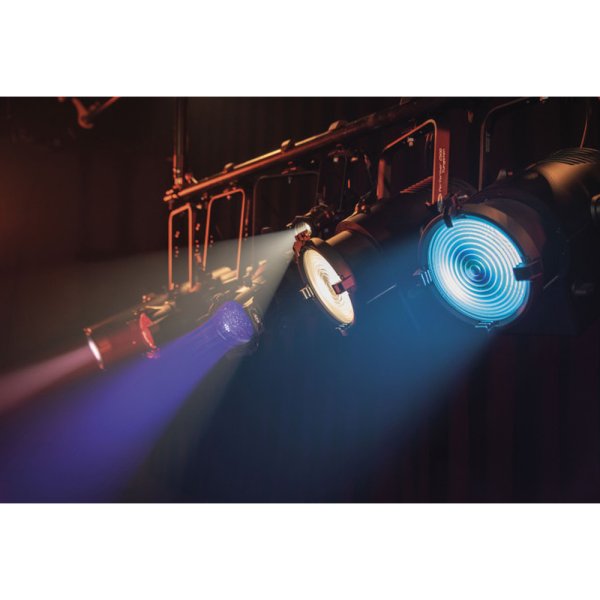

Suitable for theatrical and studio applications
High CRI for accurate colour rendering
High refresh rate for flicker-free recordings
16-bit dimming with four preset curves

仕様


Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
300 W
LED Colour Type
R, G, B, A, C, L
Light Source System
6in1
Refresh Rate (Max.)
25 kHz
Illuminance @ 2 m
23862 lx
Illuminance @ 3 m
10605 lx
Illuminance @ 5 m
3818 lx
Luminous Flux (Total)
10276 lm
Luminous Flux (Red)
1289 lm
Luminous Flux (Green)
2119 lm
Luminous Flux (Blue)
295 lm
Luminous Flux (Amber)
1720 lm
Luminous Flux (Lime)
3756 lm
Luminous Flux (Cyan)
857 lm
CRI
95
Minimum CCT
1800 K
Maximum CCT
10000 K
Control and Programming
Control Mode
DMX, Master Slave, Stand Alone
DMX Channels
3, 7, 8, 10, 13, 20
Protocols
DMX, RDM
Display
OLED
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
16 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz

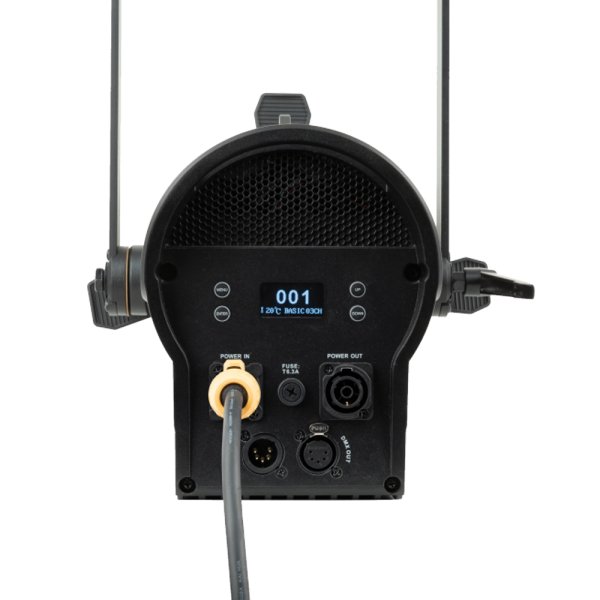

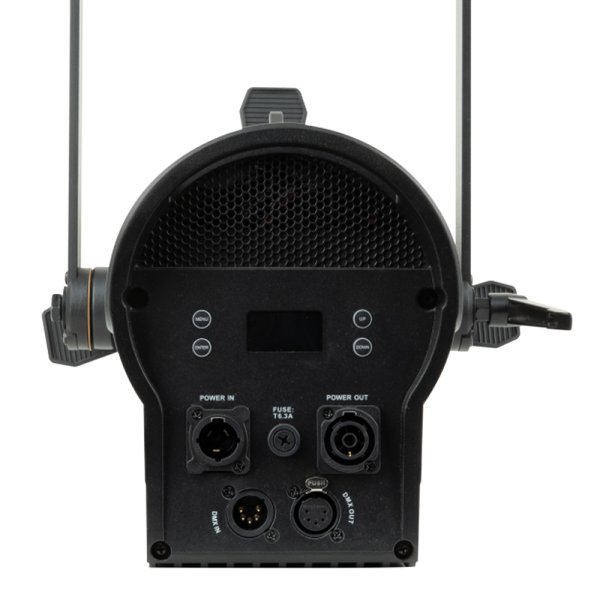

Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
300 W
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection/Axial fan
Rigging
Mounting Options
Bracket
Safety Attachment
Yes
Safety Eyes
1
Thermal Specifications
Maximum Ambient Temperature
45 °C
Included Items
Included Cables
Power Pro True Cable

サイズ


Mechanical Specifications
Length (mm)
578 mm
Width (mm)
301 mm
Height (mm)
227 mm
Weight
8 kg

参照



■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/theatre-lights/profiles/33067-performer-profile-700-q6.html
