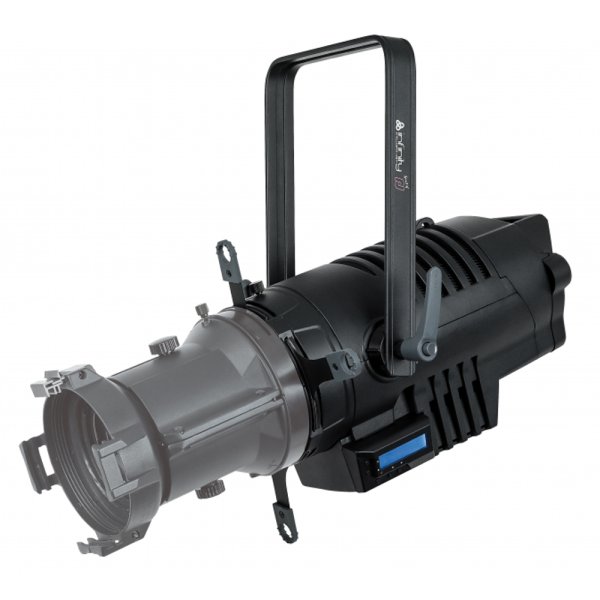

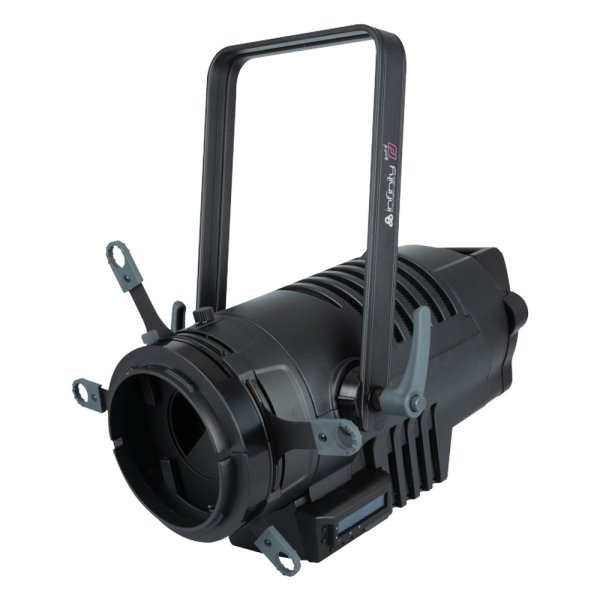

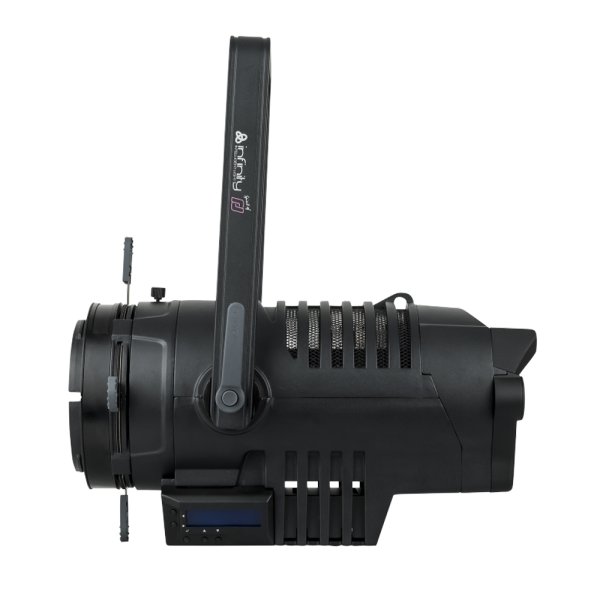

HIGHLITE Infinity TS-300 Profile Engine 5700K（インフィニティ TS-300 プロファイルエンジン） [200002]

概要

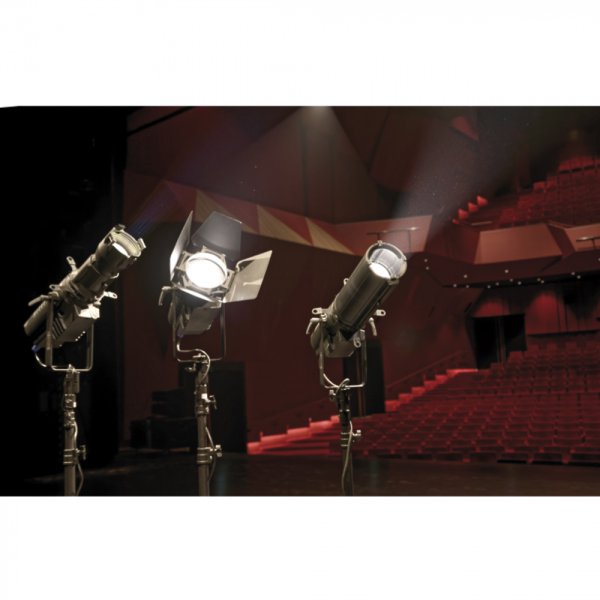

Looking for fitting LED-based answers to conventional Tungsten challenges was more than enough motivation for Infinity to design the Signature series. The TS-300 Profile Engine is one of those answers. Built around a powerful, reliable 300 W Lumiled LED engine with a colour temperature of 3200 K or 5700 K and a high, consistent CRI of more than 95, it will match conventional 750 W Tungsten fixtures perfectly. Various calibration systems inside the intelligent, intuitive software make sure that the TS-300 will fit in seamlessly in Tungsten setups. Very well equipped for theatre or TV-applications where a steady output, high quality of light and silent fan operation are not only required but actual necessities. The Infinity Signature TS-300 has the complete package.

特徴

Delivers the performance of 750 W Tungsten halogen unit
300 W, 5700 K Custom designed Lumiled Engine
Consistent CRI > 95
Consistent colour temperature regardless of intensity
16-bit intelligent high resolution virtual dimming

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
300 W
LED Colour Type
NW
Refresh Rate (Max.)
1 kHz
Luminous Flux (Total)
6600 lm
CRI
95
Maximum CCT
5700 K
Control and Programming
Control Mode
DMX, Manual
DMX Channels
1, 2, 4
Protocols
DMX, RDM
Display
LCD
Fan mode
Yes
Dim Curve
Linear, Square, S-Curve
Dimmer Resolution
16 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
300 W

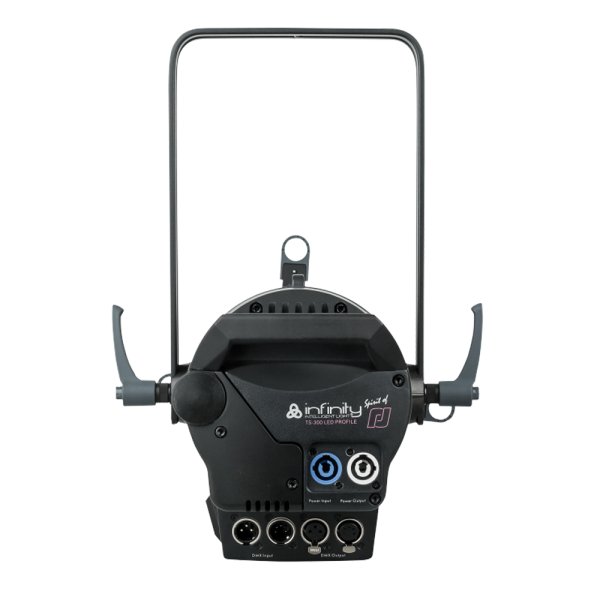

Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Active
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
powerCON cable
Included Accessories
Gobo Holder

サイズ

Mechanical Specifications
Length (mm)
468 mm
Width (mm)
323 mm
Height (mm)
457 mm
Weight
8.4 kg

参照

■メーカーサイト
https://www.highlite.com/en/20000-ts-300-profile-engine.html?selected=200002
