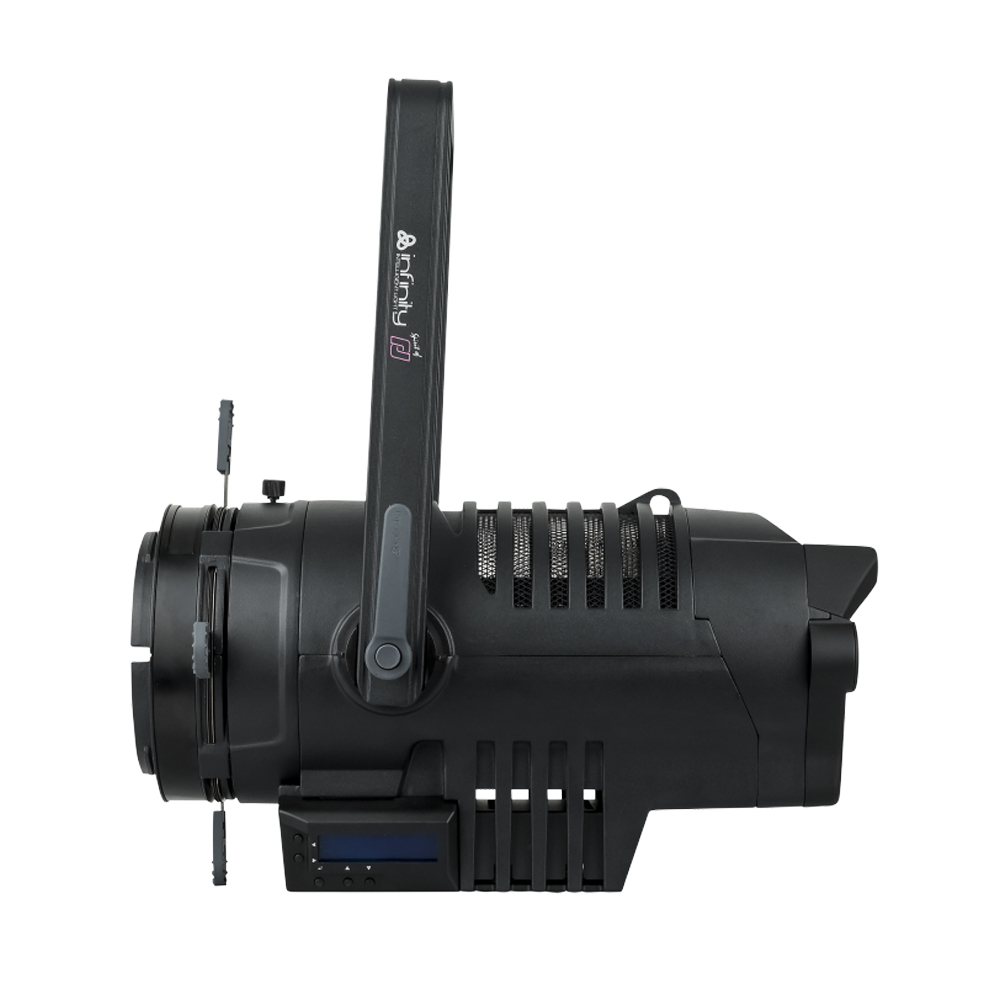

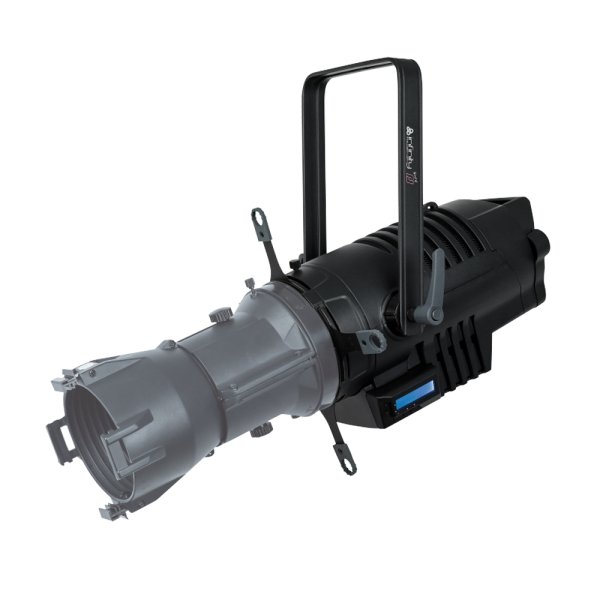

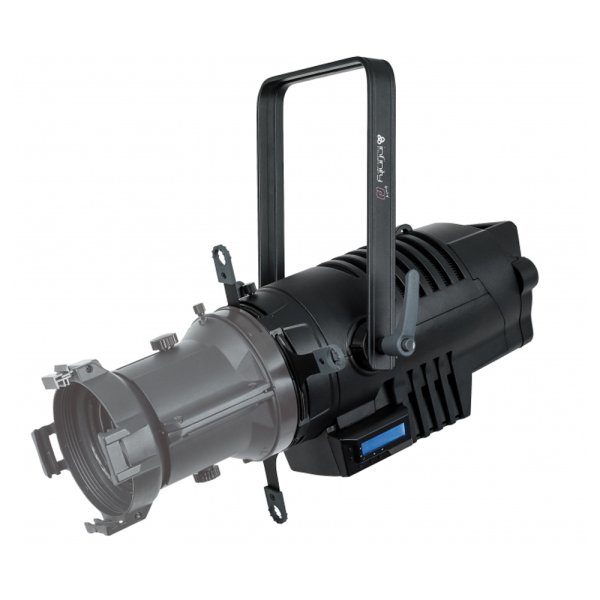

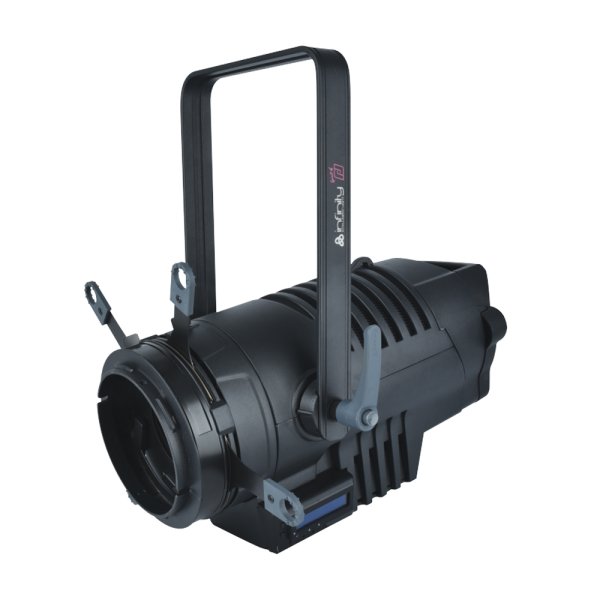

HIGHLITE Infinity TS-260C7 Profile Engine（インフィニティ TS-260C7 プロファイルエンジン） [200010]

概要

Being able to produce perfectly calibrated colours by using a 7 colour Lumiled LED engine is the big advantage of the TS-260C7 Profile engine. Infinity combined 64 of the most used theatrical colours into a built-in virtual stroller. Add to this a CRI value which is consistently higher than 96 over the entire CCT range and the TS-260C7 becomes a formidable addition to any application where different moods in a high quality of light are needed. Equipped with 7 different DMX modes finding the right operation modus is no issue.
Would you like to know more about this product? Go visit the Signature series page and discover more!

特徴

Delivers the performance of a 750 W Tungsten Halogen unit
260 W Lumiled 7 colour LED engine using custom designed array
Consistent CRI > 96
LED Colour Linearity Compensation
LED Colour Temperature Drift Compensation (on all LEDs)

仕様

Source
Light Source Type
LED
Light Source Quantity
7
Light Source Power
260 W
LED Colour Type
RGBCALDB
Life Expectancy
30000 h
Refresh Rate (Max.)
1 kHz
Luminous Flux (Total)
4500 lm
CRI
96
Minimum CCT
2000 K
Maximum CCT
8000 K
Control and Programming
Control Mode
DMX, Manual
DMX Channels
1, 5, 6, 10, 20
Protocols
DMX, RDM
Display
LCD
Fan mode
Yes
Dim Curve
Linear, Square, S-Curve
Dimmer Resolution
16 bit
CMY & CTO Resolution
8 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Colour System
Colour Wheel CMY+CTO
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
260 W

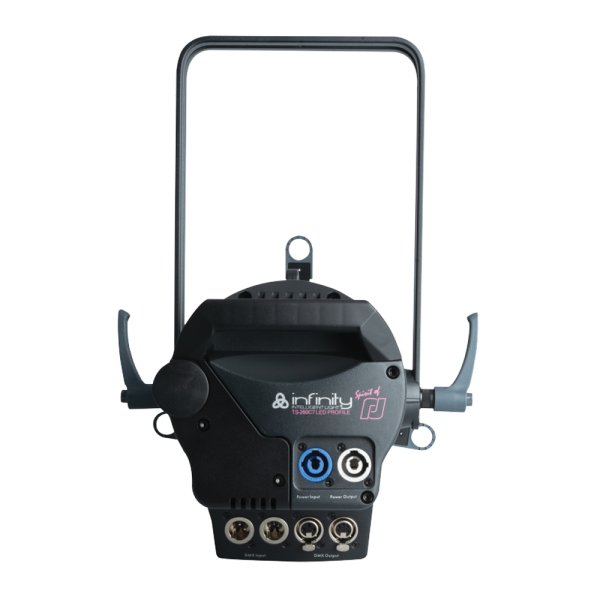

Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Active
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
45 °C
Minimum Operating Temperature
-10 °C (14 °F)
Included Items
Included Cables
powerCON cable
Included Accessories
Gobo Holder

サイズ

Length (mm)
468 mm
Width (mm)
323 mm
Height (mm)
457 mm
Weight
8.5 kg
