HIGHLITE Showtec Performer Profile Mini(ショーテック パーフォマープロファイル Mini)/5600k [33091]

HIGHLITE Showtec Performer Profile Mini(ショーテック パーフォマープロファイル Mini)/5600k [33091]

販売価格はお問い合わせください。

商品詳細

概要

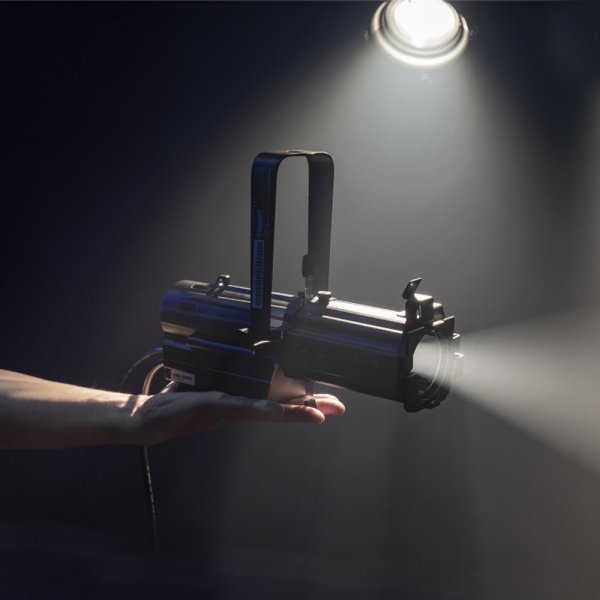

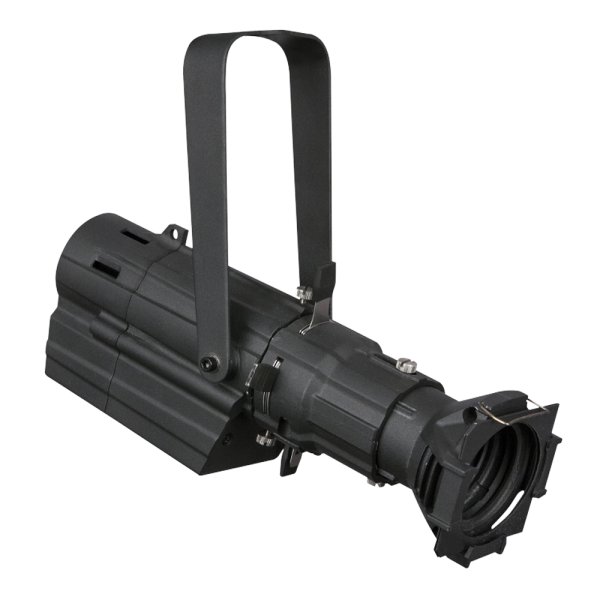

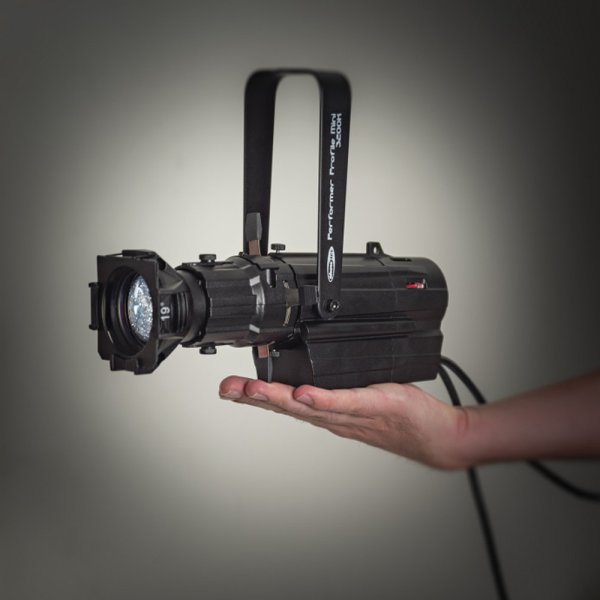

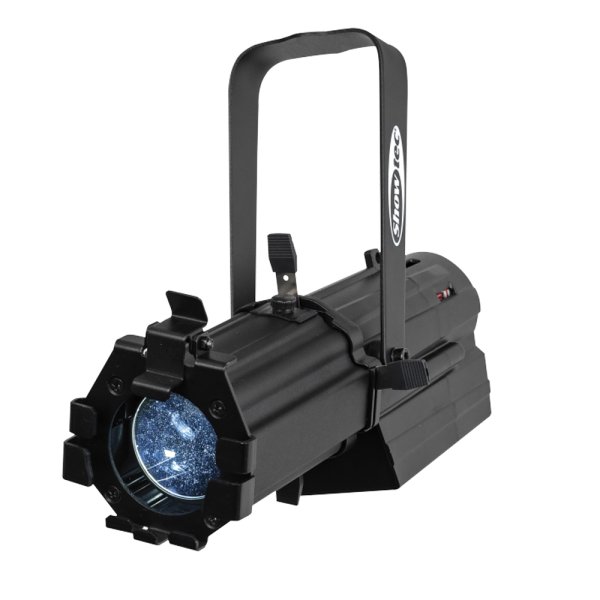

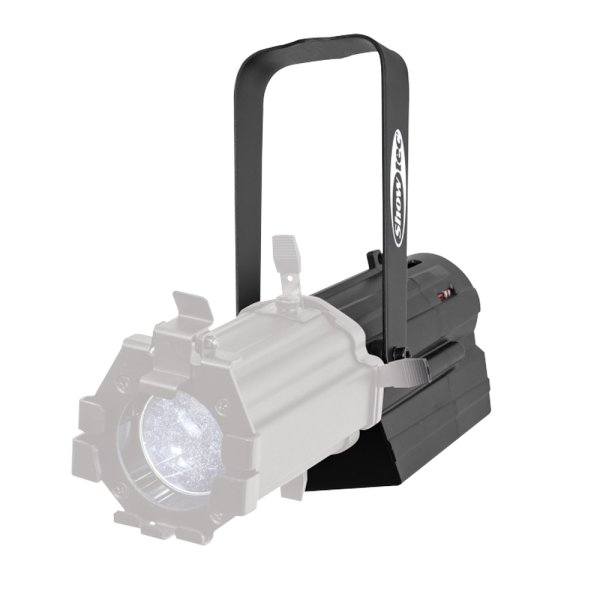

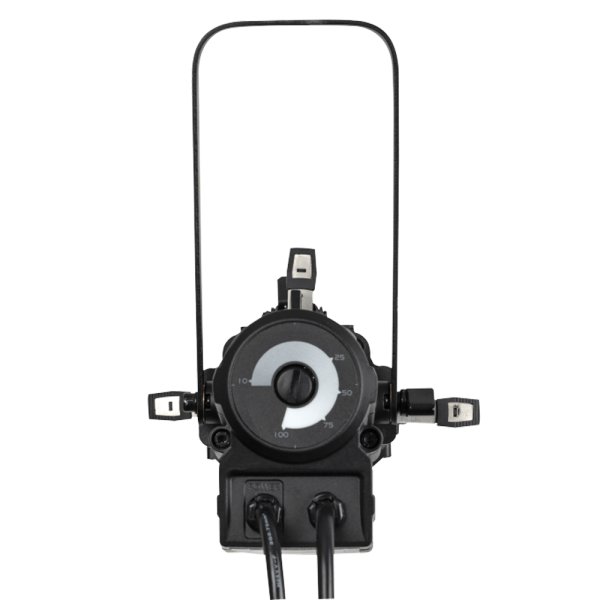

The Showtec Performer Profile Mini 5600 K is a 20 watt Daylight White COB LED ellipsoidal with high CRI and silent operations, suitable for theatrical applications. It projects a hard-edge precisely focused light. The Performer Profile Mini 5600 K features a 0 - 100 % DMX dimmer function and has optional 19° - 36° fixed and zoom lenses and gobo holders for zooming, dimming and shaping the output to your desired projection.

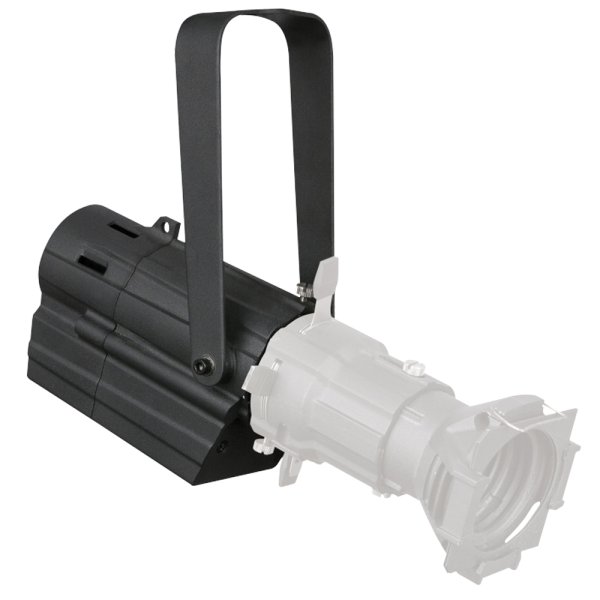

Please note that a Shutter Barrel is needed for mounting the lens onto a Performer Profile Mini fixture.

特徴


20 W Daylight White COB LED ellipsoidal

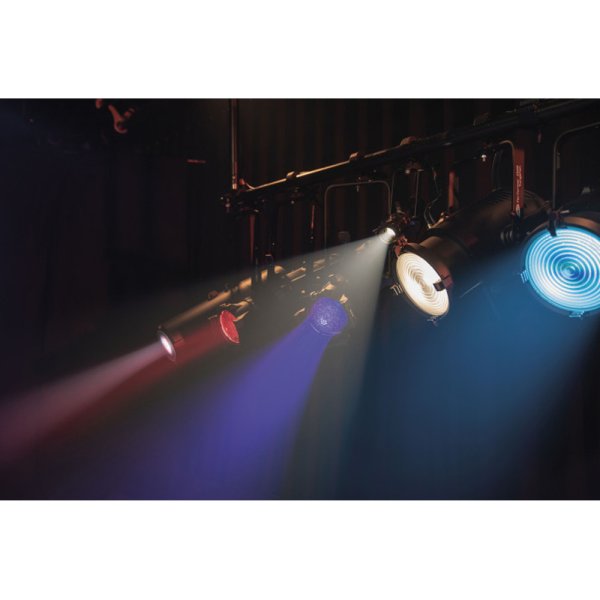

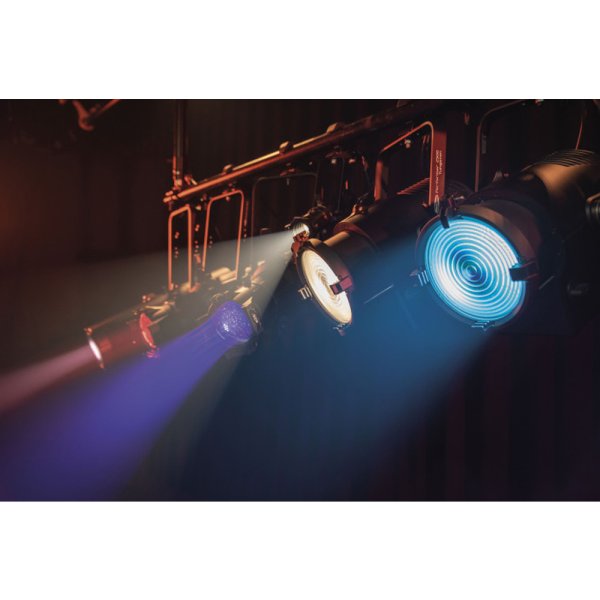

Suitable for theatre and studio applications
DMX dimmer function
Silent operation

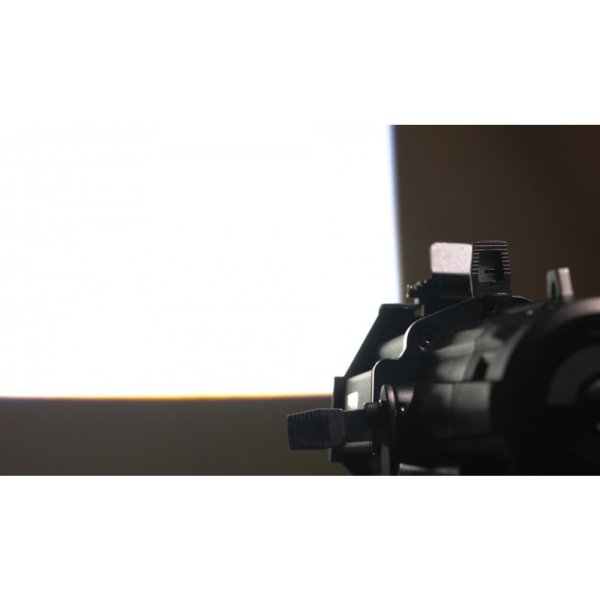

Hard edge, precisely focused field of light

仕様


Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
20 W
LED Colour Type
CW
Luminous Flux (Total)
1600 lm
Maximum CCT
5600 K
Control and Programming
Control Mode
DMX
DMX Channels
1
Protocols
DMX, RDM
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
22 W
Power Connector In
Internal Powerlink with custom power connector
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Axial fan
Rigging
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
70 °C
Maximum Surface Temperature
50 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Fixed Cable

サイズ


Mechanical Specifications
Length (mm)
345 mm
Width (mm)
130 mm
Height (mm)
231 mm
Weight
1.3 kg
