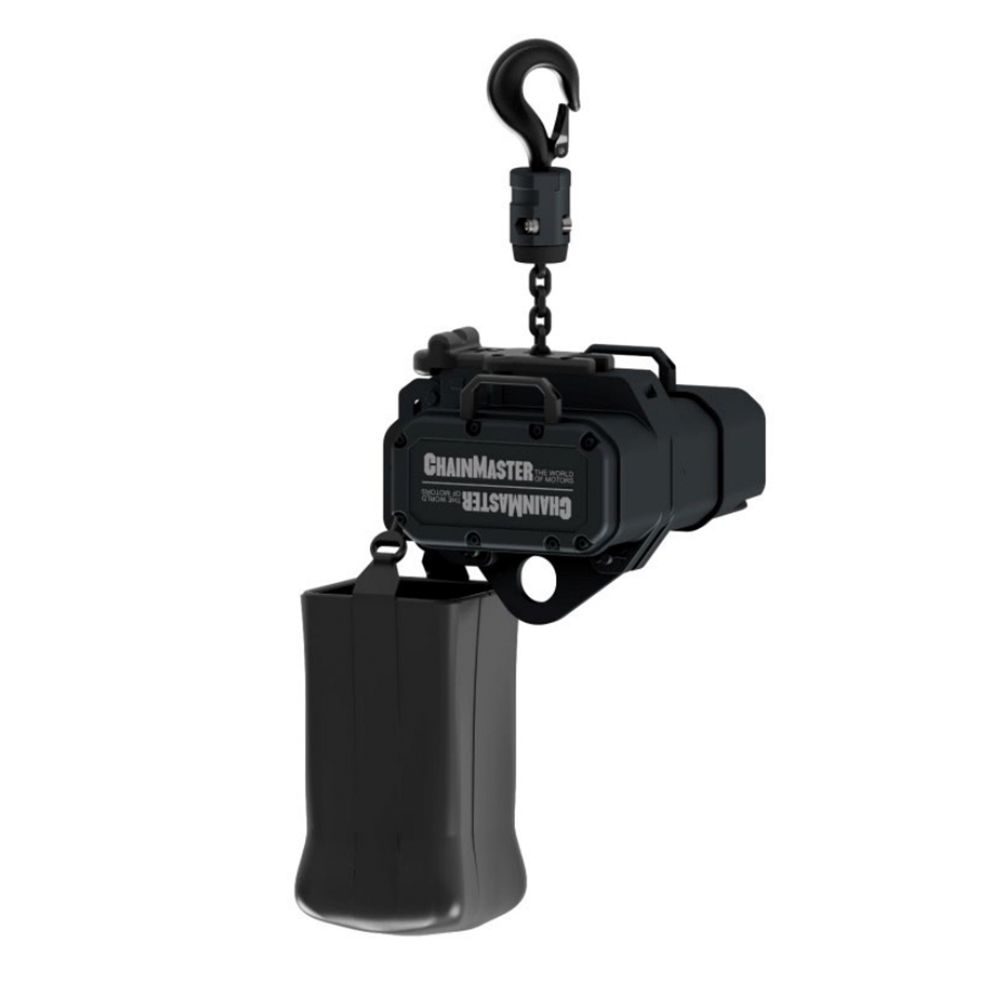

CHAINMASTER D8Plus DC Hoists SK070/76U - 1000kg

Chain hoist 1000 kg according D8Plus

特徴

・Hoist safety standard: D8Plus
・Direct Control
・2 Heavy duty DC brakes – maintenance-free design
・Use in normal or climbing position
・Low noise emission

仕様

■Features
completely enclosed aluminum cast housing
black paint finish RAL 9005 – semi gloss (other colors on request)
light and compact design with low- noise running
chain bag made from textile material
2 spring loaded brakes with DC magnet coils
friction clutch to protect the drive
chain guide plate of polyamide
precise chain guide with 5 - pocket chain sprocket wheel
operating coefficient load chain - 8 (according SQP2 2018-10)
1-fall load hook
standard or climbing hoists
1m CEE-16/4 connection cable
2 handles

■Options/ accessories
turnable hook suspension
AC or DC contactor control
operational limit switches for upper and lower end
( external limit switches including additional chain block stop ) or ( Stromag Geared Cam Limit Switches Series 51 / 51DZ )
emergency limit switches for upper and lower end
( Stromag Geared Cam Limit Switches Series 51 / 51DZ )
electronically over- and underload monitoring
incremental encoder with channels A / B / 0; HTL-signals; various number of pulses per revolution
absolute encoder multiturn 12/12 Bit resolution
4 or 8-channel controller
control panel for single hoists
roller or electrical trolley

■Technical data
Model type: SK070 / 76U
Hoisting speed: 4 m/min
Safe working load: 1000 kg
Number of falls: 1
Load chain according EN 818-7: P7.4 x 21.1 mm (profile steel)
Suspension type: Single hole suspension eye for shackle
Classification of mechanism lifting gear FEM/ ISO: 2m/ M5
Duty cycle - starts per hour: ED 40 % - 240 c/h
Mode of operation: S3 (according IEC 60034-1)
Noise level: 74 dBA/ 1 m distance Motor type: K20R 80K4E
Motor speed: 1410 rpm
Weight of the chain: approx. 1.3 kg/m

■Electrical data
Motor power: 1.1 kW
Power factor cos φ: 0.80
Nominal voltage: 3~400 V 3~230 V
Frequency: 50 or 60 Hz
Rated current: 400 V: 2.63 A 230 V: 4.36 A
Safety class: I
Degree of protection: IP 55
Control equipment: direct control

サイズ

・Weight (without chain): approx. 37 kg
