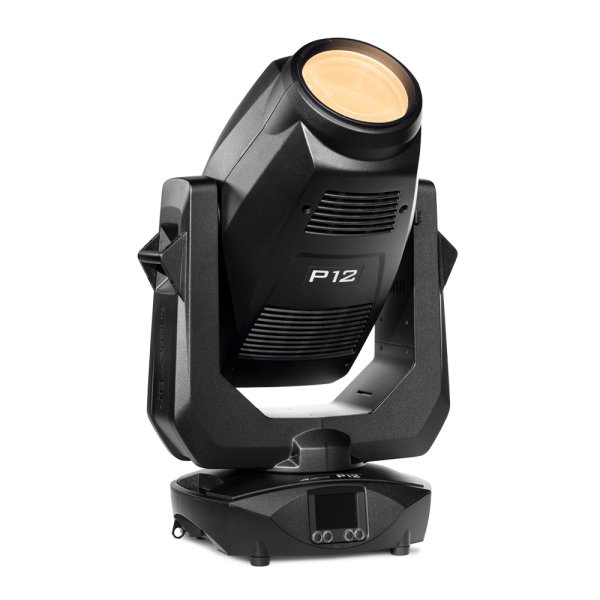

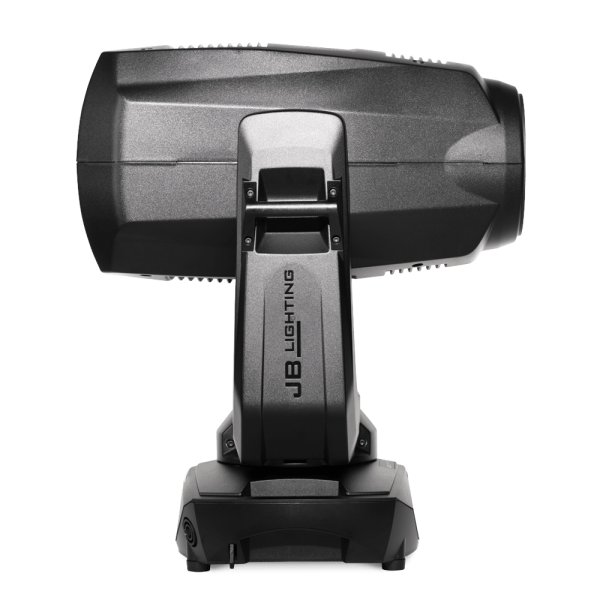

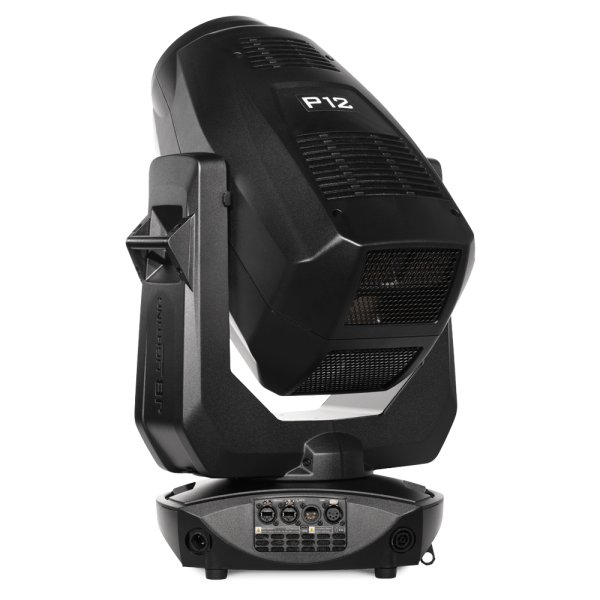

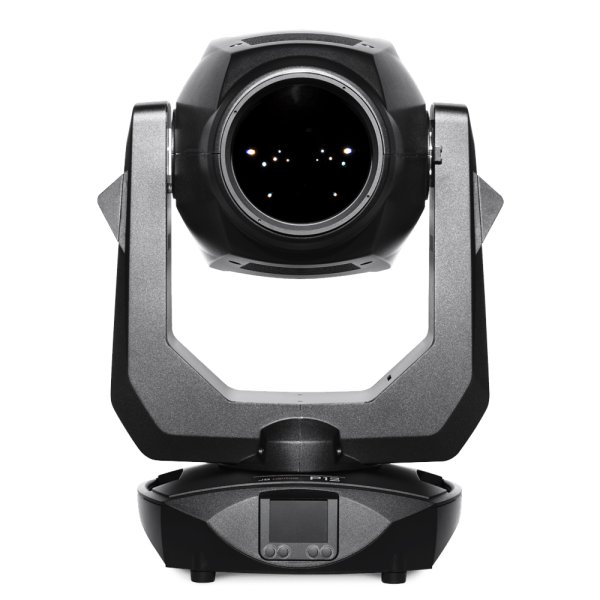

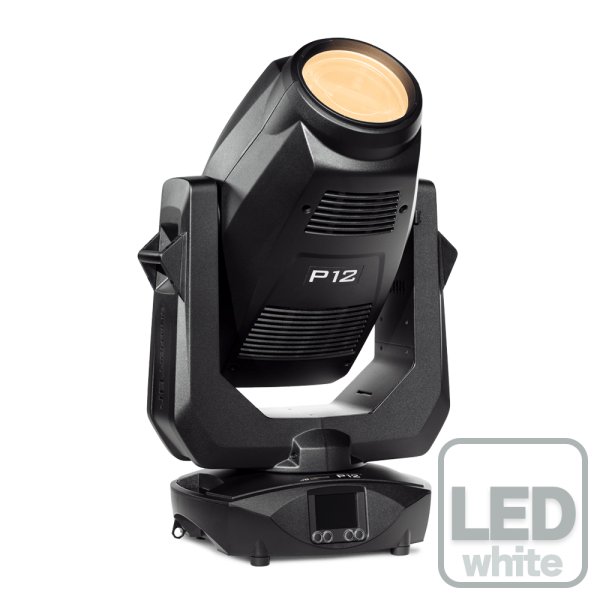

JB-Lighting P12 Spot WW（P12 スポット WW）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

Fascinating through and through
The P12 Spot is a high quality atmospheric tool. With an animation module and a complete set of effects, it transforms any event into a real spectacle. With its 640 Watt LED power, it is not only incredibly bright, but also extremely light and compact at only 23 kg.

The extremely quiet P12 Spot is at home in the brightness class of comparable moving lights with 1,200 Watts and masters every task with flying colours - and that with a power consumption of just 800 Watts.

特徴

Specification:
WW – Warm White
Color temperature:
3200 K
Luminosity:
27,000 lm (15,000 lm Output)
CRI:
≥91
Correction filter:
linear CTB
3200 K to 5000 K
Usage:
Maximum comparability
with conventional
halogen lamps

仕様

■Optics and light source
640 W white light LED module
HP (High Power): 6800 K; 46,000 lm (25,000 lm Output); CRI ≥70
HC (High CRI): 5800 K; 34,000 lm (19,000 lm Output); CRI ≥90
WW (Warm White): 3200 K; 27,000 lm (15,000 lm Output); CRI ≥91
> 20,000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
Zoom range: 5.7° – 60° (1:10.5)

■Effects
2 gobo wheels, each with 6 rotate-, position- and interchangeable gobos + open
CMY color mixing unit for rapid, even color mixing + linear CTO (P12 HP and P12 HC) and linear CTB (P12 WW) respectively
P12 HP: 1 color wheel with 7 full and half colors + open and linear color selection + High CRI filter
P12 HC and WW: 1 color wheel with 7 full and half colors + open and linear color selection + CTB filter
2 frost filters (soft edge/flood frost), continuously variable – optional further frost stages possible
2 prisms, linear and circular, rotate- and indexable
Motorised infinitely adjustable high-speed iris
Electronic dimmer 0 % – 100 %
Electronic shutter with preprogrammed puls- and ramp functions
Animation effect / Sparkle effect
Focus system with auto focus function
Animation module with endlessly rotating animation wheel

■Movement
3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 280° tilt

■Control and programming
USITT DMX-512, RDM
Ethernet / Artnet - sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
Bluetooth, Wifi
LCD display with function keys and battery buffer, electronically rotatable
Mini USB for software update
Stand-alone mode
Master/slave function
Built-in DMX analyser

■Construction
Original JB-Lighting slide-in module technology
Rugged construction
Transport lock for pan/tilt
Forced air cooling (temperature regulated, low noise)
2 Neutrik etherCON Connectors
Neutrik 5pin IN/OUT
Neutrik powerCON TRUE1 IN/OUT

■Rigging
2 Omega brackets for quick and convenient installation

■Electrical & thermal specification
Max. power consumption 800 VA
Input voltage range 100 V – 240 V, 50/60 Hz
Total heat dissipation (calculated): 2,730 BTU/hr

■Scope of delivery
Schuko on powerCON TRUE1,
flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets

■Accessories
CASE38 Amptown double flight case
CASE39 Amptown 4-compartment flight case
JBK0322 Lens tube
BLP123 Framing module
BLOB12 Omega plate
BLOB02 Omega bracket standard
