JB-Lighting Sparx 9（スパークス9）

A dynamic package with the WOW factor!

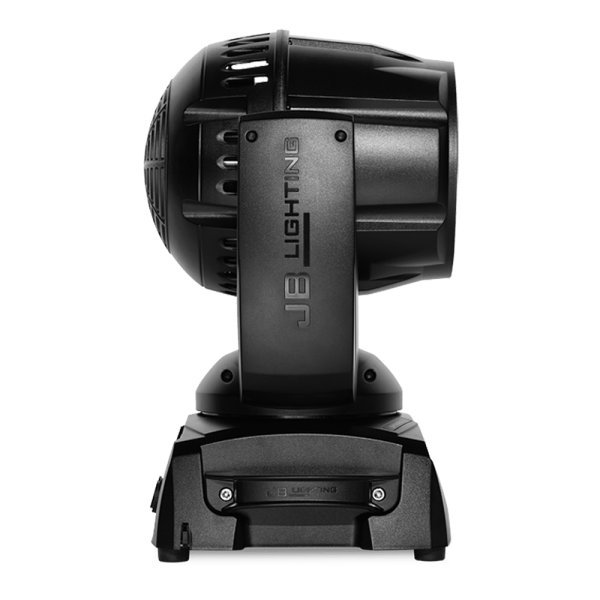

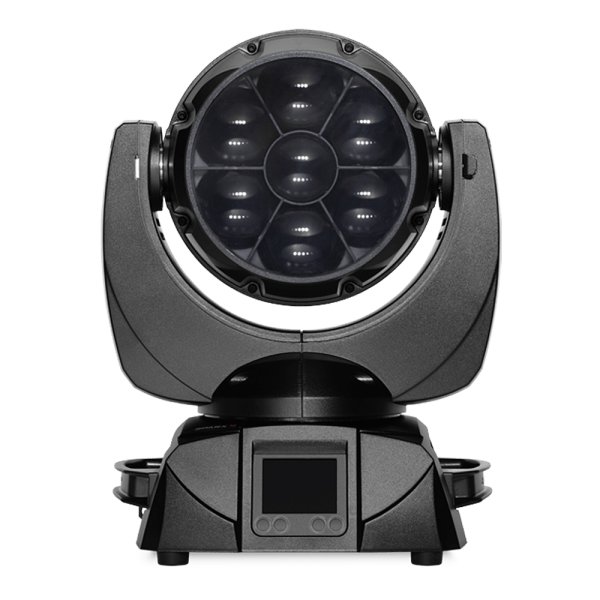

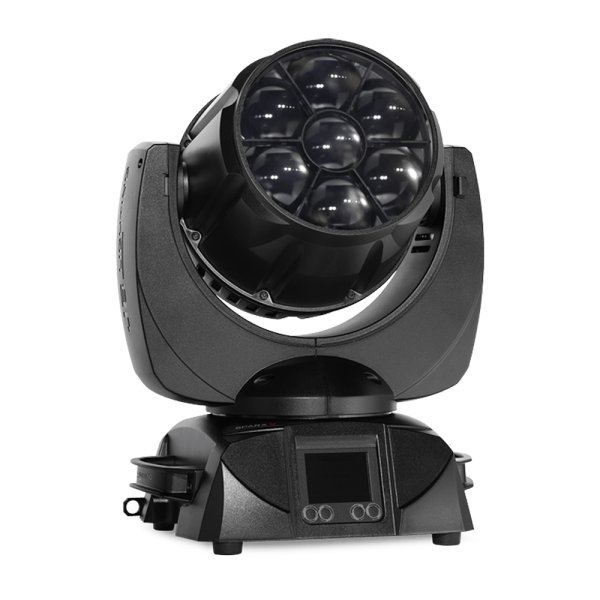

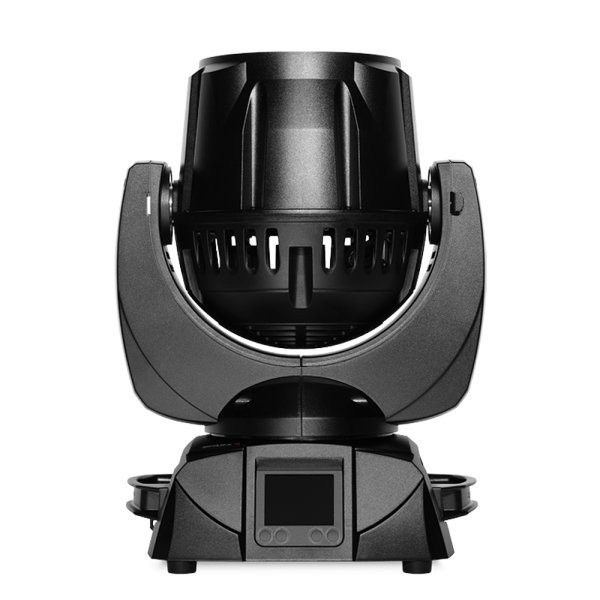

The Sparx 9 is a very compact, 9.8 kg light pixel washer featuring newly developed optics and great beam characteristics. Its pan-tilt moves are extremely fast and as precise as its zoom. Its robust and sophisticated design makes it the perfect effect spotlight for low-maintenance and cost-saving operation in the rental industry.

Its 7x 40 W, outstanding color mixing and beam quality as well as its extremely quiet operation also make it ideal for fixed installations in concert halls, theatres or TV.

仕様

■Optics and light source
7 RGBW high-performance LEDs of 40 W each, up to 3,500 lm output
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120 and 600 Hz
Zoom range 2.3° – 55° (1:23.9), 2,3° – 33° at ½ peak; 4,4° – 55° at 1/10 peak
Highly efficient optics for perfect color mixing
Minimal scattered light
Encapsulated optical system

■Effects
Individual LED control – Single pixel control
Sparkle channel for dynamic effects
Multiple layers with independent patterns can be stacked on top of each other
Countless color and pattern combinations
Separate CTC channel
Color temperature accuracy +/- Green shift (Black Body Shift)
High-resolution, steplessly variable dimmer 0–100%
Color-accurate dimming
Electronic strobe with pulse and random effects
Basic color temperature of the spotlight infinitely variable: 2700 K, 3200 K, 4200 K, 5600 K, 6000 K, 6500 K, 7000 K or 8000 K as well as variable from 2000 K to 12000 K

■Movement
3 phase extra strong stepping motors
Precise, very fast and silent movement
Quick, quiet zoom (maximum angle change 2.3° – 55° in 0.5 s)
540° pan / 234° tilt

■Control and programming
USITT DMX-512, RDM
Ethernet interface with Art-Net, sACN and Kling-Net
Wireless DMX / RDM Lumen Radio CRMX TiMo
Bluetooth, Wifi
Mini USB for software update
LCD display with function keys and battery buffer, electronically rotatable
Stand-alone mode, master/slave function
Built-in DMX analyser

■Construction
Robust, roadworthy design
Individually changeable LEDs
Fan control for almost noiseless operation, 29 dB(A)

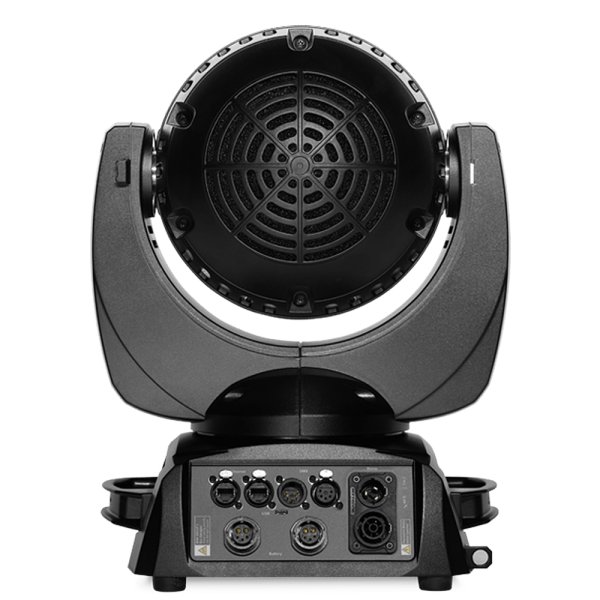

Neutrik 5pin XLR IN/OUT
RJ45 IN/OUT network socket
Power IN/OUT
5pin IN/OUT socket (prepared for battery operation)

■Rigging
2 Omega brackets with Original Camloc® fasteners for quick and convenient installation in any position, with four different fastening options
Optional: Diagonal omega bracket for two additional mounting possibilities

■lectrical & thermal specification
Max. power consumption 300 VA
Input voltage range 100 V–240 V, 50/60 Hz
Total heat dissipation (calculated): 1,024 BTU/hr

■Scope of delivery
Schuko on powerCON TRUE1, flexible rubber cable (2 m long, 3 x 1.5 mm²)
2 Omega brackets

■Accessories
CASE46 Amptown double flight case
CASE47 Amptown 4-compartment flight case
CASE48 Amptown 6-compartment flight case
BLOB02 Omega bracket standard
BLOB03 Diagonal omega bracket

サイズ

・Dimensions: B 331 x D 243 x H 445 mm
Weight: 9.8 kg

参照

■メーカーサイト
https://www.jb-lighting.de/Sparx9
