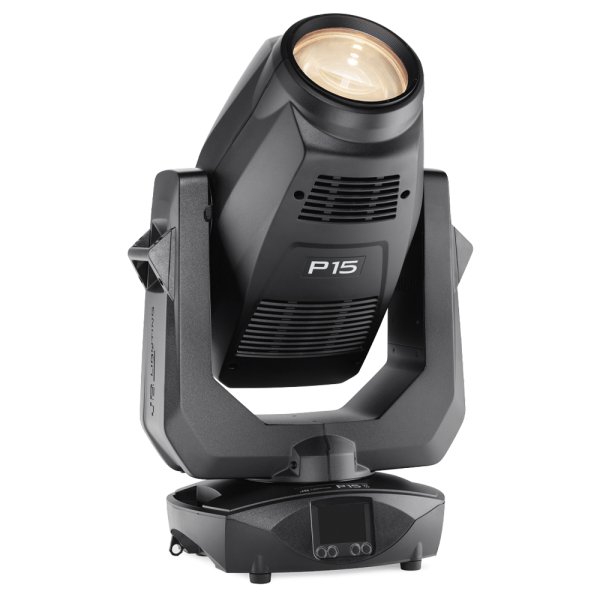

JB-Lighting P15 Profile WW（P15 プロファイル WW）
商品詳細
A shining example
The combination of an optical system, 1,000W white light LED module, heat pipe cooling, color mixing behaviour, zoom range and full effect equipment make the P15 Profile a trendsetter in terms of efficiency, light quality and projection attributes in its performance class.
It also achieves the best values in the “silent running” category. It is multifunctional and extremely versatile. Equipped with everything required to put on an impressive and reliable show on any stage.
■Specification:
WW – Warm White
Color temperature:
3200 K
Luminosity:
44,000 lm (19,000 lm Output)
CRI:
93 (+/-3)
Correction filter:
linear CTB
3200 K to 7700 K
Usage:
Maximum comparability
with conventional
halogen lamps
■Optics and light source
1.000 W white light LED module with “phosphorous in silicone” technology
P15 Profile HP (High Power):
6800 K; 75,000 lm (34,000 lm Output); CRI 73 (+/-3); TM-30 Rg = 95 (+/-3)
P15 Profile HC (High CRI):
5800 K; 54,000 lm (22,000 lm Output); CRI 92 (+/-3); TM-30 Rg = 97 (+/-3)
P15 Profile WW (Warm White):
3200 K; 44,000 lm (19,000 lm Output); CRI 93 (+/-3); TM-30 Rg= 100 (+/-3)
Highly-efficient optical system with perfect projection properties
Light-emitting lens Ø 135 mm
> 20.000 h life time
Flicker-free operation, camera mode: 100, 120, 600 Hz and high flex mode
Zoom range: 5.2° – 54° (1:10.4)
■Effects
2 gobo wheels each with 6 rotatable, positionable and replaceable gobos + open
1 color wheel with 6 full or half colors + High CRI filter (= TM-30 filter) + CTB filter + open
Framing module with 4 blades, module can be rotated by 130° (+/-65°), each blade can be rotated individually by +/-30°
CMY color mixing system with perfectly homogeneous color mixing, even of pastel colors
Linear CTO filter for variable color temperature adjustment exactly along the black body line: HP: 6800–3200 K; HC: 5800–3200 K or WW with linear CTB filter from 3200–7700 K
CTB filter for automatic color temperature correction for gobo applications (can be switched off)
2 frost filters (soft edge, 1°, flood frost, 5°), infinitely retractable and combinable – can be replaced by JB click system, other frost levels available as options: 2°, 3.5°, 10°, 20°
2 prisms, 3-section circular and 5-section linear, rotatable and indexable
Motorised, infinitely adjustable high-speed iris with 16 fins
Electronic dimmer 0–100%, 3 selectable dimming curves
Electronic shutter with pre-programmed pulse and ramp functions
Animation effect / sparkle effect
Focus system with auto-focus function
Virtual green/magenta correction to adapt to the surrounding light
Virtual CTC adjustment: all light colors 2000–13000 K
■Movement
3 phase extra strong stepping motors
Precise, very fast and silent movement
540° pan / 280° tilt
■Control and programming
USITT DMX-512, RDM
Ethernet interface with Art-Net and sACN
Wireless DMX / RDM Lumen Radio CRMX TiMo
LCD display with function keys and battery buffer, electronically rotatable
Micro USB for software update
Stand-alone mode, Master/Slave function
Error analysis and DMX analysis
Ethernet in/out with bypass function switch 10/100 Mbps
■Construction
Original JB-Lighting slide-in module technology
Robust, roadworthy design with 4 carrying handles
Transport lock for pan/tilt
Prepared for mechanical path limitation for narrow installation spaces
High-tech heat pipe cooling in conjunction with calibrated silent fans for almost noiseless operation at max. 29 dB(A)
Neutrik 5pin XLR IN/OUT
Neutrik etherCON IN/OUT
Neutrik powerCON TRUE1 IN/OUT
■Rigging
2 Omega brackets with Original Camloc fasteners for quick and convenient installation, with four different fastening options
■Electrical & thermal specification
Maximum power consumption 1.100 VA
Supply voltage 100V–240V, 50/60Hz
Total heat dissipation (calculated): 3.753 BTU/hr
Ambient temperature: -10 to +40° (note the warm-up phase)
■Scope of delivery
Schuko on powerCON TRUE1, flexible rubber cable (2m long, 3x1.5 mm²)
2 Omega brackets
■Accessories
ZU0029 Path limitation
JBK0322 Lens hood
CASE38 AMPTOWN double flight case
CASE39 AMPTOWN 4-compartment flight case
・Weight: 24 kg
