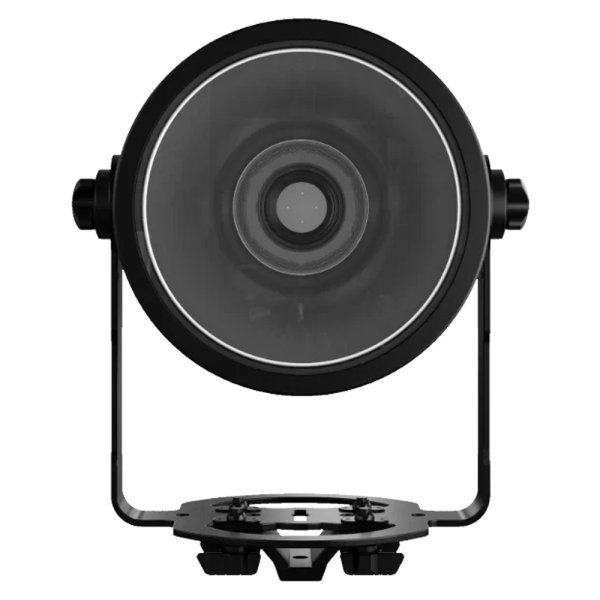

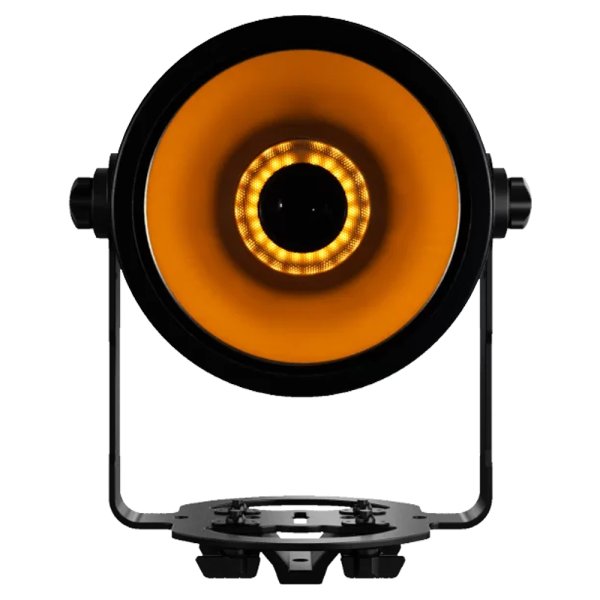

Portman OMNIRAY（オムニレイ）

OMNIRAY introduces a brand-new category of stage lighting: the Hybrid Utility Fixture.
You can use it as a high-quality wash light, a narrow beam, a powerful blinder, or a decorative eye-candy.
Its all-in-one design means you can achieve more with fewer fixtures, saving time, space, and costs.

特徴

protection rating　IP65
INPUT VOLTAGE　100-240 V 50/60 Hz
Max power consumption　500 W
Power connectors　AC power in/thru: powerCON TRUE1

Light sources
main source
power
440 W RGBWLA
beam angle　85°
colour temperature　2000 – 6500 K

Light sources
narrow source
power40 W RGBW
beam angle　3.8°
colour temperature　6000 K

CRI　> 95 (calibrated mode)

Control Connectors
DMX/RDM data in/thru: 5-pin XLR
Firmware from flash drive: USB A

Control features
8 DMX modes (8-28 channels)
RDM
macros
CRMX (optional module)

user interface
OLED touch display
Highlighted buttons
Colour Feedback System™ – fixture’s auto information status

CERTIFICATES
CE
ROHS
ETL
UL
UKCA

INTELECTUAL PROTECTION
design patent
utility patent (pending)
trademark

What’s in the box
Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual
OMNICLE™ – decorative magnetic cover

Additional accessories
Rigging:
omega bracket with 1/4 fast locks

Optics – magnetic:
diffuser (avg)
diffuser (strong)
elliptical diffuser (10×40)
elliptical diffuser (10×60)
Fresnel lens

Control features:
CRMX

Packing:
flight case

サイズ

Weight (fixture only)14 kg
