HIGHLITE Infinity TCYC-7 Cyclorama（インフィニティ TCYC-7 サイクロマ）

特徴

300 W lumiled 7 colour LED engine using custom designed array
CRI > 96 consistently on full CCT range
LED colour linearity and temperature drift compensation
Optics Colour Shift compensation
Colour wheel with 64 spectrum matching Filter gels

概要

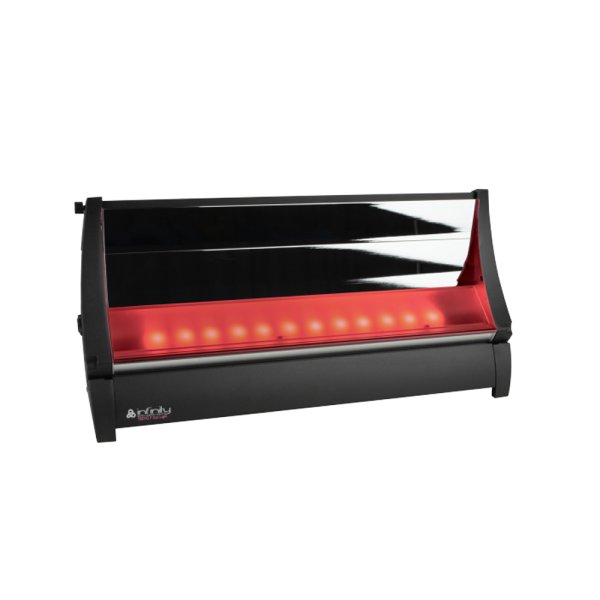

Infinity TCYC-7 Cyclorama is an extremely bright and powerful luminaire. Equipped with a special high gloss asymmetric mirror, the projection angle is 75° with a very linear drop. A motorised tilt range of 30° ensures easy floor or ceiling focussing. The TCYC shares the same custom designed 7 colour LED array and intelligent software as the TS-260C7 and the TFLD-7. It creates an amazing smooth seamless beam projection for your horizons. Because they are based on the same technology combining these 3 coloured luminaires in one setup creates the perfect match when light and colour quality are needed.

仕様

Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 300 W
LED Colour Type RGBCALDB
Life Expectancy 30000 h
Refresh Rate (Max.) 1 kHz
Luminous Flux (Total) 6000 lm
CRI 96
Minimum CCT 2000 K
Maximum CCT 8000 K

Optical
Beam Angle (Horizontal) 75 °
Beam Angle (Vertical) 140 °

Control and Programming
Control Mode DMX, Manual
DMX Channels 1, 6, 7, 11, 21
Protocols DMX, RDM
Display LCD
Fan mode Yes
Dim Curve Linear, Square, I-Square, S-Curve
Dimmer Resolution 16 bit

Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 310 W
Power Connector In powerCON Blue
Power Connector Out powerCON Grey
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P

Mechanical Specifications
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black

Rigging
Mounting Options Bracket

Product Properties
Cooling Axial fan

Thermal Specifications
Maximum Ambient Temperature 40 °C
Maximum Surface Temperature 55 °C

Included Items
Included Cables powerCON cable

サイズ

Length (mm) 566 mm
Width (mm) 195 mm
Height (mm) 285 mm
Weight 11.2 kg
