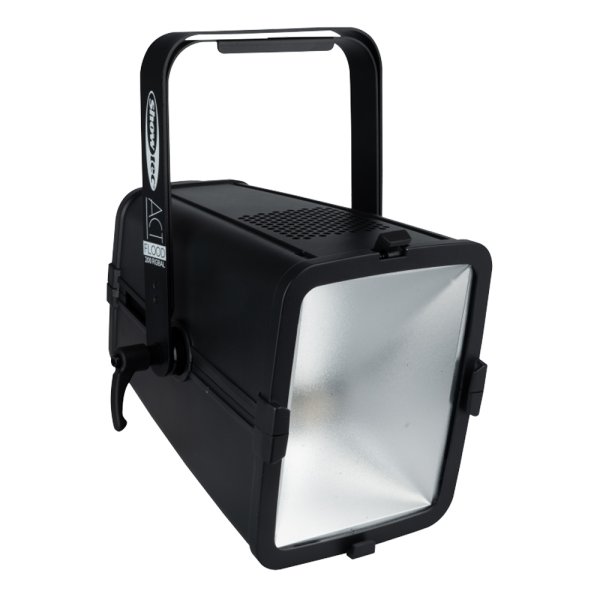

HIGHLITE Showtec ACT Flood 200 RGBAL（ショーテック ACT フラッド 200 RGBAL） [34042]

概要

200 W RGBAL LED Flood
High CRI for accurate colour rendering
Adjustable colour Temperature from 2800 K to 10,000 K
Dimmer and preset colour knobs for easy handling
Bright, soft field of coloured light

特徴

The Showtec ACT Flood 200 RGBAL is a 200-watt RGBAL LED flood light designed with theatrical applications in mind. It projects a bright, soft field of coloured light and has a fixed beam angle of 90° x 105°. Thanks to its high CRI rating, colours under the light are rendered accurately. The colour temperature can be adjusted between 2,800 K and 10,000 K, further expanding the creative possibilities for lighting designers. With dimmer and preset colour controls on board, the ACT Flood 200 RGBAL can be controlled manually, as well as with DMX. An eight-leaf barndoor is included for easy beam shaping.

仕様

Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 200 W
LED Colour Type R, G, B, A, L
Refresh Rate 1200 Hz
Illuminance @ 2 m 1011 lx
Illuminance @ 3 m 530 lx
Luminous Flux (Total) 5704 lm
CRI 93
Minimum CCT 2800 K
Maximum CCT 10000 K

Optical
Beam Angle (Horizontal) 90 °
Beam Angle (Vertical) 105 °

Control and Programming
Control Mode DMX, Manual
DMX Channels 5, 8, 12
Protocols DMX, RDM
Display OLED

Dynamic Effects
Dimmer 0-100 %

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 205 W
Fuse 3.15 A
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey

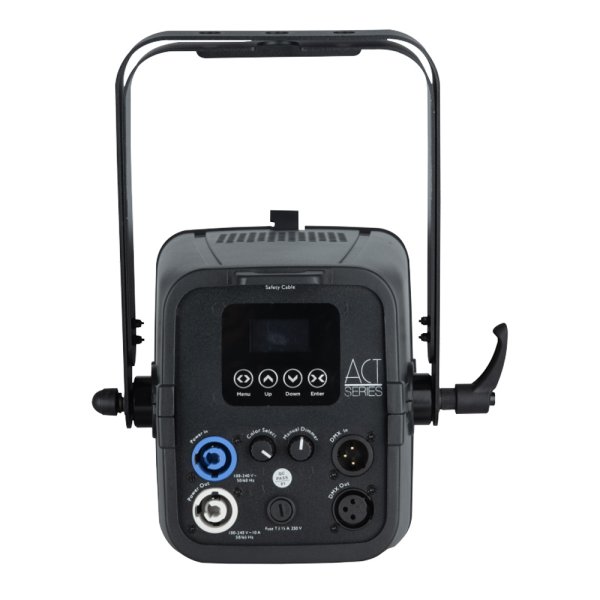

DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P

Mechanical Specifications
Length (mm) 280 mm
Width (mm) 258 mm
Height (mm) 304 mm
Weight 4.3 kg
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black

Rigging
Mounting Options Bracket, Floor

Product Properties
Cooling Convection

Thermal Specifications
Maximum Ambient Temperature 45 °C

Included Items
Included Cables Power Pro Cable
Included Accessories Barndoor

参照

■メーカーサイト
https://www.highlite.com/en/34042-act-flood-200-rgbal.html
