ChamSys GeNetix TouchScene（ジェネティックスタッチシーン）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

GeNetix TouchScene elegantly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation.

When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level control is available. Connecting to a MagicQ control system allows for complete interface customisation, including custom icons and images as well as fully customising the items on the display.

Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene includes inbuilt layouts that allow its 8″ touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene is PoE-powered, allowing integrators to easily add remote control to installations using standard Ethernet cable for connectivity.

概要

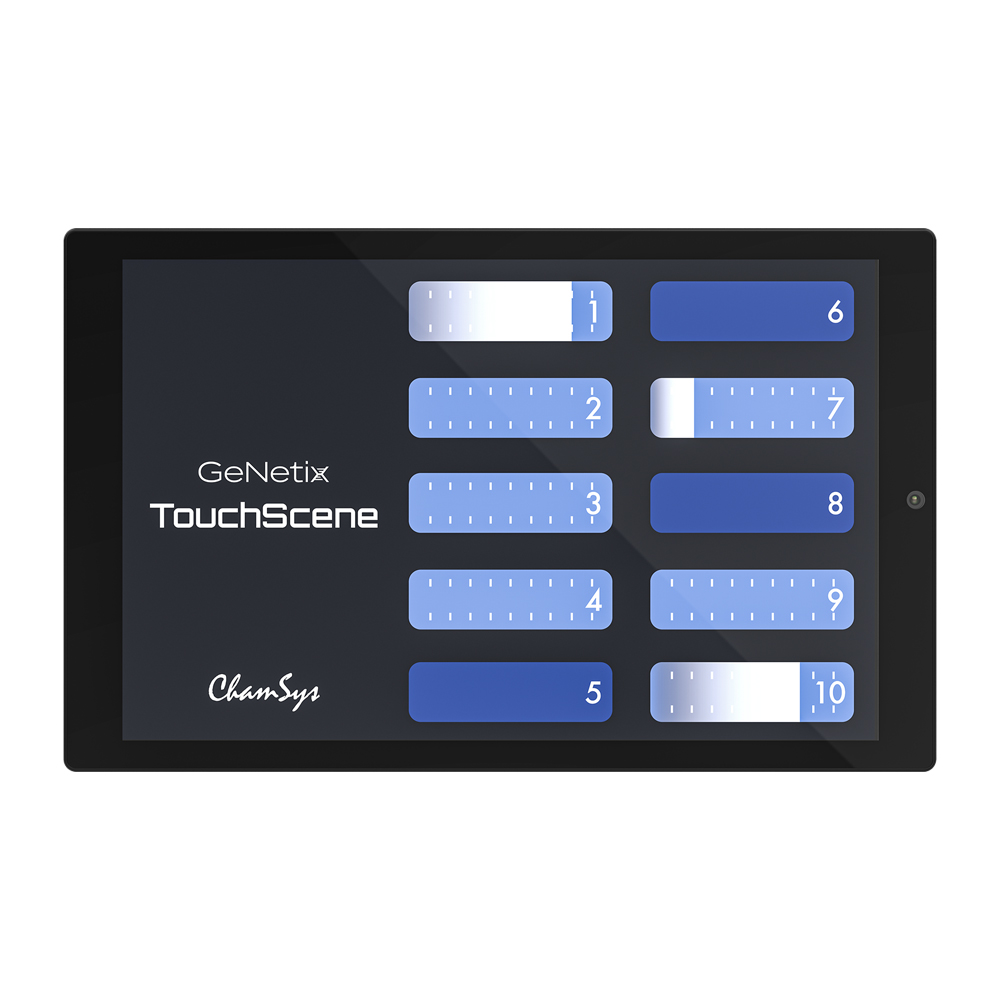

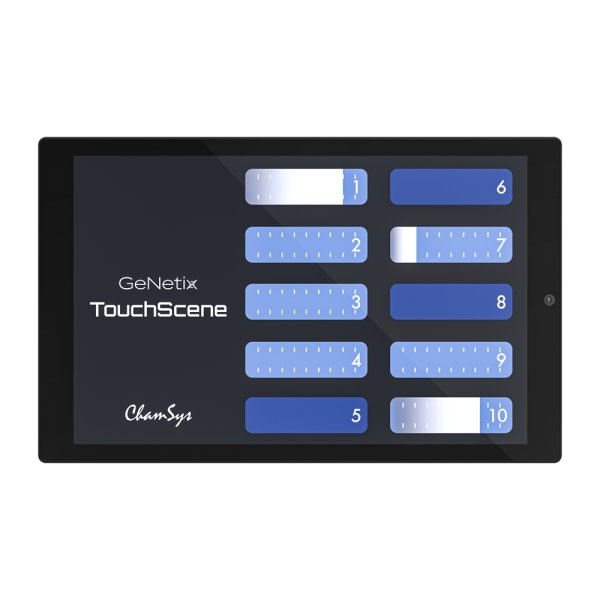

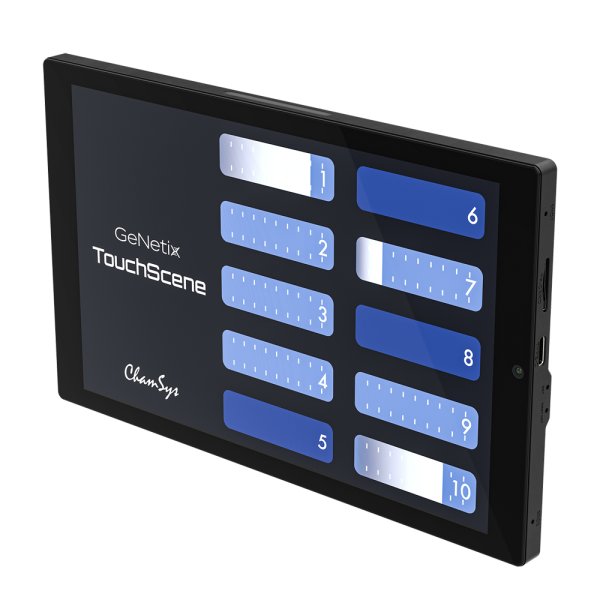

8″ Touch Screen
Connects to either MagicQ Systems, QuickQ Consoles or GeNetix Nodes

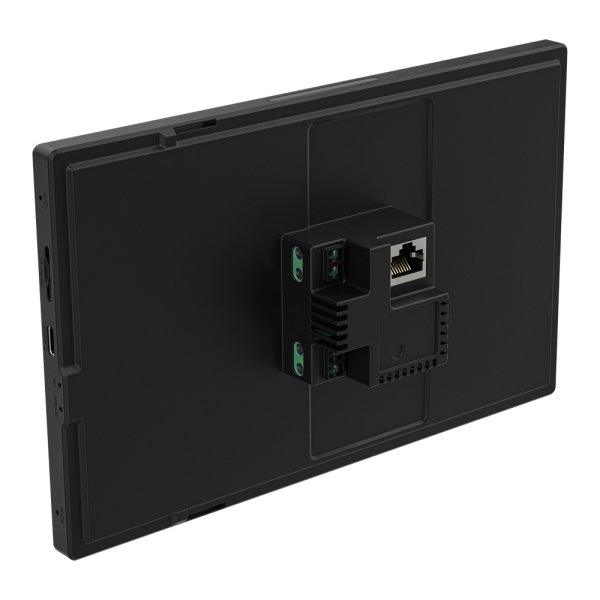

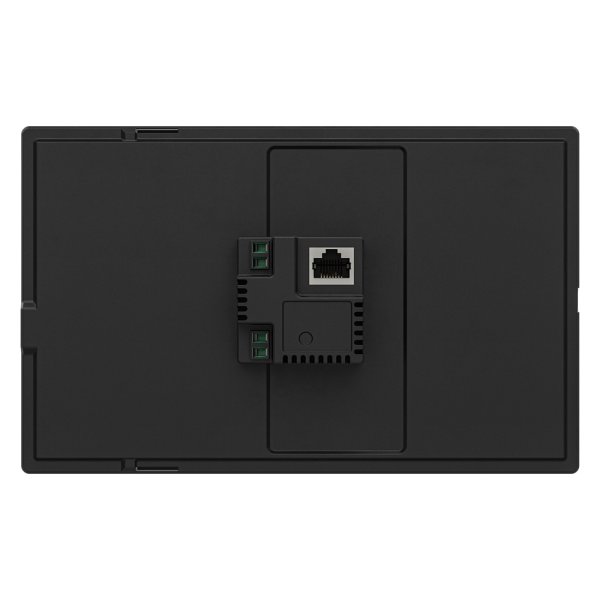

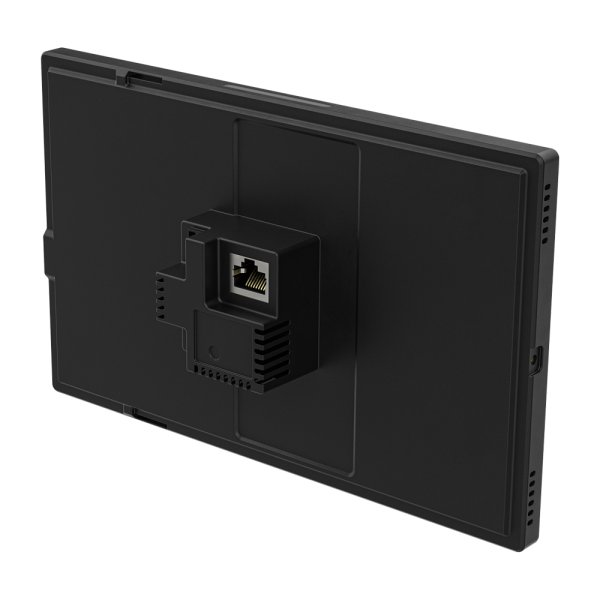

PoE Powered
Features Selectable In-built Layouts
Customisable Layouts when connected to either MagicQ or QuickQ consoles
Supports Pin Locking when connected to MagicQ or QuickQ consoles
Supports Custom Screensavers

仕様

Hardware Specifications:
Screen Size: 8″
48v PoE Powered: Yes
Unlocks MagicQ PC Systems: No*
Fits EU / UK / US Single Gang Backbox: Yes
* Note when used with MagicQ PC Systems, MagicQ must be fully unlocked in order for the TouchScene to work with the PC System.

Software Specifications:
Connects to MagicQ Consoles: Yes
Connects to QuickQ Consoles: Yes
Connects to GeNetix Nodes: Yes
Connects to MagicQ PC Systems: Yes – Required System to be Full Unlocked
Number of Zones when used with MagicQ Systems: 50
Number of Zones when used with QuickQ Consoles: 10
PIN Locking: Yes – MagicQ/QuickQ Only
Customisable Screen Saver Images: Yes
Inbuilt UI Layouts: Yes
Customisable UI Layout: Yes – MagicQ / QuickQ Only

What’s Included:
TouchScene Wall Plate Mounting Bracket, Quick Start Guide

サイズ

Boxed Weights and Dimensions:
Length: 240mm
Width: 150mm
Height: 70mm
Weight: 0.6kg

Unit Weights and Dimensions:
Length: 200mm
Width (Panel): 11.6mm
Width (Including Rear Connector): 37.7mm
Height: 124.59mm
Weight: 0.4kg
