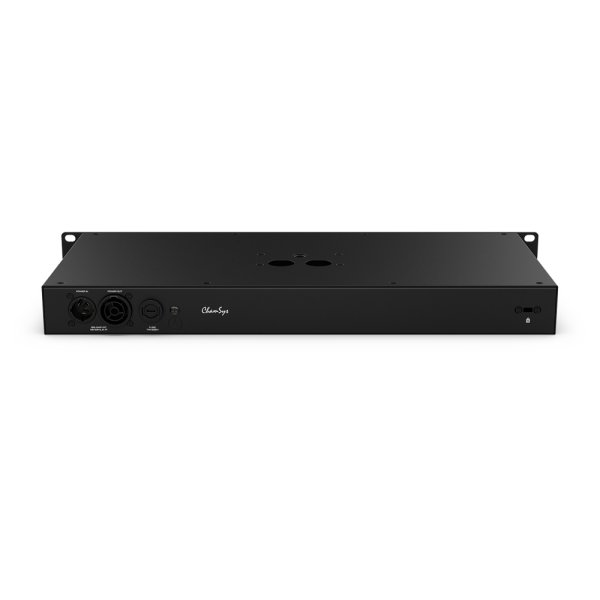

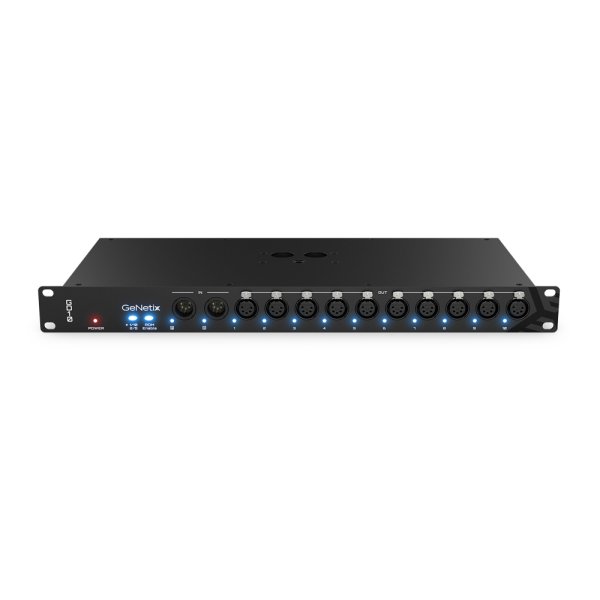

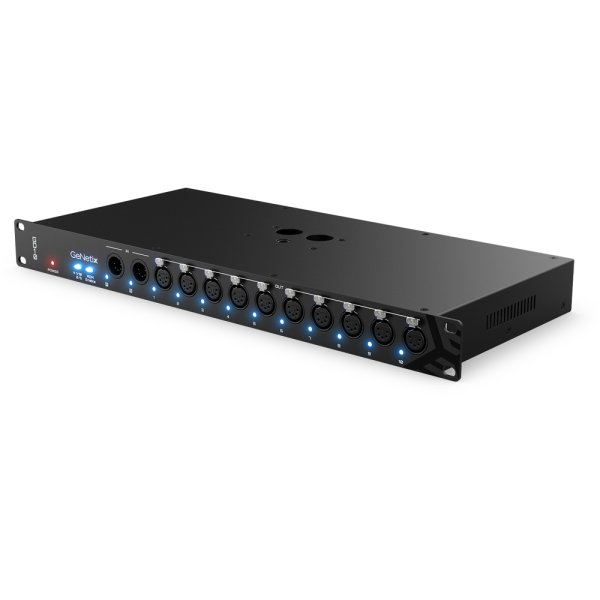

ChamSys GeNetix GD10（ジェネティックス GD10）

GeNetix GD10 is a 19″ 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1×10 or 2×5 DMX signal distribution. GD10 features an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.

概要

10 Port RDM E1.20 Compliant DMX Splitter
2 Input / 10 Output DMX Splitter
1 In to 10 Ouput or 2 In to 5 Output Mode
19” 1U Rack Mountable

仕様

Hardware Specifications:
5 Pin DMX Output Ports: 10
5 Pin DMX Input Ports: 2
RDM Enable/Disable Option: Yes
M12 Clamp Fixing: Yes
Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:
RDM E1.20 Compliant: Yes
Included Accessories:
Neutrik powerCON TRUE1 Power Cable: 1

サイズ

Node Weights and Dimensions:
Width: 480mm
Depth: 218mm
Height: 44.4mm
Weight: 2.75 KG

参照

■メーカーサイト
https://chamsyslighting.com/product/genetix-gd10/
