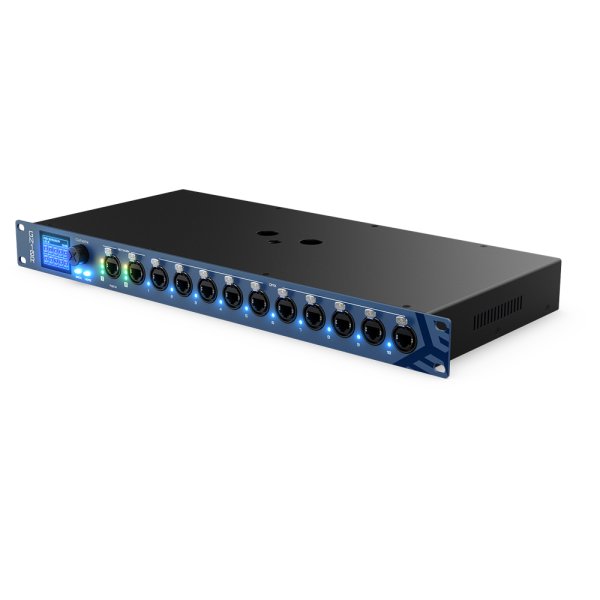

ChamSys GeNetix GN10R（ジェネティックス GN10R）

GeNetix Node 10R is a multipurpose node that provides a solution for remote data distribution in a wide variety of applications, notably offering support for Timecode, MIDI and 10Scene. The R version of our GN10 series comes fitted with RJ45 Ethernet connectors for the DMX outputs that make it well-suited for permanent installation projects.

This universal interface supports Art-Net, sACN, RDM and like all GeNetix nodes is fully configurable from ChamSys consoles, via its in-built web server or via the display on the unit. Its DMX ports are fully configurable, allowing for use as DMX Input or Output and has configurable DMX timings. With two network ports, GeNetix Node 10R can be either PoE or Mains powered via its powerCON TRUE1 line input. This versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or rack mounted via its rack ears.

The interface’s LTC and MIDI ports provide both Timecode and MIDI notes input/output to MagicQ systems over ChamNet as well as supporting Art-Net timecode compatible with any system supporting this, making GeNetix Node 10R ideal for applications where the Timecode or MIDI source is away from the console.

When connected to MagicQ PC Systems via USB, GeNetix Node 10R unlocks MagicQ PC Systems in Full Unlocked Mode, acting not only as a DMX interface, but also as a Timecode, MIDI and 10Scene gateway, making the full power of MagicQ software available to systems running on Linux, Mac or PC. When used as an Art-Net/sACN node the GeNetix Node 10R unlocks up to 2 MagicQ Instances via Network.

概要

10 RDM DMX Ports with RJ45 connectors supporting Input and Output
Supports Art-Net & sACN
LTC & MIDI Timecode over Ethernet
MIDI Notes over Ethernet
Recall Scenes via UDP commands
Webserver for remote configuration
In-built display and encoder for local configuration
Full Unlock of MagicQ PC Systems when connected via USB
Full Unlock of up to 2 MagicQ Instances when connected via Network

特徴

GeNetix Protocols
GeNetix network nodes support industry standard lighting protocols; Art-Net V1,2,3 and 4, sACN – including priorities on a per universe basis and Remote Device Management (RDM).

DMX timings are fully configurable, with refresh rate, break time, frame time and MAB.

DMX Fallback
DMX Fallback enables fixtures on a single universe to be connected in a loop to two ports on the GeNetix node for redundancy. If a single cable is broken anywhere in the DMX loop, all fixtures can still receive DMX.

Individual ports can be set to Output, Input or Fallback.

DMX Fallback is supported within a GeNetix node and also between multiple GeNetix nodes.

Node Configuration
The GeNetix network nodes can be configured from MagicQ consoles and PC systems and from QuickQ consoles. They can also all be configured from a web server. The nodes with a front panel can also be configured from the front panel.

GeNetix nodes also support a lock PIN to prevent the configuration being modified from the front panel of the GeNetix

Lost Data Behaviour
GeNetix Nodes support 3 modes for when the node loses network data (Art-Net or sACN)

Hold – Holds the last output DMX values

None – Stops outputting DMX

Zeroes – Outputs DMX 0’s on all channels

DMX Synchronisation
GeNetix nodes support synchronised DMX output to reduce tearing. Synchronisation is controlled via ChamNet and is available when used with MagicQ consoles.

仕様

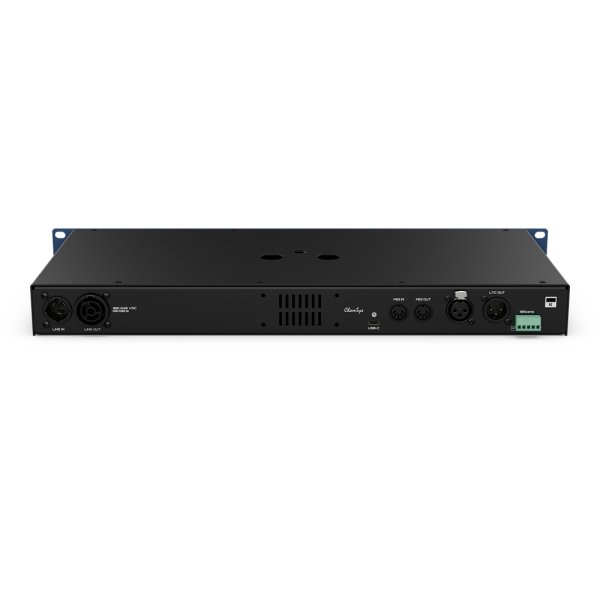

Hardware Specifications:
RDM Direct DMX Ports (with RJ45 connectors): 10
Network Ports: 2
MIDI Ports: 2 (1 in, 1 out)
LTC Timecode Ports: 2 (1 in, 1 out)
10Scene Ports: 1
PoE Input: Yes (Port 1)
USB Ports: 1 USB-C
Kensington Security Lock Fixing: Yes
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:
Art-Net/sACN: Yes
ChamNet Support: Yes
LTC & MIDI Timecode over ChamNet: Yes
MIDI Notes over ChamNet: Yes
10Scene Gateway Functionality: Yes
Configurable DMX Timings: Yes
Web Server: Yes
DMX Redundancy Support: Yes
User Scene Store: Yes
Recall Scenes Via UDP: Yes
Included Accessories:
Neutrik powerCON TRUE1 Power Cable: 1

サイズ

Node Weights and Dimensions:
Width: 480mm
Depth: 218mm
Height: 44.4mm
Weight: 2.75 KG
