PROLIGHTS ControlGo（コントロールゴー） [CONTROLGO]

概要

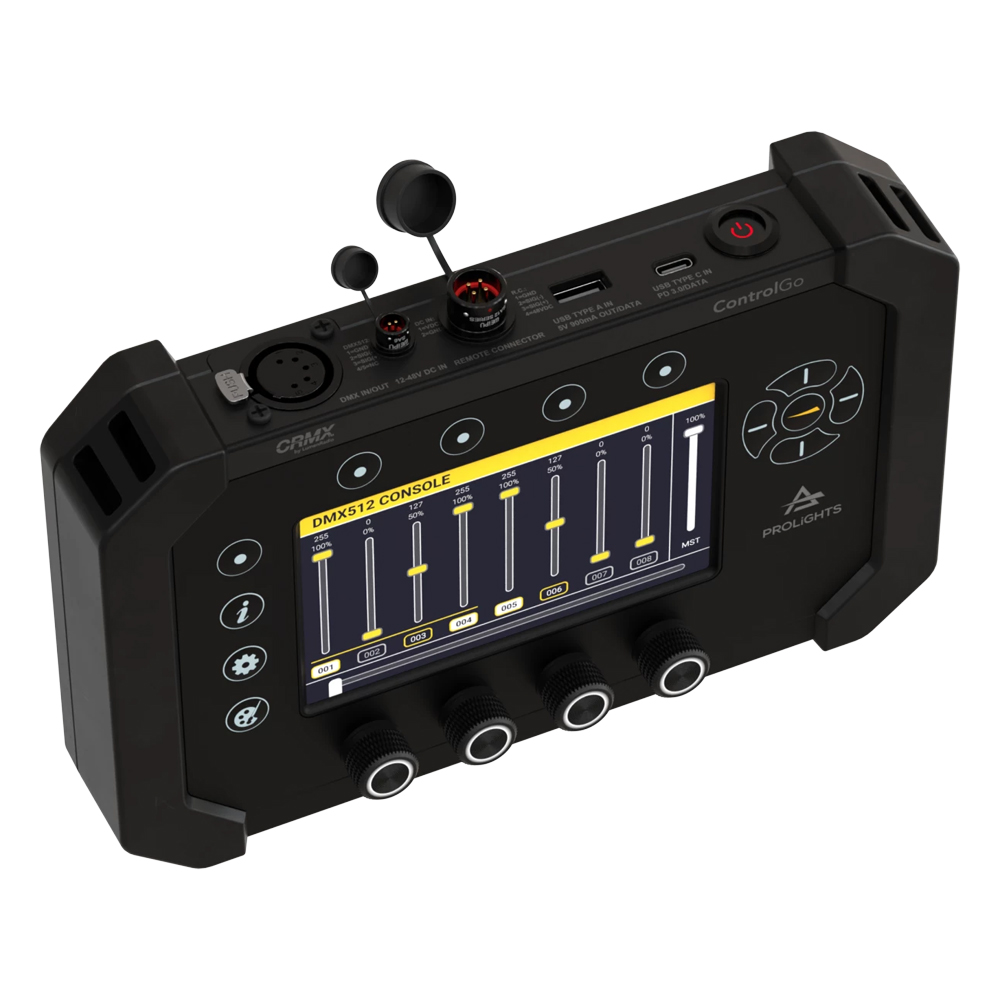

Portable 1-Universe DMX Controller, RDM manager, CRMX and battery operated
ControlGo is the ultimately flexible, multi functional lighting controller. This incredibly versatile, simple to use tool combines a fixture remote, RDM Tool, CRMX transmitter, DMX controller and DMX recorder into a single, portable and durable device.
Whether flashing out a film set, setting addresses on a tradeshow stand, or controlling battery uplighters, the ControlGO is THE device you need to get up and running quickly and easily.
Taking power from a host of options - NP-F or V-Lock batteries, DC 12-48V or USB-C - you won't find a place you cant find some power.
Featuring wired and CRMX wireless DMX & RDM, the ControlGO is compatible with up to 42 fixtures of any brand over 1 Universe. Its intuitive touchscreen interface, plus physical buttons and encoders, gives fast, easy and accurate access to its functions.

特徴

・One Universe DMX Controller , RDM controller, DMX recorder, Remote UI

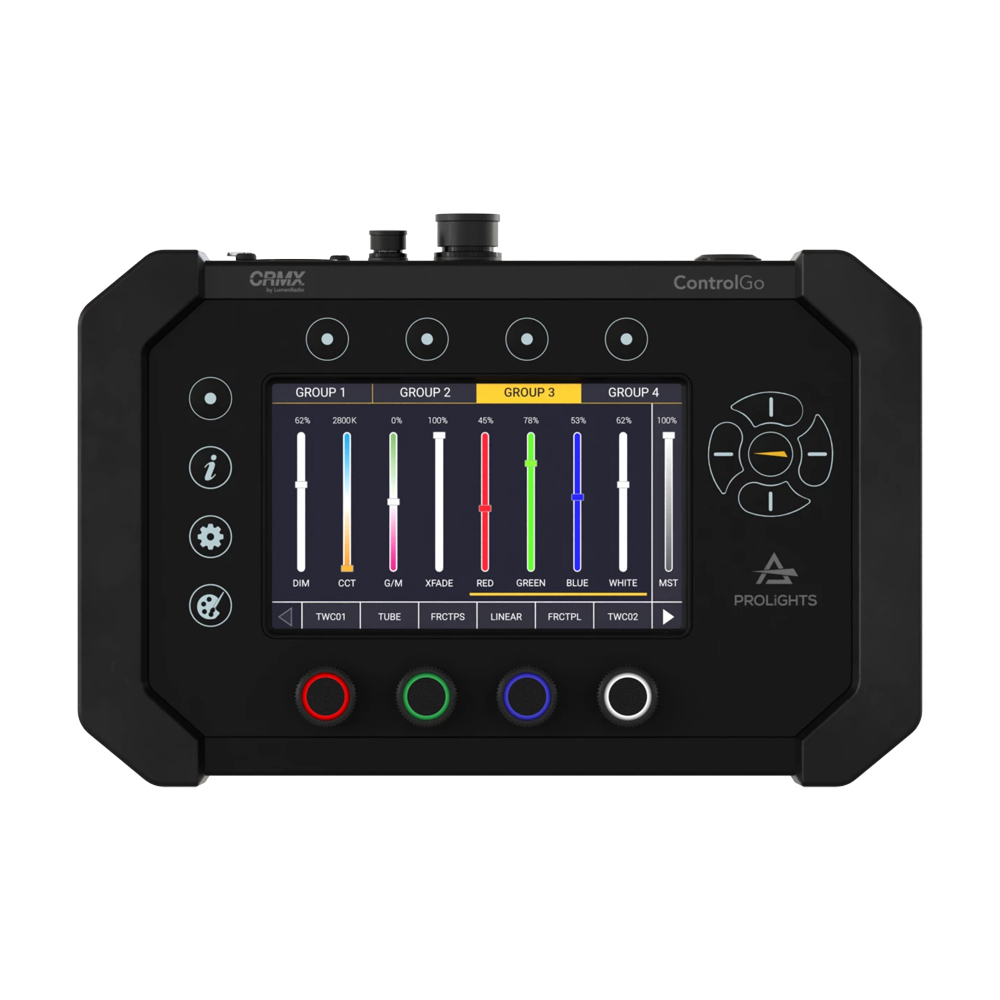

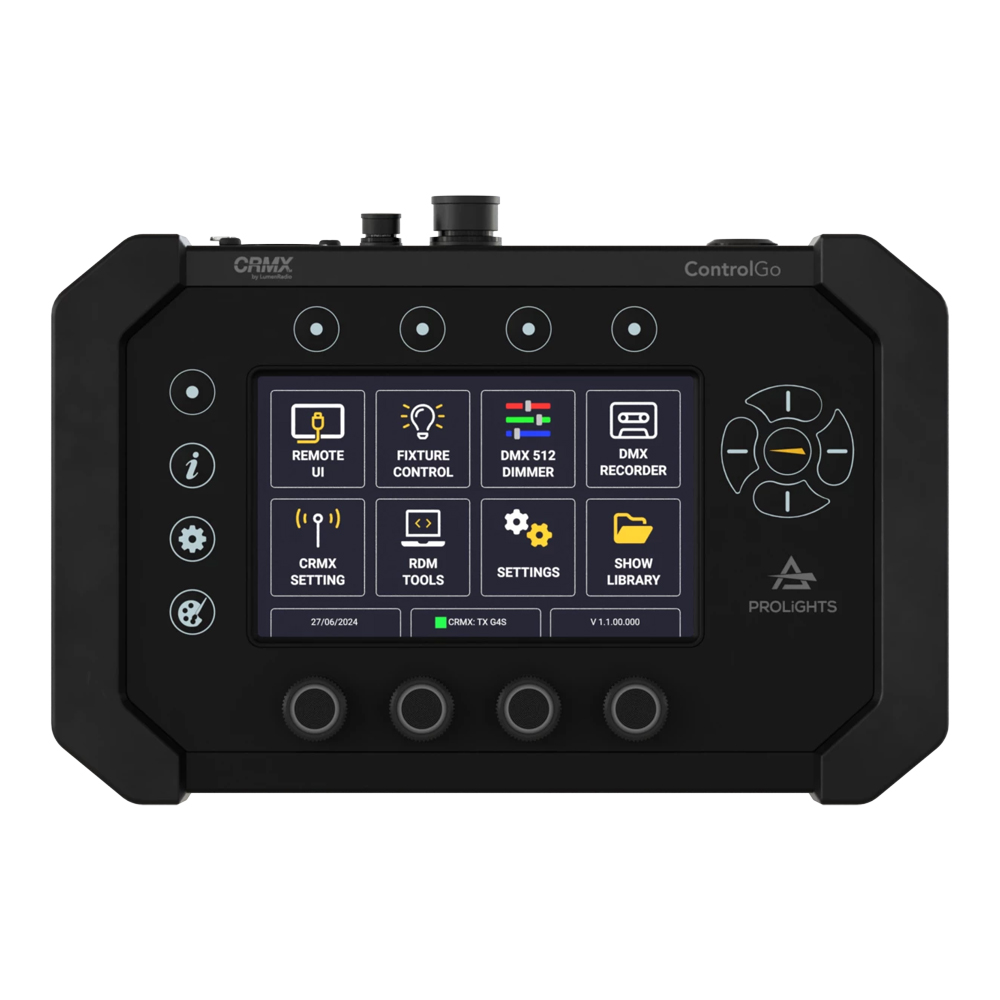

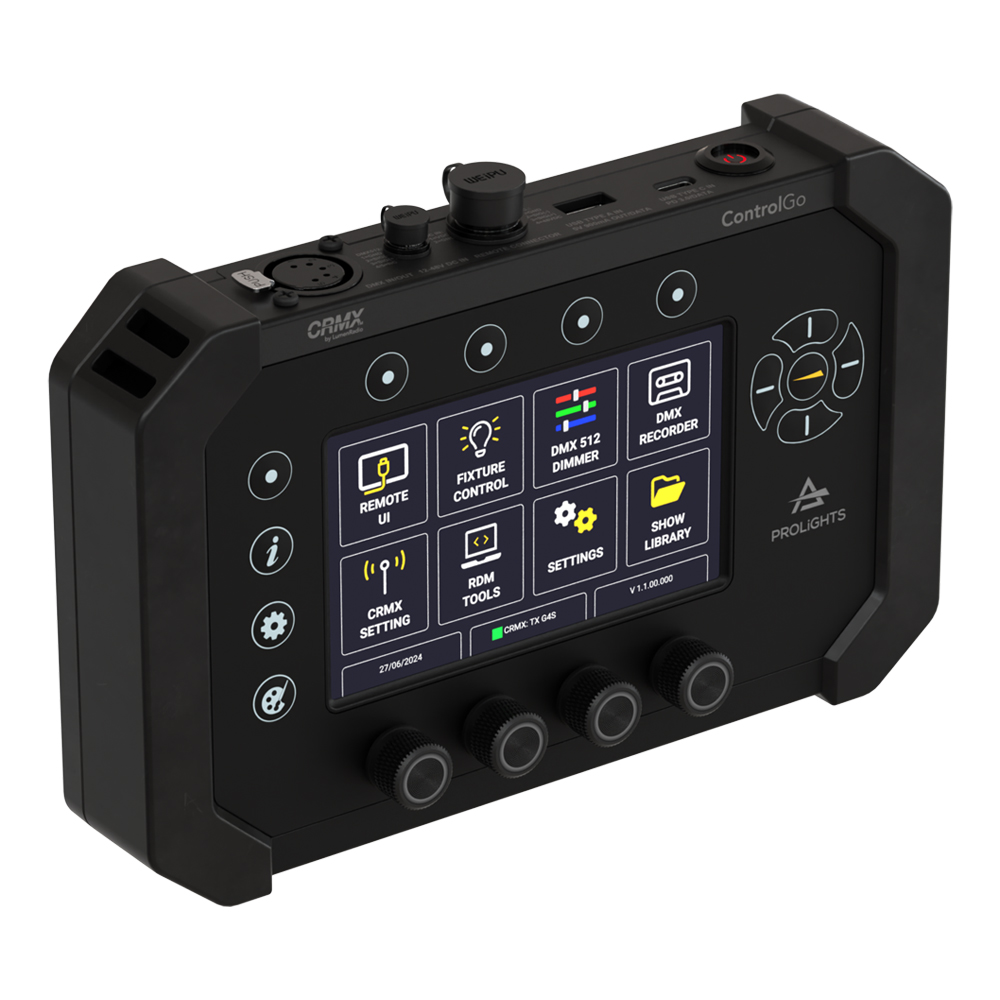

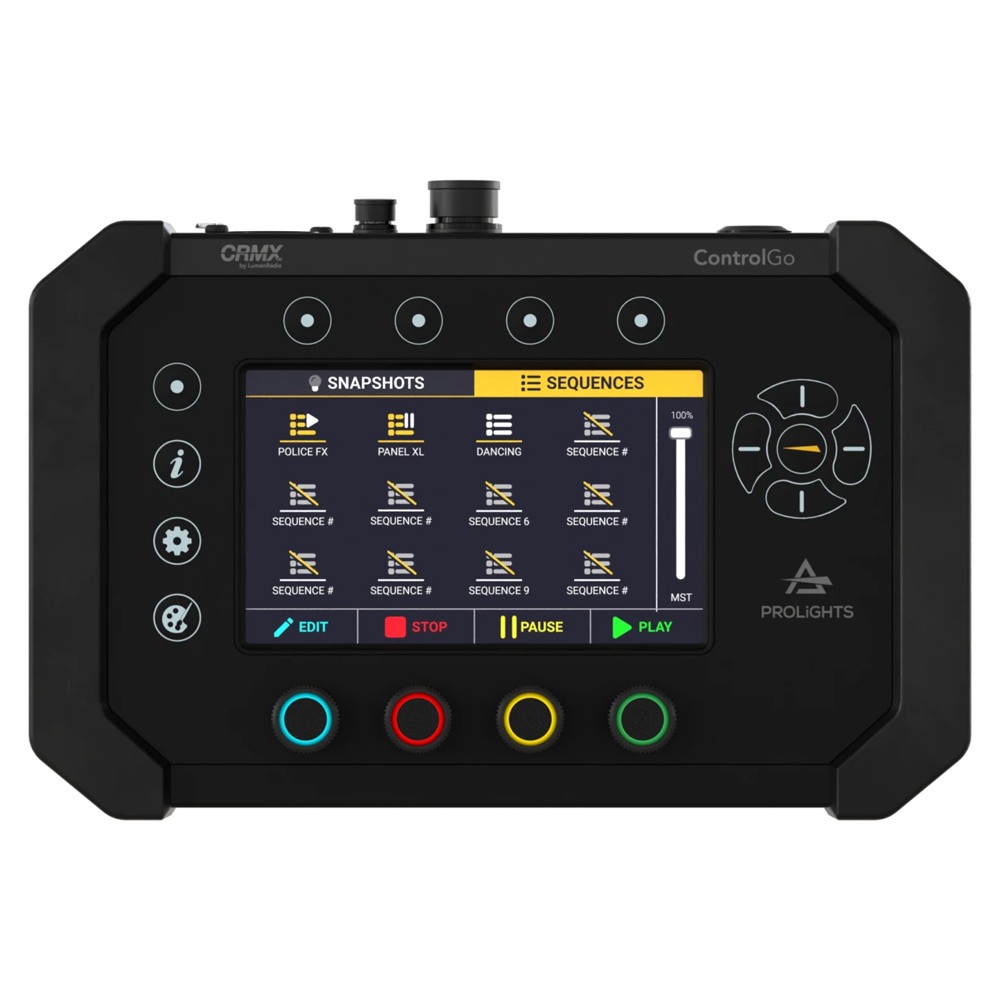

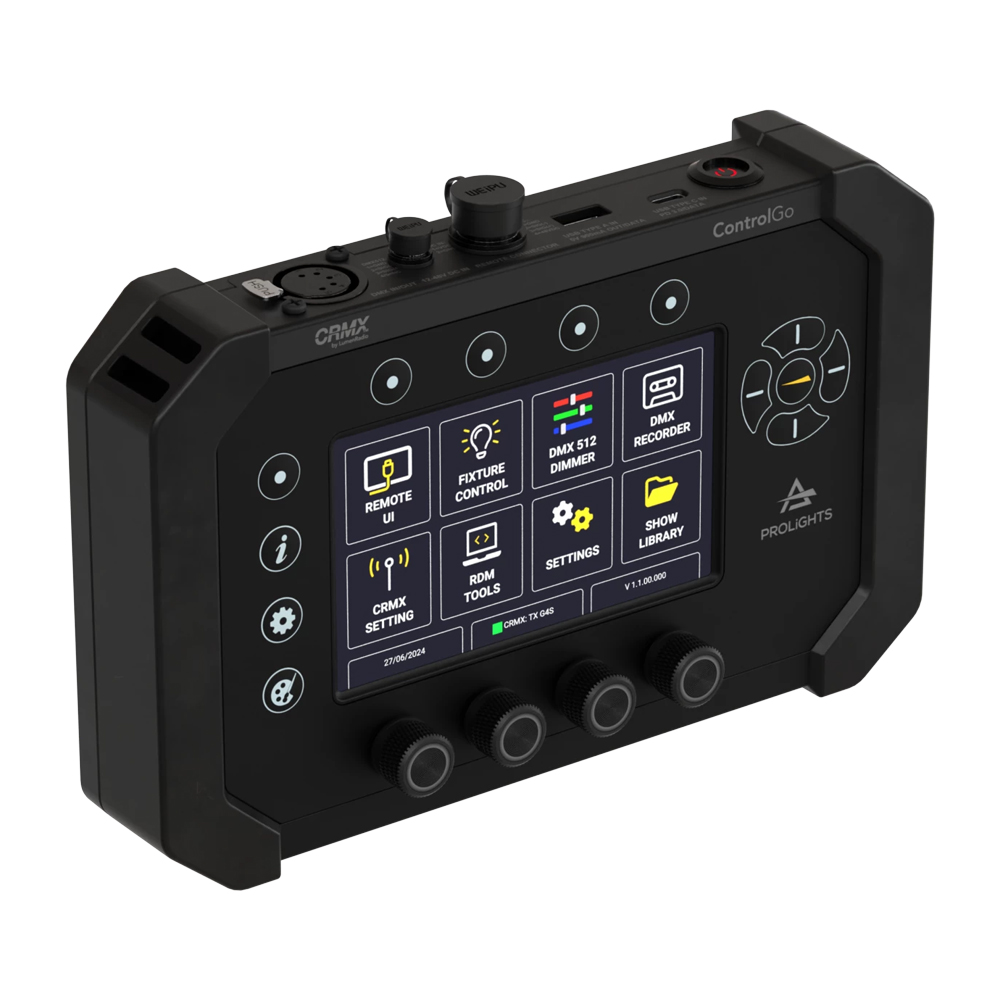

・5'' touchscreen with 4 RGB encoders and physical buttons for unprecedented user experience
・Signal output through XLR, Wireless CRMX, and remote UI connector
・Power sources: NPF batteries (batteries not included), V-mount adapter plate, 48V DC remote UI, 12-48V DC input through SF6-M 4p, USB type-C 5-12V power input (power cable not included)

仕様

BODY
Hardware on-board: see available accessories
Body: sturdy policarbonate body
Body colour: black

CONTROL
Protocols: CRMX+W-DMX, DMX512, RDM
DMX channels: 512channel
Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
RDM: RDM for remote monitoring and settings
Display: 5" Touch LCD
Firmware upgrade: yes,via USB pen drive, onboard memory or DMX interface (UPBOXPRO/UPBOX1) not included
Other: 4 rotary push-encoders with RGB backlight

ELECTRICAL
Low Voltage DC mains: 12-48V via DC IN, 48V via Remote Connector, 5-9-12-20V via PD3.0 over USB-C, 7.2V via battery slots
Max power consumption: 8W

BATTERY

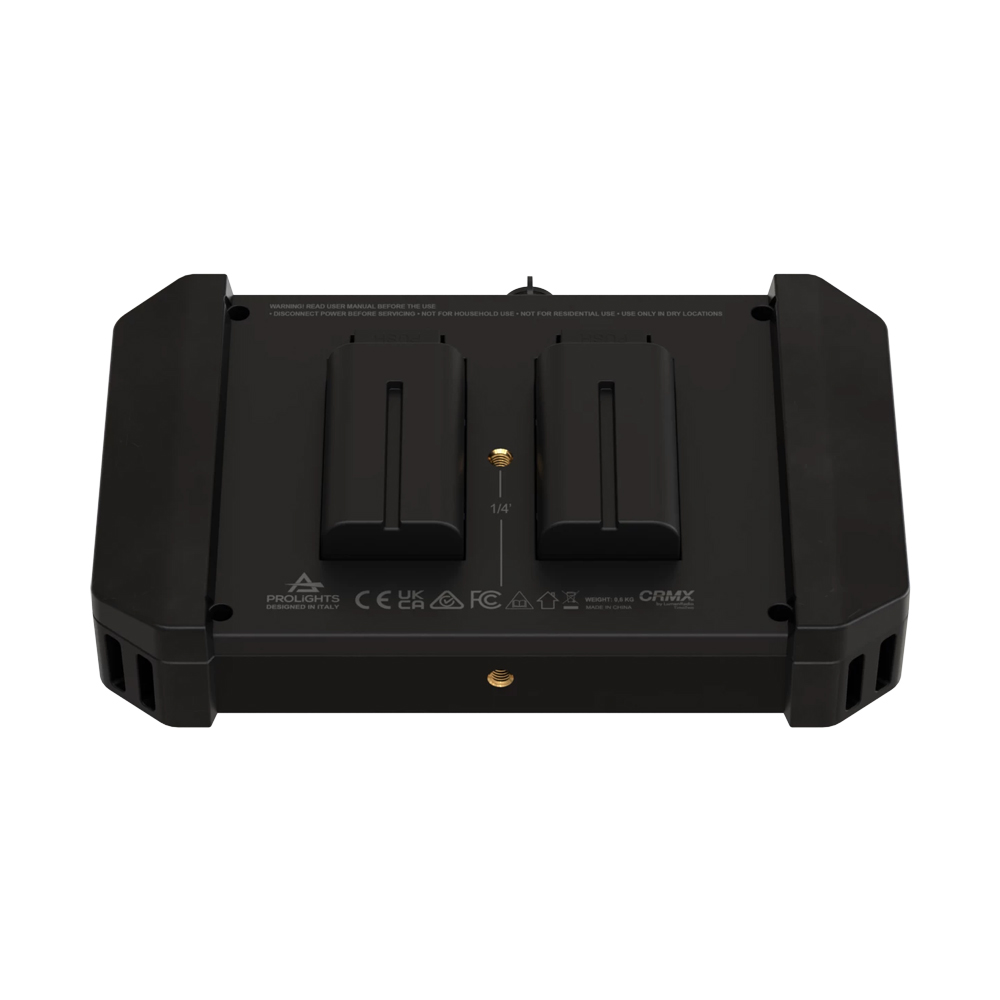

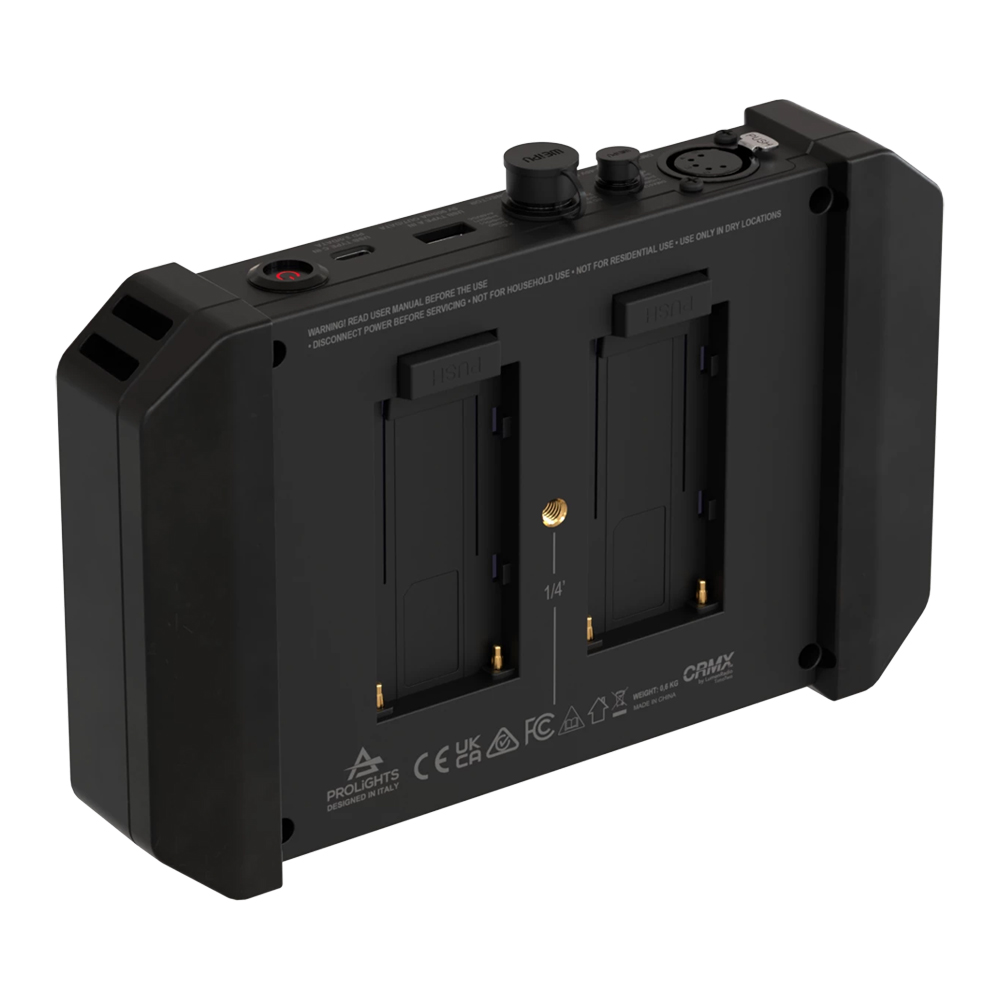

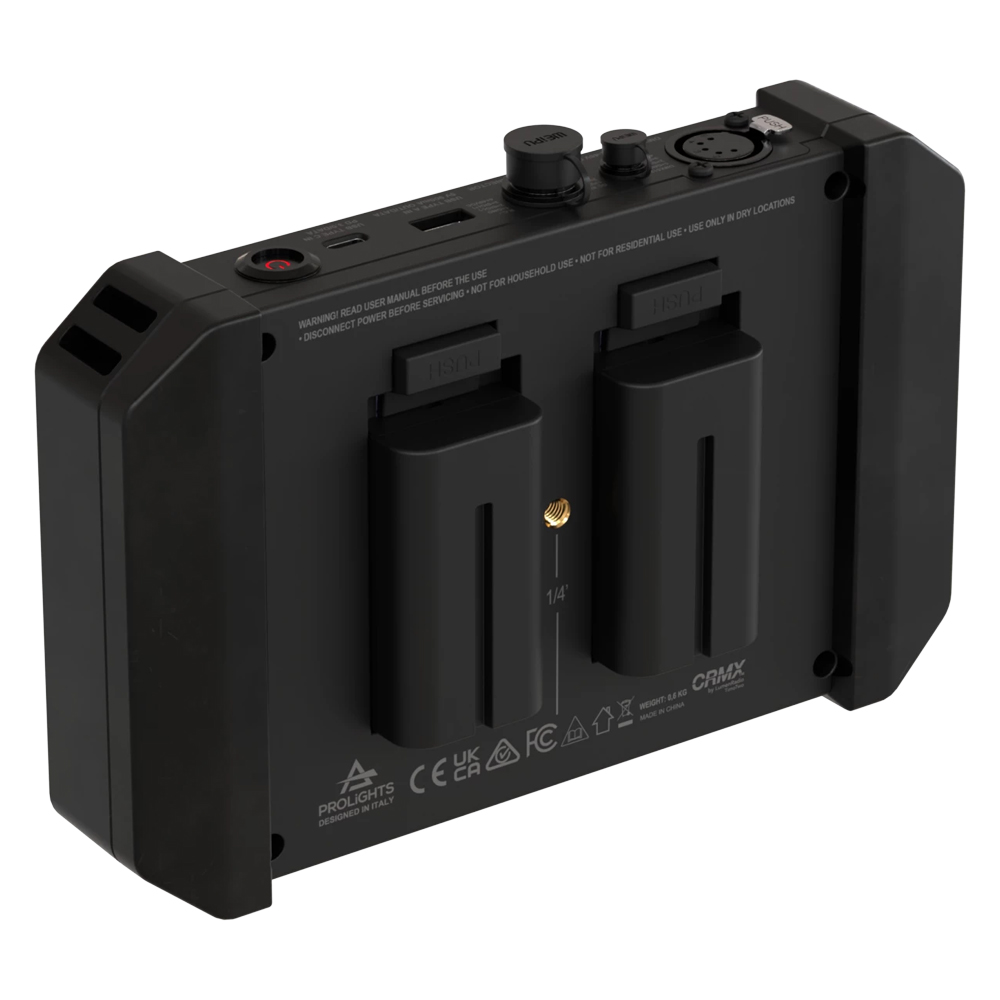

Battery: 7.2V NP-F550/F570/F750/F770/F960/F970 type battery or V-Mounts (14.4V) via dedicated accessory

PHYSICAL
IP rating: 20
Cooling: passive cooling and fan-free
Signal connection: Seetronic XLR 5p OUT connector
Low Voltage DC connector: Weipu SA6(12-48V), Weipu SA12 (48V - RemoteConnector), USB type C PD3.0, Battery slots

CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT
1 x CONTROLGO
1 x CTRGEVACASE
2 x CTRGHANDLE
1 x CTRGNL
1 x User manual

サイズ

Weight: 0.6kg
