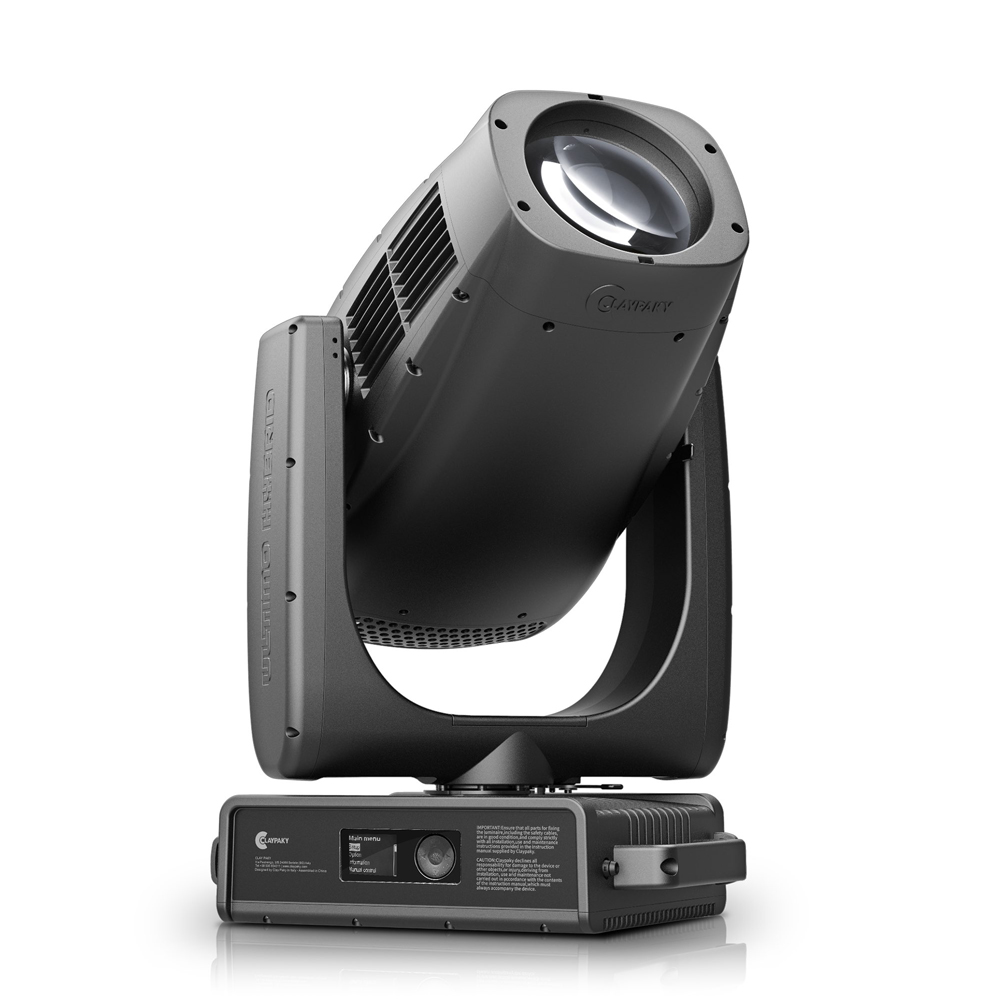

Clay Paky Ultimo Hybrid（ウルティモハイブリッド） [CD3039]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

Imagine a hybrid fixture that is powerful, versatile, and compact. Ultimo Hybrid brings your vision to life, indoors or out, with its IP66 water and dust resistance. Effortlessly shift between beam, spot, wash, and profile modes, reducing the need for extra fixtures. With intense brightness, a long-lasting short-arc lamp, and an advanced effects engine, every designer needs this all-in-one tool. Ultimo Hybrid: the ultimate evolution of what’s possible.

Discover the amazing features that make Ultimo Hybrid the perfect choice for your lighting designs.
Here’s why Ultimo Hybrid is a game-changer:

Impressive Output and Longevity: Ultimo Hybrid, powered by a 550W short-arc lamp, delivers an impressive 19,000-lumen output and lasts up to 4,000 hours. This ensures reliable, energy-efficient performance across numerous shows, making it a perfect choice for low-maintenance applications.
Smooth, Versatile Zoom: Its motorized linear zoom ranges from evenly collimated spots (2° to 29° in Beam mode) to tightly focused beams (3° to 52° in Spot mode) enabling designers to craft dynamic scenes that set Ultimo Hybrid apart as the ultimate all-in-one solution.
Precision Control for Creative Freedom: The Advanced Four-Focal Plane Shutter System offers designers exceptional control over each blade. It grants custom effects like a “Total Curtain” with razor-sharp edge definition, unlocking new levels of creativity.
Absolute Position Innovation: This special system remembers the fixture’s position in real-time, even after power interruptions, ensuring precise repositioning and reducing setup time.
Unmatched Versatility in a Compact Design: Ultimo Hybrid packs the power of larger fixtures into a compact design, featuring an eight-gobo rotating wheel, a static gobo wheel, four- and eight-facet prisms, and linear frost for smooth washes. Its broad color spectrum, high CRI, CMY mixing system, and 14 dichroic chips—including a striking deep red—produce professional-grade hues that tell stories without words.
The Evolution of Hybrid Lighting!
Ultimo Hybrid redefines hybrid lighting with its compact, feature-rich design and powerful output. Perfect for touring, live events, and permanent installations, this fixture brings versatility and brilliance to lighting designers everywhere. In a world where every beam tells a story, Ultimo Hybrid is here to help create yours.

特徴

Light Source
550W arc lamp (4000hrs life span)
Light Output
19,000 lm (integrating sphere)
Zoom range
3°-52° (spot mode) and 2°-29° (beam mode)
Effects
Linear CMY color mixing (Deep Red); Linear CTO; 14-color wheel on separate channel; Rotating gobo wheel with 8 interchangeable HD gobos; Static gobo wheel with 18 static gobos; Six beam reducers (down to 0.5°); Framing system: 4 focal planes, +/-60° rotation and macro channel control; Linear frost 2° and 5°; Animation wheel; 2 bi-directional rotating prisms (4 and 8 facet); Motorized iris

仕様

LIGHT SOURCE:
Source type: Philips 550W
Power: 550W
Color temp.: 8000K
Life expectancy: 4000 Hrs L70*
* It may vary depending on various factors, such as the type of use and environment

PHOTOMETRIC DATA:
Aperture: Beam: 2° - 29°
Spot: 3° - 52°
CRI: Up to 80
Lm output: 19000 lm
Front lens: Ø 160 mm

CONTROL & CONNECTIONS:
Protocols: DMX, Art-Net, sACN, RDM, Webserver
WDMX: CRMX TiMo FX RDM Lumen Radio
Connectors: Locking 5 pin XLR IN/OUT, RJ45 IN
Power con.: PowerCon True1 IN/OUT
Web server: Built-in
CloudIO: Fully compatible

DYNAMIC EFFECTS:
Colors: Linear CMY color mixing; Linear CTO, 1 fixed color wheel with 14 dichroic colors
Strobe: Mechanical strobe
Framing system: 4 blades with ±60° rotation of the full system on 4 focal planes, Total curtain effect allowing the full
blackout with each single blade
Gobos: 1 static gobo wheel with 18 gobos (6 beam reducers up to 0.5°)
1 rotating gobo wheel with 8 interchangeable glass gobos
Frost: 1 linear heavy frosts 5°
Rotating effects: 1 aluminium animation wheel with continuous rotation in both direction at variable speed; 1 four facet
and 1 eight facet prisms with rotation in both directions at variable speed
Iris: Motorized with variable pulse and random effects
Movement: Tilt: 270° (16 bit); Pan: 540° (16 bit); Automatic repositioning; Fast/Standard speed selectable by
Functional channel; Mechanical Pan/Tilt lock for safe transportation and maintenance
Special features: Absolute positioning (Pan and Tilt)
Dimmer/Shutter: High resolution dimmer 16 bit; Shutter and Strobe effect

HARDWARE & SOFTWARE:
Display graphic LCD blacklit B/W display; firmware upload from another fixture, firmware upgrade
via Web Server; diagnostic; DMX monitoring; remote access through RDM

HOUSING:
Aluminum and magnesium housing; two-side handles for transportation; IP66 protection rate;
working in any position; hanging system with fast-lock Omega clamps (1/4) on the base

ELECTRICAL:
Operating voltage: 100 – 240 V, 50 / 60 Hz
MAX power
consumption: 750 VA

THERMAL SPECIFICATIONS:
MAX ambient
temperature: 45 °C
Min ambient
temperature: -20 °C
