ETC/HES ZEO（ジオ）

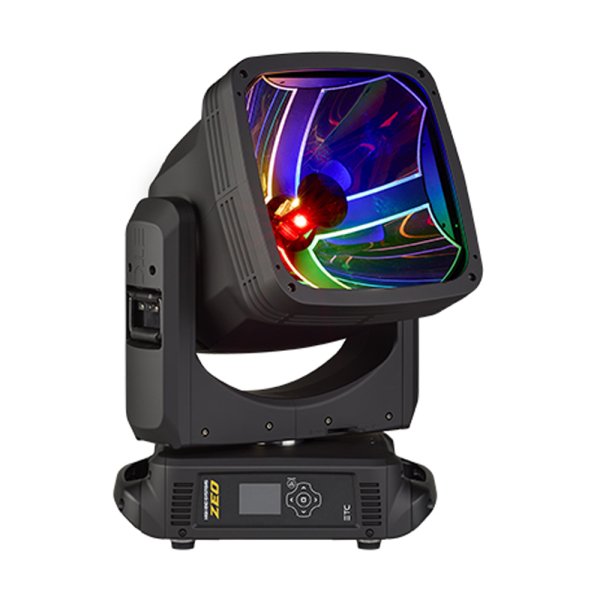

Bring a totally unique look to your show with the High End Systems Zeo, while having all the versatility to make it your own. This RGBW effects fixture captivates a crowd whether used for beams and washes or as a strobe or blinder. The Zeo’s distinctive design comes from its center LED monolith surrounded by four defined reflectors, which can shine brightly as a wash or be separated into beams.

概要

The High End Systems Zeo is a genre-defying fixture. Packing ultimate brightness, the Zeo can be used as a strobe or blinder to heighten the energy at any show. Create captivating looks with Zeo’s unique face design, highlighted by a central LED monolith, four reflectors, and four powerful RGBW engines. Zeo’s focus concentrates the light throughout the fixture’s 55° field angle. And the many looks of Zeo are easily accessible with an abundance of macros to choose from.

特徴

• LED monolith with four 300 W RGBW LED cells
• Individual cell control
• Fixture output exceeding 30,000 lumens
• Patented Quad Reflector system
• HaloGraphic Pixel Definition technology
• Motorized Light Concentration system
• Optional accessory beam homogenizer for enhanced color mixing
• Strobe and inclusive macros with separate background levels to enhance shows at all programming levels

仕様

Source
Engine Quantity four, each 300 W RGBW COB
LED Details 1,200 W
Field Lumens See photometrics on page 3
Max Integrating Sphere Lumens 30,000 lumens
LPW 25
LED Life 50,000 hours
Native CCT None

Color
Color Mixing Red, Green, Blue, White, CTO
Color Temperature 2,200 K to 10,000 K

Optical
Light Concentration Control Motorized, beam from 13° to 55°
Aperture Size 285 x 285 mm
Diffusion Optional beam homogenizer accessory
Flicker Control/Hz Range 2.4 kHz and 16 kHz

Control
Input Method DMX (5-pin) or Ethernet
Protocols DMX via RS-485
Art-Net or sACN via Ethernet
Ethernet Pass-Thru Passive Ethernet in and thru with and without
power
Data Conversion Patented data conversion system for Ethernet
to DMX
Modes (Footprint)
Standard (50 channels)
Reduced (23 channels)
Wash (15 channels)
Effects Capabilities
Inclusive macros
Strobe macros
Individual cell mapping
RDM Functions Yes
UI Type Full-color graphical UI and 5-button
navigational control
Local Control Yes
Dimming Performance 16-bit, DMX controlled

Electrical
Voltage Range 100–240 V 50–60 Hz
Input Method powerCON TRUE1 TOP
Wattage 1,670 W
Current (Max) 16.8 A @ 100 V
6.5 A @ 240 V
Inrush (First Half Cycle) 120 V: 69 A
230 V: 123 A
Fixtures per Circuit
1 fixture (R20 module or similar)
Note: TRUE1 TOP connector rated for
20 A (120 V/60 Hz) and
16 A (240 V/50 Hz)

Thermal
Ambient Operating Temp -10°–40°C
Cooling System Fan-cooled closed-loop liquid cooling system
Fan Mode Standard, Studio, and Linear Continuous
control channel

Physical
Pan and Tilt Range 540° pan, 205° tilt
Max Pan/Tilt Speed 360° in 2.39 s/180° in 1.92 s
Materials Steel and aluminum frame with molded plastic
covers
Color Options Black, white by request
Mounting Options Any orientation
IP Rating IP20

Included Accessories
powerCON TRUE1 TOP to bare end fixture tail
Two (2) 107 mm three-hole Omega brackets
Safety cable

サイズ

Weight 20 kg
529 x 418 x 294mm
