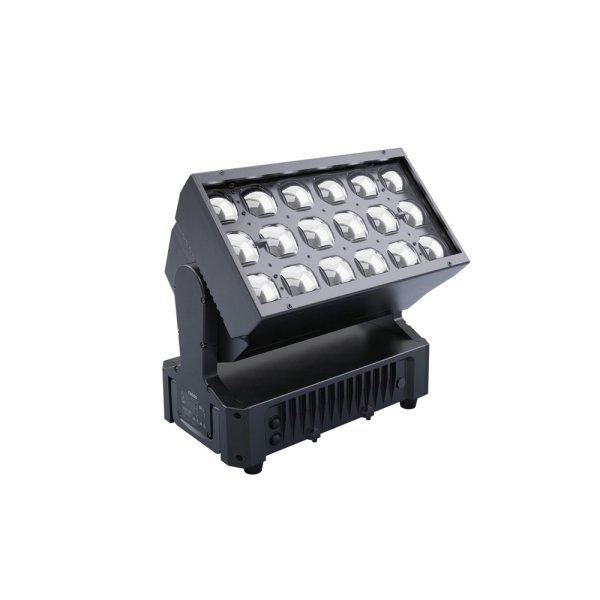

GLP Creos（クレオス）

Creos

The GLP Creos redefines versatility and performance in LED washlights! Equipped with 18 x 40W RGBL LEDs arranged in three rows of 6 pixels each, it delivers breathtaking brilliance and precision. Its motorized 1:12 zoom creates a powerful 4.3° beam with up to 673 kcd and an impressive total output of 7,600 lm, while the motorized head offers seamless 190° tilt for added flexibility.

A standout feature is its clusterable design, ensuring a uniform and homogeneous pixel pitch across multiple devices. Easily link units together to construct massive LED bars and create stunning, dynamic light curtains for truly awe-inspiring displays. The IP65-certified housing guarantees reliable performance in any environment—be it indoor venues or outdoor events—offering full protection against rain, dust, dirt, fog fluid residue, and even confetti.

The GLP Creos is built for convenience and adaptability, featuring PowerCon True 1 In/Out, DMX 5pin In/Out, and two fail-safe EtherNet ports. The integration of GLP’s robust iQ.Mesh system ensures unparalleled flexibility and ease of use, even in demanding setups. Compact at under 20 kg, the Creos is designed for effortless handling and everyday use.

With an exceptional price-performance ratio and fast ROI, the GLP Creos is the ultimate choice for professionals seeking powerful, reliable, and innovative lighting solutions.

仕様

Light Source
Type RGBL LED
Light Source Count 18
Light Source Power 18x 40 W
Light Source Lifetime 20,000 h
LED Refresh Rate Optimal, High 1, High 2, Max
TLCI 6,500 K: 77
TM-30-15 6,500 K: 104 / 80

Optical System
Output bis zu 7,600 lm
Peak Luminous Intensity 673 kcd
Min. Zoom 4,3°
Max. Zoom 52°
Zoom Ratio 1:12

Effects
Dimmer 0 – 100%; 16 bit
Color mixing
RGB
RGBL
x;y
CTC (Color Temperature Control) 2,500 – 10,000 K
Magenta/Green-Shift yes
Tungsten Simulation 8x linked to fix CCT | 8x relative to Colormix
Pattern Effects 50 dynamic pattern macros with special effects
Tilt Movement Angle 190°, 16 bit

Control
DMX channels 20 | 33 | 39 | 48 | 84 | 63 | 81
Control Modes 7
Protocol
DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
Art-Net
CRMX (Lumenradio)
iQ.Mesh
Setting and addressing
control panel with backlit graphic display
4 Button Menu Navigation
DMX
RDM
Software Update
DMX link
via DProg
iQ.Mesh
via iQ.Service App
GLP iQ.Tool
High-Res Channels
Dimming
Tilt
Performance Modes
fast
normal (balanced)
smooth
Dimming Curves
linear
soft
Fan Modes
regulated
high
medium
low
Others
Stand Alone 1 captured Scene
2 Layer Pattern-FX-Engine
59 Static and 50 Dynamic patterns

Connectors
Signal connection
REAN XLR 5-Pin
In/Out
REAN etherCON In/Out (failsafe)
Power input
REAM powerCON True1
In/Out

Electrical Specifications
Power input 100 – 240 VAC / 50 – 60Hz
Power supply auto-ranging electronic switch-mode
max. power (@230V) 800 W

Thermal Specifications
Cooling combined convection and forced air
max. ambient temperature (Ta max.) 40 °C / 104 °F
min. ambient temperature (Ta min.) -10 °C / 14 °F
Total heat dissipation (calculated, +/-10%) 2.750 BTU/hr

Mounting Options
Mounting
2 pair of 1/4-turn locks
eyelets for safety cable
Orientation any
Location
Indoor permanent
Outdoor temporary

Construction
Housing Color Black
Housing Material Aluminum
Protection Rating IP 65
Construction Features
base handles
Tilt-Lock-System

サイズ

Height 375 mm
Width 388 mm
Length 218 mm
Weight 20.3 kg

参照

■メーカーサイト
https://www.glp.de/en/products/creos
