CIty Theatrical Eluxtra 4-in-1 LED Strip Light, 24V, Indoor, RGB + 6500K（Eluxtra 4-in-1 LEDストリップライト 24V インドア RGB + 6500K） [RGB65K-5050-60-24V-5m]

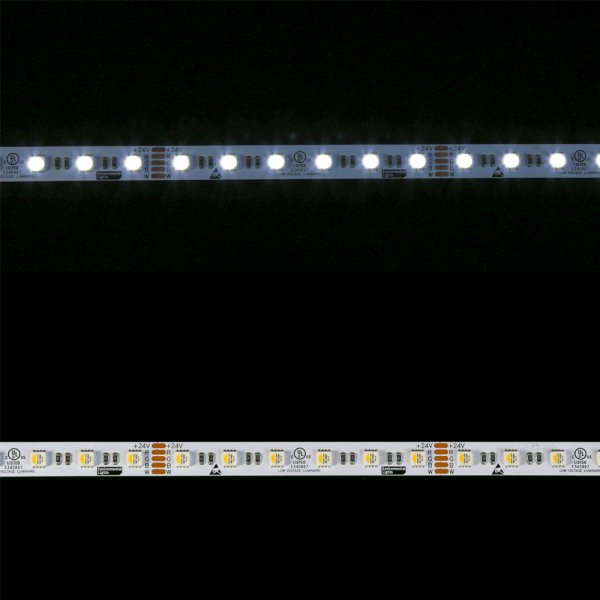

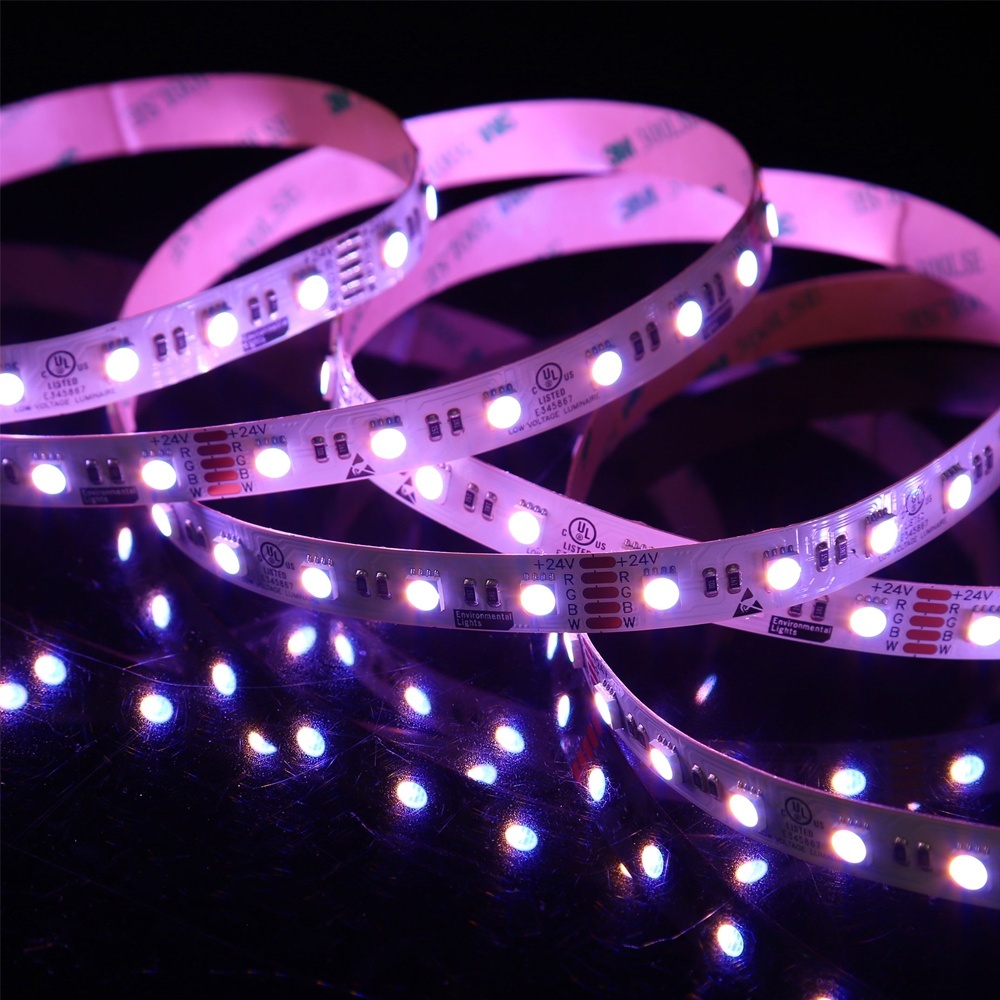

Eluxtra™ 4-in-1 LED Strip Light, 24V, Indoor is UL Listed and features 60 LEDs per meter. Eluxtra 4-in-1 LED Strip Lights are 24V and allow you to run a full reel without any visible voltage drop or corresponding color changes along the length of the run. Mix all four diodes together to create a vast spectrum of vibrant colors for indoor LED tape installations.

概要

Eluxtra 4-in-1 LED Strip Light, 24V, Indoor is a high quality and extremely dependable strip light that is an ideal lighting solution for utilizing color in dynamic set designs, eye-catching displays, and so much more. Eluxtra 4-in-1 LED Strip Light, 24V, Indoor is sold in 5-meter reels or in cut-to-order lengths. Color variations include:

RGB + 2700K White
RGB + 6500K White
RGB + Amber
RGB + Indigo
Additionally, Eluxtra 4-in-1 LED Strip Light is available in IP65-rated waterproof versions to protect against dust, splashes, and rain.

Eluxtra represents the next evolution in LED tape light technology. It is engineered to enhance performance and simplify installation for professionals across many industries. Delivering consistent performance, simplified wiring, and vibrant colors, Eluxtra makes it easier for lighting designers to achieve their goals with minimal complexity. All configurations are UL Listed and feature 60 LEDs per meter.

Eluxtra is available through City Theatrical and Environmental Lights.

For detailed specifications on Eluxtra 4-in-1 LED Strip Light, click on the part numbers below to view each cut sheet.

仕様

Cutting Increment 100.00 mm (3.94 in)
LED Spacing 16.7mm (0.657 in)
Lead Detail 200mm (7.874 in) long flat cable on both ends, stripped 10mm and tinned
Backing Color White
Color Red, Green, Blue, 6500K White (Cool White)
Color Temperature N/A
Brightness 110/315/75/335 lm/m
Beam Angle 120°
Electrical
Operating Voltage 24VDC
Current (A/5m) 3A
Power Consumption (w/m) 14.4 w/m
Power Consumption (w/ft) 4.4 w/ft
Density (LEDs/m) 60 LEDs/m
LED Chip Size 5050
Product Information
Use Environment Indoor
Ambient Temperature -20° C to 40°C
Dimmable Fully Dimmable
Average Life 50,000 hours
Warranty Five years limited
IP Rating IP20
Compliance UL, RoHS

サイズ

Length 5m
Width 12mm
Height 2 mm

参照

■メーカーサイト
https://www.citytheatrical.com/products/electronics/eluxtra/eluxtra-4-in-1-led-strip-light-24v-indoor
