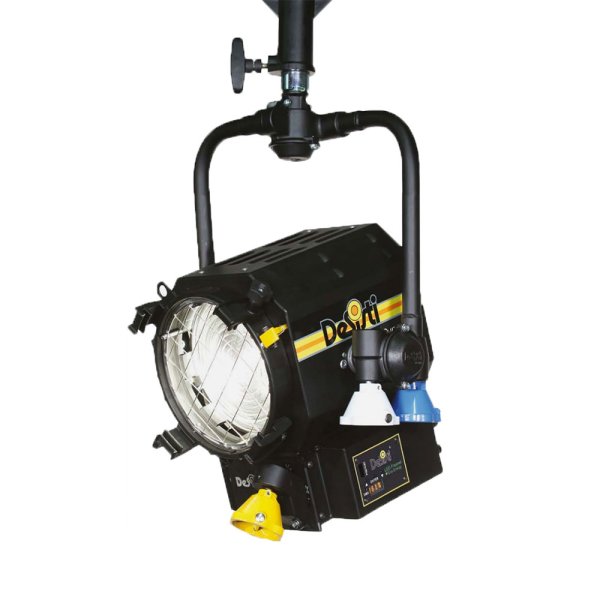

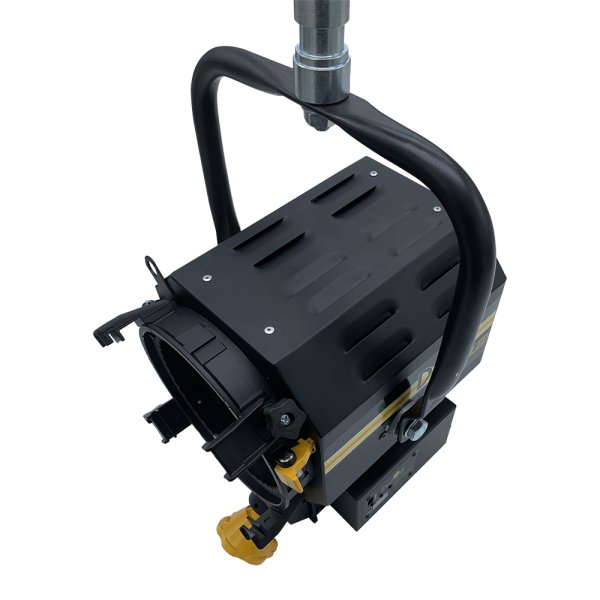

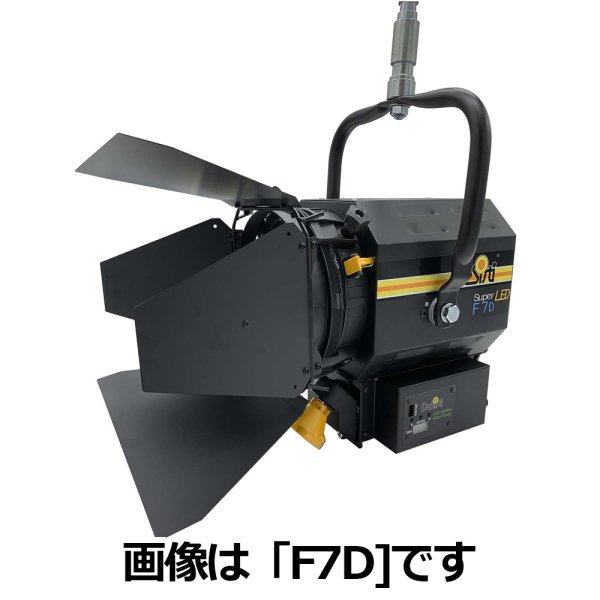

De Sisti SUPER LED F7 VW（バリアブルホワイト）

Innovative High Power 160W COB (Chip on Board) Led Array.
De Sisti Internationally Patented optical system for Led Fresnel.
Enhanced CRI (Color Rendering Index) higher than 95
for appropriate chromacity performances.

概要

GLASS FRESNEL LENS
De Sisti utilizes a true Fresnel lens made of high quality, shock resistant borosilicate glass. Plastics lenses may discolor over time negatively affecting both output and color temperature. Glass is consistent, resilient to heat and offers better uniformity in beam protection.

PATENTED OPTICS
Our internationally patented optical system optimizes the LED source. The reflector design in combination with a Fresnel lens gives us the highest optical efficiency in the industry. De Sisti is able to achieve similar outputs to our competitors with half the power requirements. Our Super LED Fresnels produce the exact light you’ve come to expect from a traditional Fresnel.

SILENT OPERATION, WITH THE RIGHT TEMPERATURE
We use Self Stabilizing Silent Active Cooling technology. The speed of the fan is managed by an internal thermal sensor and CPU, automatically adjusting the temperature of the LED Array to 65°. The hydro dynamic bearing fan operates silently with a very low RPM. A unit must always be silent when it operates, not only with the fans switched off.

UNIVERSAL PSU
De Sisti Super LED Fresnel are ready to use around the world with auto sensing power supplies accepting voltages from 90-250 volts.

HIGH COLOR QUALITY OF LIGHT
You can expect the highest color quality from the De Sisti Super LED Fresnels with CRI & TLCI values above 95 throughout the rsnge. The result ensure maximum compatibiity of the light emitted by the devices with optical cameras that have no need for further adjustments,

特徴

Continuous light output at any dimming level. Flicker free up to 40,000 fps. We power our LED array via DC Current rather than PWM technology used by our competitors
DC current rather than PWM technology used by our competitors
Same characteristics as a traditional Fresnel: single shadows, spot/flood focus range and exceptional barndoor control
CRI and TLCI greater than 96 with no shift in color temperature when dimming
High efficiency self stabilizing silent active cooling: Automatic, thermal stabilization of the LED operating temperature is managed by an internal thermal sensor and CPU, variable speed fans and heat sink to maintain the LED Array’s constant temperature at a maximum of 65°C / 149°F. The hydro dynamic bearing fan operates silently with a very low RPM
Interchangeable accessories with our conventional range of Tungsten and HMI Fresnels
All De Sisti Fresnel Series utilize a ne w Universal Voltage and “Power Factor Corrected”
Power Supply (PF=0.96)

仕様

Power to LED 160W
flicker free
DMX Data linkUSITT DMX512-A 5-pin XLR per DMX in & out. Usare cavi schermati. Possono essere usati fino a un massimo di 32 apparecchi in una singola DMX DAISY Chain. Non sovraccaricare la Daisy Chain.
Power Consumption 180 @ 230V | 150W @120V
DMX Chnnels 3: Regolazione di intensità della luce (dimmer), Controllo della CCT, Modalità di Controllo della CCT (lineare o tabellare)
LED ARRAY Lifetime 50,000 ore con 70% di mantenimento del flusso emesso. Gli Array a LED sono testati e certificati secondo LM80
CCT Variabile da 2,800°K a 6,600°K
CRI / TLCI CRI>95 TLCI:96
Protection Type IP 22
Max. Housing Surface
Temperature 70° C

サイズ

Weight of Fixture M.O. 7.8 kg
P.O. 9.1 kg
Weight of barndoor 4 alette 0.63 Kg
8 alette 0.85 Kg
Weight of color frame 0.13 kg.
Barndoor ring diameter Diametro esterno: 192mm
DIametro interno: 190mm
Size of scrims & color frame Diametro esterno: 187 mm
Diametro interno: 185 mm
Rated Voltage & PFC 90-250V 50-60Hz PFC 0.96
Lens diameter 175mm
