De Sisti SUPER LED F7 VW+C（バリアブルホワイト + カラー）

The Super LED F7 Vari-White + Color maintains the high efficiency DE SISTI Internationally Patented optical system for LED FRESNEL while offering the possibility to color the scene and use effects without compromising the quality of the white light emission.
The same Bi-Color White Leds of the appreciated Vari-white range are being utilized but now with a new addition of red, green, blue and amber leds production unmatched White Color output with supreme color saturation. The color chips are also revolutionary as they are phosphors based which allows color stability through all the situations and through lifetime of the LED

概要

De Sisti F7 VW+Color is controlled through 9 modes
1) RGBAWW mode: 6 channels color mixing
2) GEL mode: Preset Gels + Referral source
3) Variwhite + color mode: Tunable White + RGBA
4) Variwhite + saturation mode: Tunable White + color correction (+/- green + Cyan and +Amber)
5) Ultra CRI mode: CCT from 1.800°K to 12.000°K with +/- Green
6) HSI mode: Hue Saturation intensity (User can select the Gamut between Standard and REC709)
7) XY mode: X, Y coordinates (extremely precise as based on 4 colors instead only on RGB)
8) FX mode: Effects
9) Sources mode: Preset Sources

The fixture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a conventional lamp fresnel, with an excellent barn door cutting.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor, Color Frame, Cones, Scrims.

特徴

FIXTURE HEAD
175 mm diameter Fresnel lens
POWERCON IN & OUT PANEL CONNECTORS.
XLR 5 Pin DMX IN & OUT PANEL CONNECTORS.
170W LED engine with White LEDs (CCT) from
2,800°K till 6,600 °K and Red, Green, Blu and
Amber phoshors based - extended CCT in ULTRA
CRI mode from 1,800°K to 12,000°K
Built In Universal Power Supply 90-250V
50/60Hz DMX controlled.
YOKES

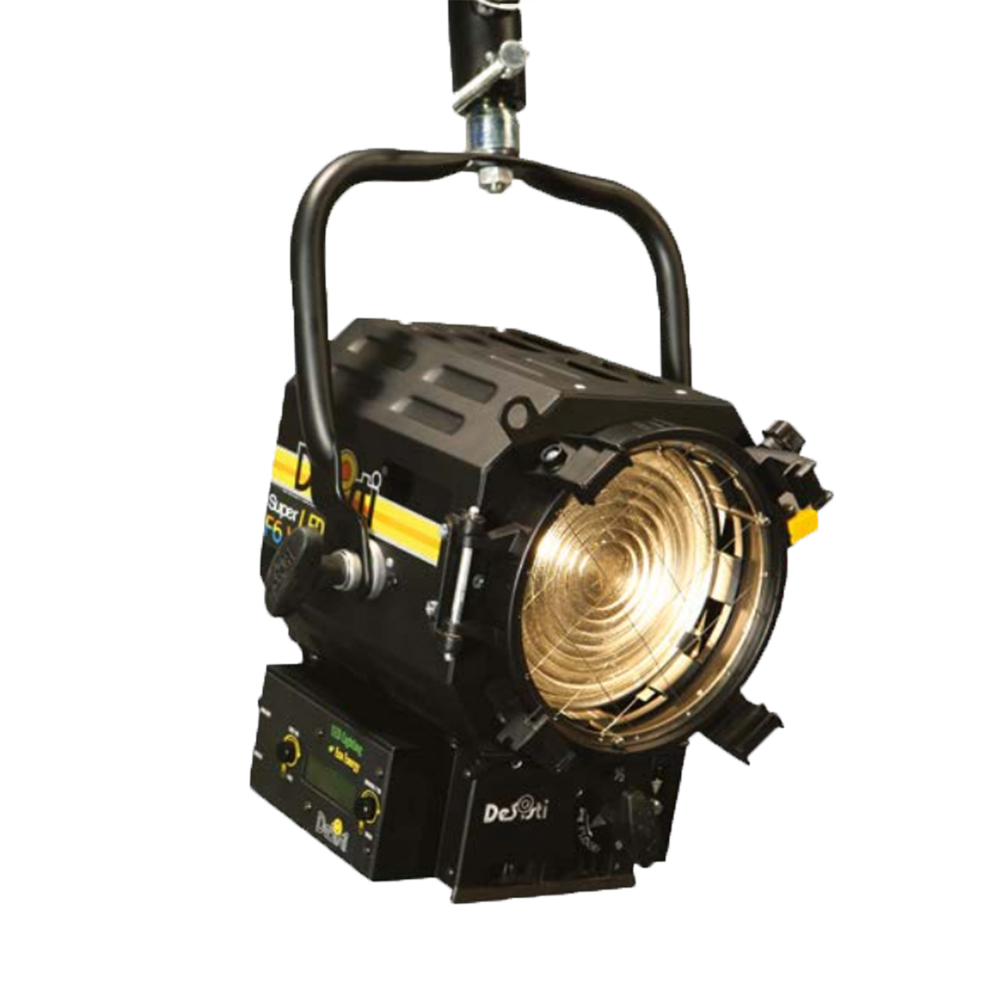

Manual Operated Versions
Mod. LT310.110.40 M.O. stirrup with 28.57 mm
(B.S. 1 1/8”) with top end for “C” clamp

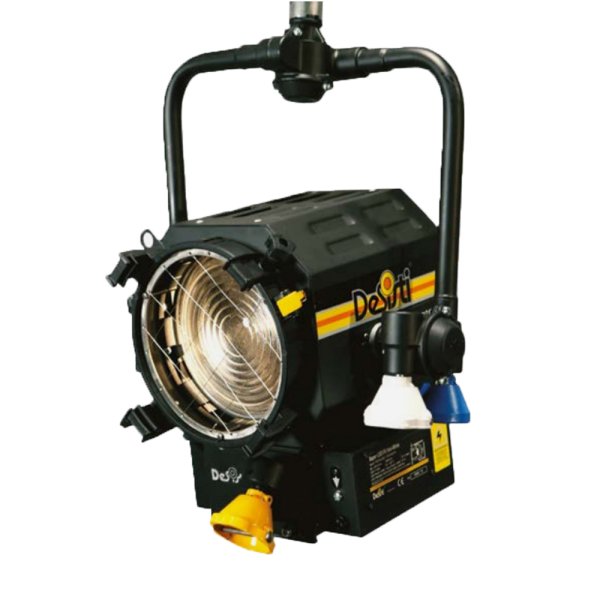

Pole Operated Versions
Mod. 311.110.40 P.O. yoke with 28.57 mm.
spigot (B.S. 1 1/8”), with top end for “C” clamp
ACCESSORIES
Mod. 316.100 four leaf rotating barndoor
Mod. 317.100 color frame
CABLES
Mod. 5403.135 3 mt detachable Blue
POWERCON power cable with bare ends.
DMX cable is not included, to be ordered separately

仕様

Power to LED max 170W - DC current to the LED - flicker free
Rated Voltage & PFC 90-250V 50-60Hz PFC 0,96 - DC48V (optional)
Power consumption max 190W @ 230V | max 190W @120V
Power Connection powerCON IN & OUT - XLR 3-pin (with DC48V option)
DMX Data link
USITT DMX512-A
5-pin XLR for DMX in & out. - W-DMX Lumenradio (optional)
Use shielded data cables.
Do not overload the daisy chain. Up to a maximum of
32 devices can be used on a single DMX chain.
DMX Channels 8 bit:
7 to 9 (depending if Mode control and Fan control
are activated)
39 in Extended mode
16 bit:
8 to 10 (depending if Mode control and Fan control are activated)
40 in Extended mode
LED ARRAY Lifetime 60,000 hours with 70% Lumen Maintenance.
The LED ARRAYS are tested and certified up to LM80
CCT Tunable from 1,800°K to 12,000°K (Ultra CRI) + RGBA
CRI / TLCI CRI>95 TLCI>96
Protection Type IP20
Max. Surface Temperature 70° C

サイズ

Weight of Fixture M.O. 7.8 Kg P.O. 9.1 Kg
Weight of Barndoor
and Color Frame
4 leaf 0.63 Kg | 8 leaf 0.85 Kg | CF 0.13 Kg
Barndoor & Color
Frame ring diameter
BD Seat: 192mm | CF Seat 187mm
Lens diameter 175mm
