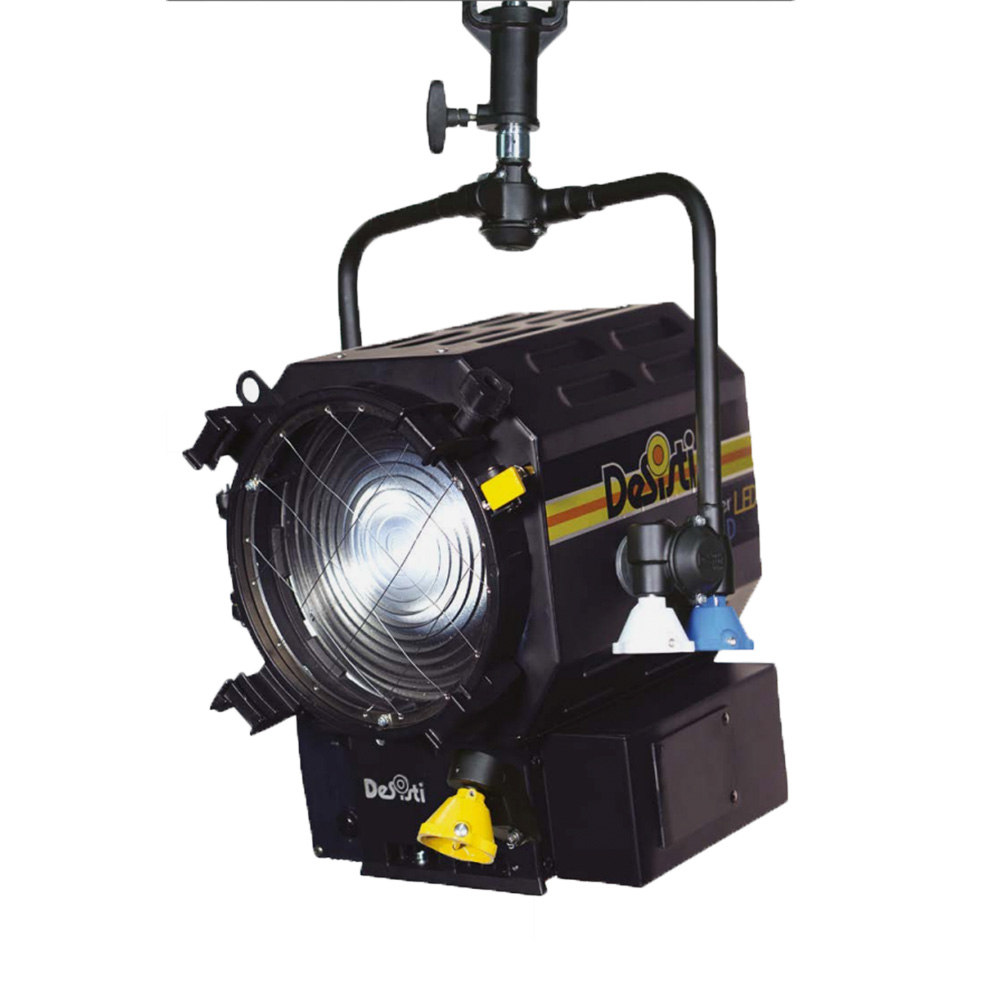

De Sisti SUPER LED F7 D rp（デイライト レインプロテクション）

概要

The Super LED F7rp is a high efficiency Fresnel lens spotlight using the innovative High Power 160W COB (Chip on Board) LED ARRAY, in combination with the DE SISTI Internationally Patented optical system for LED FRESNEL, an enhanced CRI (Color Rendering Index) higher than 95 for appropriate chromacity performances and the IP23 rain protection makes it ideal for location work. The Lighting Fixture is DMX Controlled from 0 to 100% with a super smooth Dimming and a negligible variation of Colour Temperature while controlling the Light intensity.
The F7 is available with either Tungsten (3.200°K) or Daylight (5.600°K) Balanced CCT (Correlated Color Temperature), in both cases with a CRI higher than 96 and both in Manual or Pole operated versions. The lighting Performances of the Tungsten Balanced CCT from medium to full flood are similar to those of a 1500W tungsten Fresnels, while the Daylight Balanced CCT is greater than a 575W HMI. The fixture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a conventional lamp fresnel, with an excellent barn door cutting.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor, Color Frame, Cones, Scrims.

特徴

FIXTURE HEAD
175 mm diameter Fresnel lens
Bottom Skid on Shock Absorbers
POWERCON TRUE 1 IN & OUT PANEL CONNECTORS.
XLR 5 Pin DMX IN & OUT PANEL CONNECTORS.
160W high power CRI>96
Built In Universal Power Supply 90-250V
50/60Hz DMX controlled.

YOKES
Manual Operated Versions
Mod. LT310.110.40 M.O. stirrup with 28,57 mm
(B.S. 1 1/8”) with top end for “C” clamp
Pole Operated Versions
Mod. 311.110.40 P.O. yoke with 28,57 mm.
spigot (B.S. 1 1/8”), with top end for “C” clamp

ACCESSORIES
Mod. 316.100 four leaf rotating barndoor
Mod. 317.100 color frame

CABLES
Mod. 5403.435 3 mt detachable Mains
cable w/ PowerCON TRUE 1 mod. NAC3FX-W and other bare end.
DMX cable is not included, to be ordered separately

仕様

Power to LED 160W - DC current to the LED - flicker free
Rated Voltage & PFC 90-250V 50-60Hz PFC 0,96
Power consumption 180W @ 230V | 180W @120V
Power Connection powerCON TRUE 1 IN & OUT
DMX Data link
USITT DMX512-A
5-pin XLR for DMX in & out.
Use shielded data cables.
Do not overload the daisy chain.
Up to a maximum of 32 devices can be used on a
single DMX chain.
DMX Channels 1 @ 8bit | 2 @ 16bit
LED ARRAY Lifetime 55,000 hours with 90% Lumen Maintenance.
The LED ARRAYS are tested and certified up to LM80
CCT D: 5,600°K
CRI / TLCI D: 96 / 97
Protection Type IP23 (Rain Protection)
Max. Housing Surface
Temperature
70° C

サイズ

Weight of Fixture M.O. 9.4 Kg
P.O. 10.7 Kg
Weight of Barndoor 4 leaf 0.63 Kg | 8 leaf 0.85 Kg
Weight of color frame 0.13 Kg
Barndoor ring
diameter
Seat: 192mm - Accessory: 190mm
Scrims & color frame
diameter
Seat 187mm - Accessory: 185mm
Lens diameter 175mm
