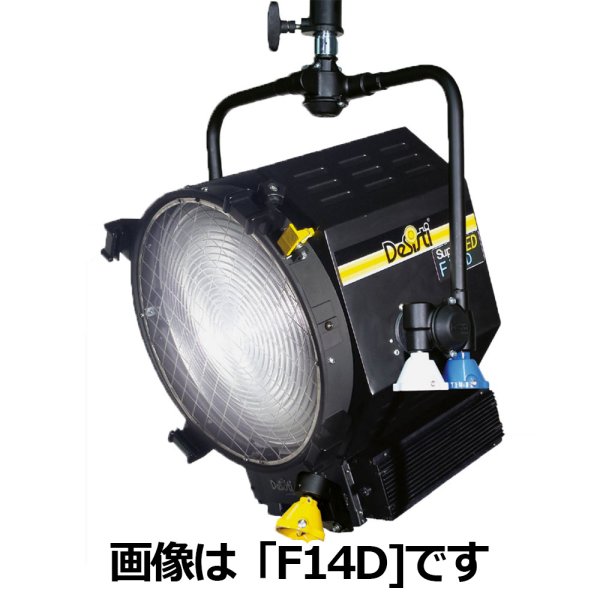

De Sisti SUPER LED F14 HP D rp（デイライト レインプロテクション）

概要

The Super LED F14HPrp is a high efficiency Fresnel lens spotlight using the innovative High Power
580W COB (Chip on Board) LED ARRAY, in combination with the DE SISTI Internationally Patented
optical system for LED FRESNEL, an enhanced CRI (Color Rendering Index) higher than 95 for
appropriate chromacity performances and the IP23 rain protection makes it ideal for location work.
The Lighting Fixture is DMX Controlled from 0 to 100% with a super smooth Dimming and a
negligible variation of Colour Temperature while controlling the Light intensity.
The F14HP is available with either Tungsten (3.200°K) or Daylight (5.600°K) Balanced
CCT (Correlated Color Temperature), in both cases with a CRI higher than 95 and both in
Manual or Pole operated versions.
The lighting Performances of the Tungsten Balanced CCT from medium to full flood are similar to
those of a 4000W tungsten Fresnels, while the Daylight Balanced CCT is similar to a 1200W HMI.
The fixture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a
conventional lamp fresnel, with an excellent barn door cutting.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as
Barndoor, Color Frame, Cones, Scrims.

特徴

350 mm. (14”) diameter high quality, shock resistant
Borosilicate glass Fresnel lens on spring supports.
Rugged and lightweight Carbon Steel Housing with low glare
black epoxy powder coating and reinforces internal double walls .
High efficiency Self Stabilizing Active Cooling: automatic,
thermal stabilization of the LED operating temperature
is managed by an internal thermal sensor and CPU,
variable speed fan and heat sink to maintain the LED Array’s
constant temperature at a maximum of 65°C. The hydro
dynamic bearing fan operates silently with a very low RPM.
Special Patented Optics for LED Technology.
Helix Screw driven focus mechanism which guides Teflon
bushings supported LED ENGINE along 2 rods. This ensures
smooth operation during focusing in any tilting position of the
fixture. The Teflon bushings also provide a wiping action, which
cleans the steel guide rails during focus.
The unit is equipped with a hinged lens door and wire
guard. One of the 4 accessory brackets has a spring
loaded locking knob to safely secure external accessories.
Accessories have been designed for one hand
installation.
Available with either positive lock manual yokes for comfort and
ease of handling, or pole operated yokes which can be used via
the lighting pole for Panning and Tilting the lights as well as
manually, since the mechanical activators are equipped with
clutches.
IP23 rating, the unit could work under the rain.

仕様

Power to LED 580W - DC current to the LED - flicker free
Rated Voltage & PFC 90-250V 50-60Hz PFC 0,96
Power consumption 650W @ 230V | 650W @120V
Power Connection powerCON TRUE 1 IN & OUT
DMX Data link
USITT DMX512-A
5-pin XLR for DMX in & out.
Use shielded data cables.
Do not overload the daisy chain.
Up to a maximum of 32 devices can be used on a
single DMX chain.
DMX Channels 1 @ 8bit | 2 @ 16bit
LED ARRAY Lifetime 50.000 hours with 70% Lumen Maintenance.
The LED ARRAYS are tested and certified up to LM80
CCT T: 3.200°K
D: 5.600°K
CRI / TLCI T: 97 / 96
D: 96 / 97
Protection Type IP23 (Rain Protection)
Max. Housing Surface
Temperature70° C

サイズ

Weight of Fixture M.O. 20,0 Kg
P.O. 21,5 Kg
Weight of Barndoor 4 leaf 1,85 Kg | 8 leaf 2,1 Kg
Weight of color frame 0,5 Kg
Barndoor ring
diameter
Seat: 402mm - Accessory: 399mm
Scrims & color frame
diameter
Seat 395mm - Accessory: 393mm
Lens diameter 350mm

※「M.O.」「P.O.」の違い／フォーカス棒での調整が可、不可で分かれています。各モデルについて、詳しくはお問い合わせください。
