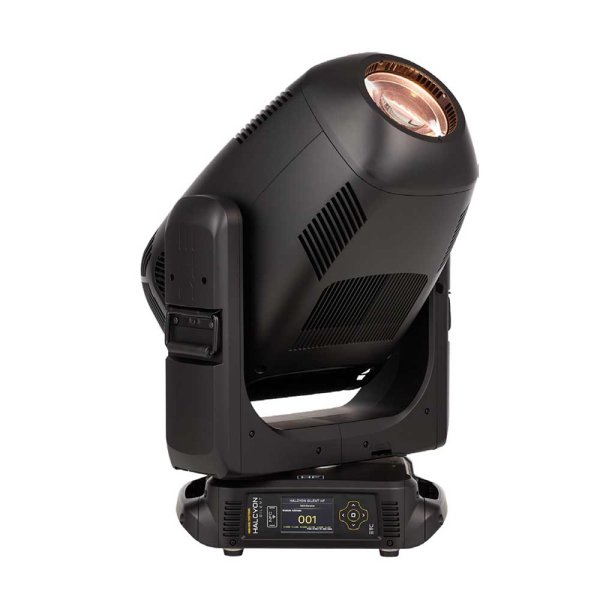

ETC/HES Halcyon Silent（ハルシオンサイレント）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

The High End Systems Halcyon Silent answers the call for a high-performance fixture with silent operation. For noise-sensitive venues such as theatres and concert halls, the fanless, convection-cooled Halcyon Silent delivers the features you love from the Halcyon family.

概要

With High End Systems Halcyon Silent, ETC raises the bar for what users can expect from fanless automated luminaires. For acoustically sensitive venues like theatres or concert halls, Halcyon Silent provides fanless operation without compromising output or features. The convection-cooled fixture packs 18,400 lumens of output in a 91 pound frame. Halcyon Silent’s patented ADM system features twelve color flags to increase color brightness and saturation while decreasing color shift. Design possibilities are endless with fullcurtain framing, a host of gobos, a Trifusion system for even frost distribution, and a continuously rotating animation wheel.

特徴

・Bright white LED engine
・580 W High Fidelity engine
・Fixture output exceeding 18,400 lumens
・High quality 13-lens optic system
・Extremely powerful 5.5°–60° zoom
・Advanced Dichroic Mixing System utilizing 12 color flags with simplified combined color modes
・Six-position plus open color wheel
・Full-curtain framing system for total control of beam shaping
・16-blade iris for extremely tight beam effects
・Trifusion frost system with linear insertion from light to heavy and everything in between
・Two, 7-position plus open Rotating Gobo Wheels
・Dual prisms for with individual insertion for beam and projection effects
・Rotating Animation Wheel with linear positioning and angular control
・Patented Whisper Home technology for quiet pan and tilt calibration/homing at boot with minimal movement

仕様

■Source
Engine Custom High Fidelity White LED Engine
LED Details 580 W
Field Lumens See photometrics on page 4
Max Integrating Sphere Lumens 18,400
LPW 37
LED Life 50,000 hours
Native CCT 5800 K

■Color
Color Mixing
Patented 12-flag Advanced Dichroic Mixing System with combined CMY and individual mode
Color Temperature Variable from 2200 K to 10000 K via CCT channel
Color Wheel Six (6) dichroic colors plus open

■Optical
Beam Angle Range 5.5°–60°
Gate Size 26 mm
Aperture Size 144 mm
Pattern Projection
Two rotating and indexable wheels with seven (7) interchangeable patterns plus open on each
Animation
- Bi-directional rotating animation wheel with linear insertion, and variable angle
- LED Animation
Prism Five-facet star and four-facet linear rotating
prism with individual insertion
Diffusion Light, Medium, and Heavy frost seemlessly controlled with Trifusion control
Iris 16-blade iris
Framing Four-plane, full-curtain framing system with 180° module rotation
Flicker Control/Hz Range 2.4 kHz and 16 kHz

■Control
Input Method DMX (5-pin) or Ethernet
Protocols DMX via RS-485 Art-Net or sACN via Ethernet
Ethernet Pass-Thru Passive Ethernet in and thru with and without power
Data Conversion Patented data conversion system for Ethernet to DMX
Modes (Footprint) Standard or Combined (61 channels)
RDM Functions Yes
UI Type
Full-color graphical UI with touch screen and 5-button navigational control NFC Configuration
Local Control Yes
Dimming Performance 16-bit, DMX controlled

■Electrical
Voltage Range 100–240 V 50–60 Hz
Input Method powerCON TRUE1 TOP
Wattage 931 W
Current (Max) 9.35 A @ 100 V 3.69 A @ 240 V
Inrush (First Half Cycle) 120 V: 88 A 230 V: 94 A
Fixtures per Circuit 1 fixture (R20 module or similar) Note: TRUE1 TOP connector rated for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)

■Thermal
Ambient Operating Temp -10° to 35°C
Fan Mode No fans, convection cooled

■Physical
Pan and Tilt Range 540° pan, 260° tilt
Max Pan/Tilt Speed 360° in 2.15 s/180° in 1.74 s
Encoders Whisper Home, absolute encoders
Materials Steel and aluminum frame with molded plastic covers
Color Options Black, white by request
Mounting Options Any orientation
IP Rating IP20
Included Accessories
powerCON TRUE1 TOP to bare end fixture tail Two (2) 180 mm three-hole Omega brackets Safety cable

■Regulatory & Compliance
Approved regulatory standards
cETLus Listed
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CE Compliant
UKCA Compliant
Complies to the ROHS directive Yes

■Safety
Minimum distance to illuminated
surface = 2.0 m
Minimum distance from fixture head to
combustible materials = 0.1 m
