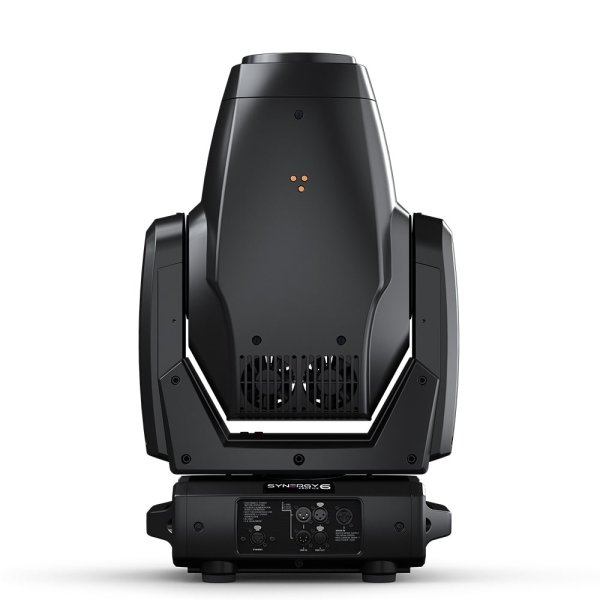

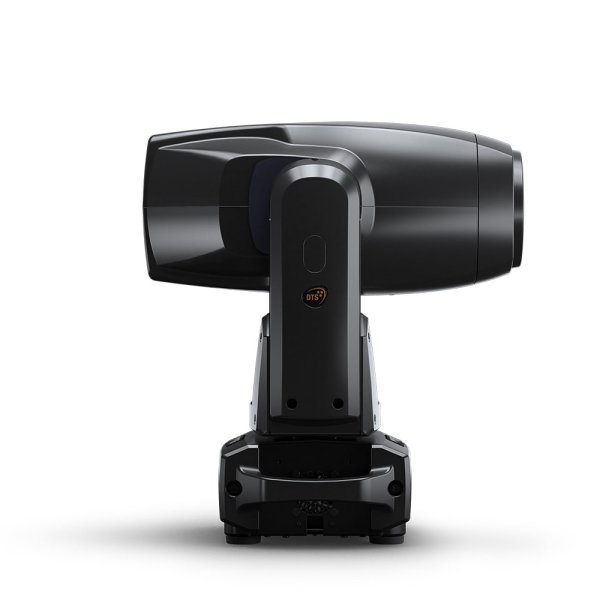

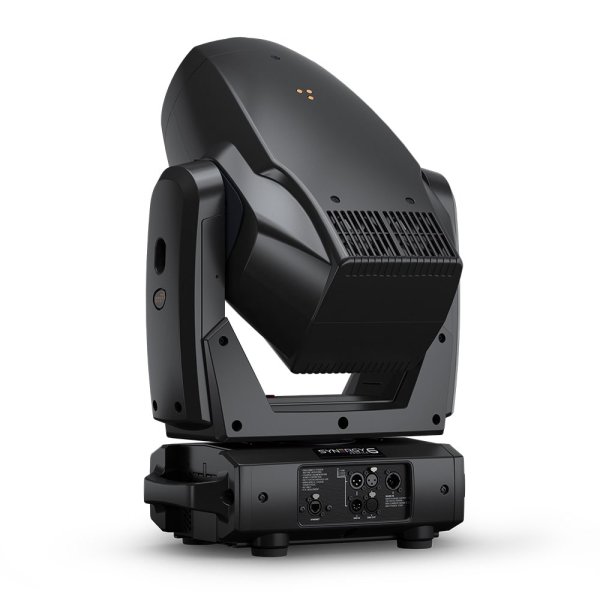

DTS SYNERGY 6 PROFILE（シナジー 6 プロファイル）

The SYNERGY 6 PROFILE is now part of the DTS portfolio, offering greater versatility and efficiency. This moving head, while maintaining a high-profile lighting quality, ensures improved efficiency compared to other products in the range.
With a 570 W white LED source, it can emit up to 109,000 Lux @ 5 m. All of this is achieved within the exact dimensions of the smaller version.
The 4-blade shaping system and the motorized linear zoom with a wide range of 4.6°-43°, equipped with automatic focus, have been reaffirmed.

特徴

unmatched light quality:
CRI >90 / R9 >70
Silent operation:
38 dBA @ 1 m
109.000 Lux (4,6° @ 5 m)
4.6° - 43° zoom with Auto-focus
Dynamove FX Engine
DMX-selectable CRI: >90 or >70
advanced rotating framing system

仕様

Output
• 570 W pure white LED source (7000 K 25,100 Lumens output)
• Double CRI (DMX-selectable): CRI >70 or CRI >90 / R9 >70
• Average LED life: 50,000 hours (70% lumen output)

Optical group
• 109,000 Lux (4.6°@ 5 m)
• 4.6° - 43° linear zoom with autofocus
• Linear soft frost filter (Medium and Heavy frost filters available on demand)
• Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

Color generation
• Linear CMY
• Linear CTO (3000 K – 7000 K)
• Gel filter emulation
• 6-color wheel
• Two-color generation

Dynamic effects
• Dynamove FX Engine
• Virtual Animation Wheel
• Customizable rotating 6-gobo wheel
• Circular 24-facet rotating prism
• Linear 6-facet rotating prism

Rotating framing system
• 4-blade rotating framing system
• Real ‘curtain’ effect for each blade
• 60° rotation for each blade (+/- 30°)
• 90° full system rotation (+/- 45°)

Control
• LCD graphic display + 4 soft-keys; Auto-flip; Key-lock function
• Art-Net 4, sACN, RDM/DMX protocols
• Standard and Silent operation modes
- Noise level at Standard mode: 43 dBA @ 1m (normal operation, full power)
- Noise level at Silent mode: 38 dBA @ 1m
• Firmware updatable via DTS firmware uploader dongle
• Li-Fe backup battery for controlling the display settings even when the unit is not powered

DMX
• 44 DMX channels (default)
• 53 DMX channels
_ 16 bit index for insertion and rotation of each blade
_ 16 bit index for blade system rotation

Pan & Tilt
• Pan: 540°: 2.7 sec.
• Tilt: 240°: 1.6 sec.
• Tri-phase stepper motor technology
• 16-bit resolution
• Selectable speed ranges
• Pan / Tilt lock

Power supply
• Wide-range 100-240 Vac 50 / 60 Hz
• Power consumption: 750 W max
• Power Factor: PF >0.90

Connections
• DMX: XLR 3-pole and 5-pole
In / Out panel connectors
• Power supply: powerCON TRUE1
In / Out panel connectors
• ArtNet / sACN: etherCON RJ45 connector

Circuits protections
Overvoltage and overtemperature circuits protection

Operating temperature
-10° / 45° C

Physical
• IP20
• Finishing: Black

Accessories included
• Synergy EZ-shell - 560 x 490 x 670 mm - 2 pcs needed in each flightcase (code 0512K146.1)
• 1 x Soft frost filter - already mounted on the unit (code 02SK0410)
• 1 x PowerCON TRUE1 female cable connector (code 0520P066)
• 1 x XLR 5 pins female cable connector (code 0508B147)
• 1 x XLR 5 pins male cable connector (code 0508B148)
• 2 x Kit Omega clamp "Fast Lock" (code 02K00549)

サイズ

• Weight: 34.5 Kg
