DTS ALCHEMY PRO（アルケミープロ）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

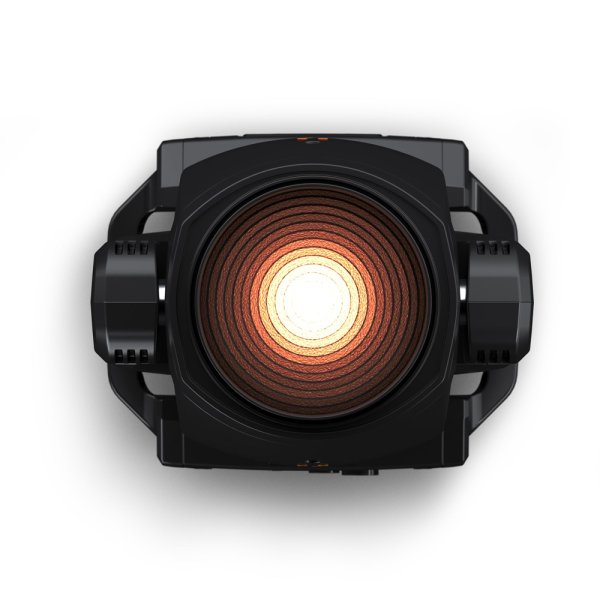

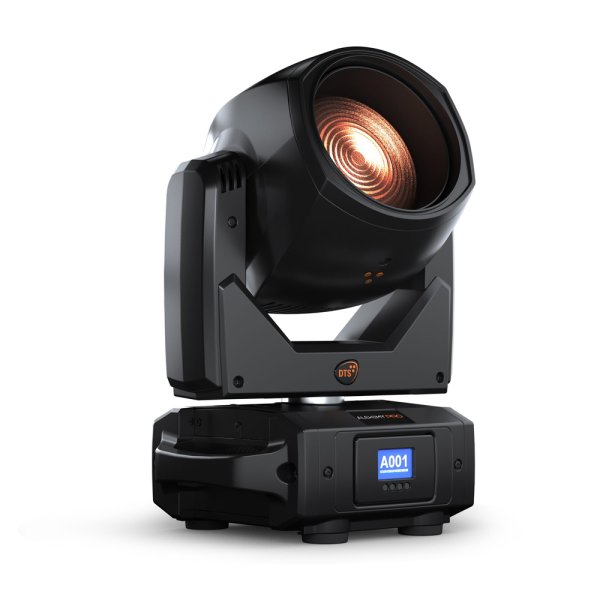

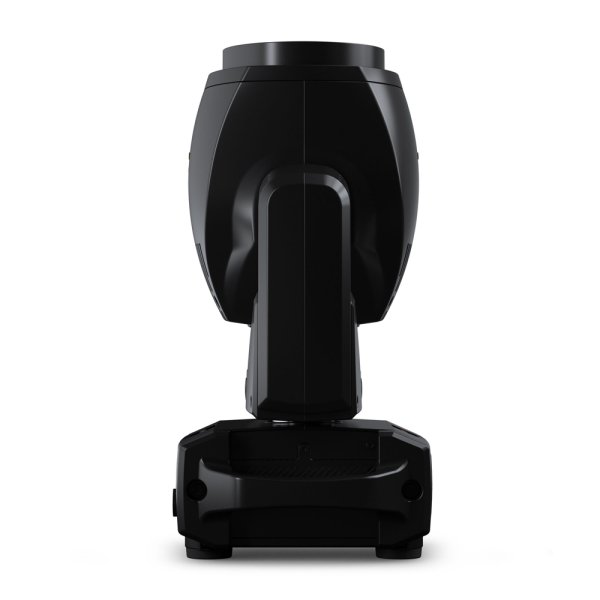

ALCHEMY PRO is a very compact high performance Fresnel LED wash moving head made for medium to small theatres and television studios. The unit is able to deliver an outstanding light quality coupled with a high luminosity.

ALCHEMY PRO, bears the ‘HQS’ (High quality Spectrum) mark which identifies the ability to generate a superior white light and a broad color gamut with pastel shades and rich warm nuances.

ALCHEMY PRO ‘Silent’ mode matches theatre and television standards, where quietness is a key factor.

特徴

8800 Lumens (400 Watt)
Fresnel lens Ø 175 mm
Linear zoom 10° - 36°
Linear CCT da 1800 K a 10,000 K
'Hi-Q Dimming' Technology
Linear balancing green/magenta point
LED source with 6 colors chip
"Silent" mode

仕様

OUTPUT
• Lumen output: 8800
• CRI: up to 98
• R9: up to 95
• TLCI: up to 96
• LED lifespan: 20,000 hours (70% lumen output)

OPTICAL GROUP
• Ø 175 mm Fresnel lens
• 10°- 36° linear zoom
• Indexable beam shaper (2:1 ratio) with endless continuous rotation
• Heavy frost filter insertable via DMX
• Retractable ‘top hat’

COLOR / WHITE GENERATION
• 6 color LED engine
• Linear CCT (1,800 K - 10,000 K)
• Green saturation: Linearly adjustable green/magenta point
• 100 gel filters emulation:
- Linear crossfade from gel filters emulation to CCT whites
- Linear crossfade between emulated gel filters
- True color of gel filters emulation at any CCT values
• “Raw” RGBACL color-mixing in ‘Advanced’ mode
• Extra deep colors: Two DMX-selectable filters (‘deep blue’ and ‘deep red’) allow to further extend the range of reproducible colors toward the two ends of the visible spectrum
• HQS (High Quality Spectrum) - DTS trademark certifies a product’ superior white light quality and its ability to generate an extended color palette offering a wider gamut of pastel shades with rich warm nuances.

DIMMER
• ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
• Tungsten emulation - CCT variation emulates behavior of Halo-lamps

CONTROL
• LCD graphic display with 4 soft keys (“auto-flip” and “key-lock” functions available)
• RDM / DMX 512 protocol
• Art-Net 4, sACN protocols available on request
• ‘Standard’ , ‘Silent’ operation modes. (automatic noise control up to the threshold of the operation modes)
- Standard operation mode 42 dBA@1mt (100% lumen output power)
- Silent operation mode 36 dBA@1mt (80% lumen out power)
• Firmware: Internal operating system updatable via DTS dongle firmware uploader
• “Li-Fe” backup battery allowing the use of the on-board unit display when it is not powered, besides ensuring a safe return and blockage of the top hat during shut down

DMX
• 5 DMX modes:
- 1. CCT (Default)
- 2. Advanced (Raw)
- 3. Basic
- 4. Expo
- 5. CMY Emulation

PAN & TILT
• Pan 540° : 1.8 s
• Tilt 215° : 1.1 s
• 16-bit resolution

POWER SUPPLY
• Electronic Wide-range 100/240 Vac 50-60 Hz
• Power consumption: 400 W max
• Power Factor: PF >0.94

CONNECTIONS
• Power supply: PowerCON TRUE1 In/Out panel connectors
• DMX: XLR 3-pole and 5-pole In/Out panel connectors

CIRCUIT PROTECTIONS
• Overvoltage and overtemperature circuit protection

TEMPERATURE
• Operating: -10° / 45°C
• Storage: -20° / 60°C

PHYSICAL
• Finishing: Black
• IP20
