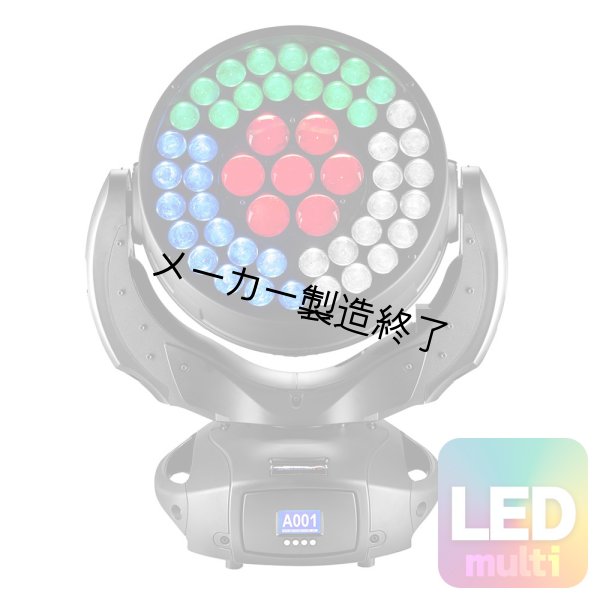

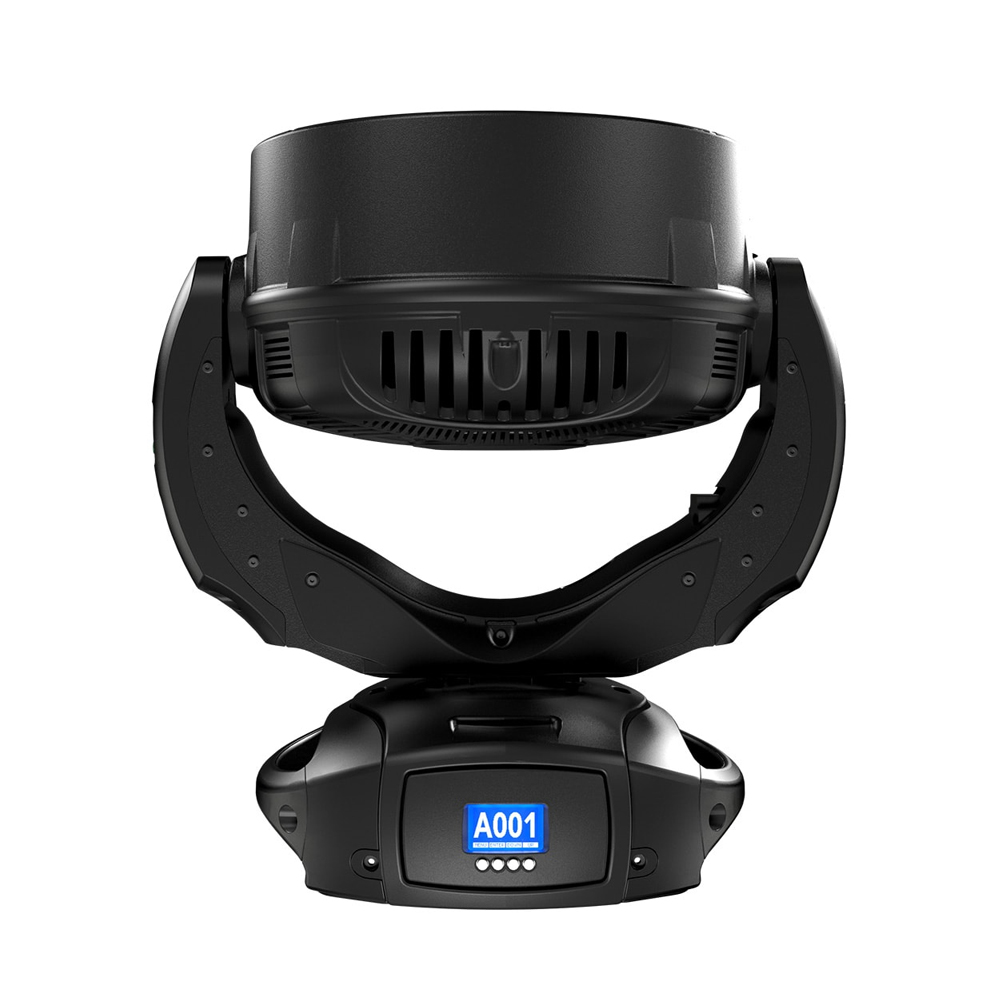

DTS WONDER.D（ワンダー.D）

WONDER.D is the most powerful WASH LED projector. Its exclusive double concentric optical system with different linear zoom ranges, provides an adjustable hotspot useful to get an unprecedented evenly diffused wash effect; or a tight central beam and a wash projection all around.
Moreover, as WONDER.D offers four independent LED sectors, it’s like having four LED fixtures in one. WONDER.D is perfect in a range of applications, from live concert to congress halls. WONDER.D is equipped with 49 high power OSTAR RGBW LED delivering 24,500 Lumens.

特徴

double zoom hotspot control
four indipendent LED sectors
perfect RGBW color mixing
linear zoom 3.5° - 52°
adjustable color temperature 2700K - 8000K
silent operation
‘FPR' - free pan rotation system (DTS patent)
22,000 lux @ 5 m
lightweight

仕様

Output
49 Full Color (RGBW) LEDs

Optical group
• 2 concentric independent high efficiency
optical groups
_ Optical group 1 (7 lenses): 3.5°- 52° long
excursion linear motorized zoom
_ Optical group 2 (42 lenses): 8°- 52° long
excursion linear motorized zoom
• 22,000 Lux / 5 m

Color generation
• 4 discrete LED areas; each area is independently controllable (luminosity, colors, effects) 16 million colors each
• Wide palette of pure uniform whites with variable linear color temperature (2700K - 8000K)

Control
• LCD graphic display + 4 soft-keys (control / management / monitoring of the main parameters)
• Controlled via DMX 512 and RDM standard digital communication protocols
• Internal operating system updatable via DTS dongle firmware uploader
• Li-Fe backup battery for controlling the main parameters even when WONDER D is not powered

DMX
• 34 DMX channels (default)
• 38 DMX channels
• 20 DMX channels

Pan & Tilt
• ‘FPR’ system (DTS patent)
_ Pan: limitless rotation, in both directions;
360° rotation in 1.56 sec.
• Tilt 240°: 1.7 sec.
• Tri-phase stepper motor technology for ultrafast silent movements
• 16-bit resolution
• Selectable speed ranges
• Pan / Tilt lock

Power supply
• Electronic full-range 100-240Vac 50-60 Hz
• Power consumption: 850 W
• Power Factor: PF >0.95

Connections
• DMX: XLR 3-pole In/Out and 5-pole In/Out panel connectors
• Power supply: PowerCON In/Out panel connectors

Internal safety devices
Overvoltage and overtemperature circuits protection

Physical
• IP20
• Finishing: Black

Accessories included
• 1 x PowerCON female cable connector (code 0520P014)
• 1 x XLR 5 Pins male cable connector (code 0508B148)
• 1 x XLR 5 Pins female cable connector (code 0508B147)
• 2 x Omega Bracket with “Fast Lock” connection 1/4 turn (code 02K00549)

サイズ

• Dimensions (LxHxD):
_ Front with orizontal Tilt:
398x533x355 mm
• Weight: 23.4 Kg
• Packaging: Carton box
• Box size: 610 x 700 x 410 mm
• Box weight: 28 Kg

参照

■メーカーサイト
https://dts-lighting.it/products/wash-moving-heads/wonder-d/
