HIGHLITE Infinity Furion S602 Spot（インフィニティフューリオン S602 スポット） [41451]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

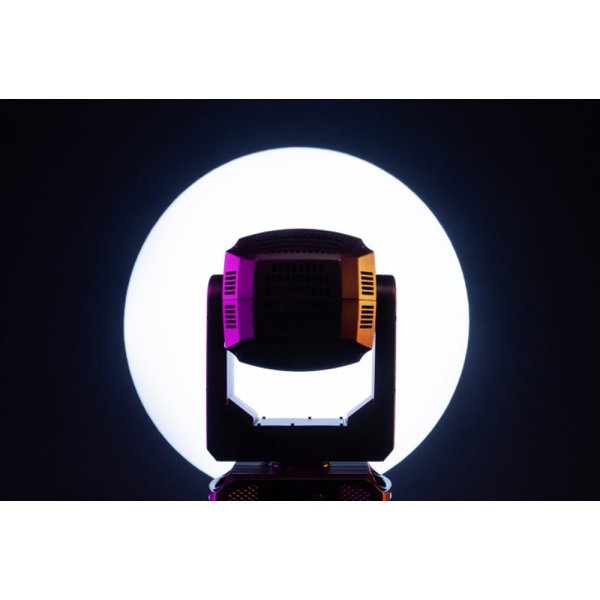

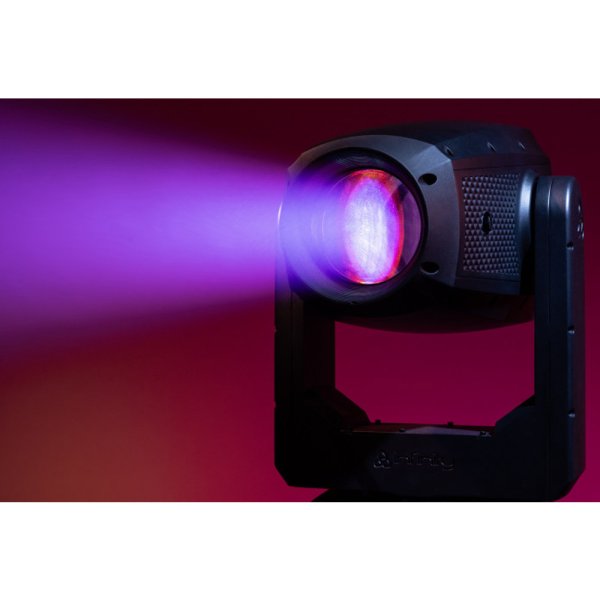

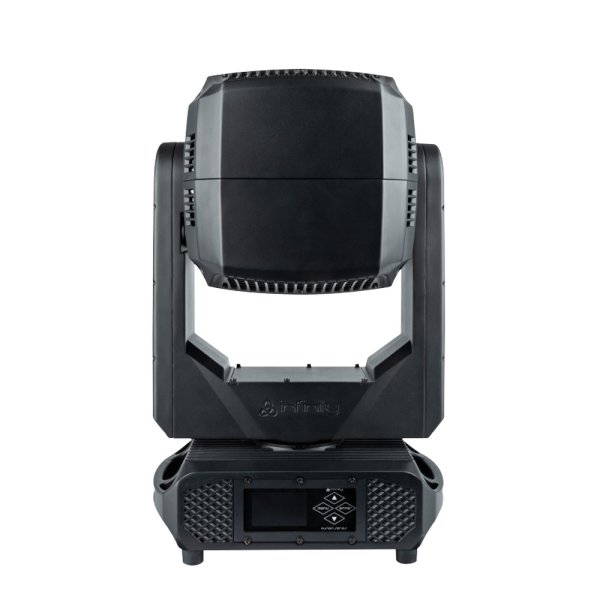

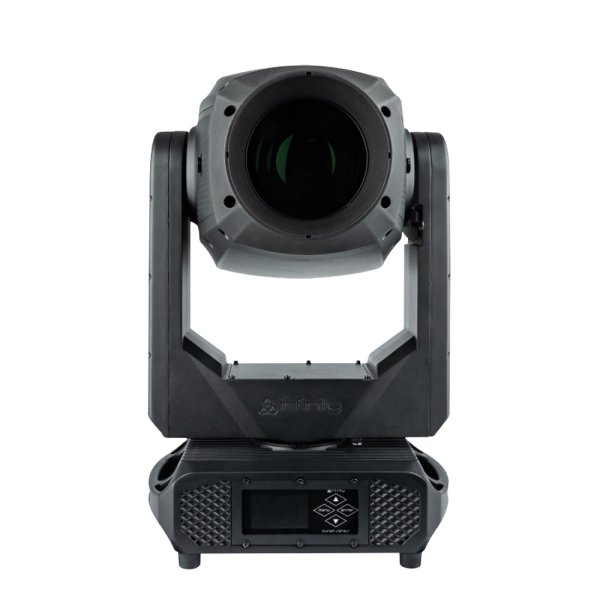

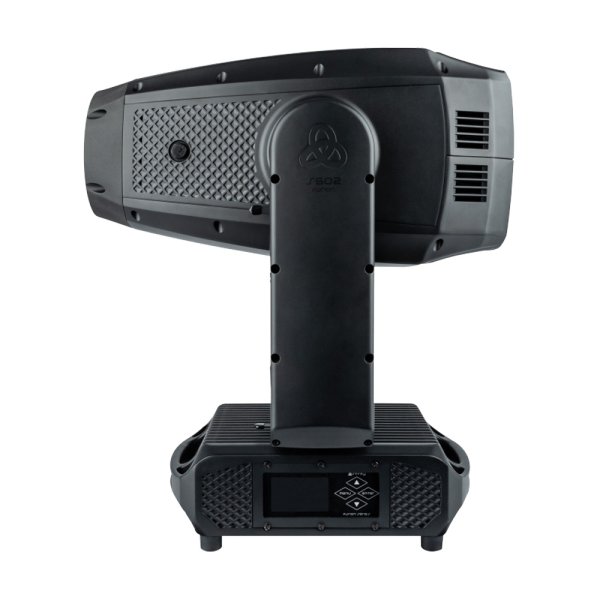

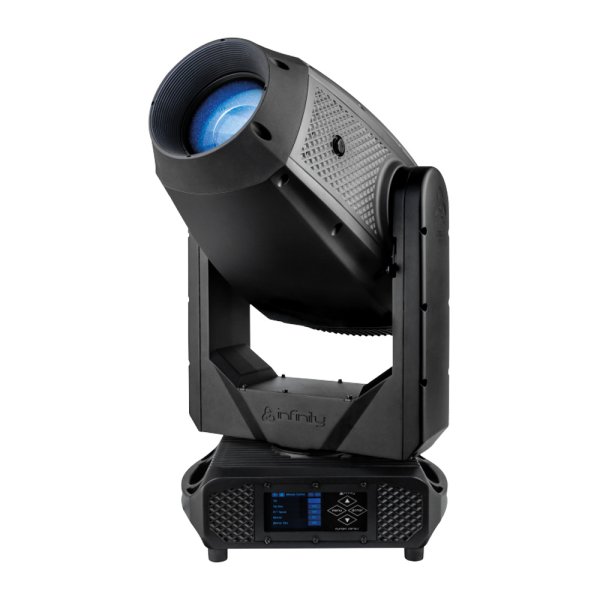

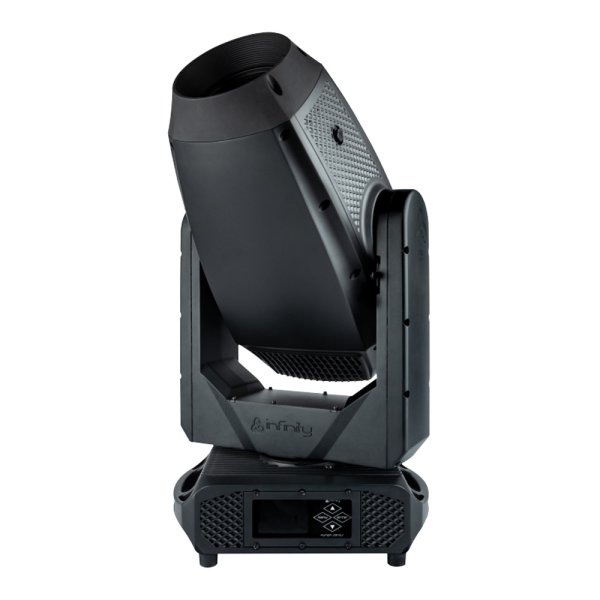

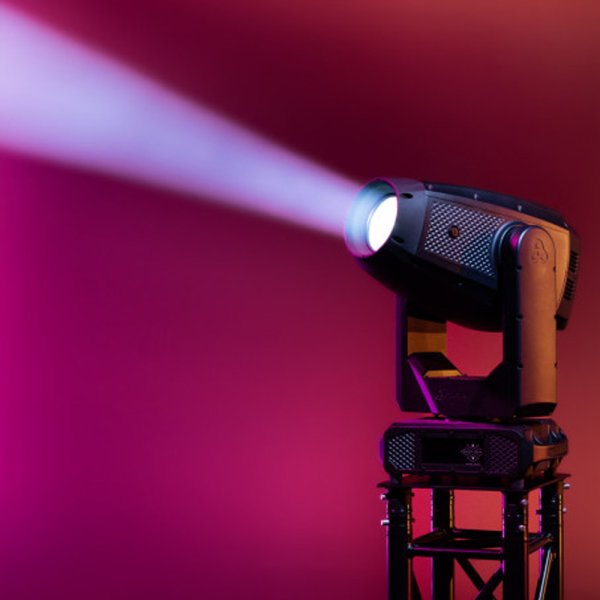

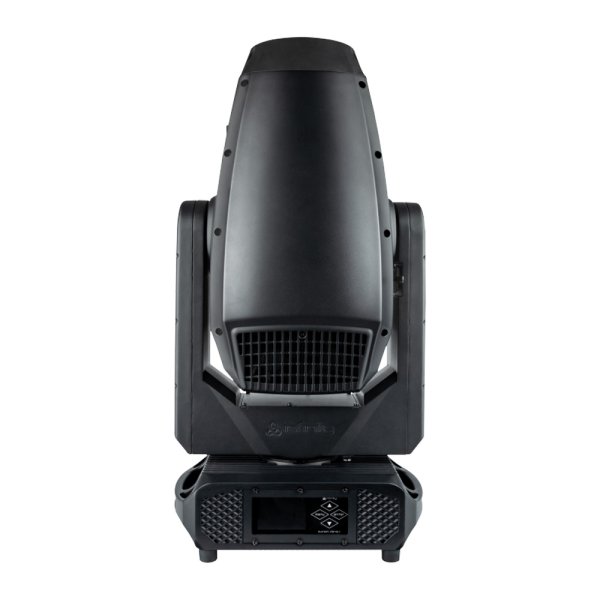

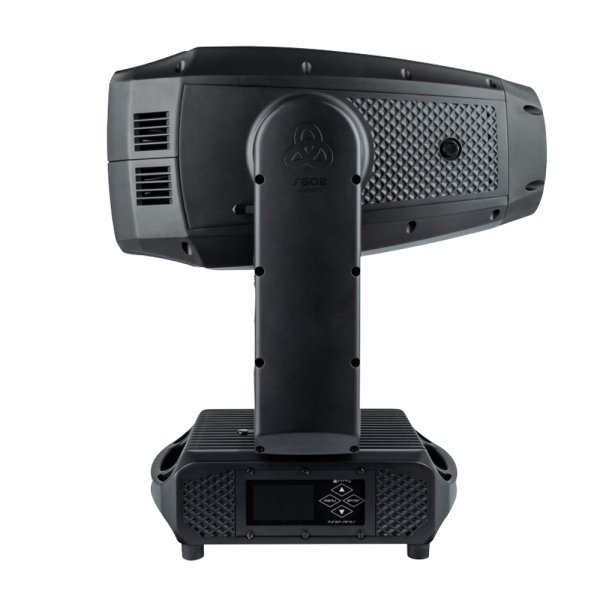

The Furion S602 Spot is a lightweight, IP65-rated spot moving head with a mighty 600 W flat-field LED, a vast zoom range and a treasure trove of built-in effects. This makes it perfect for full-scale concerts, theatrical productions, live events, and more.

With a motorised zoom range that offers flawless transitions between a slender 6.3° beam angle and an all-encompassing 42.6° beam angle, the S602 Spot delivers adaptable lighting solutions for any scenario. Vivid colour combinations come from its CMY + CTO colour mixing capabilities and its colour wheel with 7 colours plus an open position.

Get creative by delving deep into the S602's box of tricks. These include a rotating gobo wheel with 7 gobos and a static gobo wheel with 9 gobos that cast dynamic light effects. A rotating 5-facet circular prism adds mesmerising layers to the light beam. An animation wheel and virtual animation offer more dynamic possibilities, while an iris for precise beam control and a light frost filter for softer edges make this fixture even more versatile.

For environments requiring minimal noise, the studio mode offers whisper-quiet fan operation ensuring discreet performance. Adjustable PWM frequencies guarantee uncompromised quality in filming situations too. Comprehensive control options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities.

With a housing forged from magnesium and aluminium, the S602 Spot is both sturdy and lightweight, ensuring durability and minimal maintenance. Its IP65 rating guarantees that the fixture is dust-tight and protected against water, making it suitable for both indoor and outdoor situations.

Those looking for a top-notch, spot lighting solution that combines powerful performance, durable design, seamless movements and an arsenal of built-in effects will find everything they need in the Furion S602 Spot.

特徴

CMY + CTO colour mixing and colour wheel with 7 colours + open

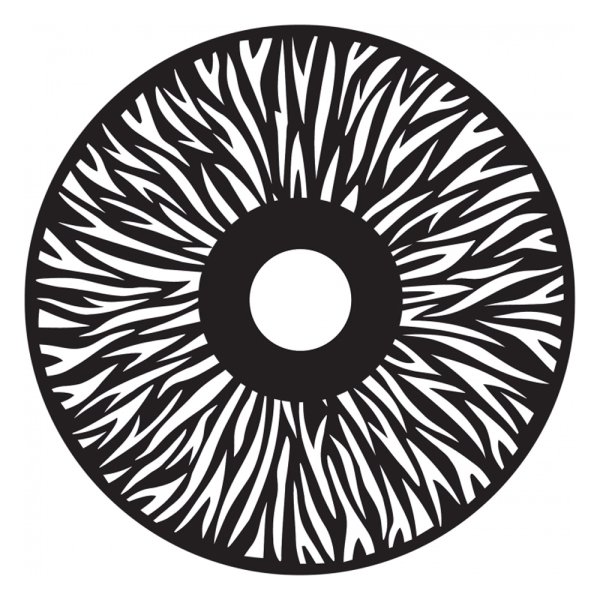

Rotating gobo wheel with 7 gobos and static gobo wheel with 9 gobos
Rotating 5-facet circular prism for creative visual effects
Iris for extra beam control, light frost for softer edge and animation wheel for extra dynamism
Very wide zoom range from 6.3° to 42.6°

仕様

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
600 W
Refresh Rate
600 Hz
Refresh Rate (Max.)
15 kHz
Luminous Flux (Total)
25162 lm
CRI
71.3
CCT
7400 K
Optical
Beam Angle Minimum (Circular)
6.3 °
Beam Angle Maximum (Circular)
42.6 °
Cutoff Angle Minimum (Circular)
7.1 °
Cutoff Angle Maximum (Circular)
56.7 °
Field Angle Minimum (Circular)
6.9 °
Field Angle Maximum (Circular)
54.1 °
Zoom Type
Motorised
Zoom Ratio
1:8
Frost
Yes
Focus
Motorised
Iris
Motorised
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
26, 37
Protocols
CRMX Classic, DMX, W-DMX, RDM
Wireless
LumenRadio

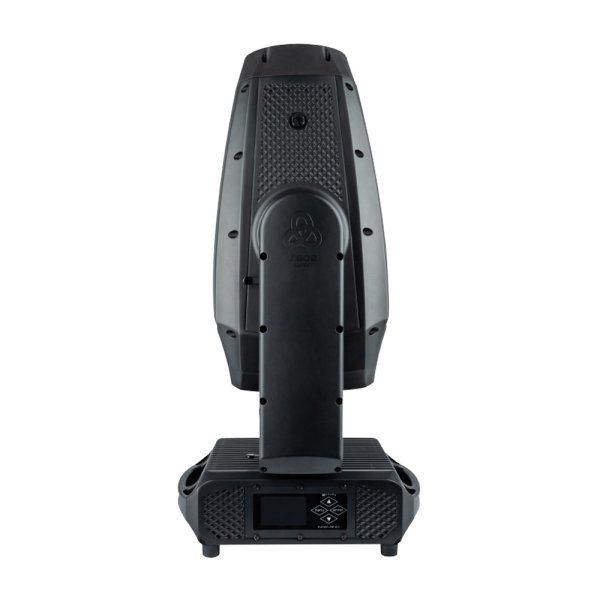

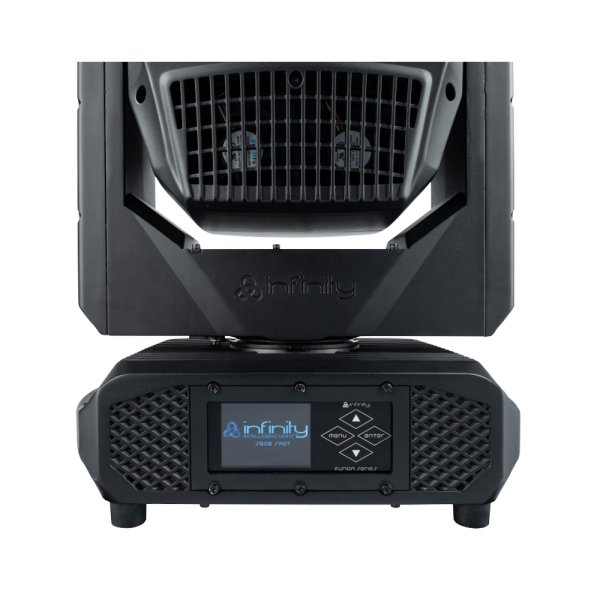

Display
Battery, Gravity Sensor, TFT
Fan mode
Yes
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
16 bit
Focus Resolution
16 bit
Zoom Resolution
16 bit
Frost Resolution
8 bit
Iris Resolution
16 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Prism 1
5-facet Circular
Prism Index & Rotate
Yes
Animation Wheel
Yes + Digital Motion FX
Colour System
Colour Wheel CMY+CTO

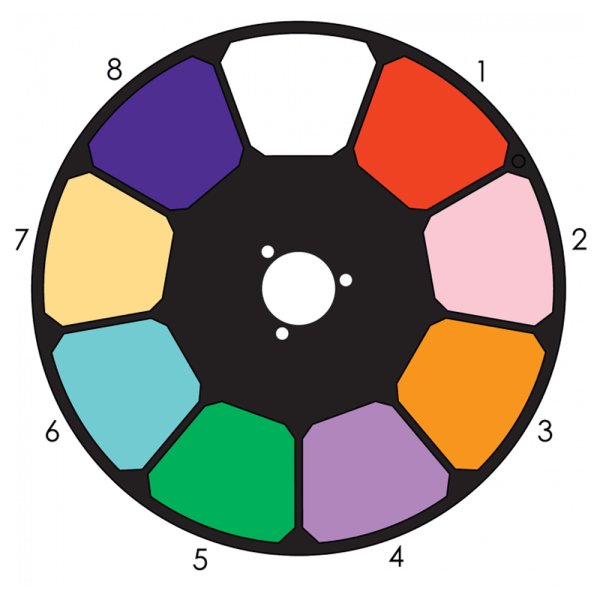

Dichroic Colour Wheel 1
7 + Open
Gobo System
Glass + Metal

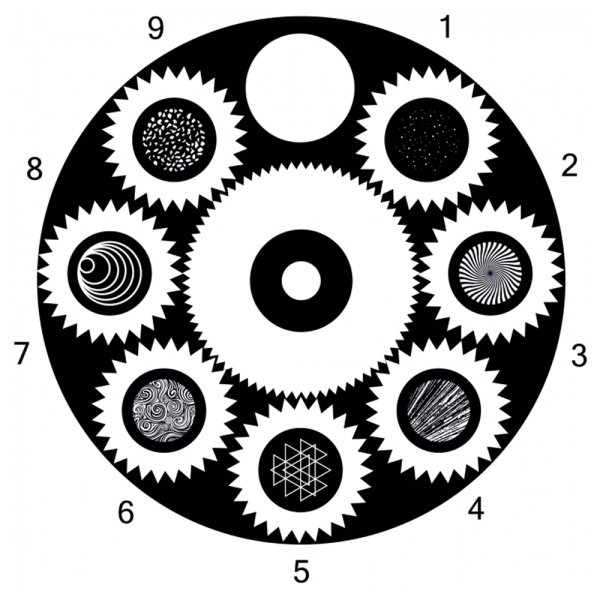

Gobo Wheel 1
7 + Open
Gobo Wheel 2

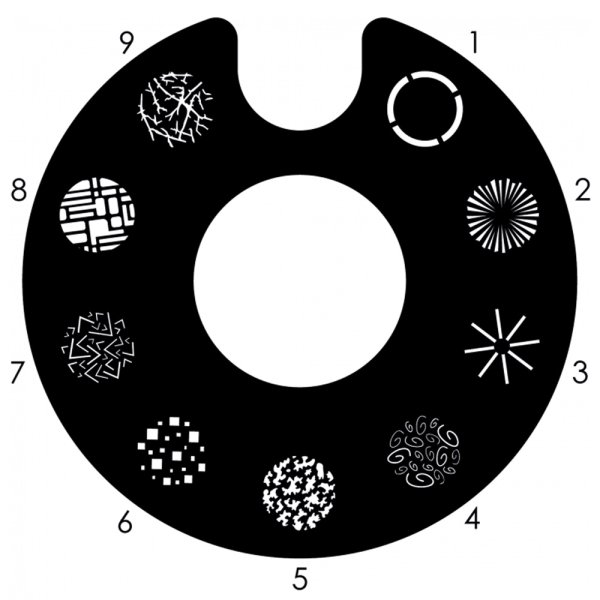

9 + Open
Gobo Size
25 mm (0.984″)
Image Diameter
18 mm (0.709″)
Movement
Pan
540 °
Tilt
260 °
Pan/Tilt Resolution
16-bit

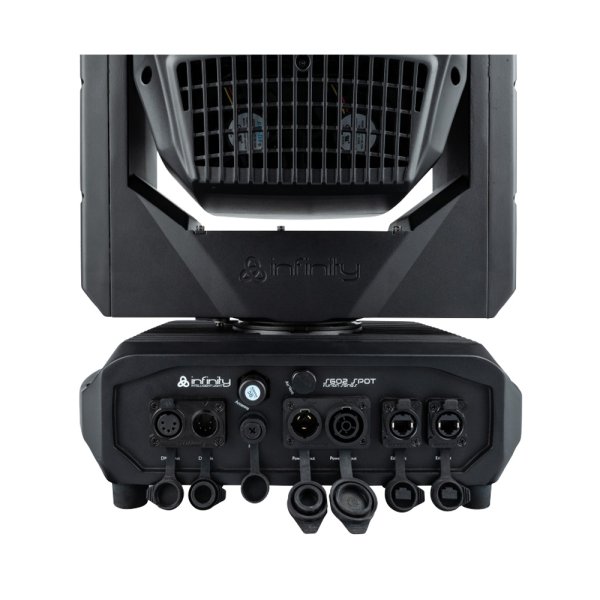

Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
700 W
Fuse
15 A

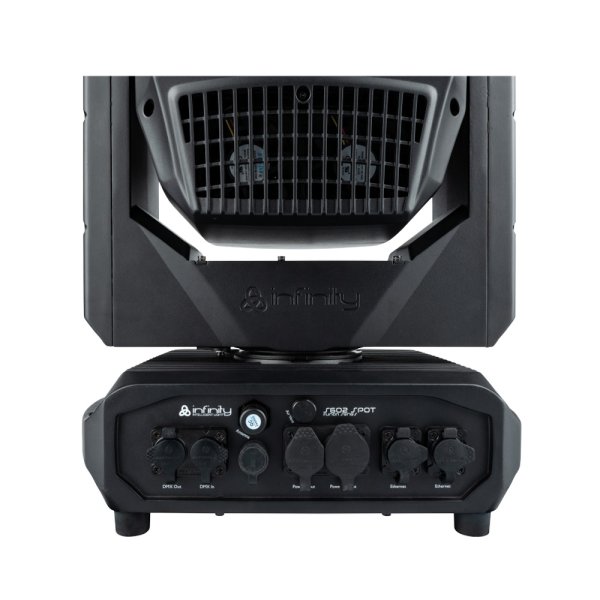

Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
RJ45
Data Connector Out
RJ45

IP Rating
IP65
Housing
Magnesium die-cast
Colour
Black
Product Properties
Cooling
Forced Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket
