HIGHLITE Infinity Furion W602 WashBeam（インフィニティフューリオン W602 ウォッシュビーム） [41441]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

The Furion W602 WashBeam is a fearsomely powerful, yet lightweight, IP65-rated moving head that excels in both beam and wash applications. Armed with 19 x 45 W RGBW LEDs, it is capable of unleashing a torrent of colour that morphs seamlessly from a concentrated 3° beam to a wide-reaching 34.1° wash, thanks to its motorised zoom. This makes it suitable for larger concerts, theatrical productions, live events and more.

概要

Its 19 ultra-bright LEDs, with full pixel mapping capabilities, allow the creation of intricate, mesmerising pixel displays with easy programming possibilities provided by the built-in LED macros. Precise, customisable colour temperatures come from its intelligent white mode with user-calibrated 7500 K output and the CTC channel that offers stepless white light between 2700 K and 7500 K.

The 16-bit dimming capability provides smooth, calibrated dimming effects, enhancing the quality of lighting transitions. For environments requiring minimal noise, the studio mode offers whisper-quiet fan operation ensuring discreet performance. Adjustable PWM frequencies guarantee uncompromised quality in filming situations too.

With comprehensive control options, both novice and seasoned light masters can tame the potent power of the W602 WashBeam. Options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities too.

Its housing, forged from magnesium and aluminium, is strong and lightweight, ensuring both durability and minimal maintenance. The IP65 rating guarantees that the fixture is dust-tight and protected against water, making it suitable for both indoor and outdoor use.

The Furion W602's ability to produce everything from a narrow beam to wide wash, coupled with its robust design, powerful performance, seamless movements and built-in pixel-mapping capabilities make it a first-class, flexible lighting solution.

特徴

Ultra-bright LEDs with full pixel mapping capabilities
Large zoom range from 3° beam to 34.1° wash
16-bit dimming for smooth dimming effects with calibrated output
Intelligent white mode with user-calibrated 7500 K output
Built-in LED macros for easy pixel effect creations

仕様

Source
Light Source Type
LED
Light Source Quantity
19
Light Source Power
45 W
LED Colour Type
RGBW
Refresh Rate
600 Hz
Refresh Rate (Max.)
15 kHz
Luminous Flux (Total)
11148 lm
Luminous Flux (Red)
2262 lm
Luminous Flux (Green)
3837 lm
Luminous Flux (Blue)
1045 lm
Luminous Flux (White)
6010 lm
CRI
79.8
CCT
7500 K
Optical
Beam Angle Minimum (Circular)
3 °
Beam Angle Maximum (Circular)
34.1 °
Cutoff Angle Maximum (Circular)
48.2 °
Field Angle Minimum (Circular)
4.6 °
Field Angle Maximum (Circular)
44.2 °
Zoom Type
Motorised
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
14, 19, 96, 179
Protocols
CRMX Classic, DMX, W-DMX, RDM
Wireless
LumenRadio

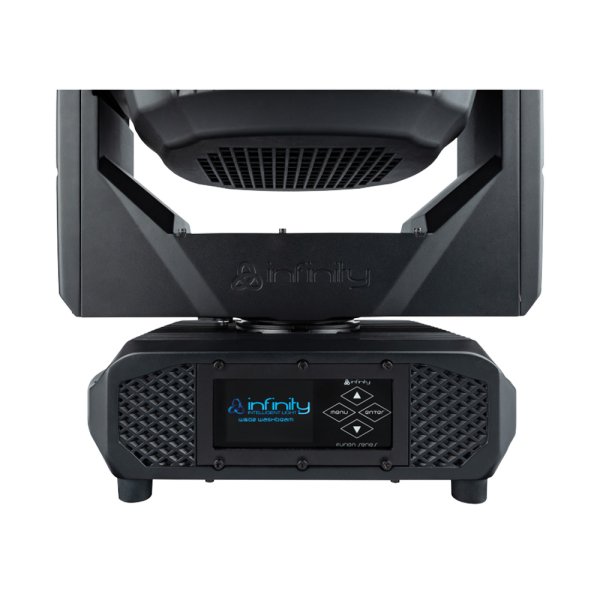

Display
Battery, Gravity Sensor, TFT
Fan mode
Yes
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
16 bit
Zoom Resolution
16 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Gobo System
Digital
Gobo Wheel 1
204 + Open
Movement
Pan
540 °
Tilt
260 °
Pan/Tilt Resolution
16-bit
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
1050 W
Fuse
20 A

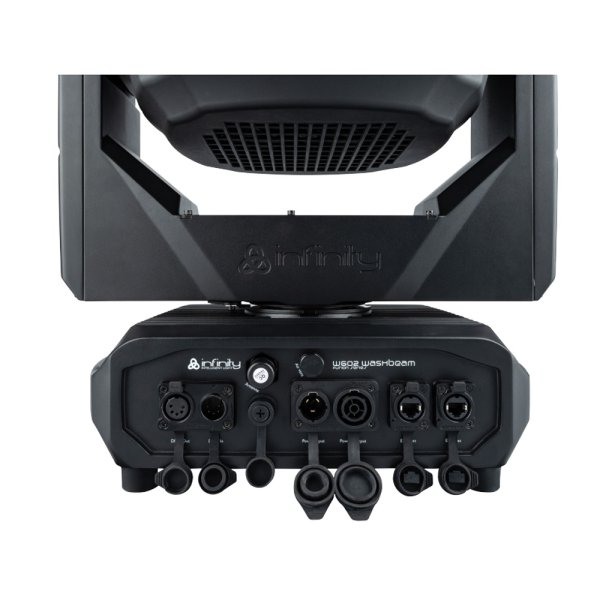

Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
RJ45
Data Connector Out
RJ45
IP Rating
IP65
Housing
Magnesium die-cast
Colour
Black
Product Properties
Cooling
Forced Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket
