HIGHLITE Infinity Furion H402 Hybrid(インフィニティ フューリオン H402 ハイブリッド) [41431]
商品詳細

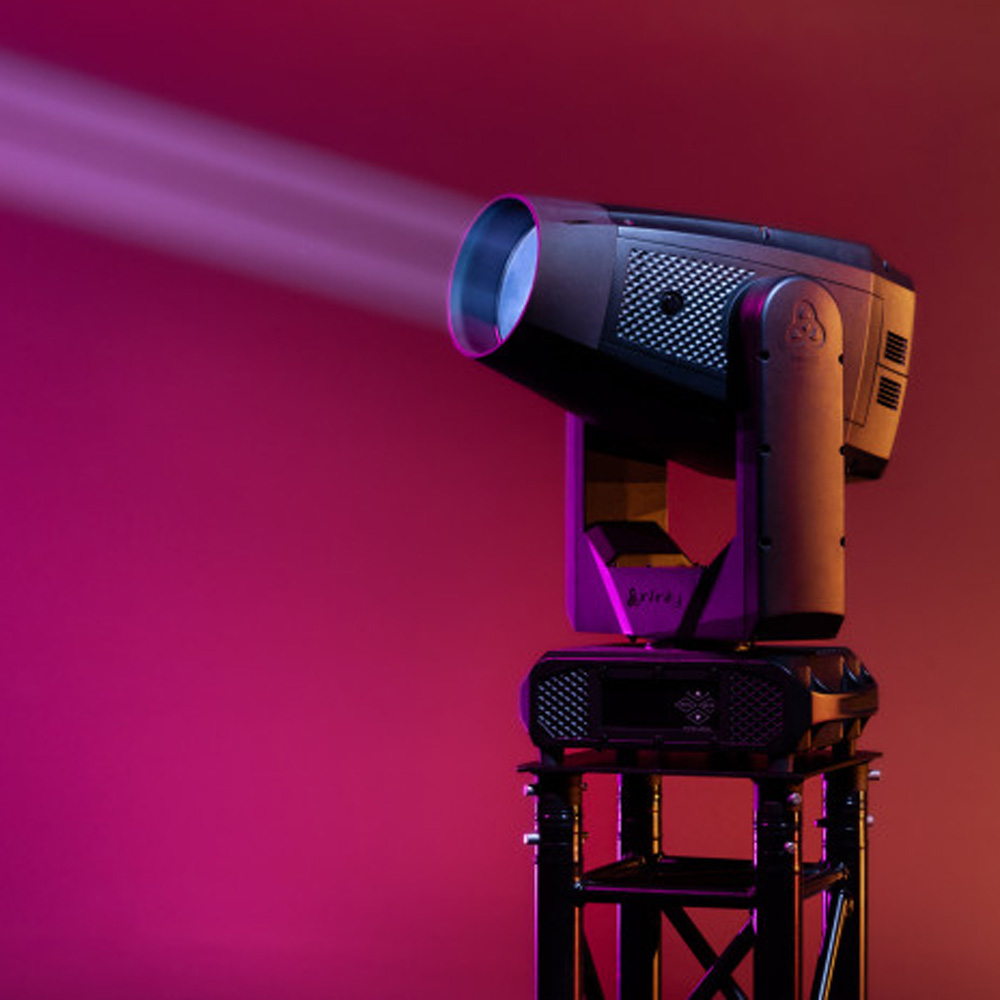

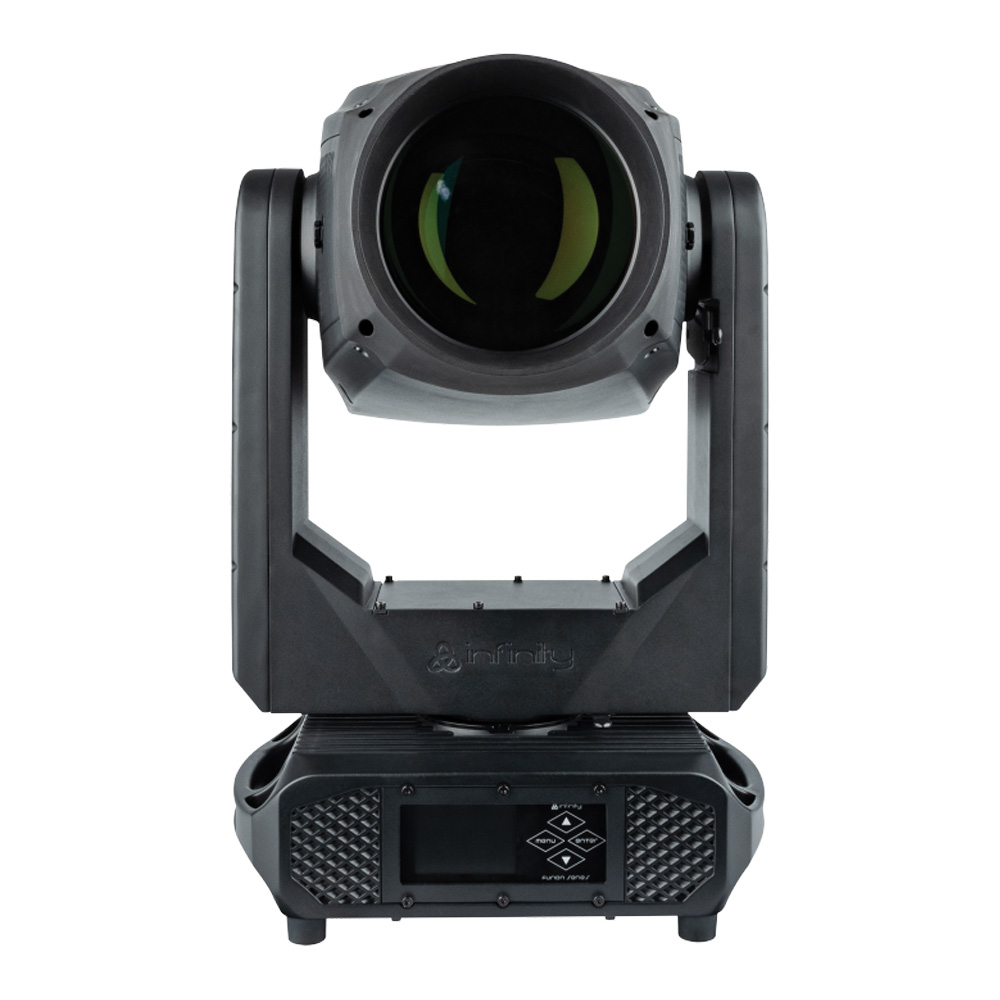

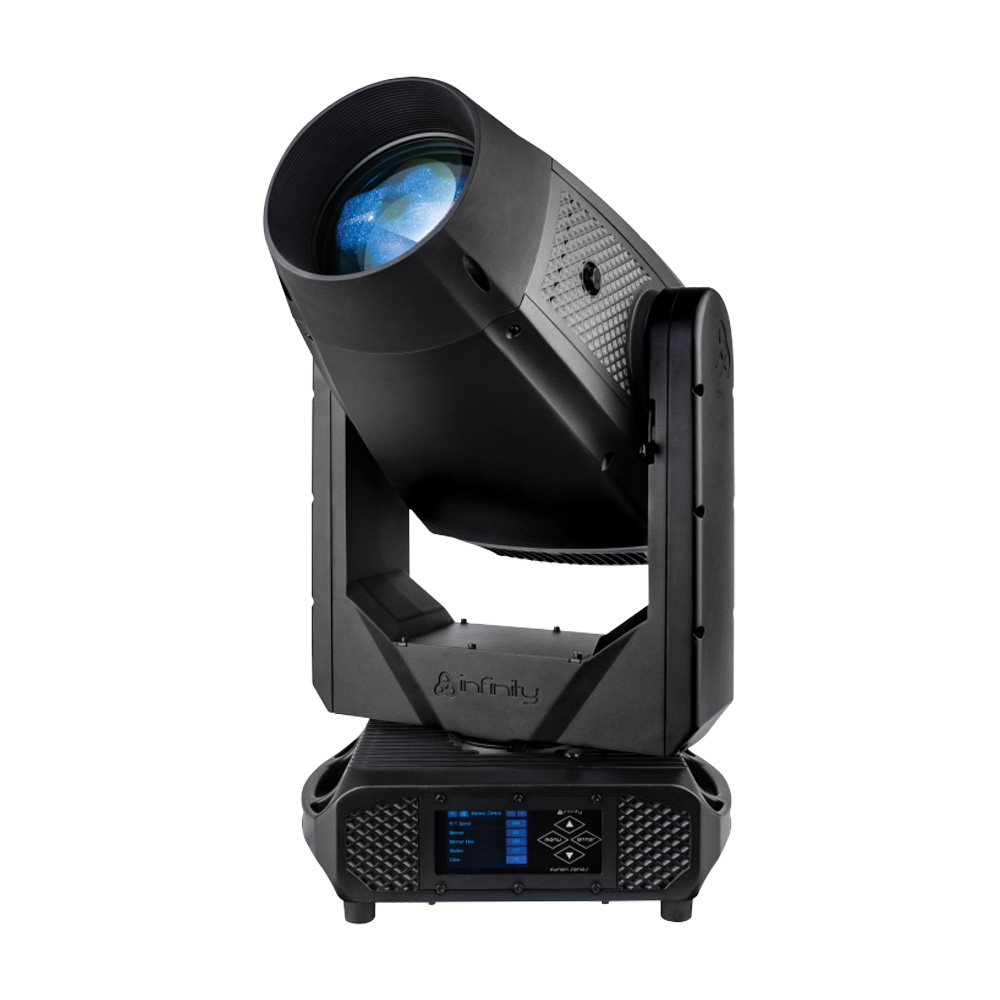

The Furion H402 Hybrid is a highly adaptable moving head that combines beam, spot and wash effects in a single light fixture that is capable of illuminating the grandest of stages. Equipped with a 420 W discharge lamp, its optical prowess allows smooth transitions between a narrow 0.6° beam and a wide 50.7° wash for ultimate flexibility. Its beam diffuser ensures even light distribution without hotspots, making it perfect for concerts, theatrical productions, live events and more.
With 13 vibrant colours plus open, 2 gobo wheels and 2 prisms, this lighting marvel offers endless creative possibilities to the most imaginative of light designers. Its rotating gobo wheel with 9 gobos and its static gobo wheel with 16 gobos conjure enchanting visual effects, while its rotating 6-facet linear and 8-facet circular prisms cast mesmerising light creations.
Comprehensive control options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities.
A sturdy yet lightweight housing forged from magnesium and aluminium means durability and minimal maintenance. Its IP65 rating makes it dust-tight and water-resistant, ideal for use in both indoor and outdoor situations.
An exceptional all-in-one lighting solution, the Furion H402 Hybrid's excellence as a beam, a spot and a wash, combined with its seamless movements, robust design and array of built-in effects make it a force to be reckoned with.

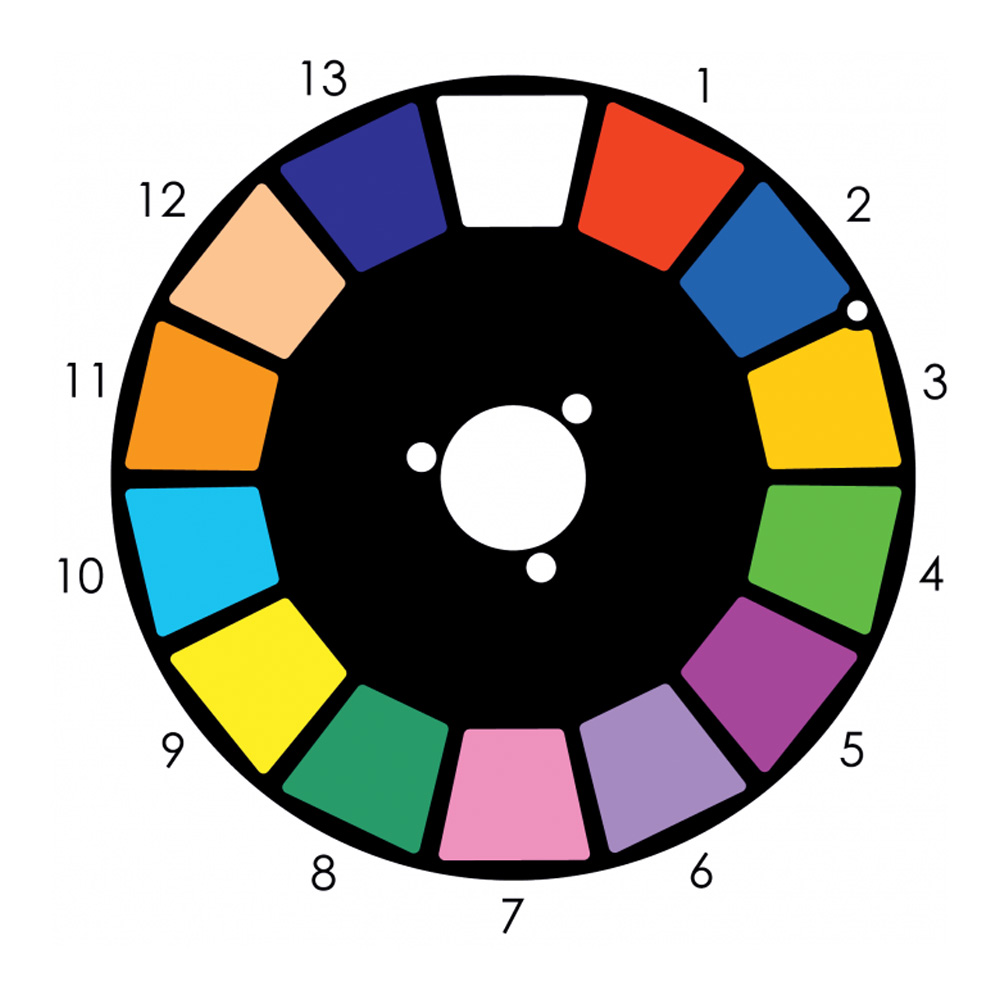

Colour wheel with 13 colours + open

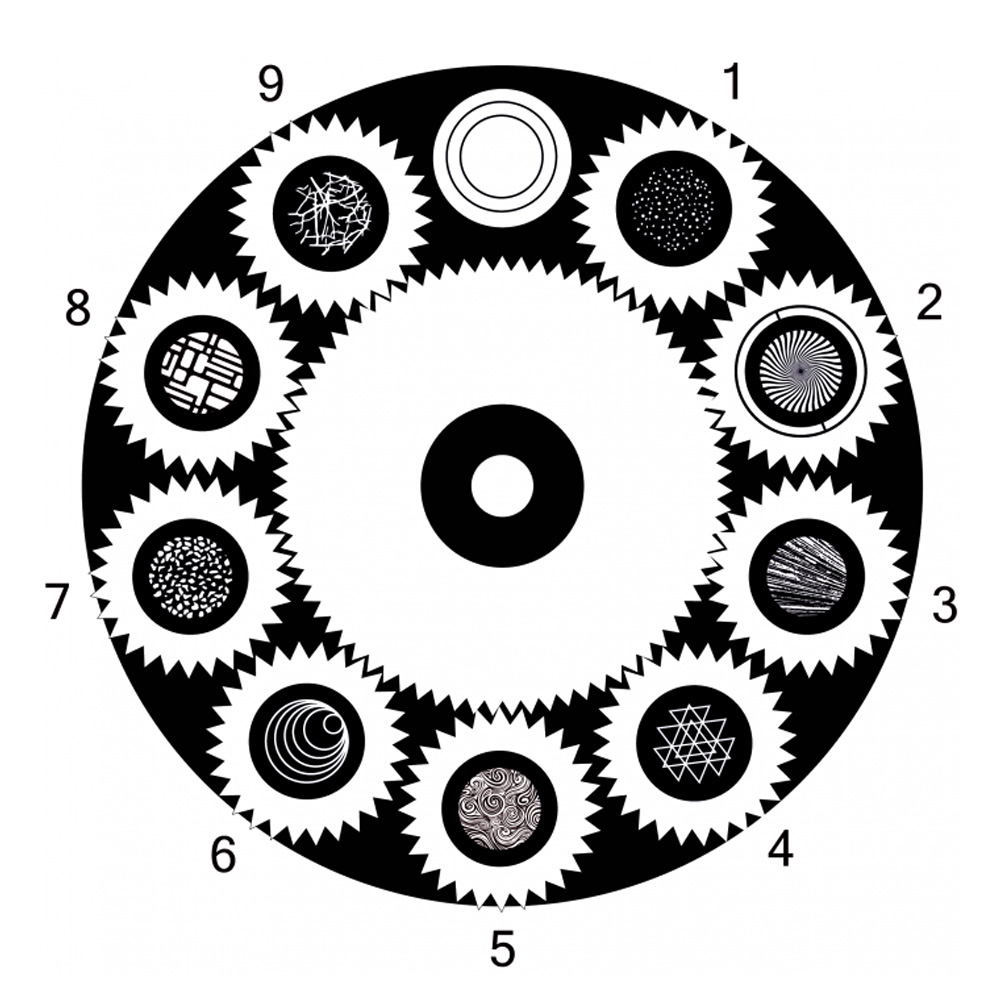

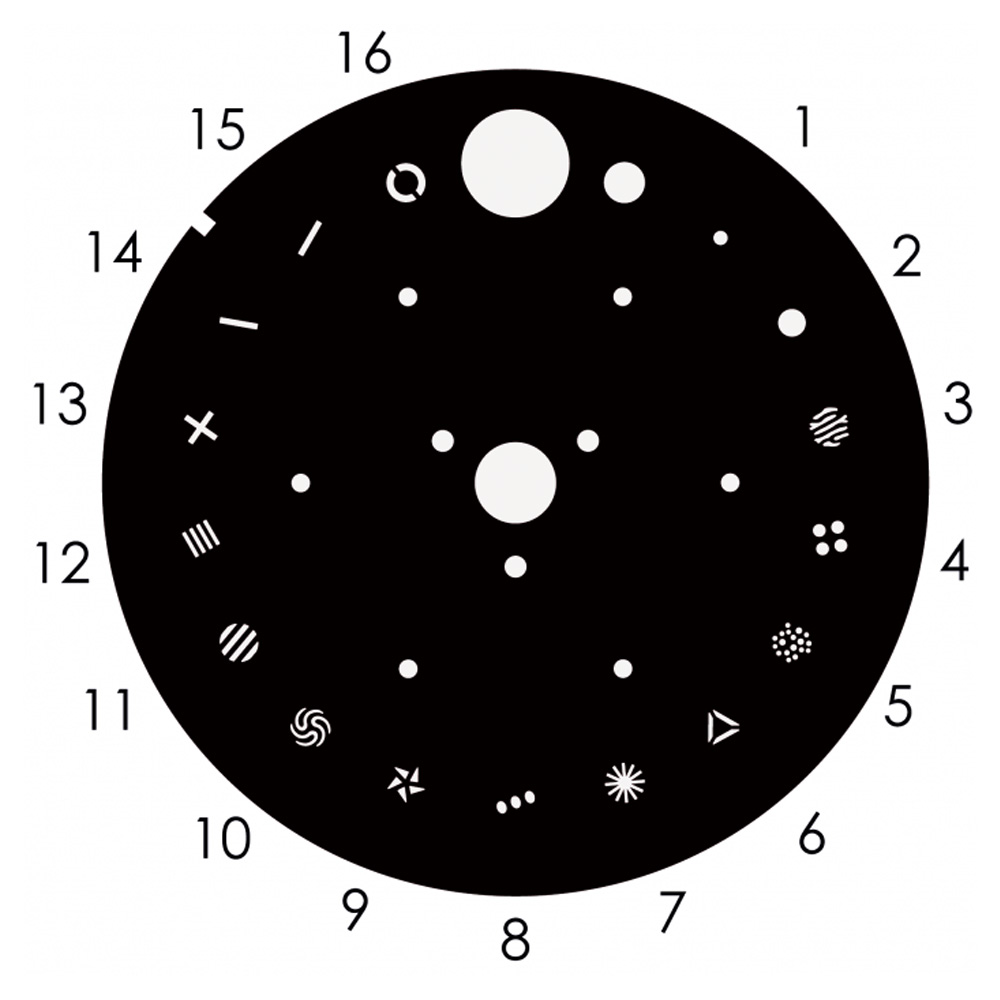

Rotating gobo wheel with 9 gobos and static gobo wheel with 16 gobos for extra effects
Rotating 6-facet linear and 8-facet circular prisms with overlay for creative visual effects
Beam diffuser for even light distribution without any hotspots
Fast zoom from narrow 0.6° beam to wide 50.7° wash
Source
Light Source Type
Discharge
Light Source Quantity
1
Light Source Power
420 W
Life Expectancy
3000 h
Illuminance @ 5 m
1323098 lx
Luminous Flux (Total)
32970 lm
CRI
76.4
CCT
6900 K
Optical
Beam Angle Minimum (Circular)
0.6 °
Beam Angle Maximum (Circular)
31.9 °
Cutoff Angle Minimum (Circular)
1.9 °
Cutoff Angle Maximum (Circular)
50.7 °
Field Angle Minimum (Circular)
1.6 °
Field Angle Maximum (Circular)
47.6 °
Zoom Type
Motorised
Frost
Yes
Focus
Motorised
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
20, 27
Protocols
CRMX Classic, DMX, W-DMX, RDM
Wireless
LumenRadio

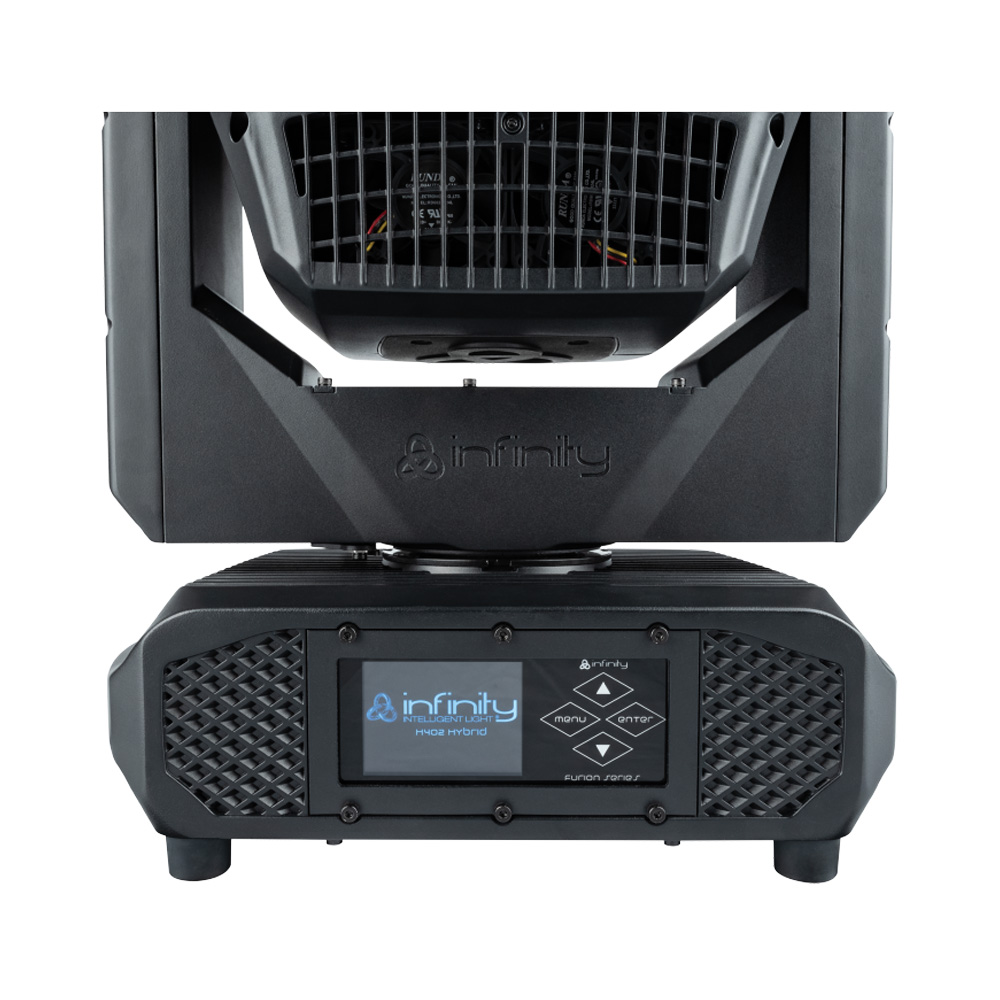

Display
Battery, Gravity Sensor, TFT
Dimmer Resolution
16 bit
Focus Resolution
16 bit
Zoom Resolution
16 bit
Frost Resolution
8 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-15 Hz
Prism 1
8-facet Circular
Prism 2
6-facet Linear
Prism Overlay
Yes
Colour System
Colour Wheel
Dichroic Colour Wheel 1
13 + Open
Gobo System
Glass + Metal
Gobo Wheel 1
9 + Open
Gobo Wheel 2
16 + Open
Movement
Pan
540 °
Tilt
260 °
Pan/Tilt Resolution
16-bit

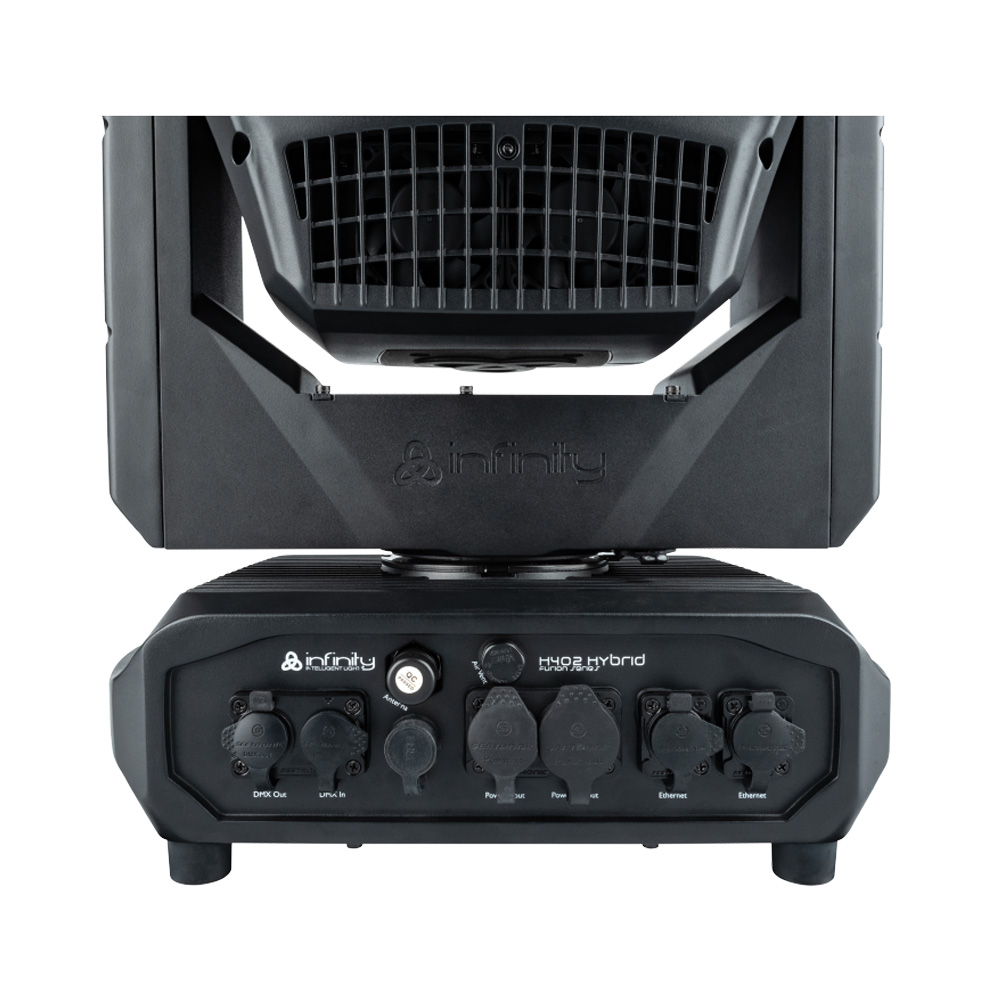

Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
650 W
Fuse
10 A

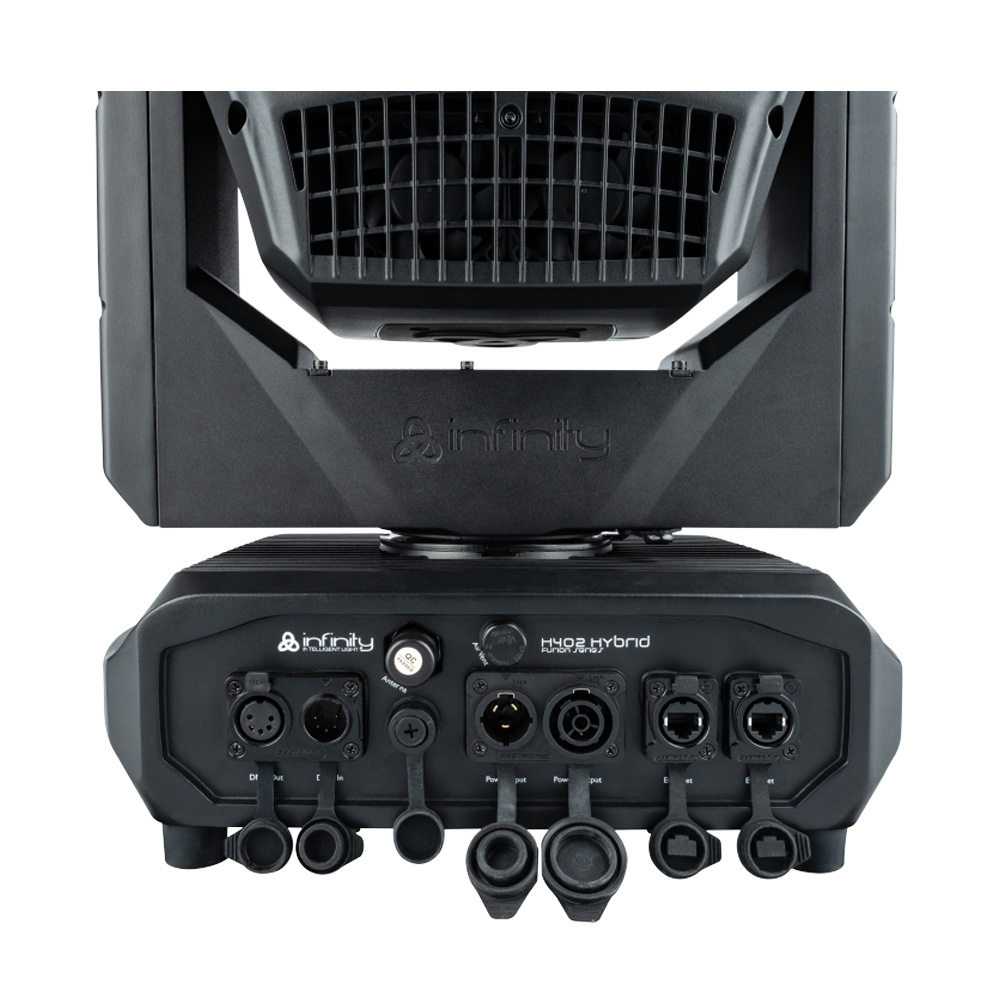

Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
RJ45
Data Connector Out
RJ45
IP Rating
IP65
Housing
Magnesium die-cast
Colour
Black
Product Properties
Cooling
Forced Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket
Mechanical Specifications
Length (mm)
254 mm
Width (mm)
370 mm
Height (mm)
705 mm
Weight
■メーカーサイト
https://www.highlite.com/en/41431-furion-h402-hybrid.html
26.5 kg
