HIGHLITE Infinity Furion W402 WashBeam（インフィニティフューリオン W402 ウォッシュビーム） [41440]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

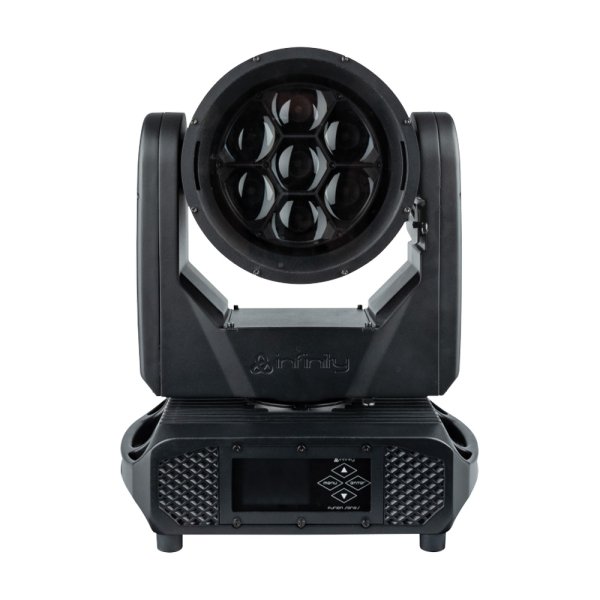

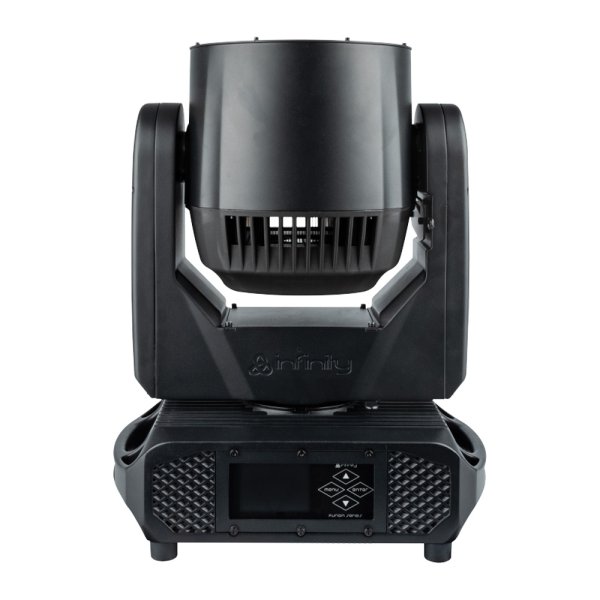

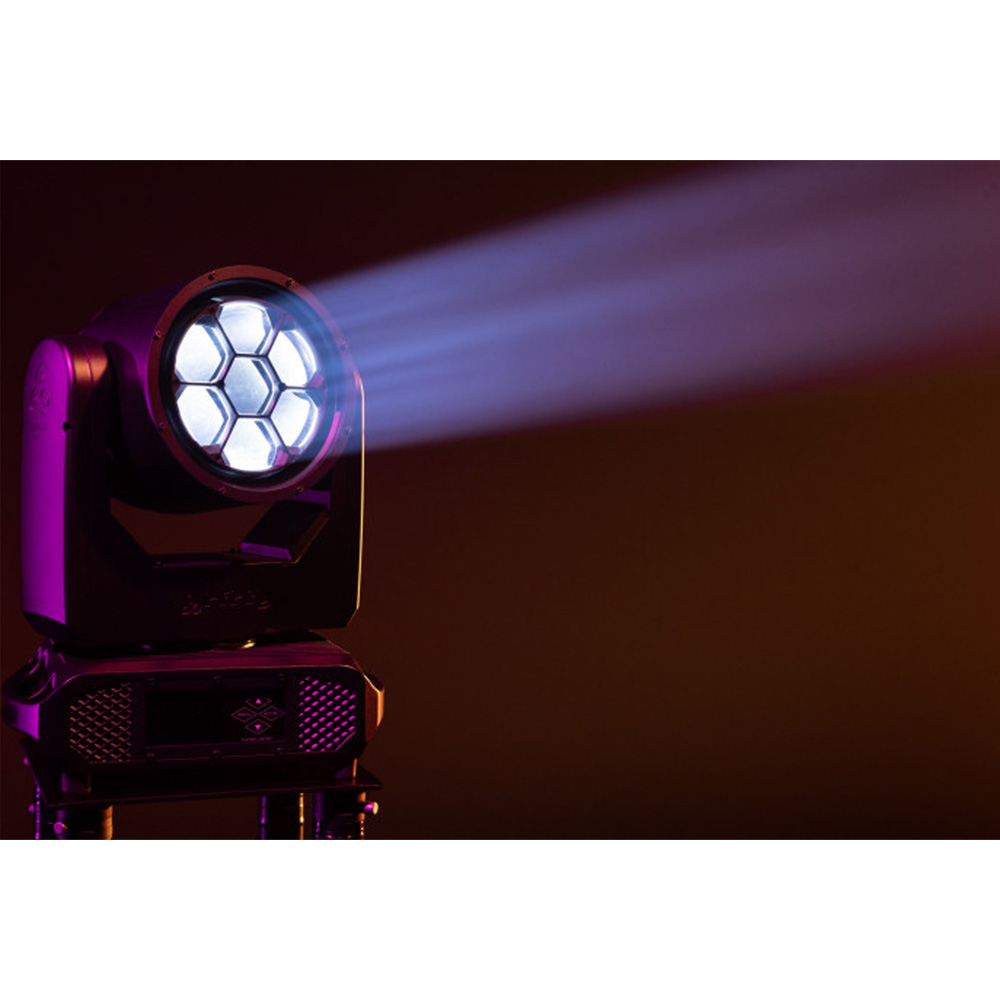

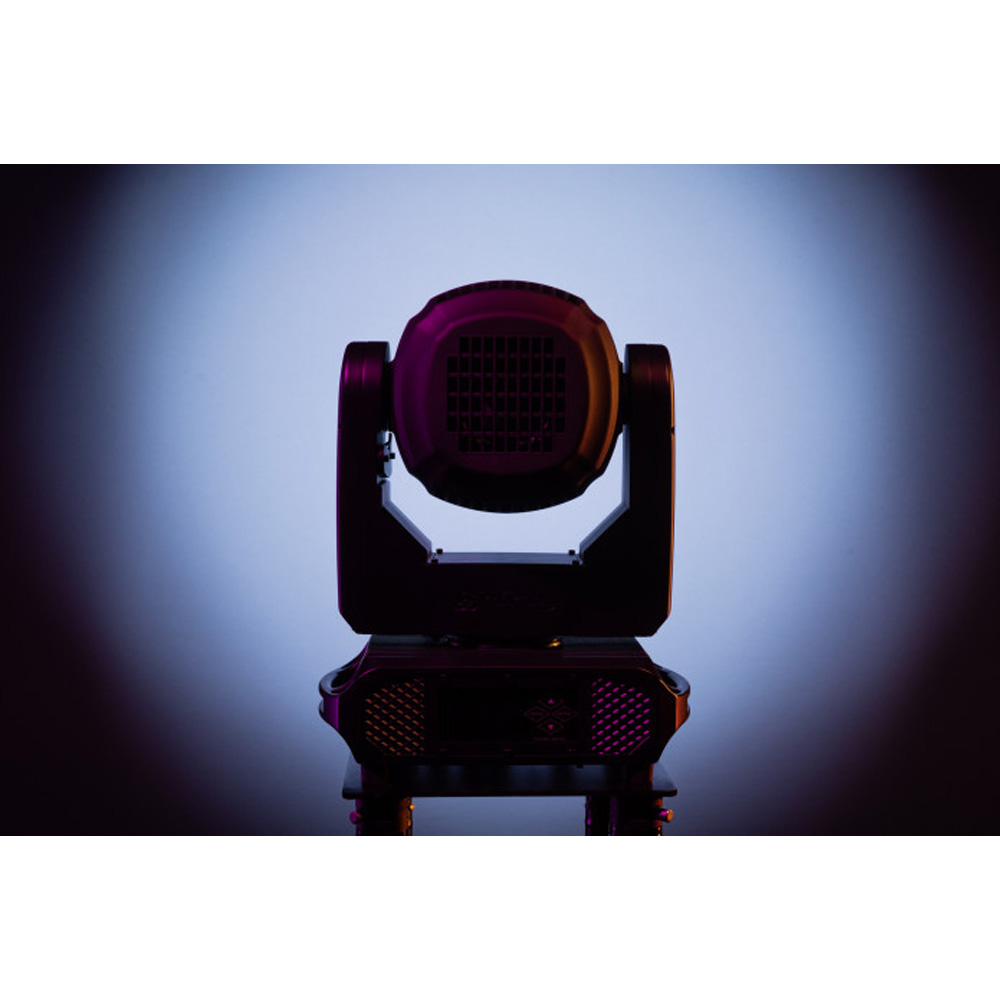

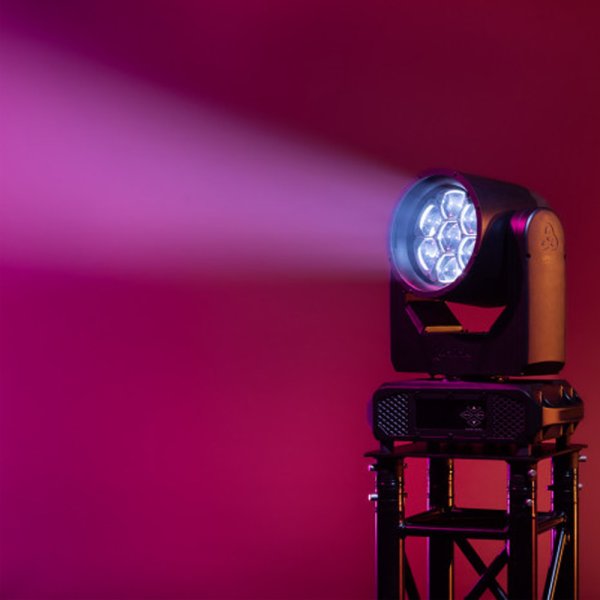

The Furion W402 WashBeam is a versatile, IP65-rated moving head light fixture that excels in both beam and wash applications. Equipped with 7 x 45 W RGBW LEDs and a motorised zoom that enables seamless transitions between a narrow 3.1° beam and a wide 36.6° wash, it adapts easily to any quest. Grand concerts, theatrical productions, live events and more are all within its realm.

概要

Precise, customisable colour temperatures come from its intelligent white mode with user-calibrated 7500 K output and the CTC channel that offers stepless white light between 2700 K and 7500 K. The fixture's 16-bit dimming capabilities deliver smooth, calibrated dimming effects, enhancing the quality of lighting transitions. For environments requiring minimal noise, the studio mode offers whisper-quiet fan operation ensuring discreet performance. Adjustable PWM frequencies guarantee uncompromised quality in filming situations too.

Comprehensive control options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities.

Its housing, forged from magnesium and aluminium, is both sturdy and lightweight, ensuring durability and minimal maintenance. The IP65 rating guarantees that the fixture is dust-tight and protected against water, making it suitable for both indoor and outdoor use.

The Furion W402 WashBeam is a premium lighting solution that combines versatility with superior performance. Its rugged build, seamless movements and advanced zoom and dimming features make it a veritable powerhouse.

特徴

Large zoom range from 3.1° beam to 36.6° wash
16-bit dimming for smooth dimming effects with calibrated output
Intelligent white mode with user-calibrated 7500 K output
CTC channel for stepless white from 2700 K to 7500 K
Studio mode with quiet fan, adjustable PWM settings

仕様

Source
Light Source Type
LED
Light Source Quantity
7
Light Source Power
45 W
LED Colour Type
RGBW
Refresh Rate
600 Hz
Refresh Rate (Max.)
15 kHz
Luminous Flux (Total)
3951 lm
Luminous Flux (Red)
1112 lm
Luminous Flux (Green)
1481 lm
Luminous Flux (Blue)
729 lm
Luminous Flux (White)
2272 lm
CRI
79.1
CCT
7500 K
Optical
Beam Angle Minimum (Circular)
3.1 °
Beam Angle Maximum (Circular)
36.6 °
Cutoff Angle Minimum (Circular)
4.6 °
Cutoff Angle Maximum (Circular)
54.6 °
Field Angle Minimum (Circular)
4.2 °
Field Angle Maximum (Circular)
47.8 °
Zoom Type
Motorised
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
14, 22
Protocols
CRMX Classic, DMX, W-DMX, RDM
Wireless
LumenRadio

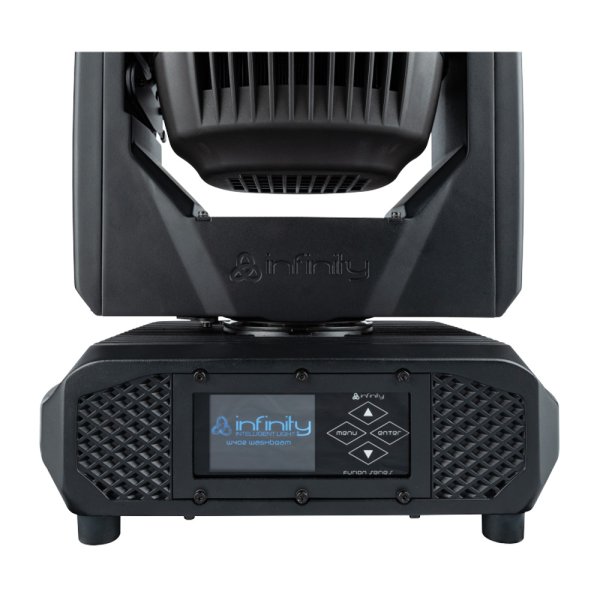

Display
Battery, Gravity Sensor, TFT
Fan mode
Yes
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
16 bit
Zoom Resolution
16 bit
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Movement
Pan
540 °
Tilt
260 °
Pan/Tilt Resolution
16-bit

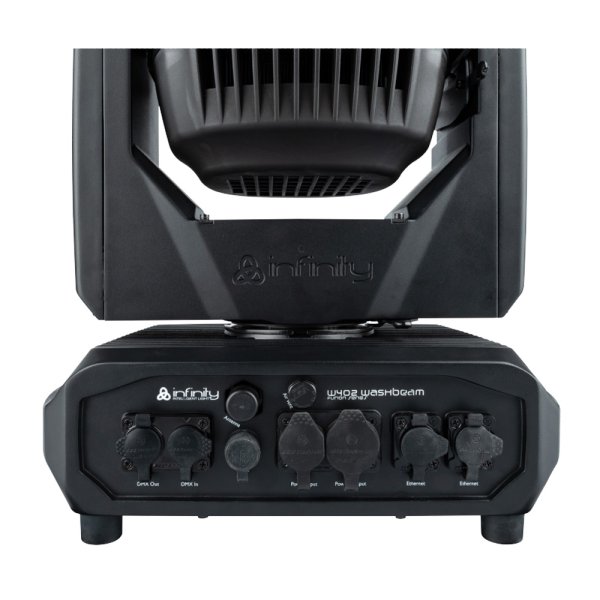

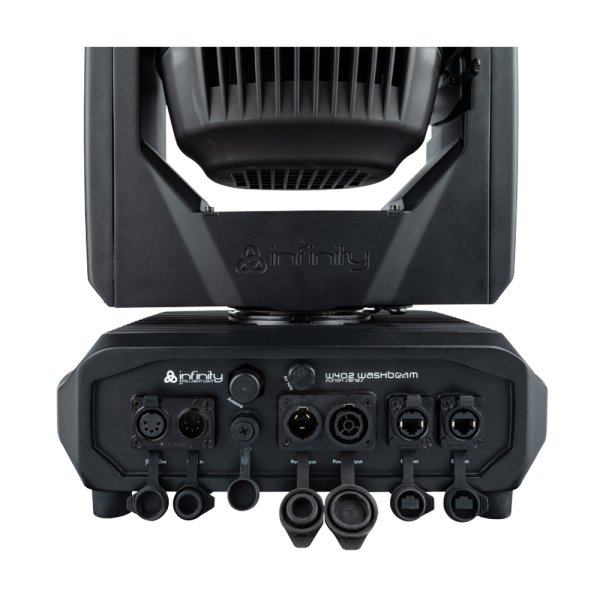

Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
375 W
Fuse
8 A
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
RJ45
Data Connector Out
RJ45
IP Rating
IP65
Housing
Magnesium die-cast
Colour
Black
Product Properties
Cooling
Forced Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket
