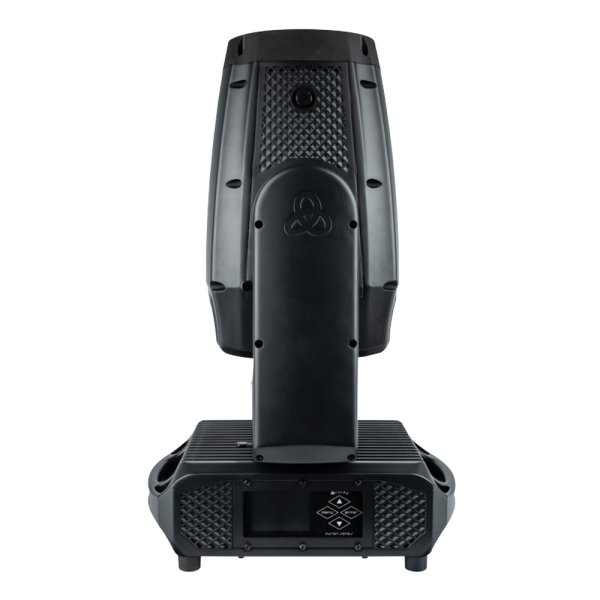

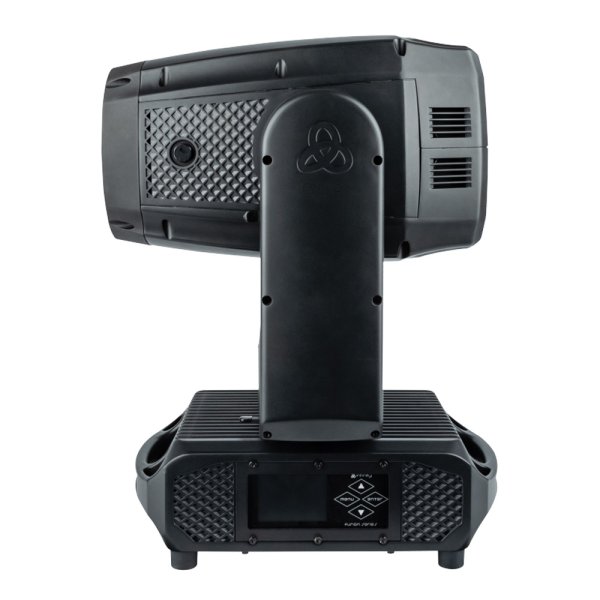

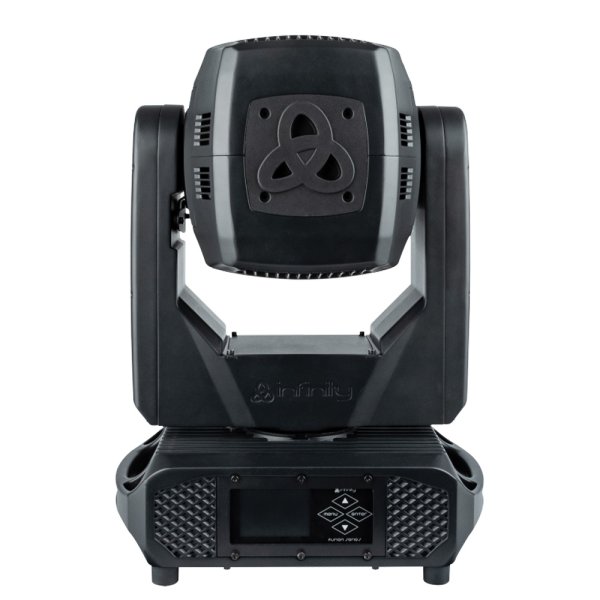

HIGHLITE Infinity Furion B402 Beam（インフィニティフューリオン B402 ビーム） [41430]

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

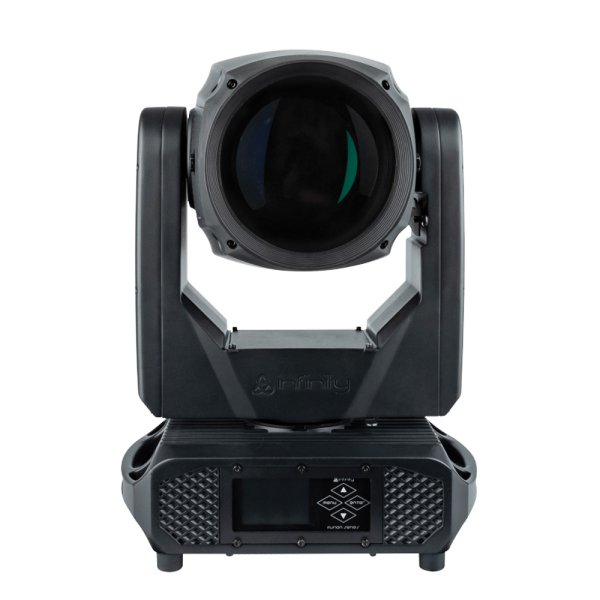

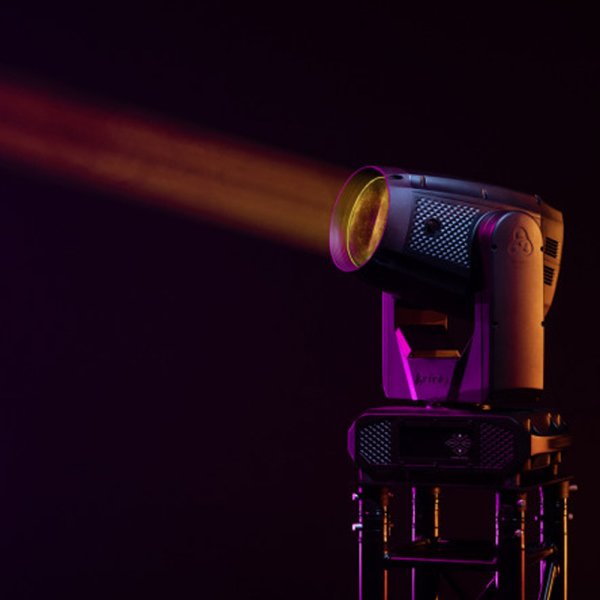

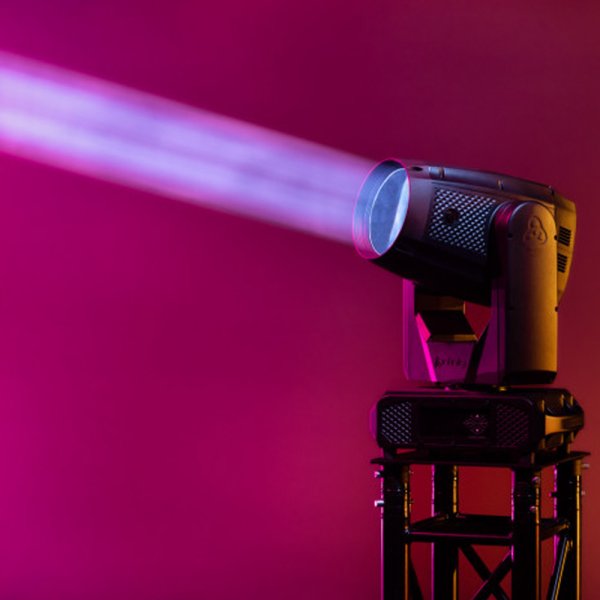

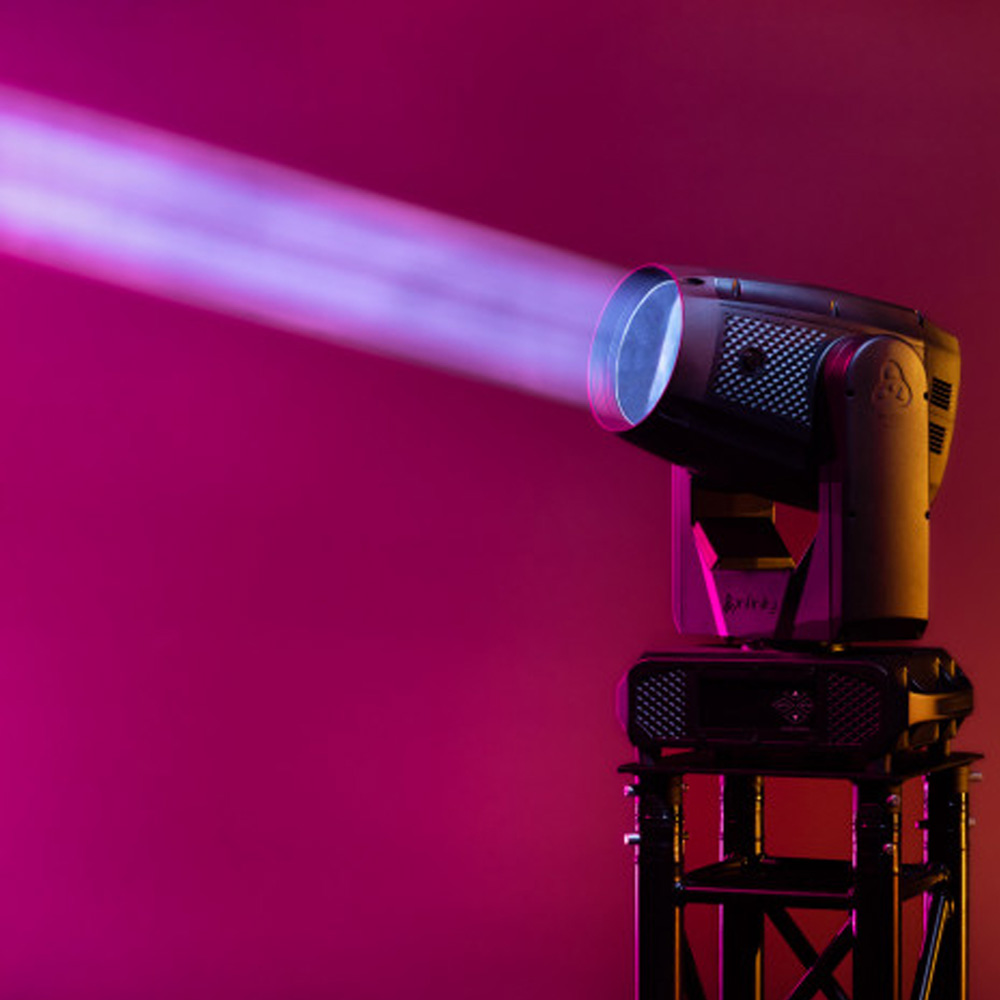

The Furion B402 Beam is a lightweight, IP65-rated moving head that packs a fiery punch. Thanks to its 310 W discharge lamp, precise 0.6° beam angle and large front lens, it delivers focused effects without light spillage. This makes it ideal for larger concerts, theatrical productions, live events and more.

概要

This powerful fixture boasts a colour wheel offering 14 majestic colours, plus an open position, and a static gobo wheel with 17 gobos. These features expand the creative possibilities by allowing users to add enchanting gobo effects to colourful, narrow beams.

Enhancing its dynamic capabilities are rotating 5-facet linear and 8-facet circular prisms, which can be overlaid for soaring visual effects. Additionally, a frost filter softens the beam's edges, adding versatility for different lighting atmospheres.

Comprehensive control options include basic, advanced and customised DMX modes, CRMX, W-DMX, Art-Net, sACN and RDM. Power Pro True inputs and outputs add power-linking possibilities.

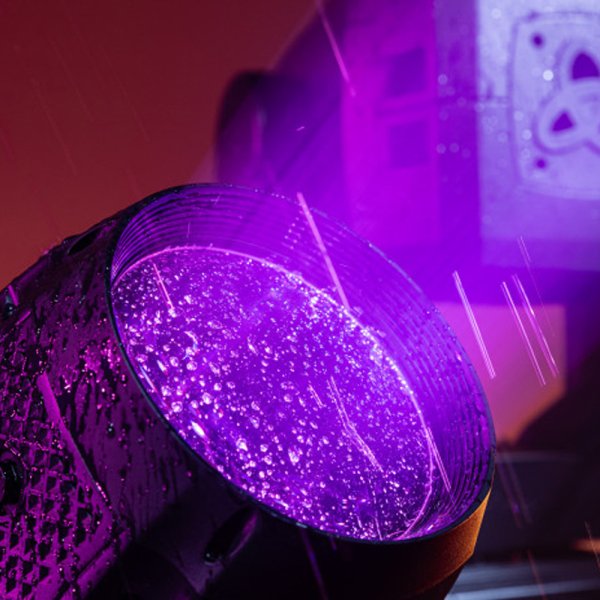

Guarding its state-of-the art components is a sturdy yet lightweight housing, crafted from magnesium and aluminium, that ensures durability and minimises maintenance. Its IP65 rating guarantees dust-tight and water-resistant protection for both indoor and outdoor use.

With fast, seamless movements, a bright, tight beam and a hoard of built-in effects, the Furion B402 Beam is an outstanding light fixture that delivers dynamic beam effects wherever they're needed.

特徴

Colour wheel with 14 colours + open and static gobo wheel with 17 gobos
Rotating 5-facet linear and 8-facet circular prisms with overlay for creative visual effects
Lightweight and sturdy IP65-rated magnesium/aluminium housing
Tight beam angle and large front lens for focused effects with no light spillage
Light frost for soft, rounded edge

仕様

Source
Light Source Type
Discharge
Light Source Quantity
1
Light Source Power
310 W
Life Expectancy
3000 h
Illuminance @ 5 m
1844589 lx
Luminous Flux (Total)
33344 lm
CRI
76.2
CCT
6900 K
Optical
Beam Angle Minimum (Circular)
0.6 °
Cutoff Angle Minimum (Circular)
2.4 °
Field Angle (Circular)
1.7 °
Frost
Yes
Focus
Motorised
Control and Programming
Control Mode
Auto, DMX, Manual
DMX Channels
15, 20
Protocols
CRMX Classic, DMX, W-DMX, RDM
Wireless
LumenRadio
Display

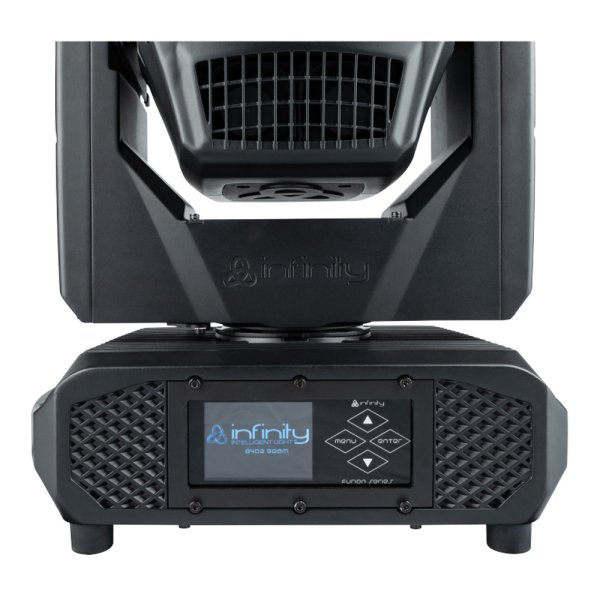

Battery, Gravity Sensor, TFT
Dynamic Effects
Dimmer
0-100 %
Strobe
0-15 Hz
Shutter
Yes
Prism 1
8-facet Circular
Prism 2
5-facet Linear
Colour System
Colour Wheel
Dichroic Colour Wheel 1
14 + Open

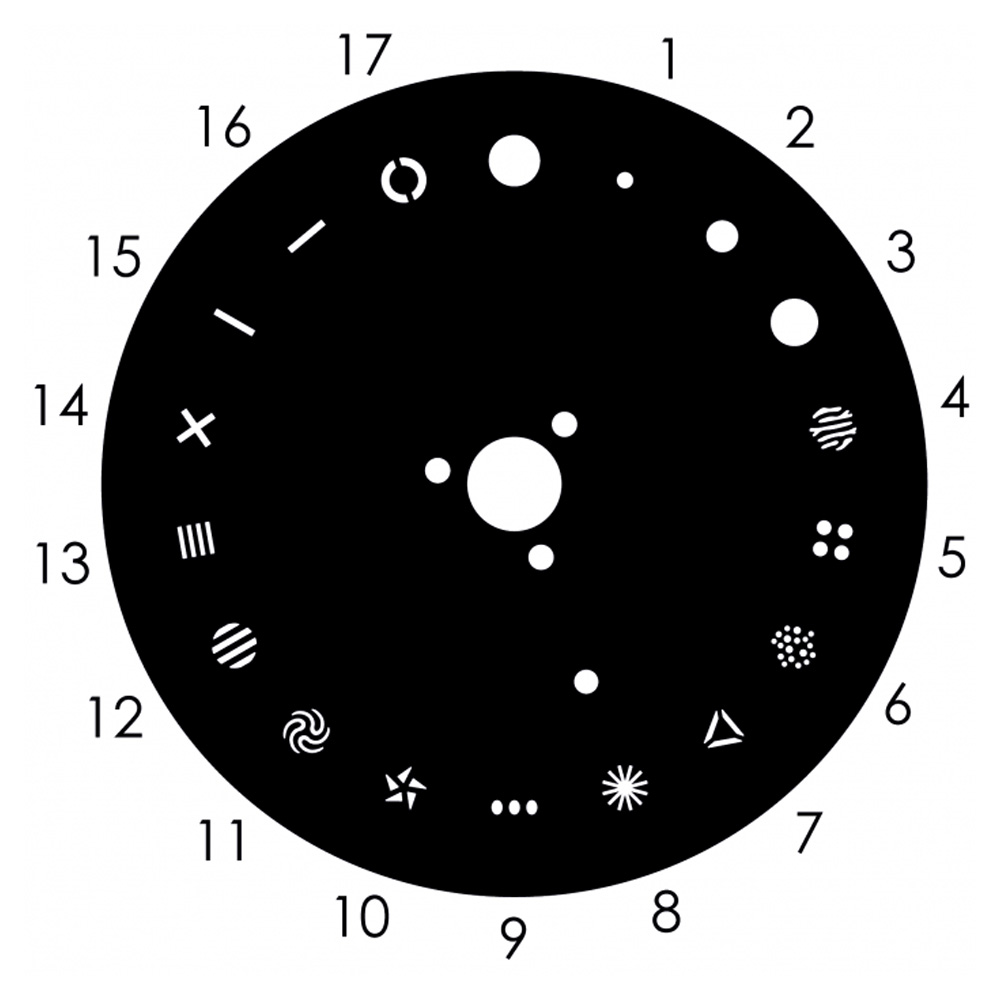

Gobo System
Metal
Gobo Wheel 1
17 + Open
Movement
Pan
540 °
Tilt
260 °
Pan/Tilt Resolution
16-bit

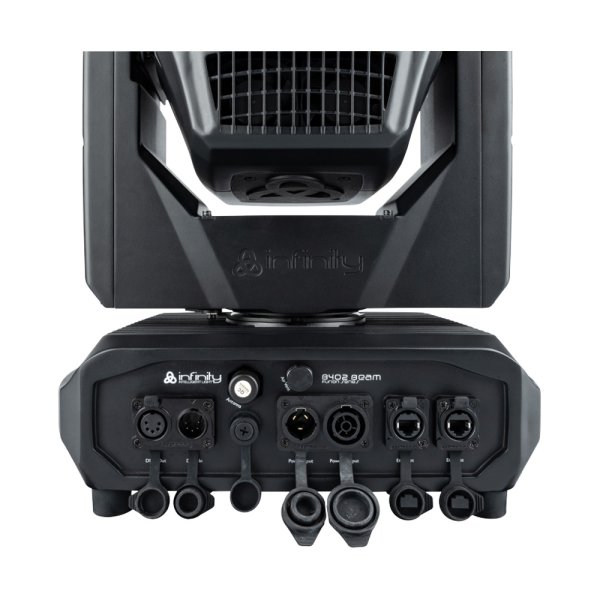

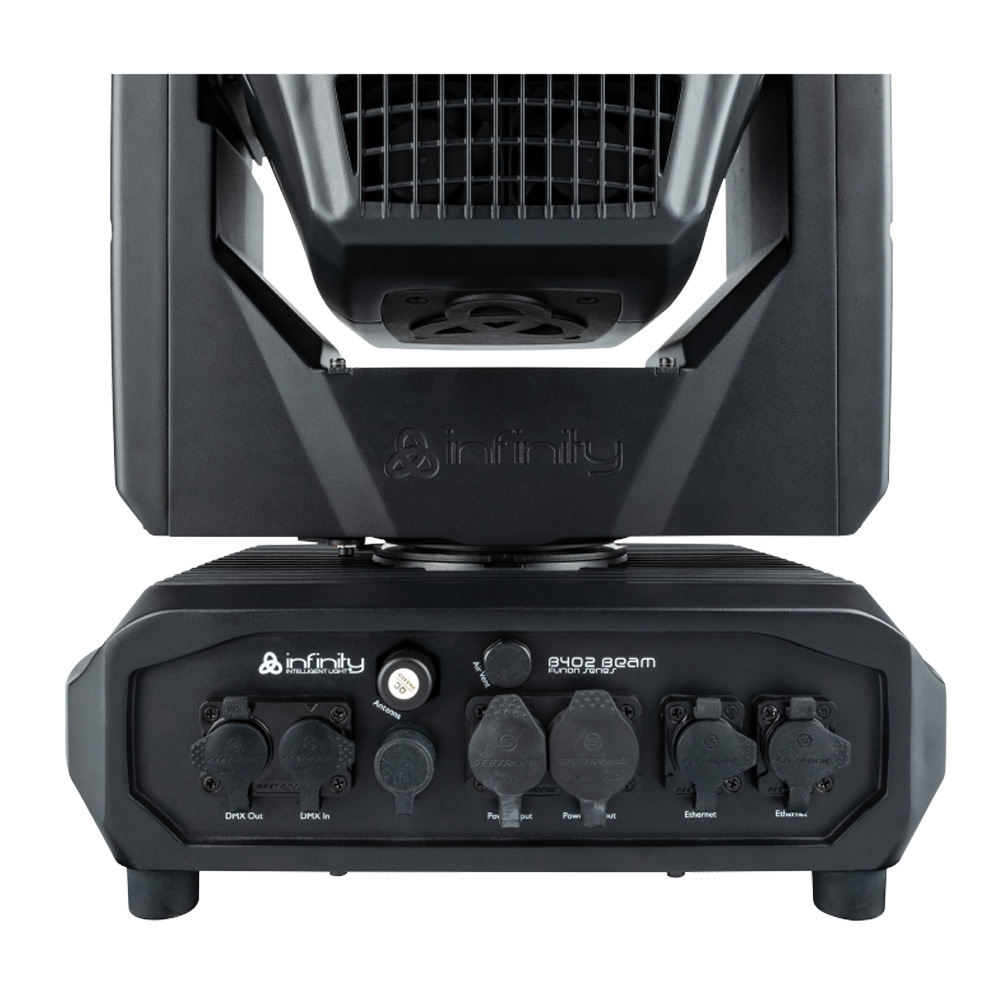

Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
445 W
Fuse
8 A
Power Connector In
Power Pro True
Power Connector Out
Power Pro True
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Data Connector
etherCON In/Out
Data Connector In
RJ45
Data Connector Out
RJ45
IP Rating
IP65
Housing
Magnesium die-cast
Colour
Black
Product Properties
Cooling
Forced Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro True Cable
Included Rigging
Quick-Lock Bracket
