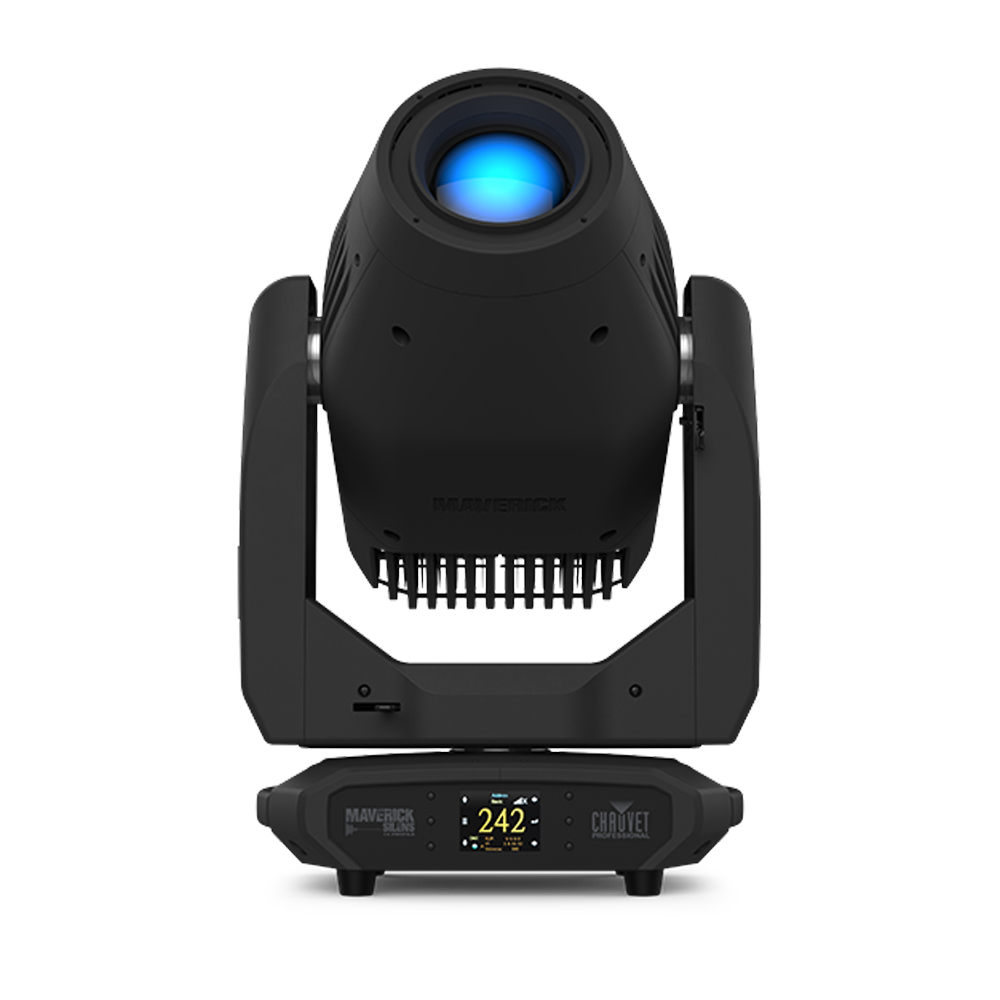

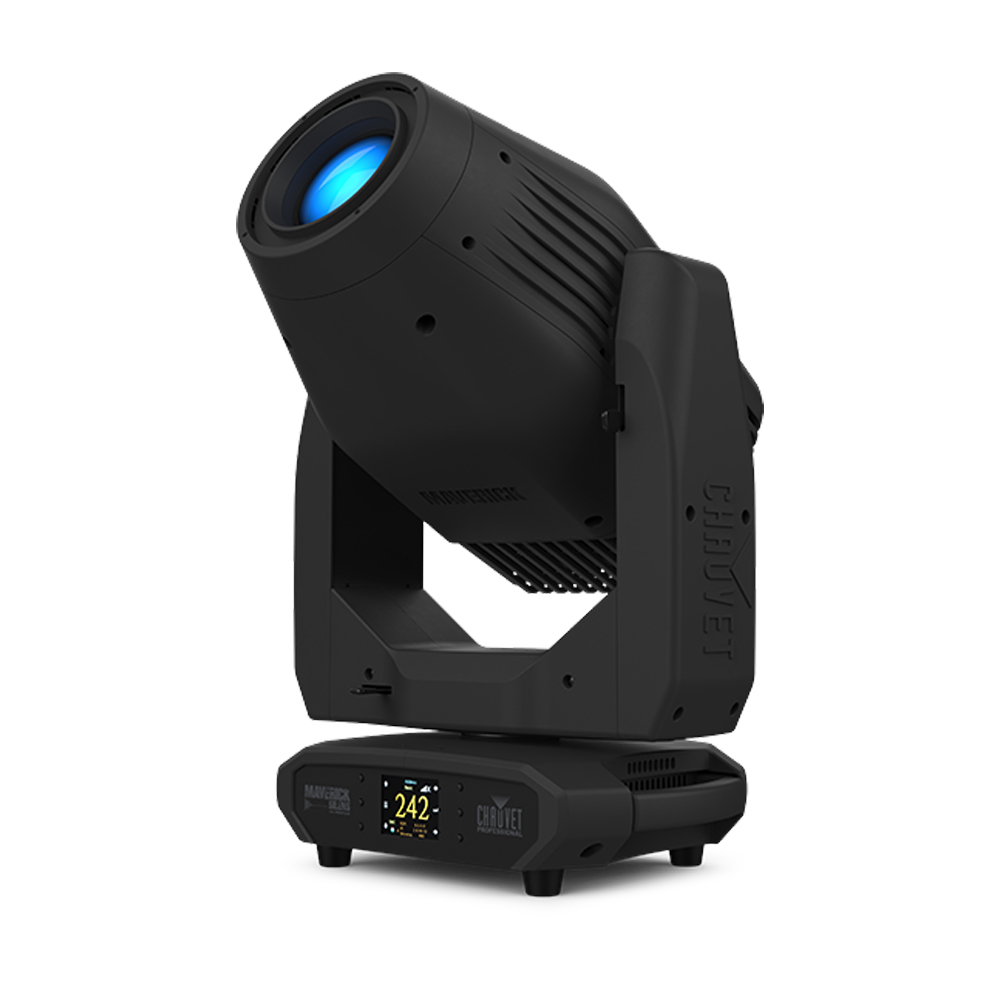

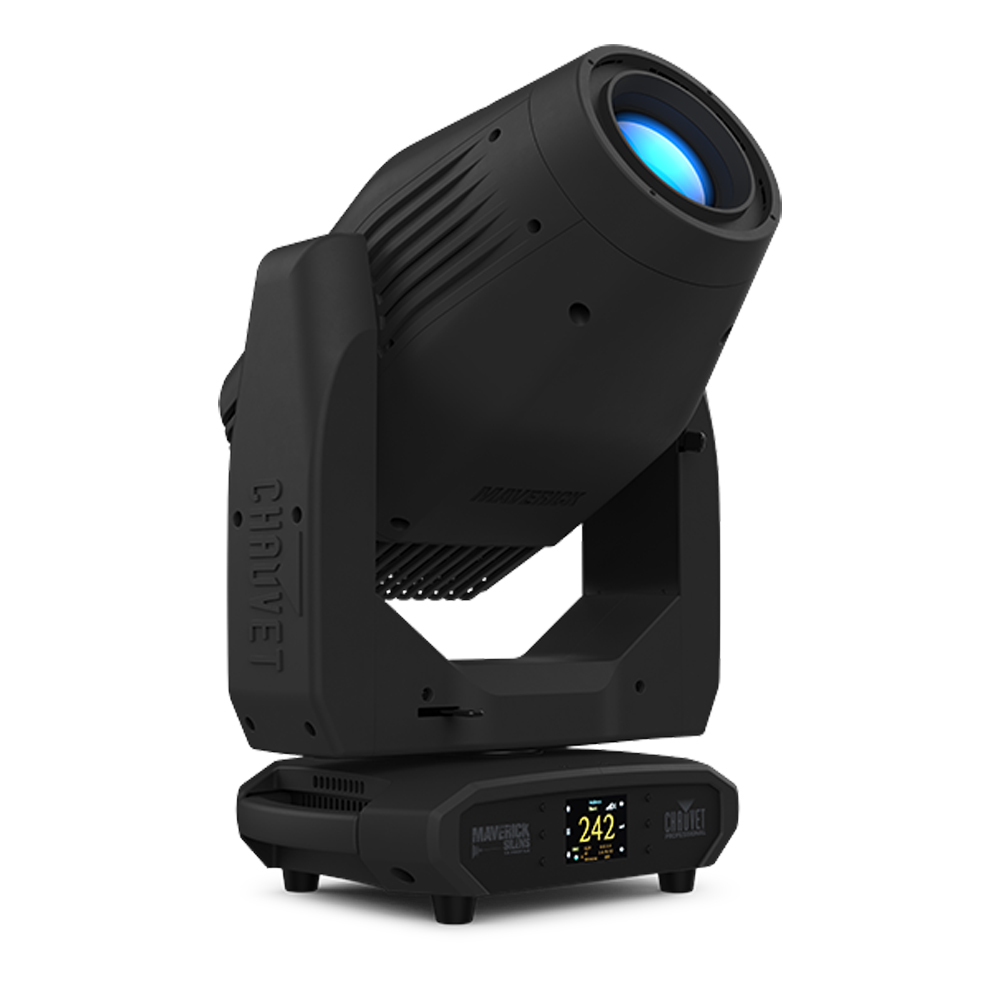

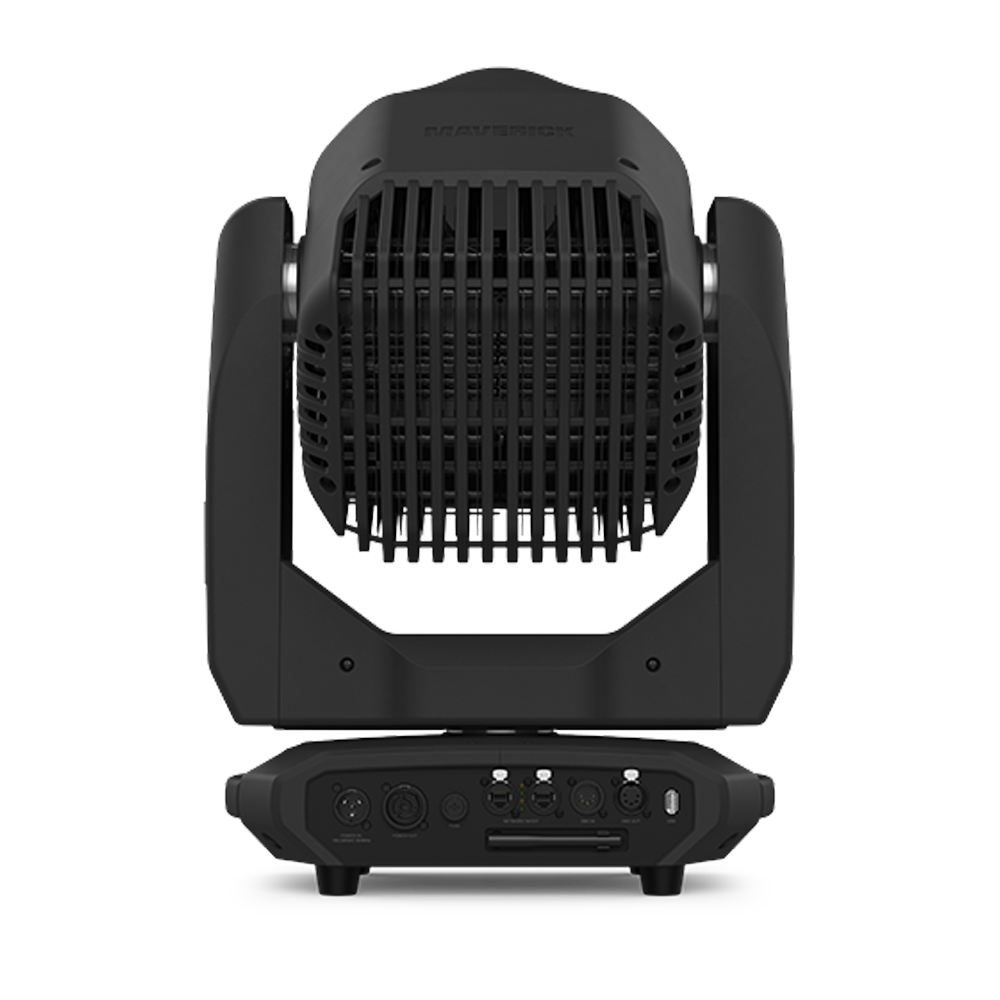

Chauvet Professional Maverick Silens 1X Profile（マーベリックサイレンス 1X プロファイル）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

Compact member of our award-winning Silens range. 430W 96+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring a single rotating gobo wheel, variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

特徴

Completely silent, fully featured 430 W 96+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and a rotating gobo wheel.
100% convection cooled for zero fan noise along with silent motion and effects
16-bit dimming with selectable red shift of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
One rotating gobo wheel with unique, theatrical based designs
Variable frost system
+ or – 60 degrees rotation framing shutter system to allow for better framing positioning.
Animation wheel for enhanced visual effects
Iris for total beam control
RDM control over DMX for fixture reporting
6° to 57°zoom angle for variable beam sizes
True 1 compatible power input and throughput
Battery backup display with auto-rotate depending on fixture orientation

仕様

Optical
Light Source: 1 LEDs (CW) 420 W, (12A), 50,000 hours life expectancy
Light Source: 1 LEDs (RGB) 13 W, (2.091A), 50,000 hours life expectancy
Color Temperature (range): 2569 to 6126 K
Color Temperature (at full): 6126 K
Front lens diameters: 106 mm
CRI: 97.1
Beam Angle: 6° to 48.4°
Field Angle: 7° to 53.4°
Cutoff Angle: 7.5° to 56.2°
Zoom Range: 6° to 56.2°
Lumens – Output: 6081
Illuminance (6°): 18,525 lux @ 5 m
Illuminance (56.2°): 398 lux @ 5 m
Selectable PWM: 20,000, 40,000

Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180°, 90° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 22.9 mm (outside), 15.5 mm (image), 1.1 mm (max. thickness)
Effect Wheel: 1 effect
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: MotorizedIris: Motorized
Prism: 5 Facets, round, motorized, rotating
Strobe Rate: 0 to 28.8 Hz
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 1.5 m

Control
Control Protocol: Art-Net, DMX, CRMX, RDM
DMX Channels: 31 or 39Art-Net Channels: 31 or 39Modes/Personalities: 2 personalities 31, 39)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
Power and Current: 441 W, 3.31 A @ 120 V, 60 Hz
Power and Current: 425 W, 1.91 A @ 208 V, 60 Hz
Power and Current: 422 W, 1.70 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -20 °C to 45 °C

What's Included
Maverick Silens 1X Profile
Seetronic Powerkon IP65 power cord2 Omega brackets with mounting hardware
Gel Frame Holder and Gel Frame
