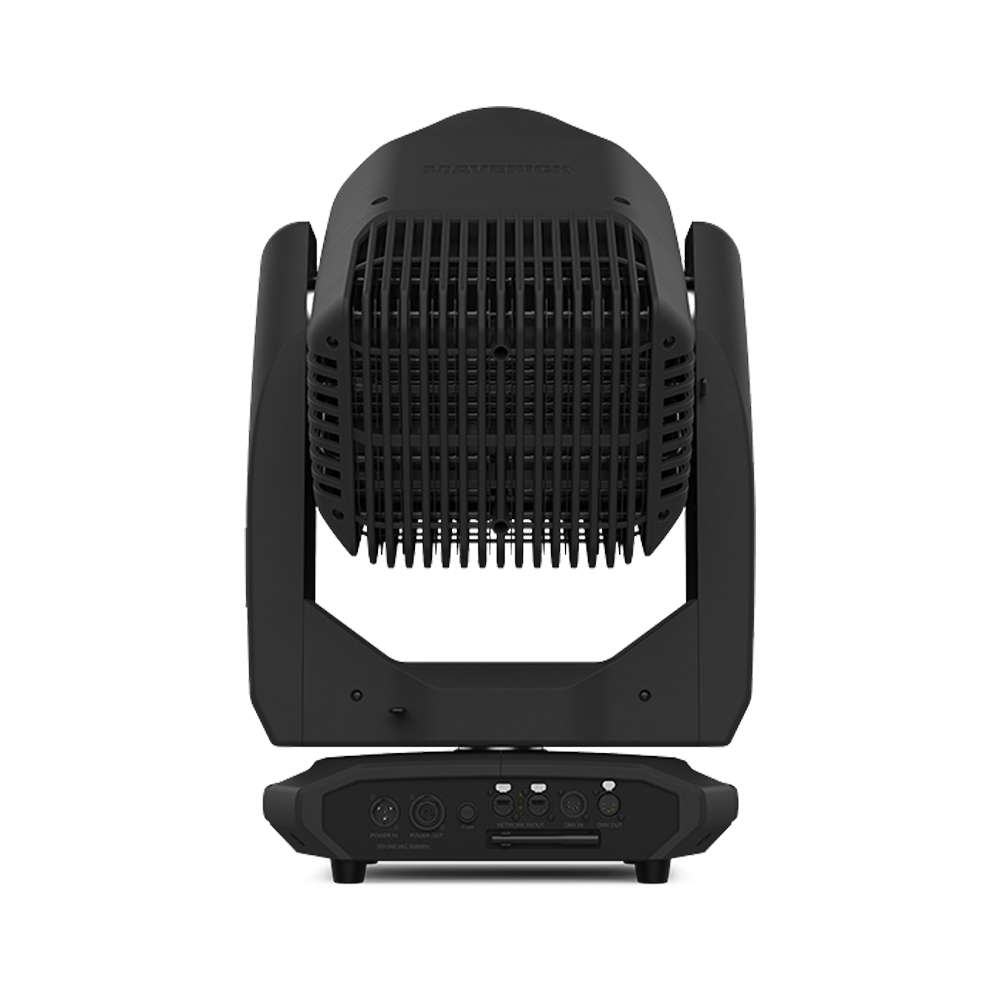

Chauvet Professional Maverick Silens 2X Profile（マーベリックサイレンス 2X プロファイル）

販売価格はお問い合わせください。

返品特約に関する重要事項

商品詳細

概要

Powerful member of our award-winning Silens range. 760W 94+ CRILED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring dual gobo wheels (rotating + static), variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

特徴

Completely silent, fully featured 760 W 94+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
100% convection cooled for zero fan noise along with silent motion and effects
16-bit dimming with selectable red shift of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
One rotating and one static gobo wheel with unique, theatrical based designs
Interchangeable gobos between rotating and static wheels
Variable frost system
+ or – 60 degrees rotation framing shutter system to allow for better framing positioning.
Animation wheel for enhanced visual effects
Iris for total beam control
RDM control over DMX for fixture reporting
5.5° to 57.9° zoom angle for variable beam sizes
True 1 compatible power input and throughput
Battery backup display with auto-rotate depending on fixture orientation

仕様

Optical
Light Source: 1 LEDs (CW) 750 W, (12 A), 6331 K, 30,000 hours life expectancy
Light Source: 1 LED (RGB) 13 W, (3.7 A), 50,000 hours life expectancy
Color Temperature (at full): 6317 K
CRI: 95.6TM-30 Rf: 93.2TM-30 Rg: 101.5
Front Lens Diameter: 138mm
Beam Angle: 5.5° to 49.9°
Field Angle: 6° to 53.1°
Zoom Range: 5° to 58°
Cutoff Angle: 6.2° to 57.9°
Zoom Range: 5.5° to 57.9°
Lumens – Source: XX
Lumens – Output: 11,227
Illuminance (5.5°): 30,672 lux @ 5 m
Illuminance (57.9°): 697 lux @ 5 m
Selectable PWM: 20,000, 40,000

Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 26.9 mm (outside), 22 mm (image)
Gobo Size: Gobo Wheel 2: 26.9 mm (outside), 22 mm (image)
Effect Wheel: 1 effect
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Variable Frost - MotorizedIris: Motorized – 15 Leaf
Prism: 5 Facets, round, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical
Exterior Color: Black
Housing Material: High-impact flame-retardant Polymer

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 1.5 m

Control
Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
DMX Channels: 32 or 41
Art-Net Channels: 32 or 41
Modes/Personalities: 2 personalities (32, 41)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
Power and Current: 650 W, 6.53 A @ 100 V, 60 Hz
Power and Current: 640 W, 5.45 A @ 120 V, 60 Hz
Power and Current: 639 W, 3.10 A @ 208 V, 60 Hz
Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz

Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -20 °C to 45 °C

What's Included
Maverick Silens 2 Profile
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Gel Frame Holder and Gel Frame
