Robe iProMotion（iプロモーション）
商品詳細
Elevate your bar, club, stage, or retail promotions to new heights with the cutting‑edge Robe iProMotion™ IP65‑rated moving head effects and video projector.
The sleek and compact iProMotion™ projector delivers a vibrant output of 1.000 ANSI Lumens using its enduring 20.000 hour LED source. With advanced RGB and CMY colour mixing capabilities, colour temperature control, digital gobos, graphic effects, and video projection, the possibilities are limitless - rain or shine!
Empowering creativity, iProMotion™ allows seamless uploads of custom artwork, photos, and videos, with live streaming input from external HD multimedia interfaces. Its 32 GB high-speed internal memory provides plenty of storage. As you would expect the iProMotion™ ensures precise control over projection including keystone, iris, grey box, and motorized focus adjustments.
Choose from two projection formats – 16 x 9 Landscape or 9 x 16 Portrait - to suit your artistic vision. The beam angle is 17-degrees, with an optional 26-degree lens available. For clarity and focus, the optional ADM™ Automatic Distance Meter ensures sharp projection without manual intervention.
Remote content management, with NAS client automatic content synchronization, and a real-time clock enable stop and start time of content, even in stand-alone operation.
Our innovative ingress protection system, featuring patented RAINS™ technology, actively regulates humidity, temperature, and pressure within the fixture, guaranteeing optimal performance. parCOAT™ lens coating technology ensures crisp projection regardless of weather conditions, with its oleophobic and hydrophobic repelling properties.
Crafted to endure extreme conditions, the iProMotion™ boasts POLAR+™ technology, enabling operation in temperatures as low as minus 50 degrees Celsius, perfect for outdoor applications in the harshest environments.
Weighing just 21 kg with its lightweight magnesium alloy construction and featuring network integration capability with CRMX wireless DMX control, the iProMotion™ sets a new standard for outdoor moving head projection and effects, delivering unmatched performance, resilience, and adaptability. Experience the future of visual innovation with iProMotion™.
Light source
High power RGB LED engine, Full HD resolution
Light output
comparable with 5000 lumen lamp projectors
Zoom range
17° (throw ratio 3.5:1) or 26° (throw ratio 2.3:1 wide lens option)
Effects
digital gobo wheel, effect wheel, videos, in-air effects, live input
Source
Light source type: RGB LED device
Lifetime:
20.000 hours
Eco mode: extended life time of LED source
Projector specification
Light output: 1000 ANSI lumens (Comparable with 5000 Lumen lamp projectors)
Projector version:
Landscape
Portrait
Aspect ratio: 16:9 / 9:16
Resolution: 1920 x 1080 / 1080 x 1920
Beam angle: 17°
Contrast ratio: 500:1
Throw ratio: 3.5:1
Display colours: 16.7 million colours
Optional wide lens: 26°
Throw ratio wide lens: 2.3:1
Main features
Colour mixing mode RGB/CMY
White light: Variable CCT 3.200K - 9.500K
Colour effect wheel with wide range of in-built effects (colour transitions and cross-fades, multiple colour images, rainbow effects)
Digital gobo wheel 1: with standard gobos, images and videos
Digital gobo wheel 2: with user´s gobos, images and videos
Gobo rotation and indexing
Video on/off and speed control
Effect wheel with wide range of graphic effects (Kaleidoscopic effect, fish eye, iris, zoom, swirl effect, pixelation effect, cross-stitching, posterization, and more…)
Effect speed control
Horizontal/Vertical keystoning
ADM™ Automatic distance meter: On request
Grey box correction
Motorised focus
Dimmer: 0 - 100%
Pre-programmed random strobe & pulse effects
POLAR+™ for power saving and instant operation in extremely cold weather conditions
Real Time Streaming Protocol (RTSP)
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance
Wireless CRMX™ technology from Lumen Radio
DMX Protocol modes: 2
Control channels: 25, 33
RTC (real-time clock): built-in device to keep track of actual time in order to start and stop playback at given time
Stand-alone operation
Content management
Remote content management
Internal storage: high speed internal memory for user content – 32 GB
NAS client: automatic content synchronization tool
Movement
Pan movement: 540°
Tilt movement: 250°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
Automatic Pan & Tilt position correction
MAPS™ - Motionless absolute positioning system for Pan and Tilt (Patented)
Optical system
parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt, dust, haze and smoke from adhering to the output lens
Hardware
Raspberry Pi, Model 3, 1GB
Operating system
Linux OS
Thermal specification
Maximum ambient temperature: 50°C
Maximum surface temperature: 80°C
Minimum operating temperature: -50°C

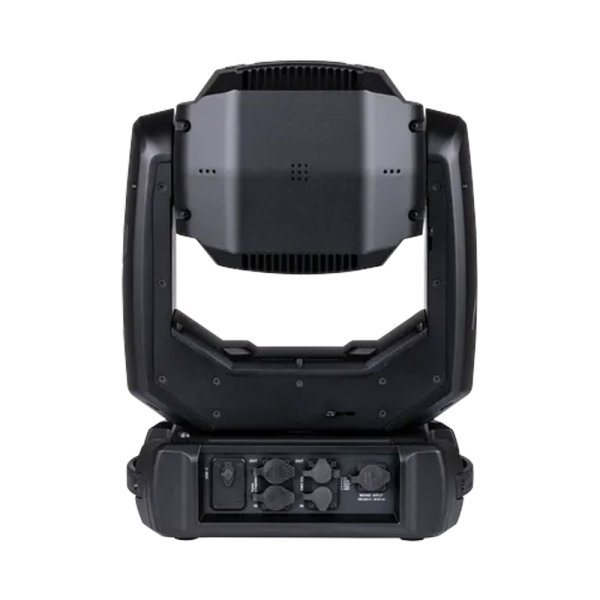

Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 140 W
Power connector in/out: Neutrik powerCON TRUE1 in/out
DMX and RDM data in/out: Locking 5-pin XLR
Ethernet port in/out: IP65 RJ45 for Embedded Epass™ switch 10/100 Mbps
Ingress protection rating: IP65
Approvals
CE Compliant
cETLus Compliant
Rigging
Mounting points: 1 pair of 1/4-turn locks
1x Omega adaptor with 1/4-turn quick locks
Universal operating position
Safety cable attachment point
Included items
User Manual
Omega Adaptor CL-regular: 2 pcs 10980033
Power cord including powerCON TRUE1 In connector:
US:13052277-01
EU:13052276-01
Height: 649mm - Head in vertical position
Width: 390 mm
Depth: 235mm - Head in vertical position
Weight: 21.3 kg
■メーカーサイト
https://www.robe.cz/ipromotion
